On sale sku: spw-acc-reg10

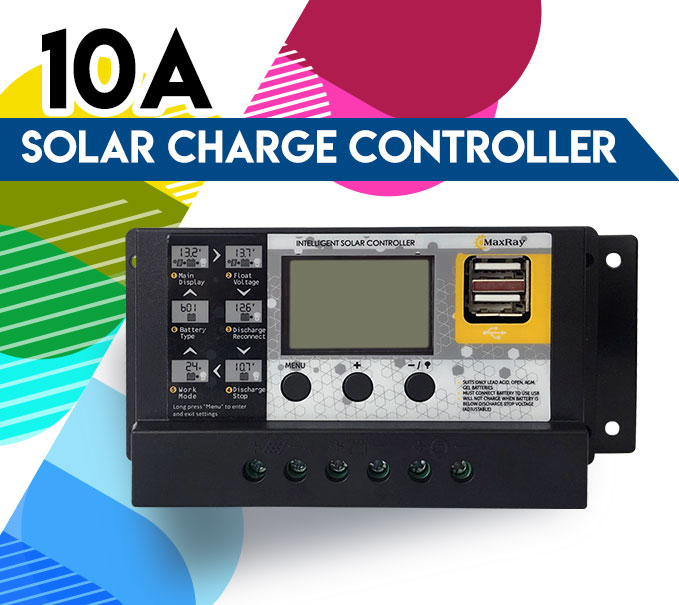

MaxRay 10A 12V/24V Solar Panel Regulator Controller with USB

In stock, shipped within 24 hours
Enjoy Free Shipping
Original price: $49.00
$49.00
41% instant savings: $20.00
$20.00
$29.00
$29.00

60 days to return your product    ♦    12 months warranty    ♦    100% secured payment and data    ♦    60 days to return your product
12 months warranty
100% secured payment and data

. . . .
Shop now, pay later, interest free
. .

This product is selling fast.
Hurry and order now to save 41%

Product highlights:
  • 12V/24V LCD display
  • Built-in industrial micro controller
  • Fully 4-stage Charge management
  • LCD display Solar Controller Charge with 2 USB port
  • Suitable for lead acid batteries OPEN, AGM, GEL & Lithium LiFePO4

Calculate Shipping cost and delivery date:

Calculate Shipping cost and delivery date

60 days to return your product    ♦    12 months warranty    ♦    100% secured payment and data    ♦    60 days to return your product
12 months warranty
100% secured payment and data

. . . .
Shop now, pay later, interest free
. .

Product highlights:
  • 12V/24V LCD display
  • Built-in industrial micro controller
  • Fully 4-stage Charge management
  • LCD display Solar Controller Charge with 2 USB port
  • Suitable for lead acid batteries OPEN, AGM, GEL & Lithium LiFePO4

. Questions? Ask one of our camping and outdoor expert!
Call us now at 02 888 10 333 or live chat

We're your Camping & Outdoor experts. Need help? Call 02 888 10 333 or live chat

We're your Camping & Outdoor experts. Need help? Call 02 888 10 333 or live chat

This Maxray 10A 12V/24V Solar Panel Battery Regulator Charge Controller with USB is all you need to keep your power going on the road.

In addition to a built-in LCD display, this regulator comes with:

  • Built-in industrial micro controller
  • Fully 4-stage charge management
  • Solar Controller Charge with USB X 2
  • Dual mosfet reverse current protection and low heat production

This regulator is suitable for charging lead acid and lithium/LiFePO4 batteries

What is a solar panel regulator and what does it do?

A solar charge controller manages the power going into the battery bank from the solar array. It ensures that the deep cycle batteries are not overcharged during the day, and that the power doesn’t run backwards to the solar panels overnight and drain the batteries. Some charge controllers are available with additional capabilities, like lighting and load control, but managing the power is its primary job.

A solar charge controller is available in two different technologies, PWM and MPPT. How they perform in a system is very different from each other. An MPPT charge controller is more expensive than a PWM charge controller, and it is often worth it to pay the extra money.

PWM SOLAR CHARGE CONTROLLER
A PWM solar charge controller stands for “Pulse Width Modulation”. These operate by making a connection directly from the solar array to the battery bank. During bulk charging, when there is a continuous connection from the array to the battery bank, the array output voltage is ‘pulled down’ to the battery voltage. As the battery charges, the voltage of the battery rises, so the voltage output of the solar panel rises as well, using more of the solar power as it charges.

As a result, you need to make sure you match the nominal voltage of the solar array with the voltage of the battery bank. *Note that when we refer to a 12V solar panel, that means a panel that is designed to work with a 12V battery. The actual voltage of a 12V solar panel, when connected to a load, is close to 18 Vmp (Volts at maximum power). This is because a higher voltage source is required to charge a battery. If the battery and solar panel both started at the same voltage, the battery would not charge.

A 12V solar panel can charge a 12V battery. A 24V solar panel or solar array (two 12V panels wired in series) is needed for a 24V battery bank, and 48V array is needed for 48V bank. If you try to charge a 12V battery with a 24V solar panel, you will be throwing over half of the panel’s power away. If you try to charge a 24V battery bank with a 12V solar panel, you will be throwing away 100% of the panel’s potential, and may actually drain the battery as well.

SPECIFICATIONS

Rated Voltage: 12V 24V auto
Rated Current: 10A
Temperature Range: -35°C to 60°C
Application: Solar System Controller
Material: ABS
Charging Type: DC
Max PV Voltage: <50V
USB Output: 5V2A
Max PV Input Power: 130W (12V) 260W (24V)
Over Charge Current(V): 14.4V
Over Discharge Current(V): 10.7V
Temperature Compensation: -
Empty Load Wastage: 10mA-20mA
Loop Voltage Drop: 150mΩ
Display: LCD
Output Voltage: 10.7V-14.4V
Battery Voltage: 12V-24V
Full Voltage Cut-Off: 14.4V
Low Voltage Cut-Off: 10.7V

DIMENSIONS & WEIGHT

Dimensions: 134x70x32mm
Weight: 0.2KG

WHAT'S IN THE BOX

1 x 10A MaxRay Solar Controller

SKU: spw-acc-reg10

  • Your item will be shipped next business day.
  • On average, items are delivered between 3 to 7 business days following shipping around Australia.
  • Check out our shipping and delivery calculator above for more information.
  • Disclaimer: Items are made in China but being shipped from AU
  • Outbax offers a 12-month warranty on all products from the date of purchase unless otherwise stated. Outbax warrants its products against defects in materials and/or workmanship. This is further to your rights under Australian Consumer Law.
  • Outbax products come with a 60-day money-back guarantee. You must contact us within 60 days of receiving the product and it must return in its original condition.
