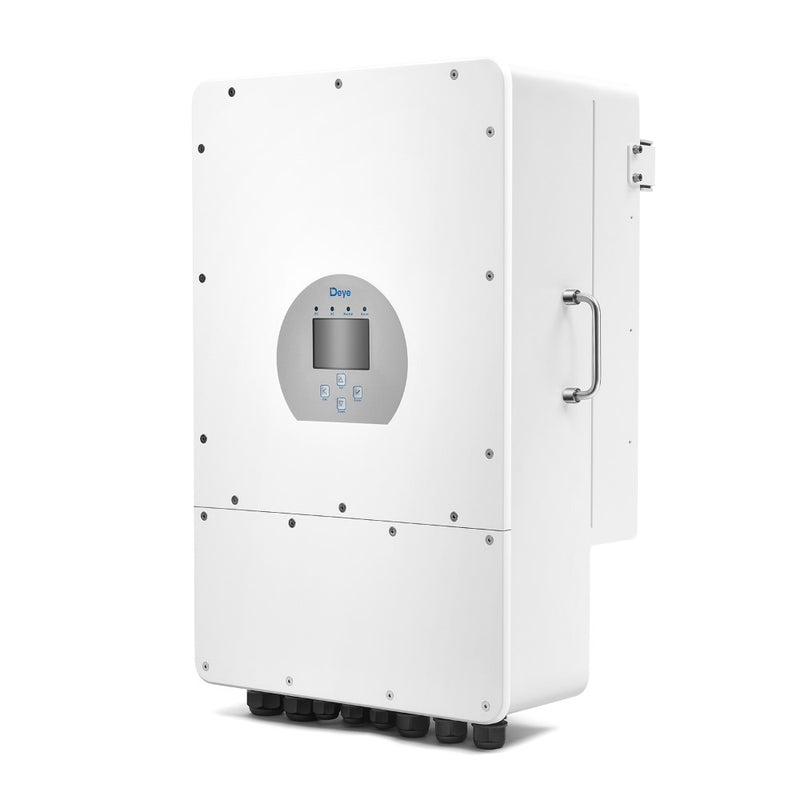

Deye 48V 12KW Hybrid Solar Inverter MPPT Charger Regulator Low Voltage
Couldn't load pickup availability
60 Days
Return
120 Months
Warranty
100% Secured
Payment & Data
DEYE ULTIMATE PRICE CUT
PLUS a further 40% off
Pay only $4,019.40
Hurry! Promo ends 31/03/25 11:59 PM AEDT.
Use Code:
DEYE40
Selling fast. Hurry and order now to save 43%
PRODUCT HIGHLIGHTS
- Parallel-capable up to 16pcs
- 6 time periods for battery charging/discharging
- DC couple and AC couple to retrofit existing solar system
- IP65 waterproof rating
- 48V low voltage battery, safe and reliable
The Deye 12kW Hybrid Solar Inverter MPPT Charge Controller is ideal for anyone looking for dependable access to off-grid or on-grid solar power.
Whether you want to keep your appliances running during a power outage or reduce your monthly energy bills with less grid dependence, this is the best pair to any solar & battery storage system.
An on-grid inverter’s main job is to convert DC power generated from the PV array into usable AC power. Hybrid inverters go a step further and work with batteries to store excess power as well. It also boasts a triple function: inverter, solar charger, and battery charger.
This is a real win in efficiency with an overall rating of up to 97.06%. Experience industry-leading power output, an unrivalled versatility that supports storing energy from a diesel generator, and a super fast 4ms transfer from on-grid to off-grid mode in one easy-to-operate device.
Stop wasting money on inefficient, overpriced inverters. Invest in one of our versatile and effective hybrid solar inverters today!
SPECIFICATIONS
| Installation Style: | Wall-mounted |
| Operating Temperature Range: | -40~60℃, >45℃ derating |
| Cooling: | Smart Cooling |
| Noise level: | <45 dB |
| Communication with BMS： | RS485; CAN |
| Protection Degree: | IP65 |
| Warranty: | 10 Years |
BATTERY INPUT DATA
| Battery Type: | Lead-acid or Lithium-ion |
| Battery Voltage Range: | 40~60V |
| Max. Charging Current: | 240A |
| Max. Discharging Current: | 240A |
| External Temperature Sensor: | Yes |
| Charging Curve: | 3 Stages / Equalization |
| Charging Strategy for Li-Ion Battery: | Self-adaption to BMS |
PV STRING INPUT DATA
| Max. DC Input Power: | 15600W |
| Rated PV Input Voltage: | 550V (160-800) |
| Start-up Voltage: | 160V |
| MPPT Voltage Range: | 200-650V |
| Full Load DC Voltage Range： | 350-650V |
| PV Input Current: | 26+13A |
| Max. PV ISC: | 39+19.5 |
| Number of MPPT / Strings per MPPT: | 2/1+1 |
AC OUTPUT DATA
| Rated AC Output and UPS Power (VA): | 12000 |
| Rated Apparent Output Power: | 12000W |
| Max. AC Output Power: | 12000W |
| Rated AC Output Current: | 17.4A |
| Max. AC Output Current: | 17.4A |
| Max. Three-phase Unbalanced Output Current: | 26.1A |
| Max. Continuous AC Passthrough: | 45A |
| Peak Power (off grid): | 2 time of rated power, 10 S |
| Power Factor: | 0.8 leading to 0.8 lagging |
| Output Frequency and Voltage: | 50Hz; 3L/N/PE 400V/340V-440V 415V/353V-456.5V |
| Grid Type: | Three Phase |
| Total Harmonic Distortion (THD): | <3% (of nominal power) |
| DC Current Injection: | <0.5% In |
| Efficiency： |
Max. Efficiency：97.60% Euro Efficiency：97.00% MPPT Efficiency: 99.90% |
| Protection: | PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge protection |
| Output Over Voltage Protection: | DC Type II/AC Type III |
CERTIFICATIONS & STANDARDS
| Grid Regulation: | AS/NZS 4777.2 |
| Safety EMC / Standard: | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
DIMENSIONS & WEIGHT
| Weight： | 33.6kg |
| Size: | 422(W) x 702(H) x 281(D)mm |
SKU:
| dy-ivt-12k-sg04lp3 |
