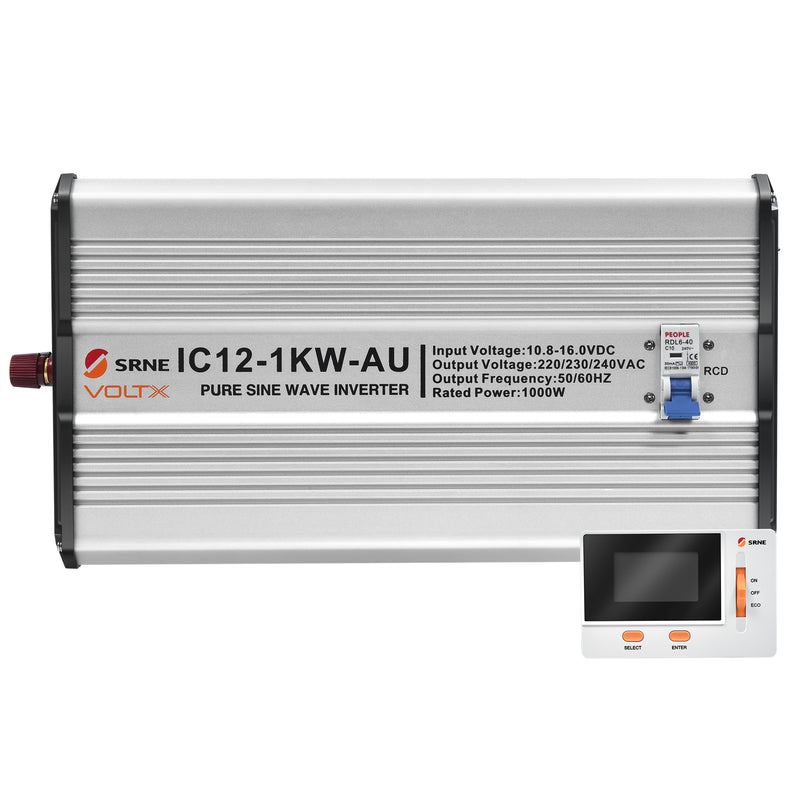

VoltX 12V 1KW Pure Sine Wave Inverter
Couldn't load pickup availability
60 Days
Return
36 Months
Warranty
100% Secured
Payment & Data
Selling fast. Hurry and order now to save 38%
PRODUCT HIGHLIGHTS
- Multiple operating modes for maximum power savings
- Diverse expansion interfaces for versatility
- Low harmonic distortion rate
- Advanced SPWM modulation technology
- Bluetooth-compatible for easy operation
The VoltX High Frequency Pure Sine Wave Power Inverter 1kW is one of the best upgrades you can add to any off-grid system. Unlike modified sine wave inverters, this one produces cleaner, more stable electricity perfect for operating your daily appliances with zero interruptions.
Many off-grid inverters require a 12V solar inverter to power everyday electronics. Ours takes this task a notch higher by including multiple protections to run things smoothly and safely.
Quality Power, Top-Notch Performance
Fusing an advanced SPWM modulation technology with pure sine wave output, this inverter produces only the finest power quality. It also delivers impressive conversion efficiency and helps minimise losses with a low harmonic distortion rate. Get a smooth run time, extended lifespan, and full power even after long hours of operation in just a single device.
Smart Operation
This power inverter is designed for everyday convenience. Check your operating parameters via mobile app. Connect your inverter to your phone via Bluetooth. Feature-packed & easy to operate, you'll definitely love having this around.
Maximum Safety
Power everything safely with an inverter that has a battery over-voltage and over-discharge protection, output overload and short circuit protection, and over-temperature protection. It's one less thing to worry about, giving you extra peace of mind while keeping your electronics running.
*there is no reverse connection protection, please do not reverse the connection
Turn off-grid living into a breeze today. Get your VoltX Power Inverter now!
SPECIFICATIONS
| Rated Output Power: | 1000W |
| Rated Output Power VA: | 2000VA |
| Withstand Instantaneous Impact Power: | 2000W |
| Rated Output Voltage: | 220VAC/230VAC/240VAC(±3%) |
| Output Frequency: | 50/60HZ(±0.2%) |
| Output Wave: | Pure sine wave |
| Output Harmonic Component: | THDV > 3% (pure resistance load) |
| Load Power Factor: | 0.2-1 (load power ≤ output continuous power) |
| Rated Input Voltage: | 12VDC |
| Input Voltage Range: | 10.8~16.0VDC |
| Rated Output Efficiency: | >90% |
| Maximum Output Efficiency: | > 93.5% (30% overload) |
| Standby Current: | <0.26A |
| No-load Current: | <0.8A |
| USB Interface: | Dual USB output, 5VDC/2A |
| ON/OFF/ECO Mode: | ON - AC normal output OFF - no AC output, standby ECO - energy-saving mode, auto switch |
| ECO Starting Power: | ＜30W |
| ECO Interval Time: | 1min |
| TTL Interface: | Non-isolated TTL communication, power supply 12.5V/200mA |
| Indicator: | Green - normal operation; Red - fault |
| External Switch Contact Interface: | Switch on or off by control equipment such as external relay and mechanical switch |
| Protection Function: | Input over-voltage/over-discharge protection, output overload/short-circuit protection, and device over-temperature protection |
| Operating Ambient Temperature: | -20℃~60℃ |
| Storage Ambient Temperature: | -35℃~80℃ |
| Relative Humidity: | ≤95% |
| IP Grade: | IP20 |
| Heat-dissipating Method: | Natural heat dissipation + intelligent air cooling |
| Noise Level: | ≤45dB |
| Warranty: | 3 Years |
DIMENSIONS & WEIGHT
| Dimensions: | 344 x 188 x 84mm |
| Mounting Hole Spacing: | 328 x 105mm |
| Fixed Hole Position: | 5mm |
| Net Weight: | 3.7kg |
