PRODUCT HIGHLIGHTS
- Parallel-capable up to 16pcs
- 6 time periods for battery charging/discharging
- DC couple and AC couple to retrofit existing solar system
- IP65 waterproof rating
- 48V low voltage battery, safe and reliable
Calculate shipping cost
Smart Hybrid Energy Management for Modern Solar Systems

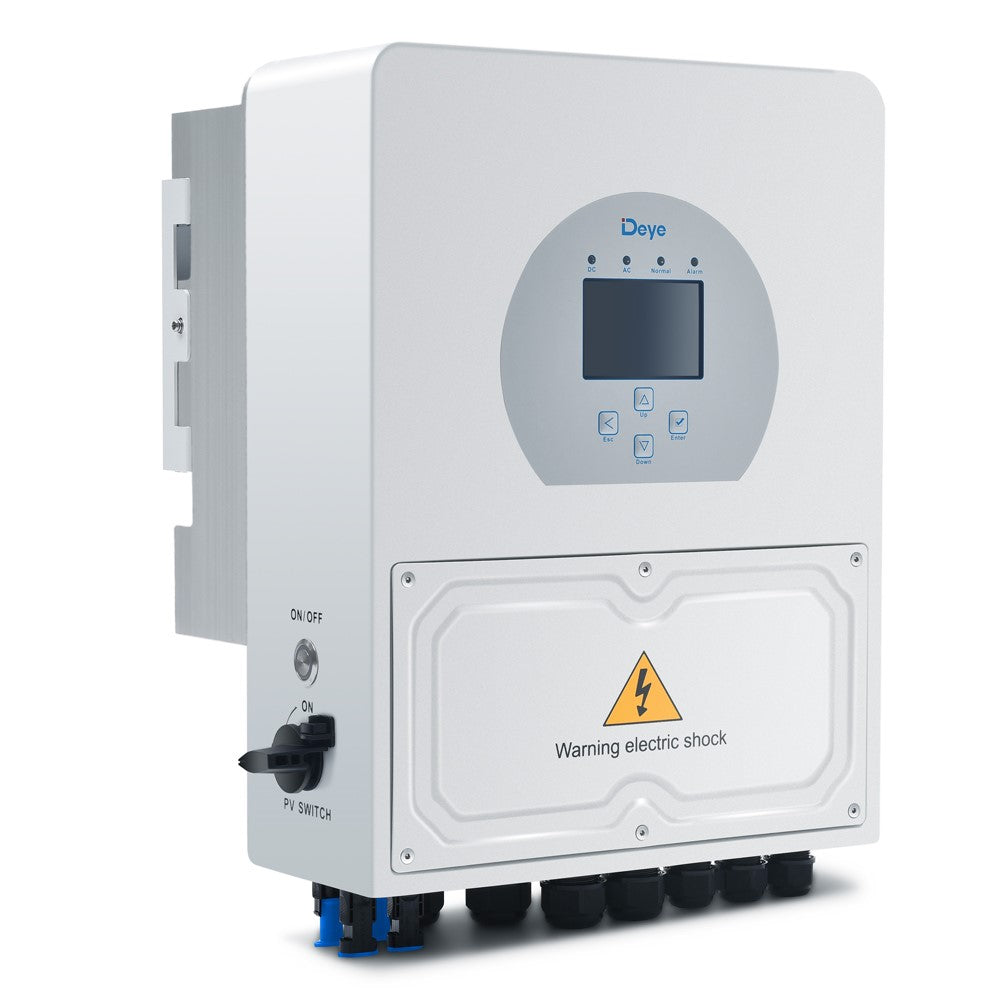

The Deye 48V 5kW Hybrid Solar Inverter is a powerful and flexible power inverter designed to maximise the performance of your solar setup. This advanced hybrid inverter integrates inverter functionality, battery charging, and intelligent solar management into one compact unit. Built to support 48V battery systems, it delivers reliable power conversion while helping households store and manage solar energy more efficiently.
Efficient 5kW Power for Everyday Energy Needs
Delivering a dependable 5kW output, this single-phase inverter efficiently powers essential home appliances while optimising solar generation. It converts DC energy from your solar panels into usable AC power, ensuring smooth and stable electricity supply throughout your home.
Intelligent Solar Charging with Dual MPPT
Equipped with dual PV inputs and a built-in MPPT controller, this solar power inverter maximises solar energy harvest even when sunlight conditions vary. The integrated solar charge controller efficiently regulates charging for your battery system, improving overall solar efficiency and energy storage.
Advanced Hybrid Power Control
This versatile 48V inverter supports solar, battery, grid, and generator inputs, allowing you to manage multiple energy sources within a single system. The inverter can even store energy from diesel generators, making it an excellent option for backup or off-grid power solutions.
Flexible Expansion for Growing Energy Systems
Designed for scalability, this hybrid inverter supports up to 16 units operating in parallel. This makes it suitable for expanding residential solar systems or building larger energy setups that require higher capacity.
Built for Reliability and Smart Monitoring

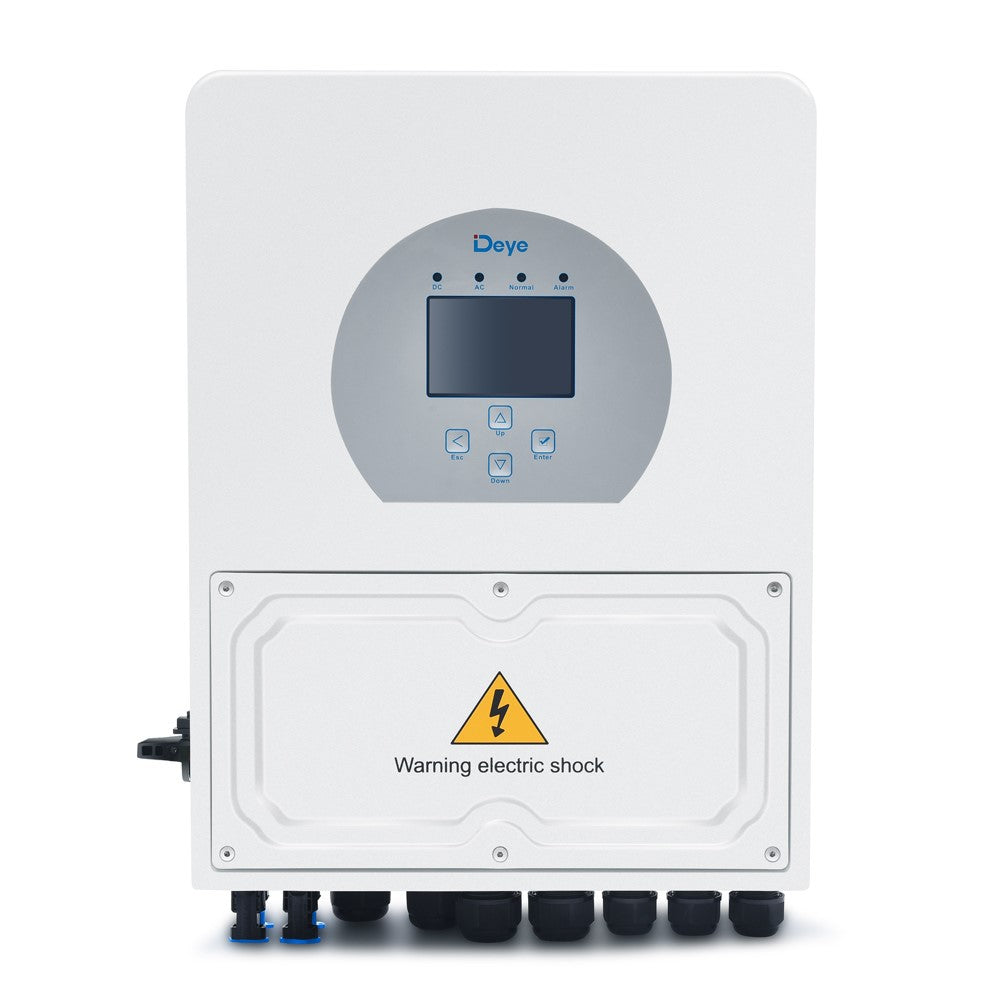

With its durable IP65-rated enclosure and colourful touch LCD interface, it is built for convenient monitoring and long-term performance. Users can also track system performance through the intelligent monitoring platform via mobile or PC, while the 10-year warranty provides dependable long-term support.
SPECIFICATIONS
| Brand: | Deye |
| Installation Style: | Wall-mounted |
| Operating Temperature Range: | -40~60℃, >45℃ derating |
| Cooling: | Nature Cooling |
| Noise level: | <30 dB |
| Communication with BMS： | RS485; CAN |
| Protection Degree: | IP65 |
| Warranty: | 10 Years |
BATTERY INPUT DATA
| Battery Type: | Lead-acid or Lithium-ion |
| Battery Voltage Range: | 40~60V |
| Max. Charging Current: | 120A |
| Max. Discharging Current: | 120A |
| Charging Curve: | 3 Stages / Equalization |
| External Temperature Sensor: | Yes |
| Charging Strategy for Li-Ion Battery: | Self-adaption to BMS |
PV STRING INPUT DATA
| Max. DC Input Power: | 6500W |
| Rated PV Input Voltage: | 370V (100~500) |
| Start-up Voltage: | 125V |
| MPPT Voltage Range: | 125-425V |
| Full Load DC Voltage Range： | 240-425V |
| PV Input Current: | 13+13A |
| Max. PV ISC: | 17+17A |
| Number of MPPT / Strings per MPPT: | 2/1+1 |
AC OUTPUT DATA
| Rated AC Output and UPS Power (VA): | 5000 |
| Max. AC Output Power: | 5000W |
| AC Output Rated Current: | 21.7A |
| Max. AC Current: | 21.7A |
| Max. Continuous AC Passthrough: | 35A |
| Peak Power (off grid): | 2 time of rated power, 10 S |
| Power Factor: | 0.8 leading to 0.8 lagging |
| Output Frequency and Voltage: | 50Hz/45Hz-55Hz; L/N/PE 230V/ 195.5V-253V, 240V/204V-264V |
| Grid Type: | Single Phase |
| DC injection current (mA): | THD<3% (Linear load<1.5%) |
| Efficiency： |
Max. Efficiency：97.60% Euro Efficiency：97.00% MPPT Efficiency: 99.90% |
| Protection: | PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge protection |
| Output Over Voltage Protection: | DC Type II/AC Type III |
CERTIFICATIONS & STANDARDS
| Grid Regulation: | AS/NZS 4777.2 |
| Safety EMC / Standard: | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
DIMENSIONS & WEIGHT
| Weight： | 15.1kg |
| Size: | 330(W) x 433(H) x238(D)mm |
WHAT'S IN THE BOX
| 1x | Hybrid Inverter |
| 1x | Wall Mounting Bracket |
| 1x | Set of Stainless Steel Anti-collision Bolt M6 x60 x4 |
| 1x | Set of Stainless Steel Mounting Screws M4 x12 x2 |

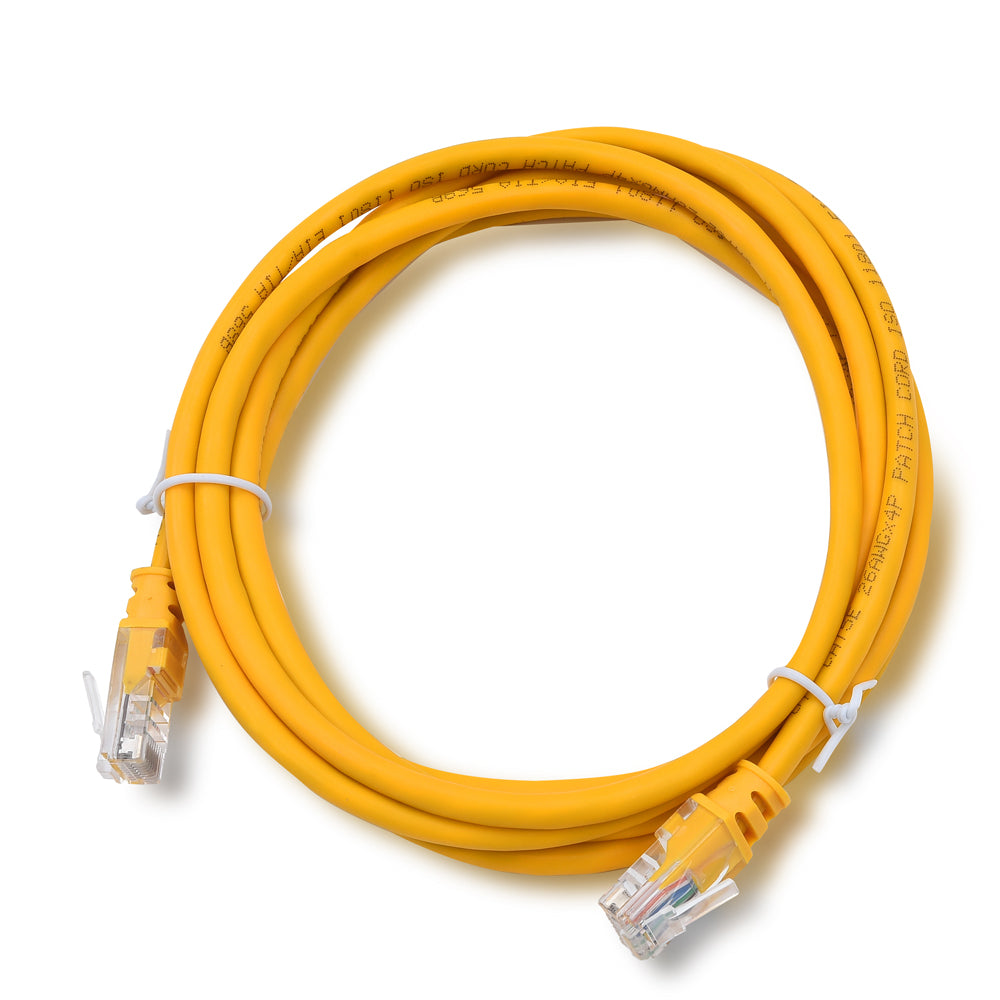

| 1x | Parallel Communication Cable |
| 1x | L-type Hexagon Wrench |
| 1x | Wi-Fi Plug |

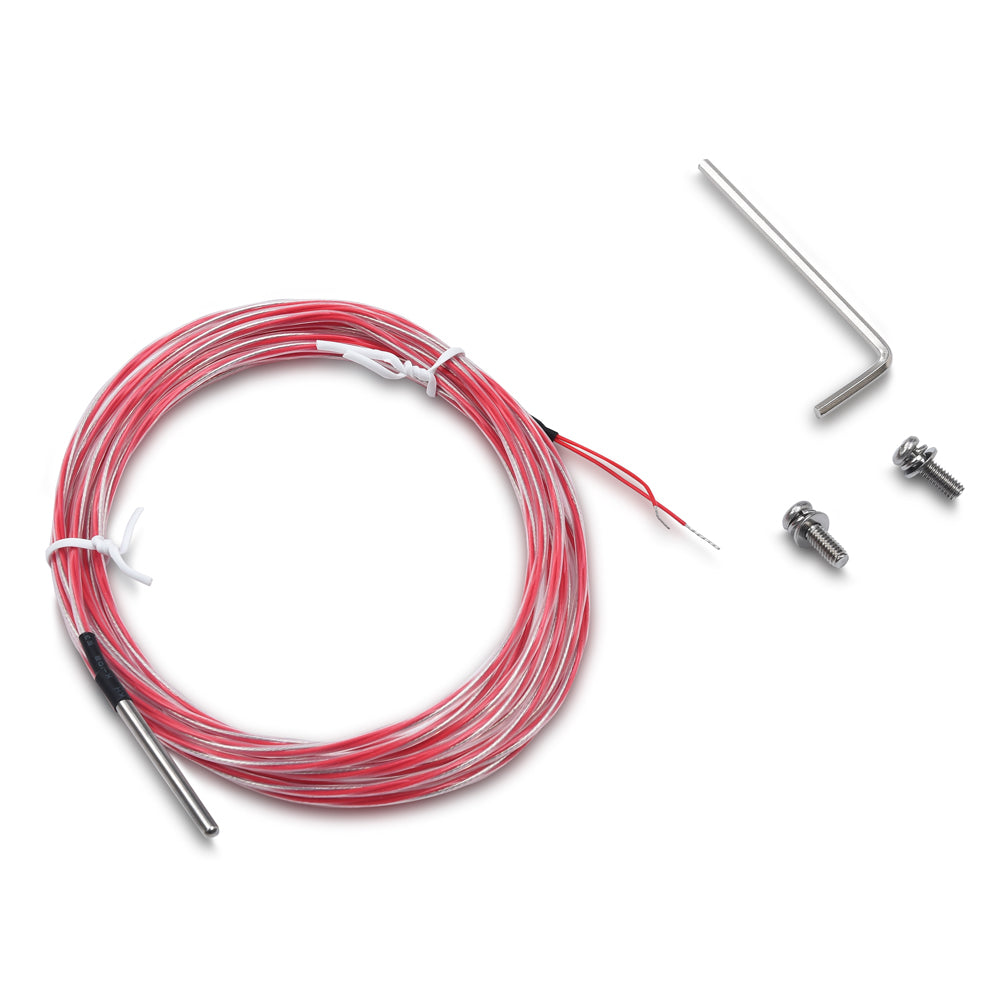

| 1x | Battery Temperature Sensor |

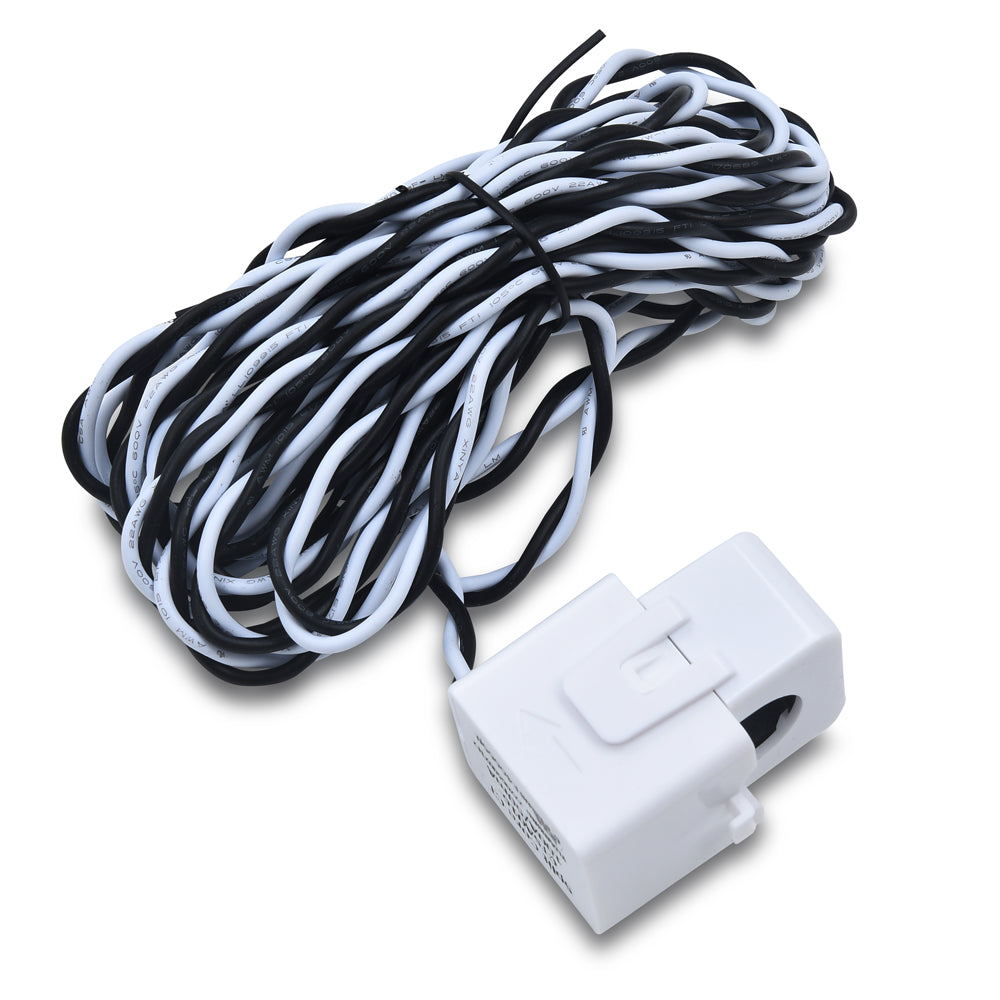

| 1x | Sensor Clamp |
| 1x | User Manual |
SKU:
| dy-ivt-5k-sg04lp1 |
