PRODUCT HIGHLIGHTS
- Slimblade LiFePO4 comprised of prismatic cells & a built-in BMS
- High energy density for increased capacity in lightweight form
- 94% charger efficiency rate and Bluetooth connectivity
- Victron top quality charger with adaptive 6-stage charge algorithm
- Ideal combo for outdoor recreational, backup, and off-grid applications

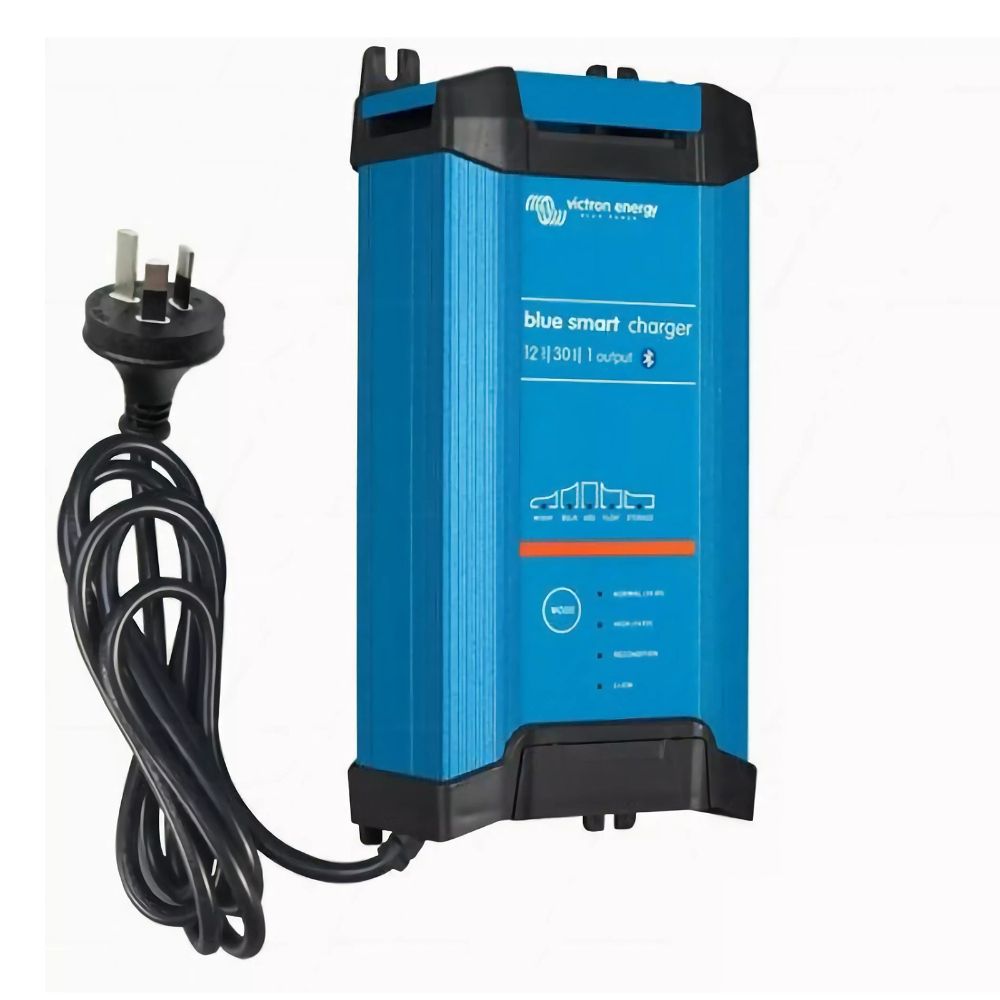

MODEL 1: Victron Blue Smart IP22 SLA/LiFePO4 Charger
The Victron Blue Smart IP22 Charger is for every modern-day battery user. Equipped with advanced settings, this alLows for convenient recharging, monitoring of voltage and current, and adjustment of settings
High Efficiency
Boasting up to 94% of efficiency, this charger tops up batteries in no time. It also generates up to four times less heat, and once the battery is fully charged, power consumption is reduced to five or even 10 times better than the industry standard.
Adaptive 6-Stage Charge Algorithm
The Victron Smart charger features a 6-stage algorithm: test - bulk – absorption - recondition – float – storage. It also has a microprocessor-controlled ‘adaptive’ battery management, which alLows for an optimised charging process in accordance to the way the battery is being used.
Storage Mode
The storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the storage mode, float voltage is reduced to 2,2V/cell (13,2V for a 12V battery) to minimise gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalise’ the battery. This feature prevents stratification of the electrolyte and sulfation, a major cause of early battery failure.
Night and Low Setting
When in Night or Low mode, the output current is reduced to max. 25% of the nominal output and the charger operates without any noise. The Night mode automatically ends after 8 hours, while the Low mode can be ended manually.
Protected Against Overheating
Output current will reduce as temperature increases up to 50°C, without compromising the performance of the charger itself.

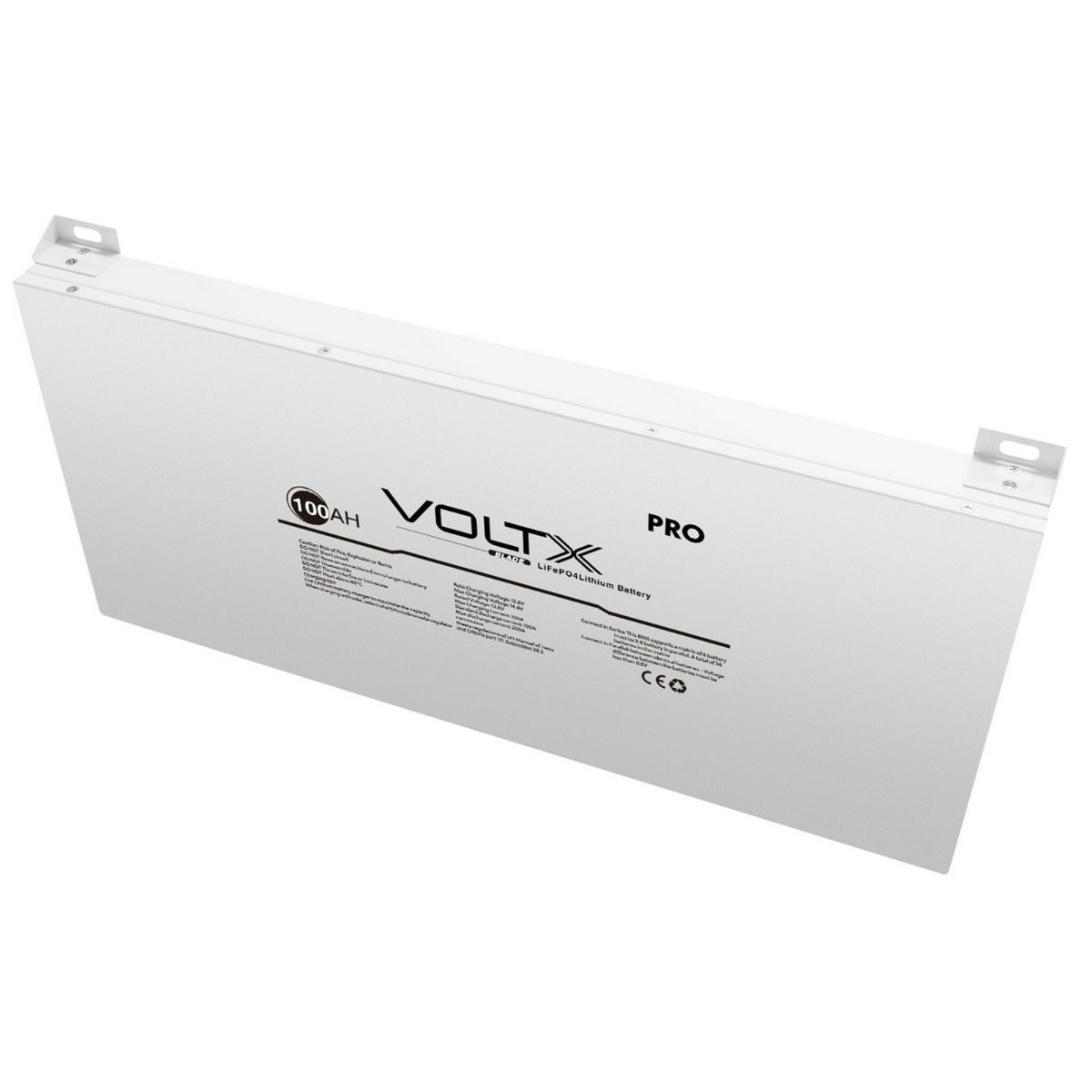

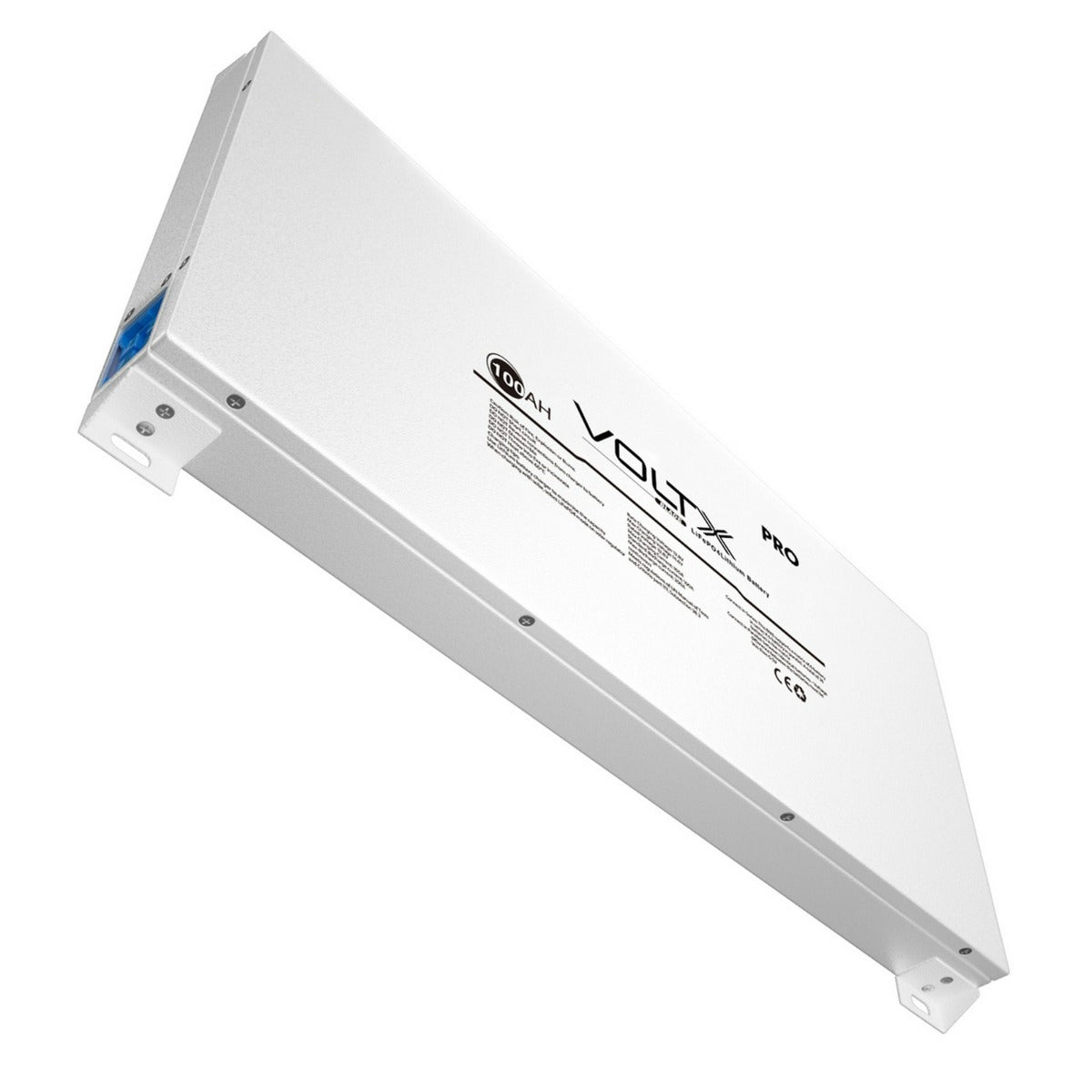

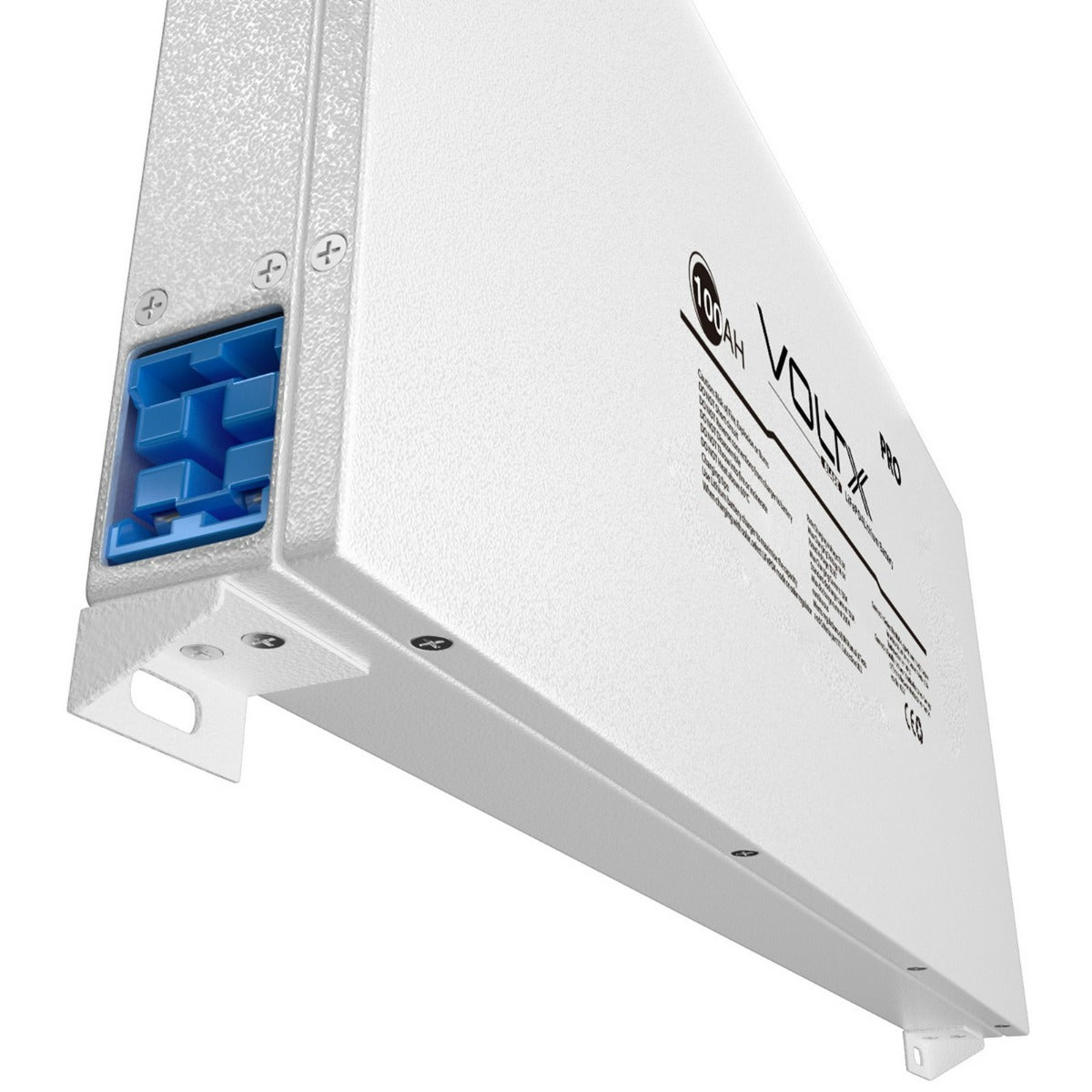

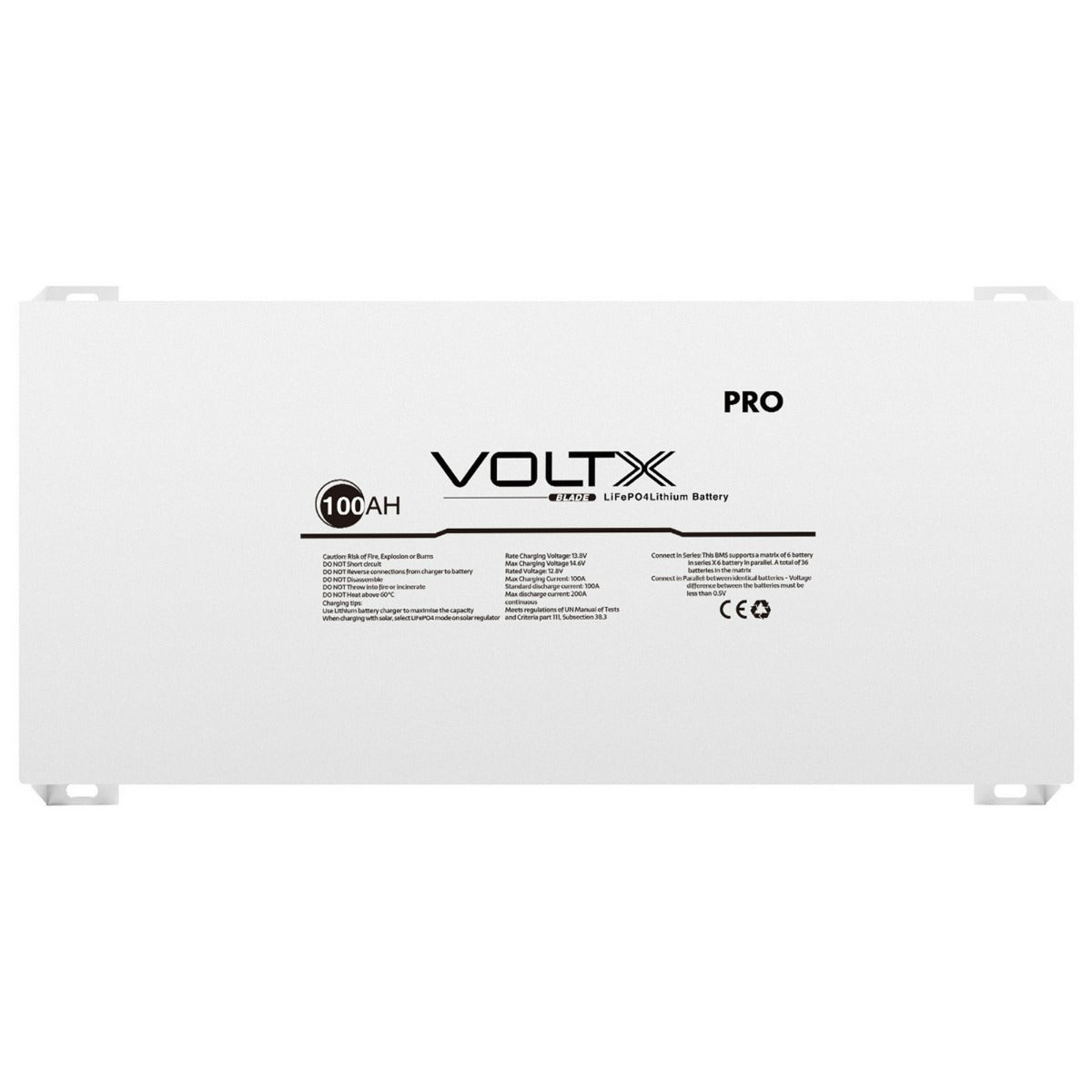

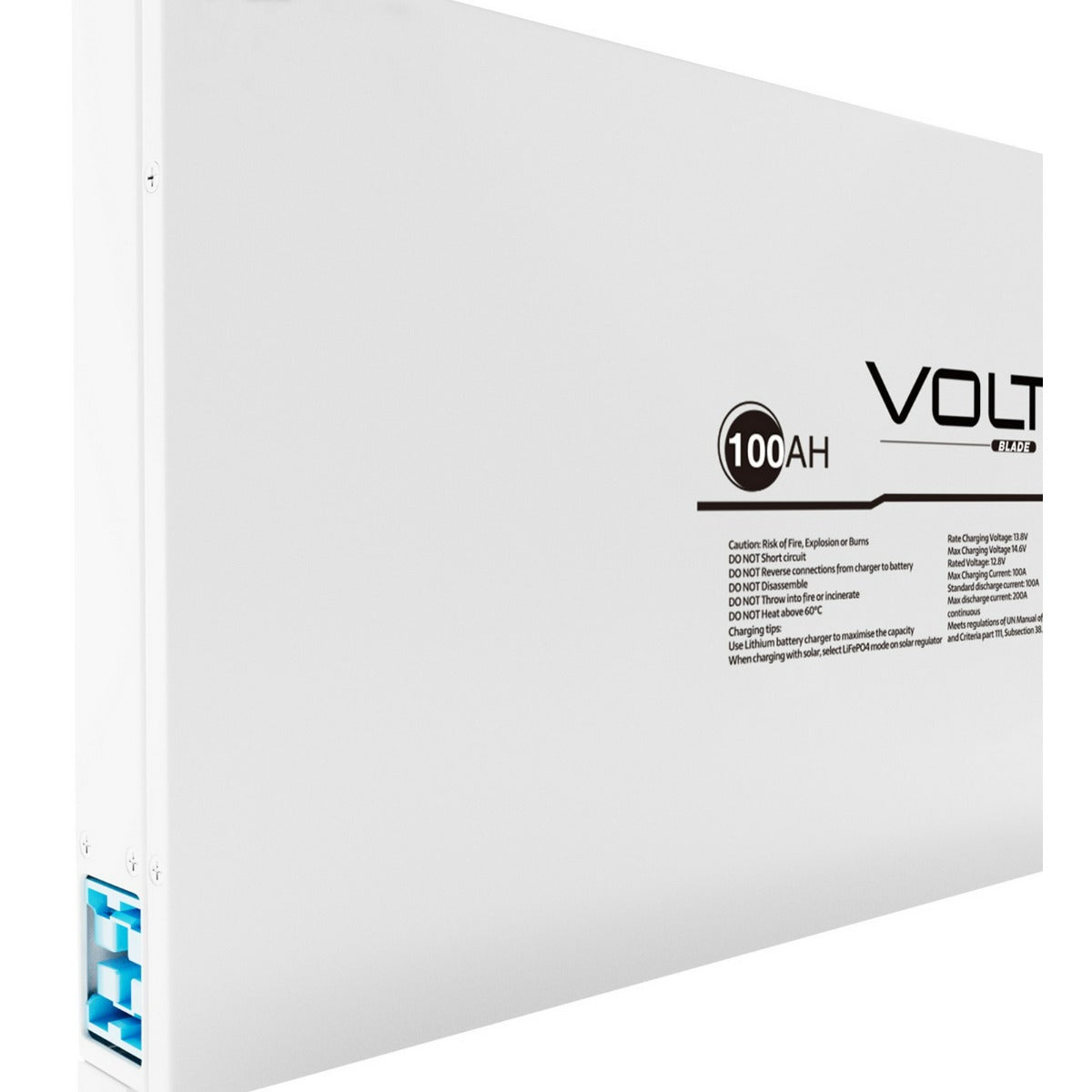

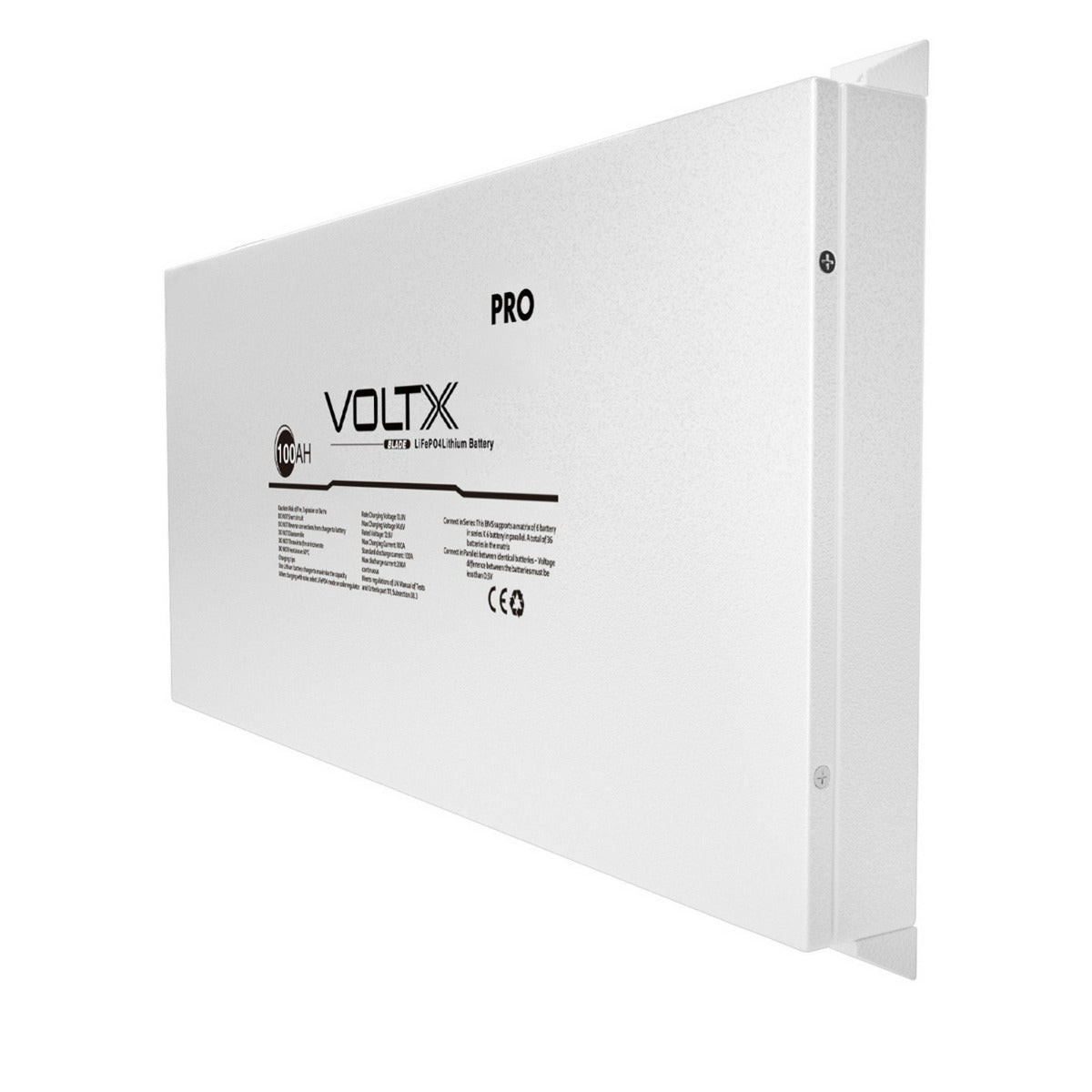

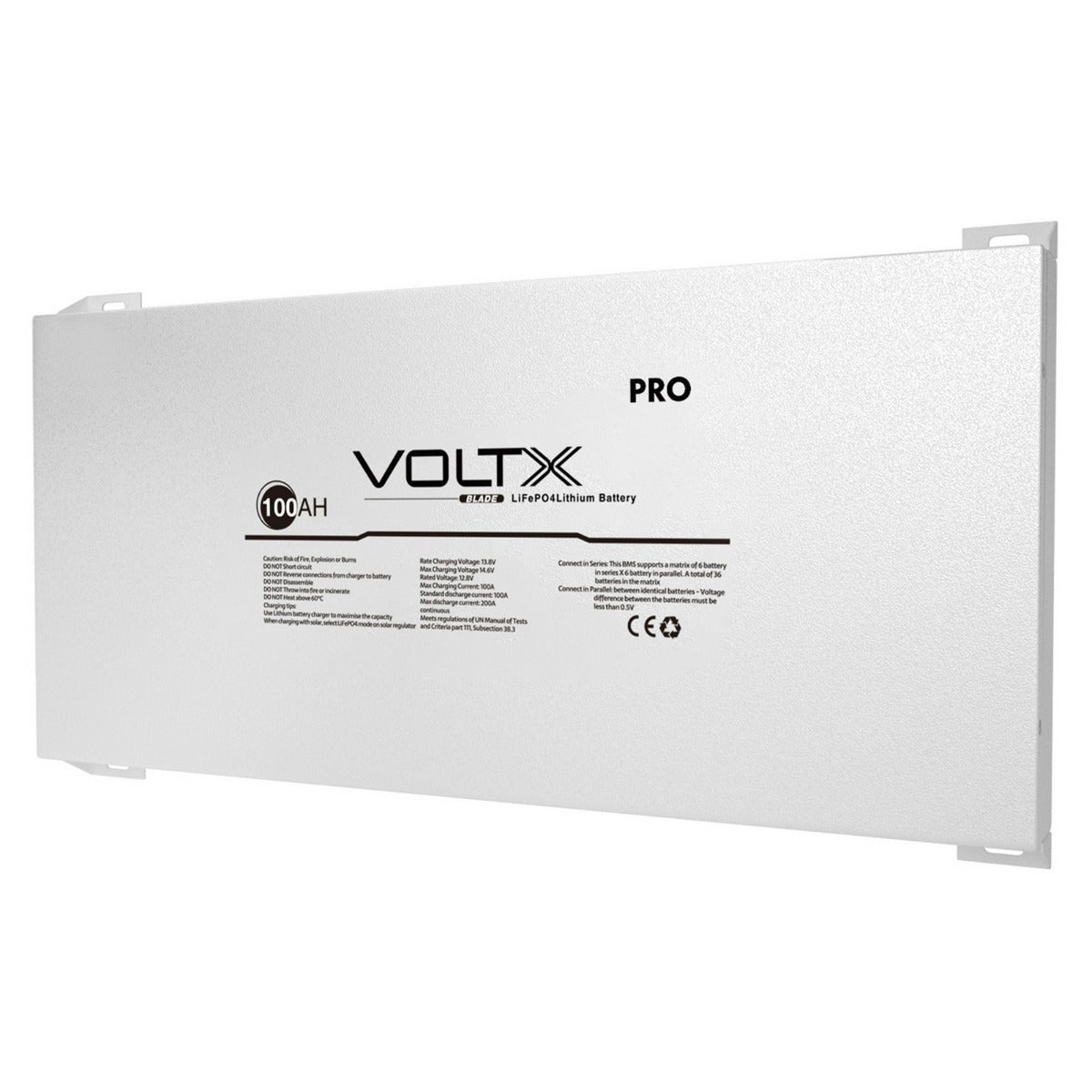

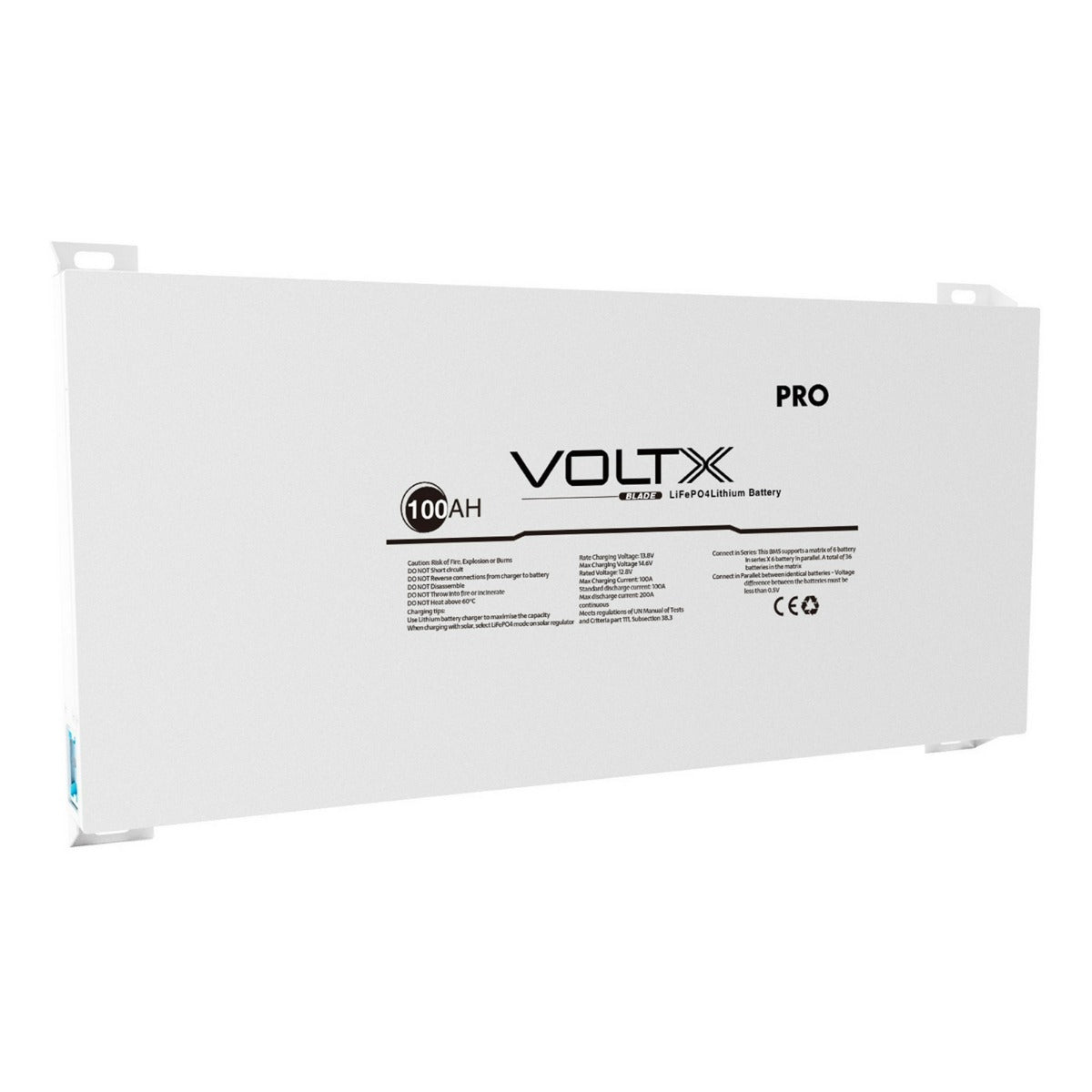

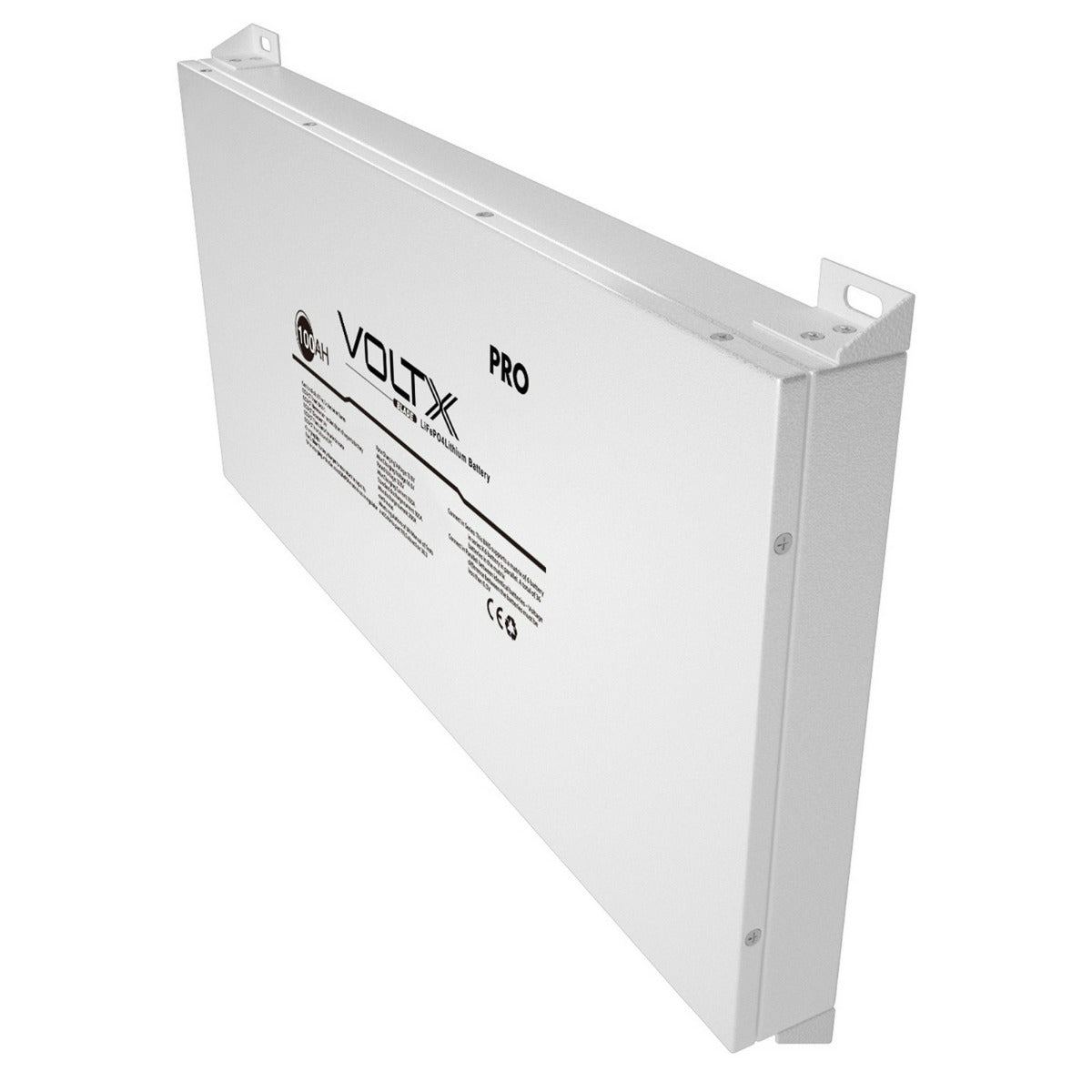

MODEL 2: VoltX 12V 100Ah Blade LiFePO4 Battery
Ultra space-saving and powerful, the VoltX Blade LiFePO4 Battery is designed to fit in spaces where other batteries can’t. It’s the perfect choice for RVs, small living areas, and even campsites!
Premium Build
This power pack consists of 36 batteries in the matrix and grade-A prismatic cells, all encased in a heavy-duty exterior. It guarantees both an optimal performance and maximum durability, making it a practical choice for a variety of applications.
Built-in BMS
The integrated battery management system also provides increased protection against common battery issues including overcharging, over-discharging, overheating, and short circuits. Thanks to this, users get to enjoy a maintenance-free use every time.
Parallel and Series Capable
Need extra output? No worries, this battery can be connected in parallel and series, providing you with more power when needed. It also makes for a suitable backup power source at home in case of power outages.

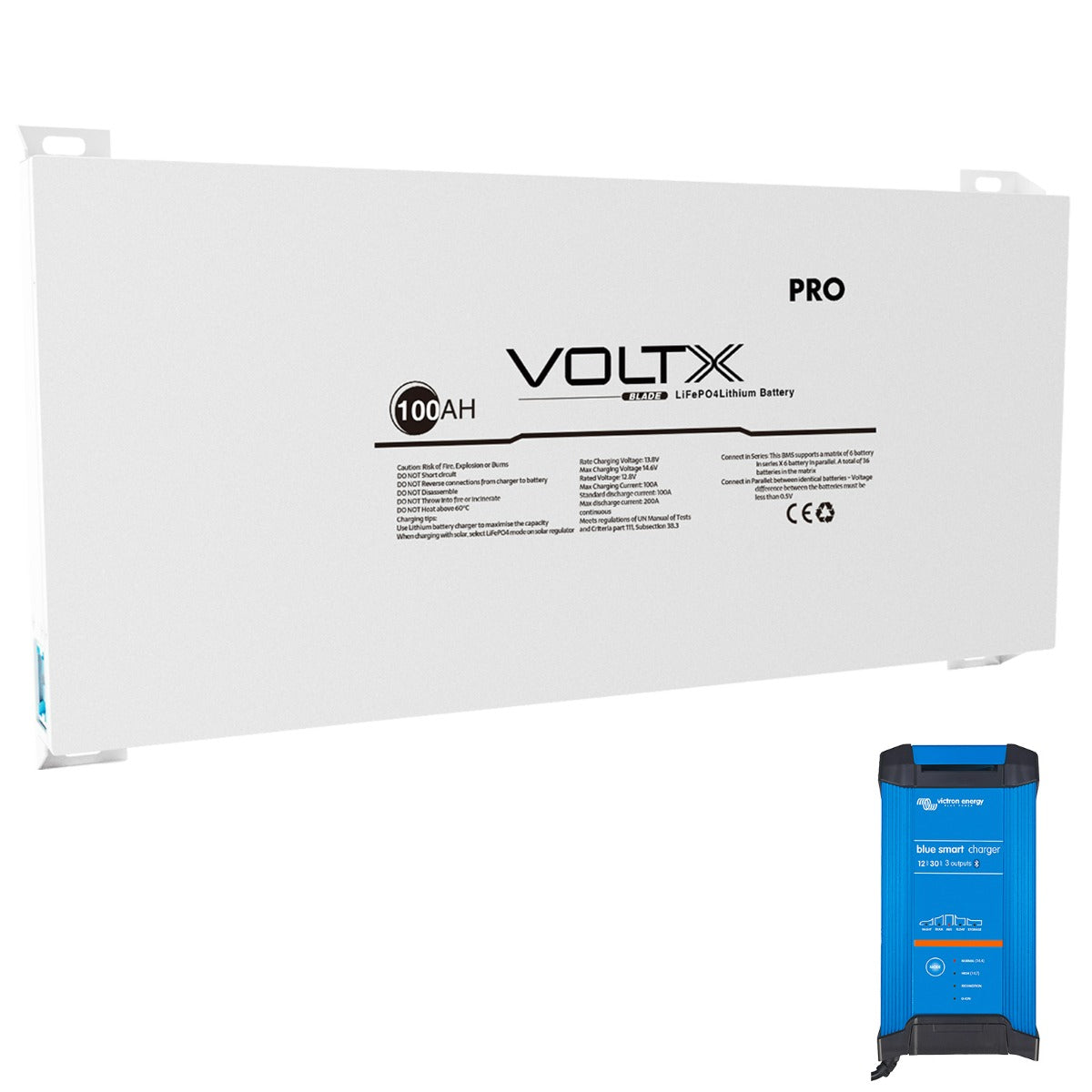

Get this today bundled with the Victron Smart Battery Charger for unrivalled battery performance.
IMPORTANT: While our LiFePO4 batteries are top-notch & can be wired with other batteries of its kind, it is not advisable to connect any LiFePO4 batteries in parallel or series. This poses several risks and should only be done in emergency situations. If you must wire batteries together, make sure you are familiar with the correct procedure or seek help from a professional if needed.
Suggestions From the Outbax Team
- Batteries connected in series should have the same amp-hour rating while batteries in parallel bank should have the same voltage rating.
- As much as possible, only connect batteries in series or parallel during emergency situations.
- It's better to go for batteries with higher voltage when running high-power electrical appliances instead of wiring two battery packs together.
- We have available batteries with larger discharge parameters for fast charge/discharge requirements.
- Our batteries are also available in 200Ah and 300Ah for larger capacity demands
MODEL 1: Victron Blue Smart IP22 SLA/LiFePO4 Charger
| Input voltage range: | 180 - 265 VAC |
| Charge current, normal mode: | 15 / 20 / 30 A |
| Charge current, NIGHT or LOW: | 7,5 / 10 / 15 A |
| Efficiency: | 93 % |
| No load power consumption: | 0.5 W |
| Frequency: | 45 - 65 Hz |
| Number of outputs: | 1 |
| Charge Voltage Absorption: |
Normal: 14, 4V High: 14, 7V Li-ion: 14, 2V |
| Charge Voltage Float: |
Normal: 13, 8V High: 13, 8V Li-ion: 13, 5V |
| Charge Voltage Storage: |
Normal: 13, 2V High: 13, 2V Li-ion: 13,5 V |
| Charge algorithm: | 6-stage adaptive |
| Can be used as power supply: | Yes |
| Protection: | Battery reverse polarity (fuse) Output short circuit Over temperature |
| Operating temp. range: | -40 to +60 °C (full rated output up to 40 °C) |
| Humidity (non-condensing): | Max 98 % |
ENCLOSURE |
|
| Material & Colour: | Aluminium (blue RAL 5012) |
| Battery connection: | Screw terminals 16 mm⊃ / AWG6 |
| 230 VAC connection: | Cable of 1,5 meter with CEE 7/7 plug, BS 1363 plug (UK) or AS/NZS 3112 plug (AU/NZ) |
| Protection category: | IP22 |

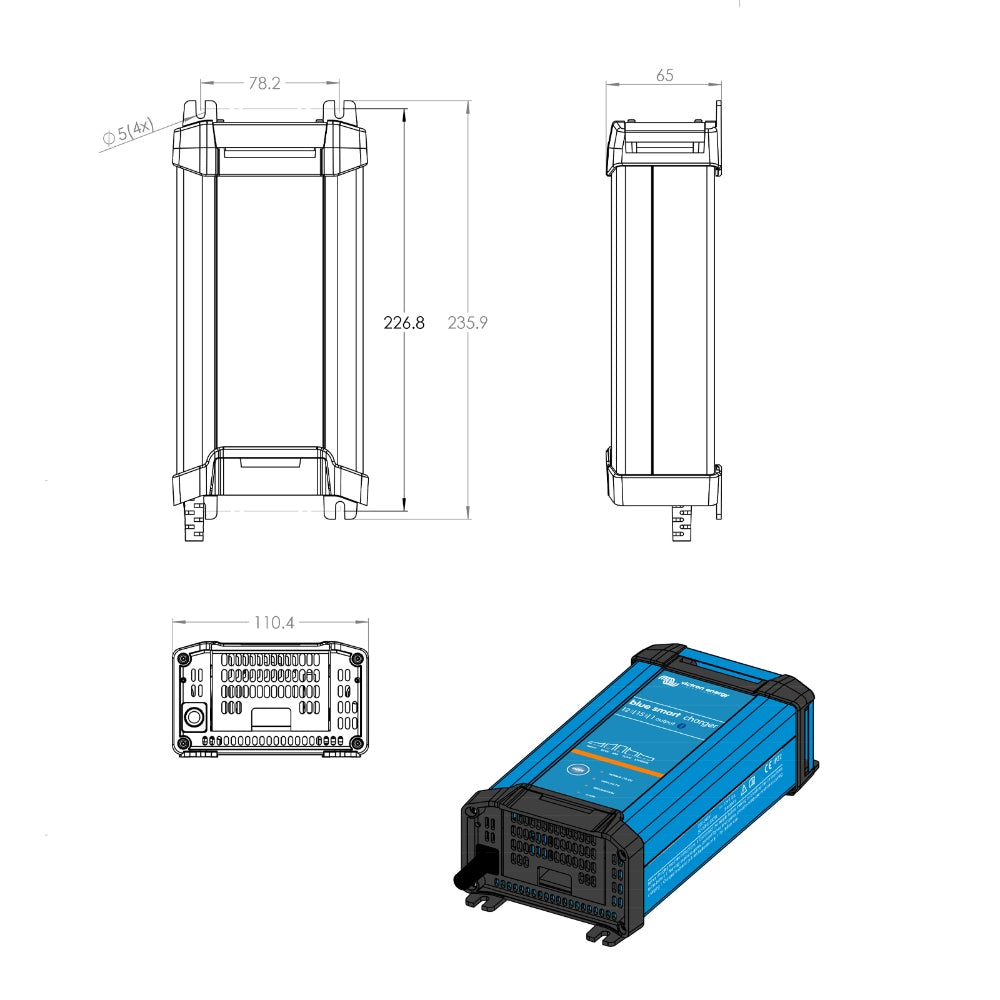

| Dimensions: | 235(H) x 108(W) x 65(D) mm |
| Weight: | 1.3 kg |
STANDARDS |
|
| Safety : | EN 60335-1, EN 60335-2-29 |
| Emission: | EN 55014-1, EN 61000-6-3, EN 61000-3-2 |
| Immunity: | EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3 |
| Automotive: | ECE R10-5 |
MODEL 2: VoltX 12V 100Ah Lithium Iron Phosphate Battery
| Nominal Capacity: | 100Ah |
| Usable Capacity: | 100Ah |
| Nominal Voltage: | 12.8V |
| Energy: | 1280Wh |
| Charge Voltage: | 14.6V |
| Discharge Cut-off Voltage: | 10V |
| Charge Method: | CC/CV |
| Charger: | 14.6V50A |
| Standard Discharge Current: | 100A |
| Max. Continues Discharge Current: | 100A |
| Max. Discharge Current (5sec): | 300A |
| Standard Charge Current: | 50A |
| Max. Charge Current: | 100A |
| Working Temperature Range Charge: | 0°C to 45°C Discharge:-20°C to 60°C |
| Storage Temperature: | -10°C to 50°C |
| Dimension: | 395(L) x 110(W) x 297(H)mm |
