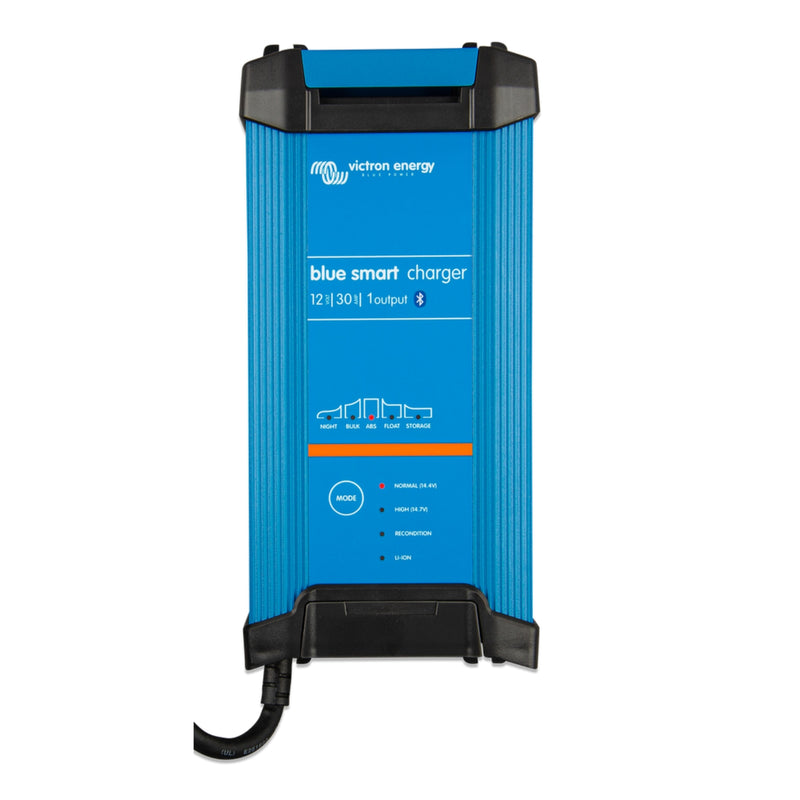

Victron Blue Smart IP22 SLA/LiFePO4 Charger 12V 30A Single Output Fan Assisted

$309.00 $739.00
Tax included

60 Days
Return

12 Months
Warranty

100% Secured
Payment & Data


Selling fast Selling fast. Hurry and order now to save 58%

PRODUCT HIGHLIGHTS

  • Built-in bluetooth
  • Ideal for automotive workshops and devices on motor vehicles
  • Designed with protection against overheating
  • Wireless solution to monitor voltage and current
  • Produce up to four times less heat than the industry standard

The Victron Blue Smart IP22 Charger is the new professional battery charger with built-in bluetooth. The Blue Smart IP22 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.

Bluetooth Smart

The Blue Smart IP22 Charger is the wireless solution to monitor voltage and current, to change settings and to update the charger when new features become available.

High efficiency

With up to 94% efficiency, these chargers generate up to four times less heat when compared to the industry standard. And once the battery is fully charged, power consumption reduces to 0,5 Watt, some five to ten times better than the industry standard.

Adaptive 6-stage charge algorithm: test - bulk – absorption - recondition – float – storage

The Blue Smart Charger features a microprocessor controlled ‘adaptive’ battery management. The adaptive feature will automatically optimize the charging process relative to the way the battery is being used.

Storage Mode: less maintenance and aging when the battery is not in use

The storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the storage mode float voltage is reduced to 2,2V/cell (13,2V for a 12V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulfation, a major cause of early battery failure.

Also charges Li-ion (LiFePO4) batteries

LiFePO4 batteries are charged with a simple bulk – absorption – float algorithm.

NIGHT and LOW setting

When in NIGHT or LOW mode, the output current is reduced to max. 50% of the nominal output and the charger will be totally noiseless. The NIGHT mode automatically ends after 8 hours. The LOW mode can be ended Manually.

Protected against overheating

Output current will reduce as temperature increases up to 50°C, but the Blue Smart Charger will not fail.

Eleven LEDs for status indication

Charge algorithm: TEST / BULK / ABSORPTION / RECONDITION / FLOAT / STORAGE / READY. MODE button to set: NORMAL (14,4V) / HIGH (14,7V) / RECONDITION / LI-ION.

Safe & Secure

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Victron Blue Smart IP22 SLA/LiFePO4 Charger 12V 30A Single Output Fan Assisted

$309.00 $739.00

SPECIFICATIONS

Input voltage range: 180 – 265 VAC
Charge current, normal mode: 15 / 20 / 30 A
Charge current, NIGHT or LOW: 7,5 / 10 / 15 A
Efficiency: 93 %
No load power consumption: 0.5 W
Frequency: 45 – 65 Hz
Number of outputs: 1
Charge voltage 'absorption': Normal: 14,4 V High: 14,7 V Li-ion: 14,2 V
Charge voltage 'float': Normal: 13,8 V High: 13,8 V Li-ion: 13,5 V
Charge voltage 'storage': Normal: 13,2 V High: 13,2 V Li-ion: 13,5 V
Charge algorithm: 6-stage adaptive
Can be used as power supply: Yes
Protection: Battery reverse polarity (fuse) Output short circuit Over temperature
Operating temp. range: -40 to +60 °C (full rated output up to 40 °C)
Humidity (non-condensing): Max 98 %

ENCLOSURE

Material & Colour: Aluminium (blue RAL 5012)
Battery connection: Screw terminals 16 mm² / AWG6
230 VAC connection: Cable of 1,5 meter with CEE 7/7 plug, BS 1363 plug (UK) or AS/NZS 3112 plug (AU/NZ)
Protection category: IP22

STANDARDS

Safety: EN 60335-1, EN 60335-2-29
Emission: EN 55014-1, EN 61000-6-3, EN 61000-3-2
Immunity: EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3
Automotive: ECE R10-5

DIMENSIONS & WEIGHT

Dimensions: 235(H) x 108(W) x 65(D)mm
Weight: 1.3 kg

WHAT'S IN THE BOX

1 x Battery Charger
