Upgrade your golf cart to 48V lithium power

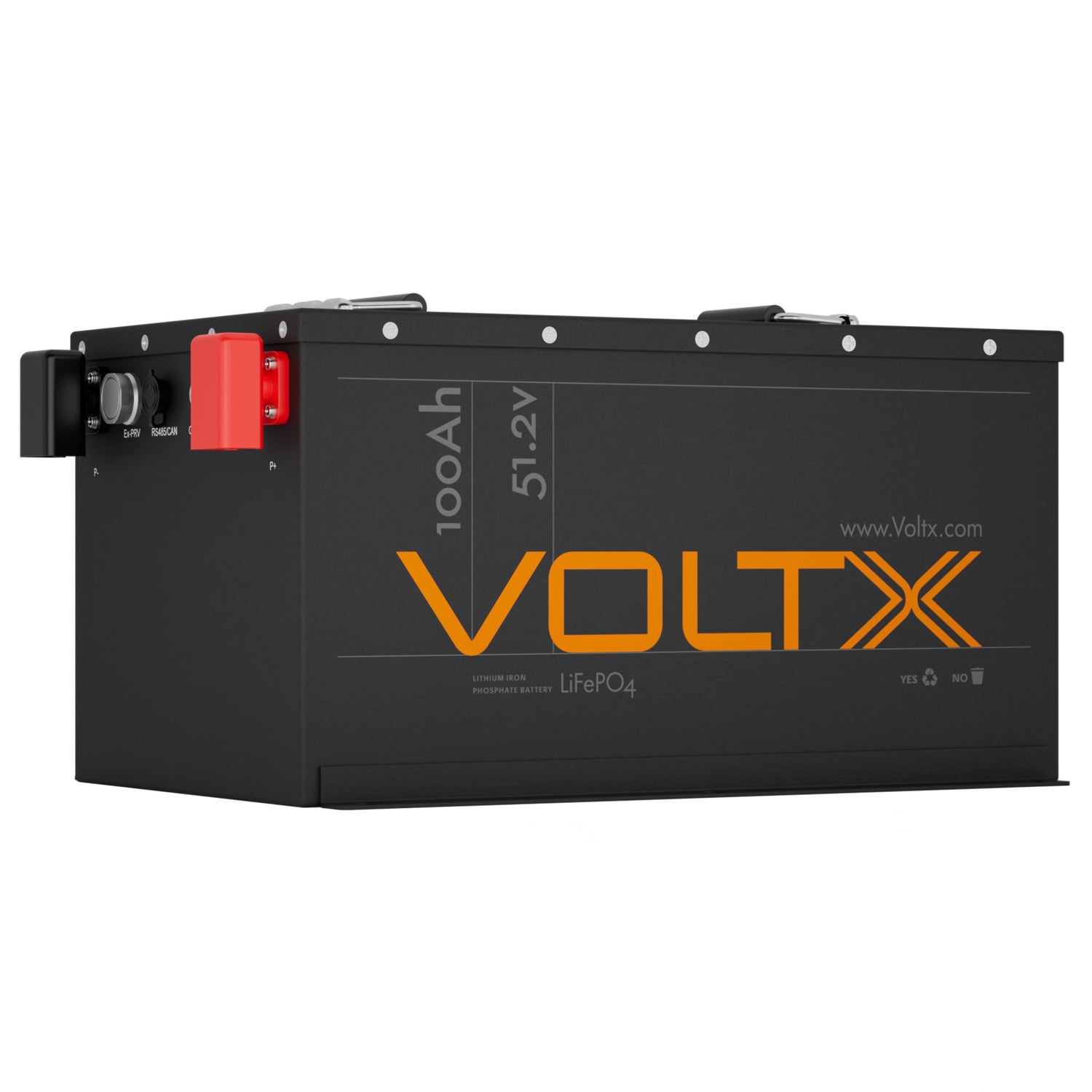

The VoltX 48V 100Ah LiFePO4 golf cart battery replaces a heavy, high-maintenance lead-acid pack with a single lightweight lithium unit. At 51.2V nominal and 100Ah it delivers 5120Wh of stable power, so your cart holds its speed and torque right through the round instead of fading as the charge drops.
Up to 4000 cycles of LiFePO4 lifespan
Built to outlast lead-acid many times over.
- Lithium Iron Phosphate cells rated for up to 4000 charge cycles
- Grade A prismatic cells in a 16S1P configuration for stable output
- A decade-long replacement you are not topping up every season
200A smart BMS with RS485 and CAN
Protection and communication built in.
- Integrated 200A Battery Management System monitors cell health in real time
- Guards against overcharge, over-discharge, overcurrent and short circuits
- RS485 and CAN ports plus an on/off switch for easy integration
Bluetooth monitoring and a built-in display
Always know where your battery stands.
- Bluetooth lets you check charge level and battery health from your phone
- Included LCD display shows voltage, current and charge at a glance
- Easy to read on the course or in the shed
Lighter, faster and built for Australia
Less weight on the cart, less work for you.
- Far lighter than lead-acid, improving acceleration and hill climbing
- Sealed and maintenance-free, IP65 rated against dust and water
- Charges 0C to 45C, discharges -20C to 60C, backed by a 5 year warranty
Upgrading your cart to lithium? See the full VoltX range of golf cart batteries and chargers at Outbax. Shop now.
ELECTRICAL
| Nominal Voltage | 51.2V (48V) |
| Nominal Capacity | 100Ah |
| Rated Energy | 5120Wh |
| Max Power | 5000W |
| BMS | 200A |
| Cell Type | Grade A Prismatic |
| Cell Configuration | 16S1P |
| Battery Type | LiFePO4 |
| Charging Voltage | 58.4V |
| Standard / Max Charging Current | 200A |
| Standard / Max Continuous Discharge | 200A |
| Max Discharge Current (5 sec) | 375A |
| Charge Method | CC/CV |
| Cycle Life | Up to 3000 cycles |
| Bluetooth | Yes |
| Communication Ports | RS485 / CAN |
| Battery Switch | On/Off |
PROTECTION & GENERAL
| Protection Class | IP65 |
| Certification | UN38.3 |
| Case Material | Metal |
| Charge Temperature | 0C to 45C |
| Discharge Temperature | -20C to 60C |
| Warranty | 5 Years |
DIMENSIONS & WEIGHT
| Dimensions | 460 x 320 x 242.5 mm |
| Net Weight | 46kg |
| Package Weight | 48kg |
WHAT'S IN THE BOX
| 1 x | VoltX 48V 100Ah LiFePO4 Battery |
| 1 x | LCD Display Screen (3M cable) |
| 1 x | User Manual |
| 1 x | Set of Mounting Screws |
SKU:
| a_l4gc-a0-fa-xx-lcd |
