Product highlights

  • 5 Years Australian Warranty
  • Rated Capacity 100Ah
  • 58.4 Volts
  • 522 x 238 x 223mm
  • 38kg

Have a question? Ask our experts!

Product details

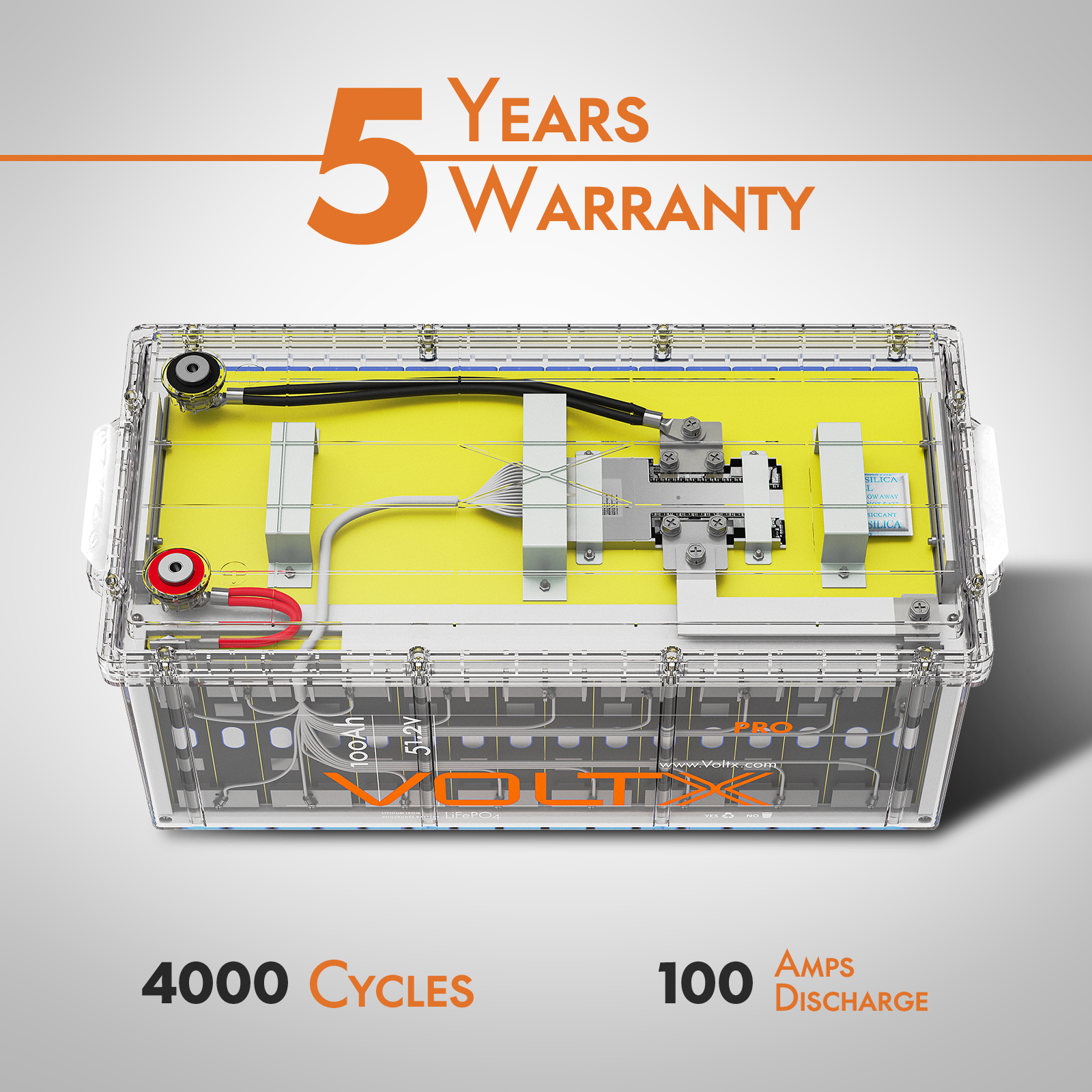

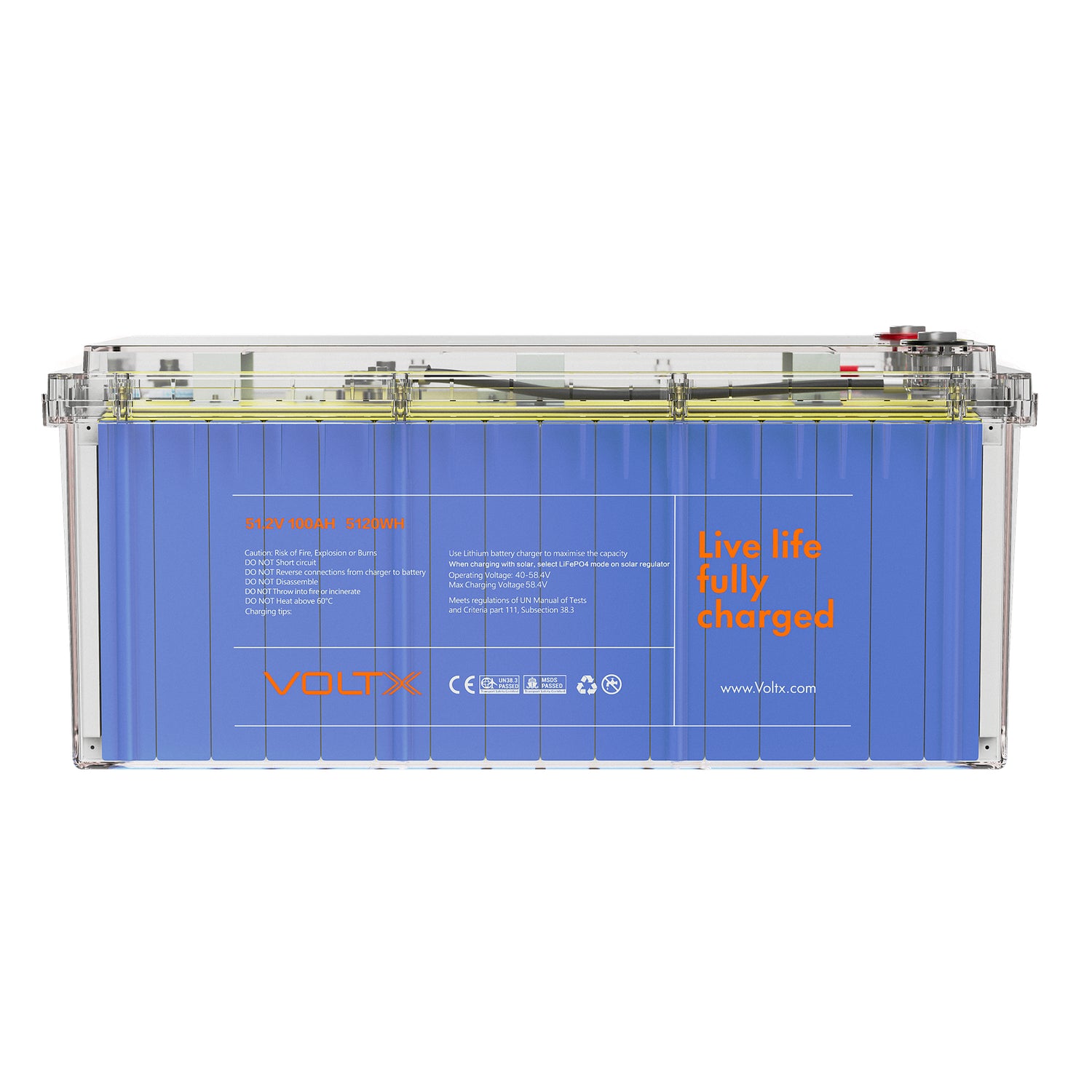

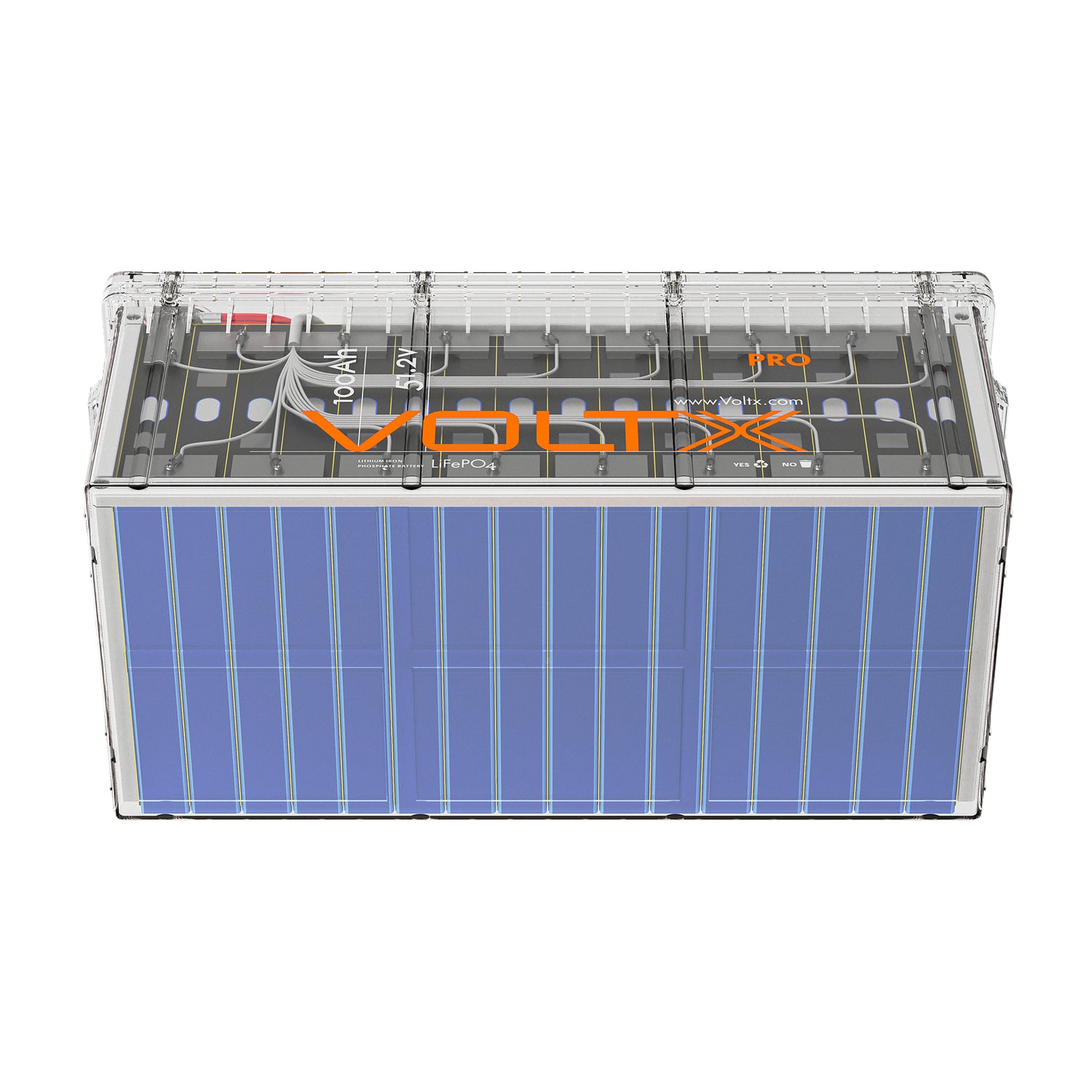

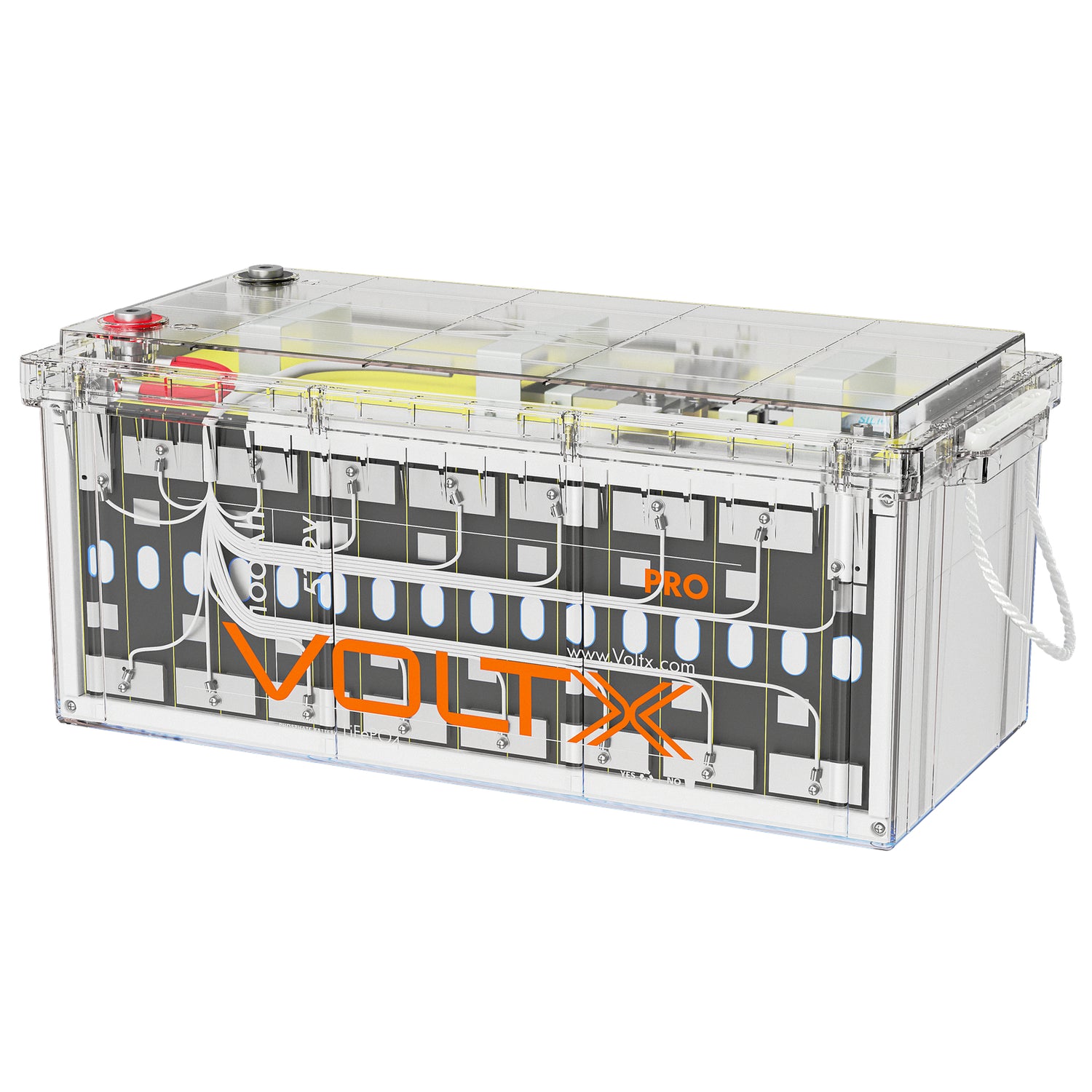

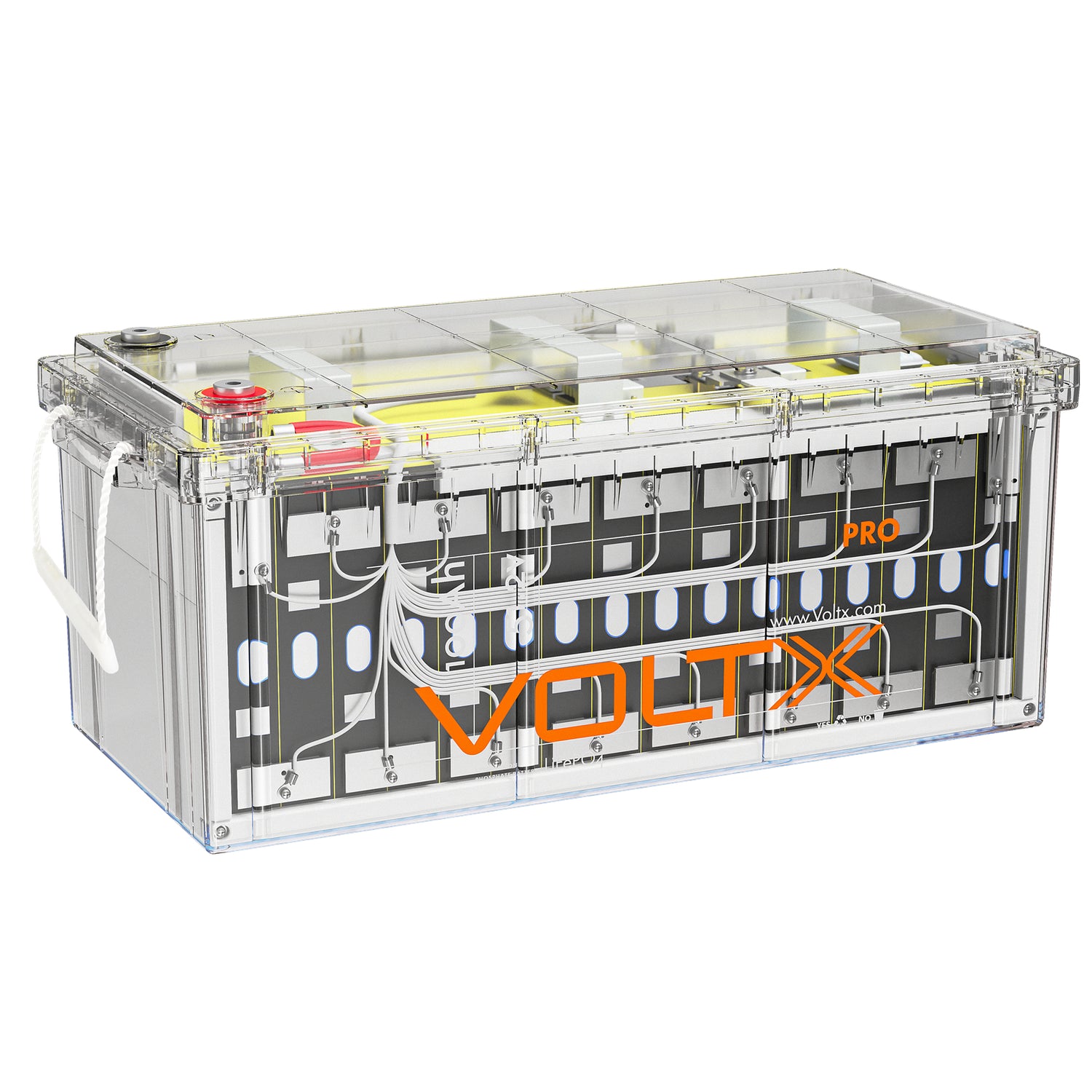

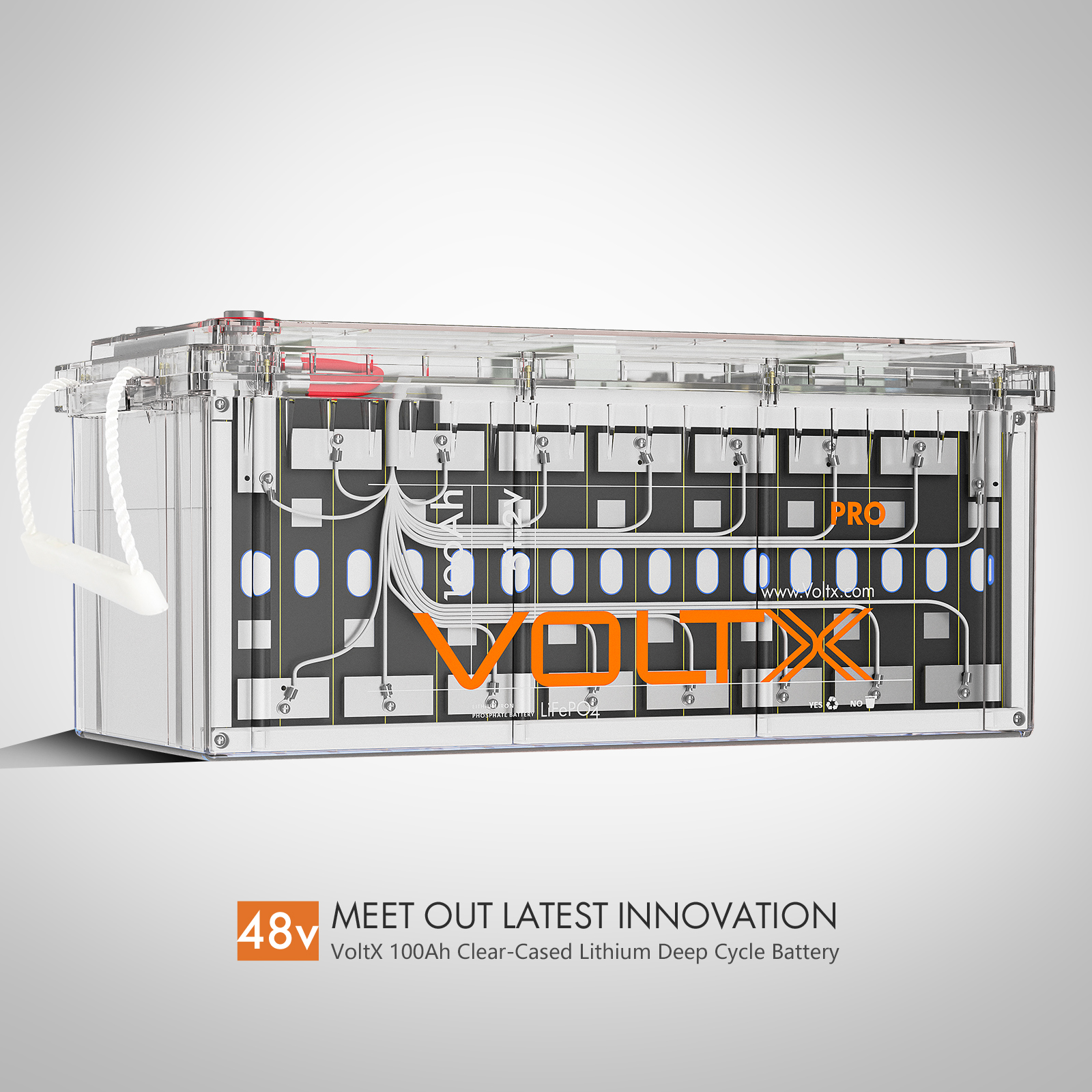

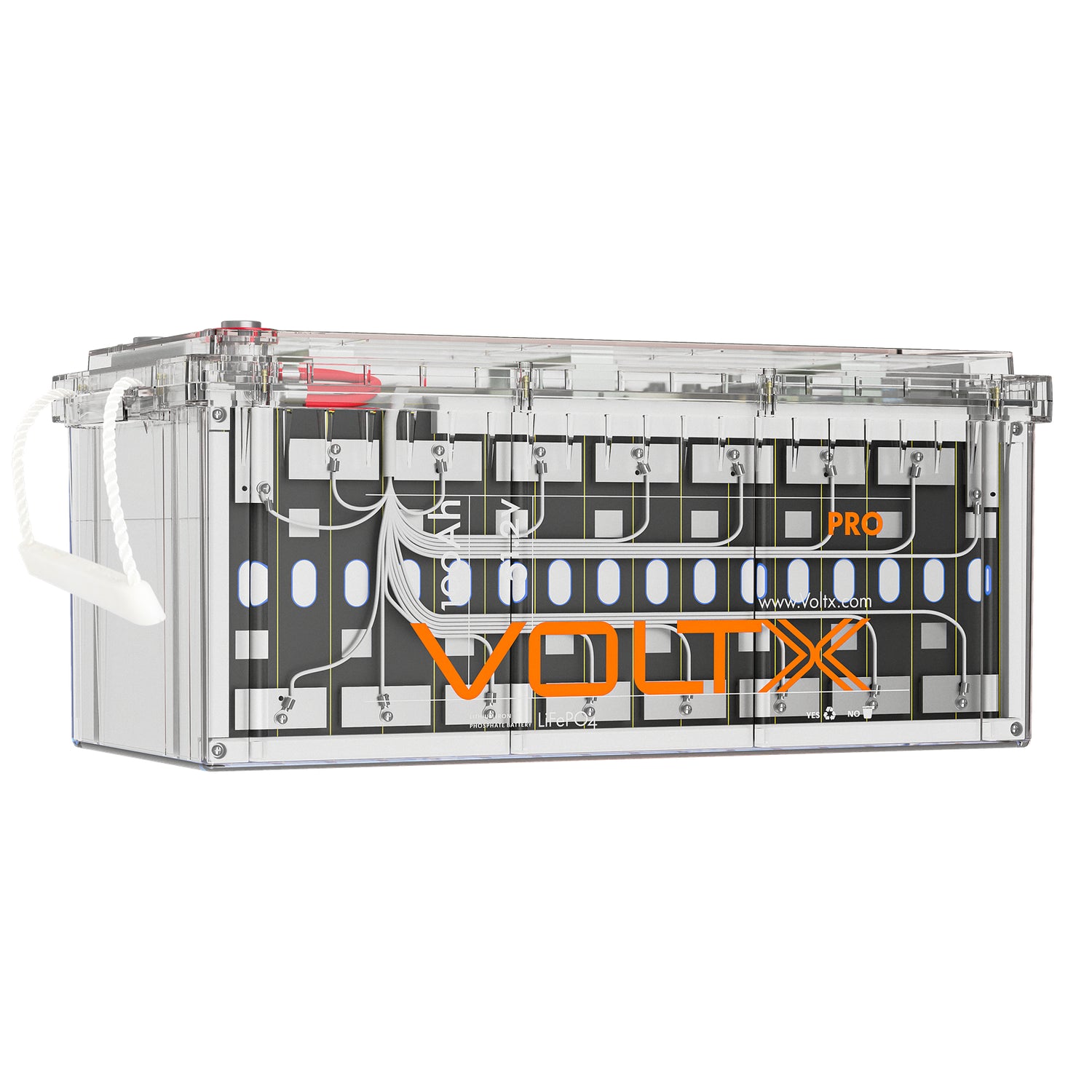

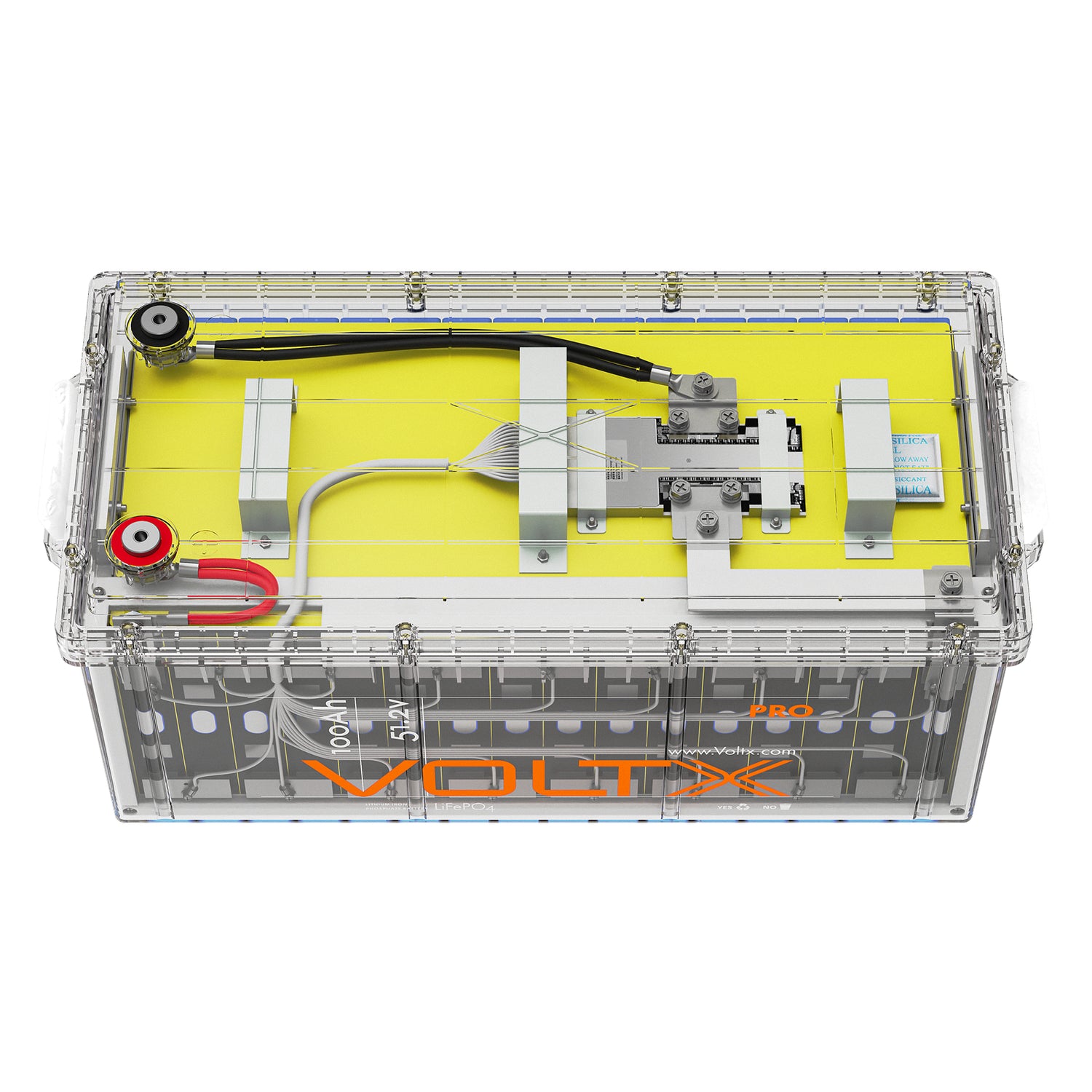

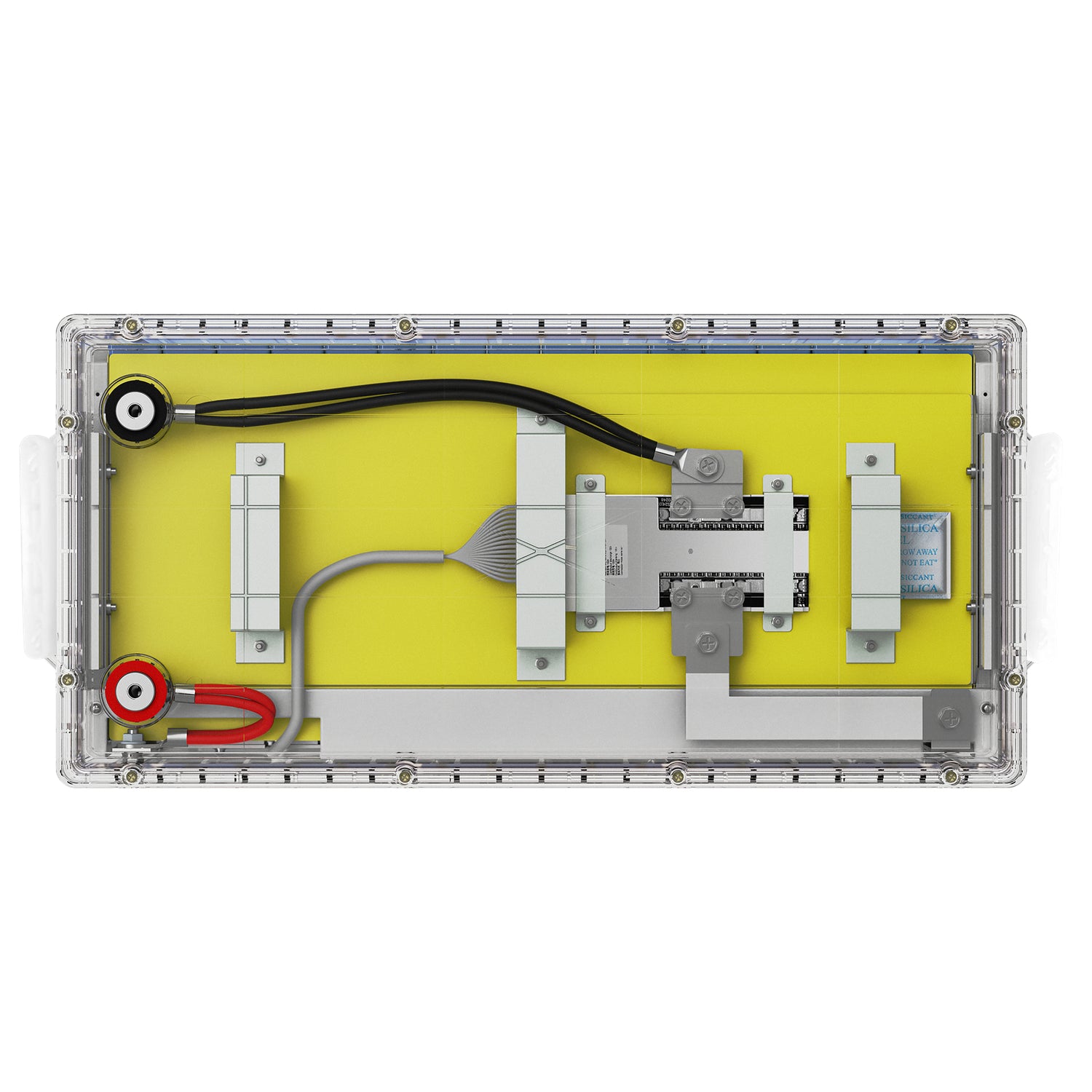

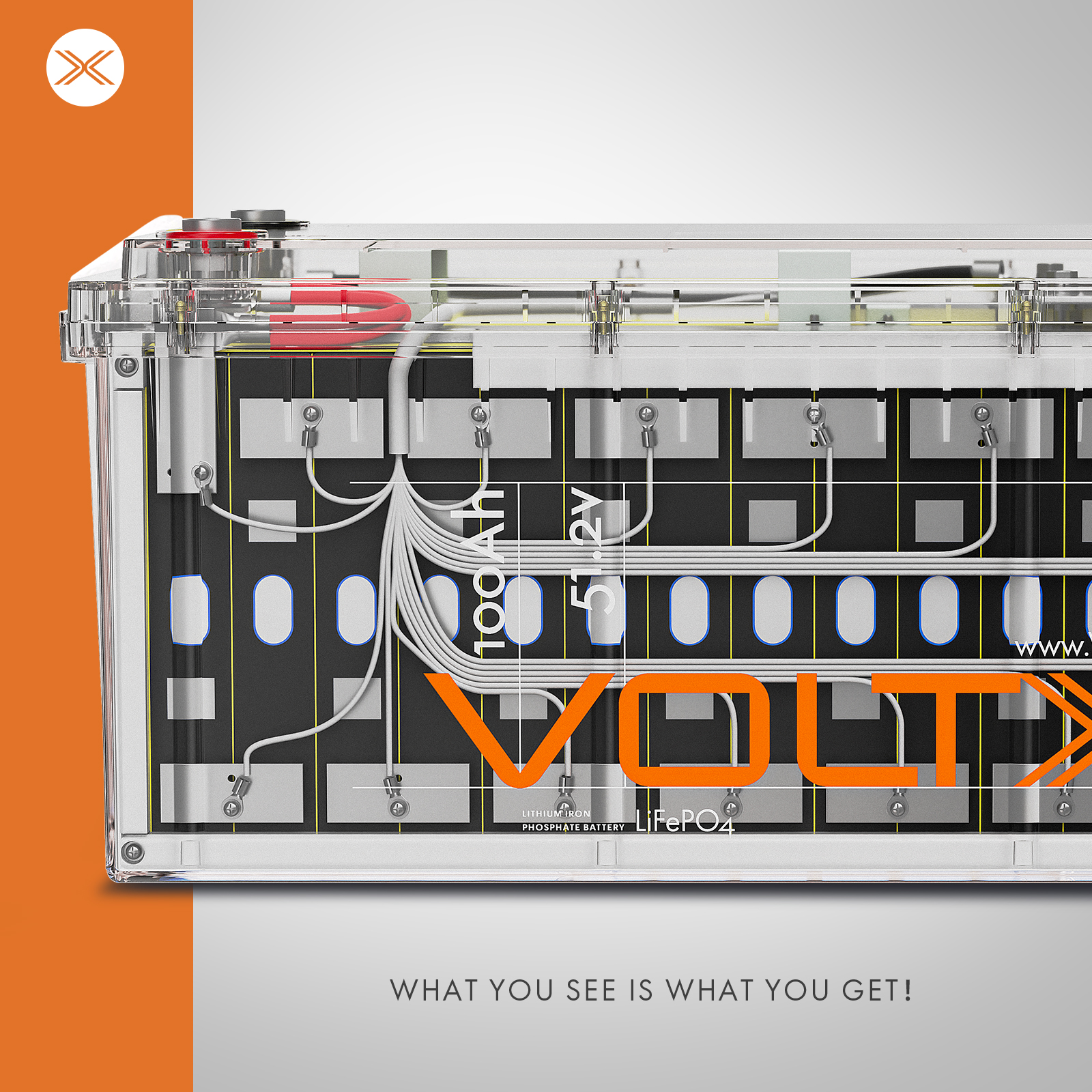

The VoltX 48V 100A Premium LiFEPO4 Battery with LCD is the battery upgrade you've been waiting for. Featuring a transparent case, what you see is what you get here, meaning you can have a good look at everything from the cables down to the integrated battery management system (BMS).

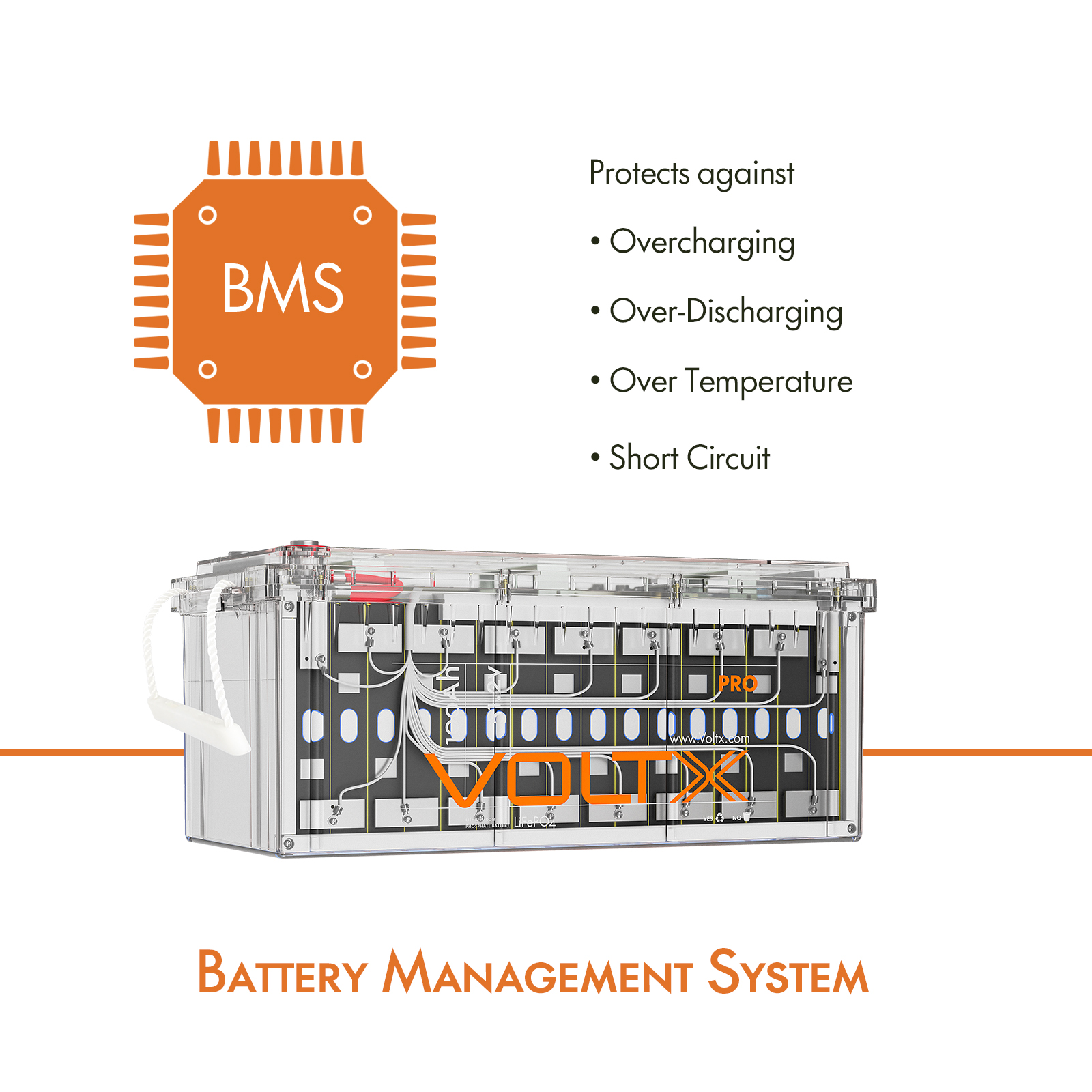

This lithium battery pack highlights safety. Unlike other batteries in the market, you won't have to constantly check on a LiFEPO4 since it has a built-in BMS that provides protection against short circuit, over-voltage, low voltage, overload, and overheat. Enjoy a safer, maintenance-free operation—VoltX batteries are also designed to keep you company wherever you are so rest assured that this LiFEPO4 will last you for years up to 4000 cycles.

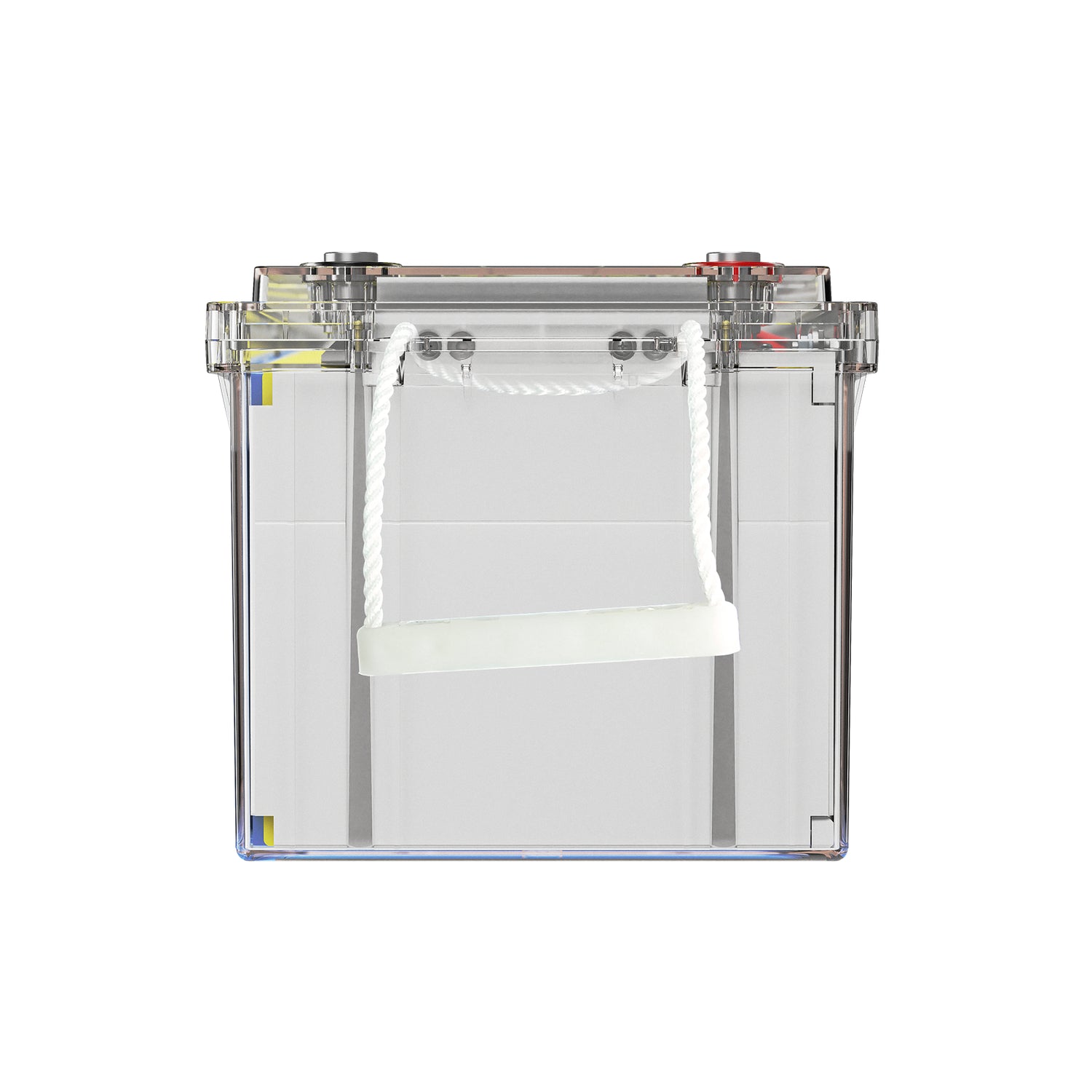

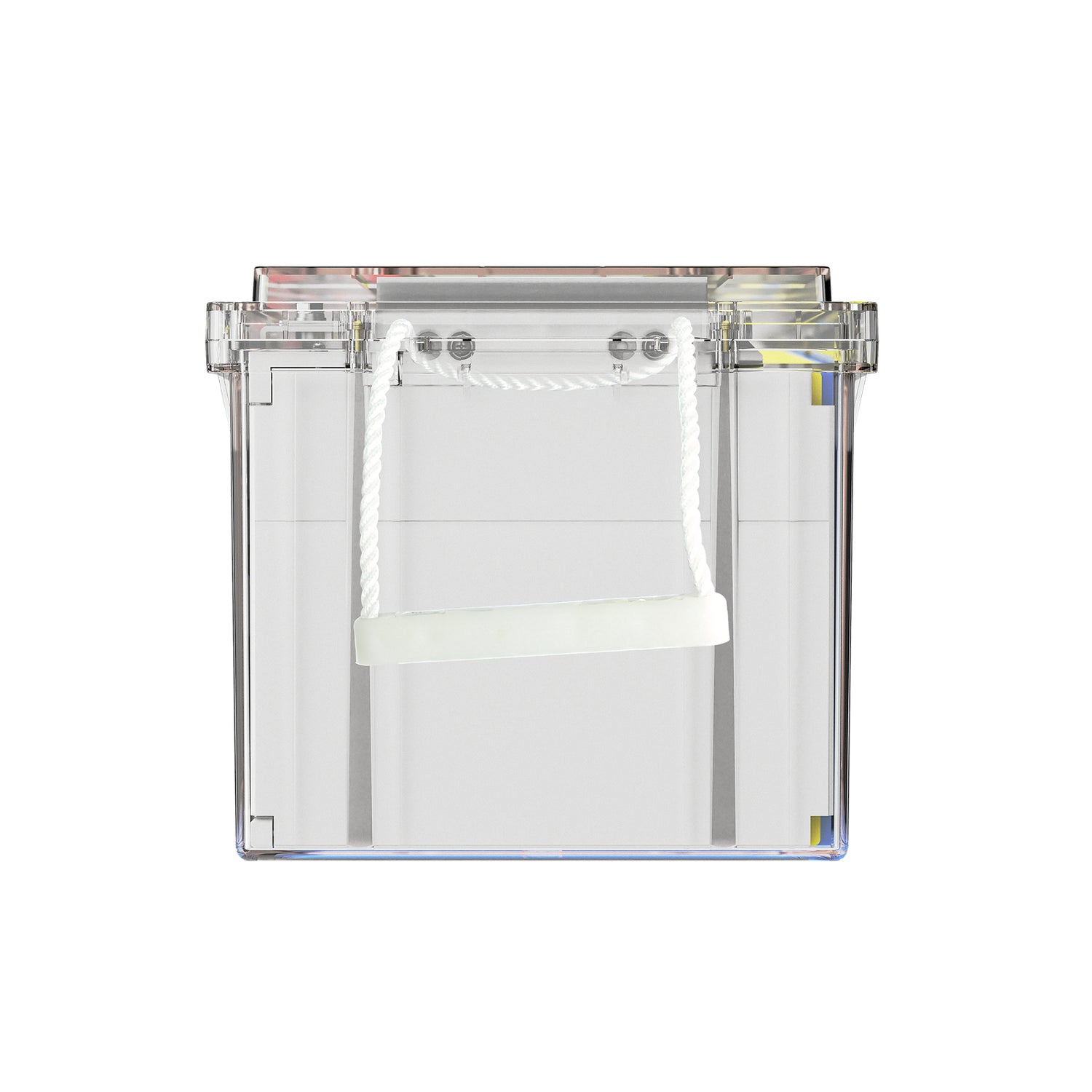

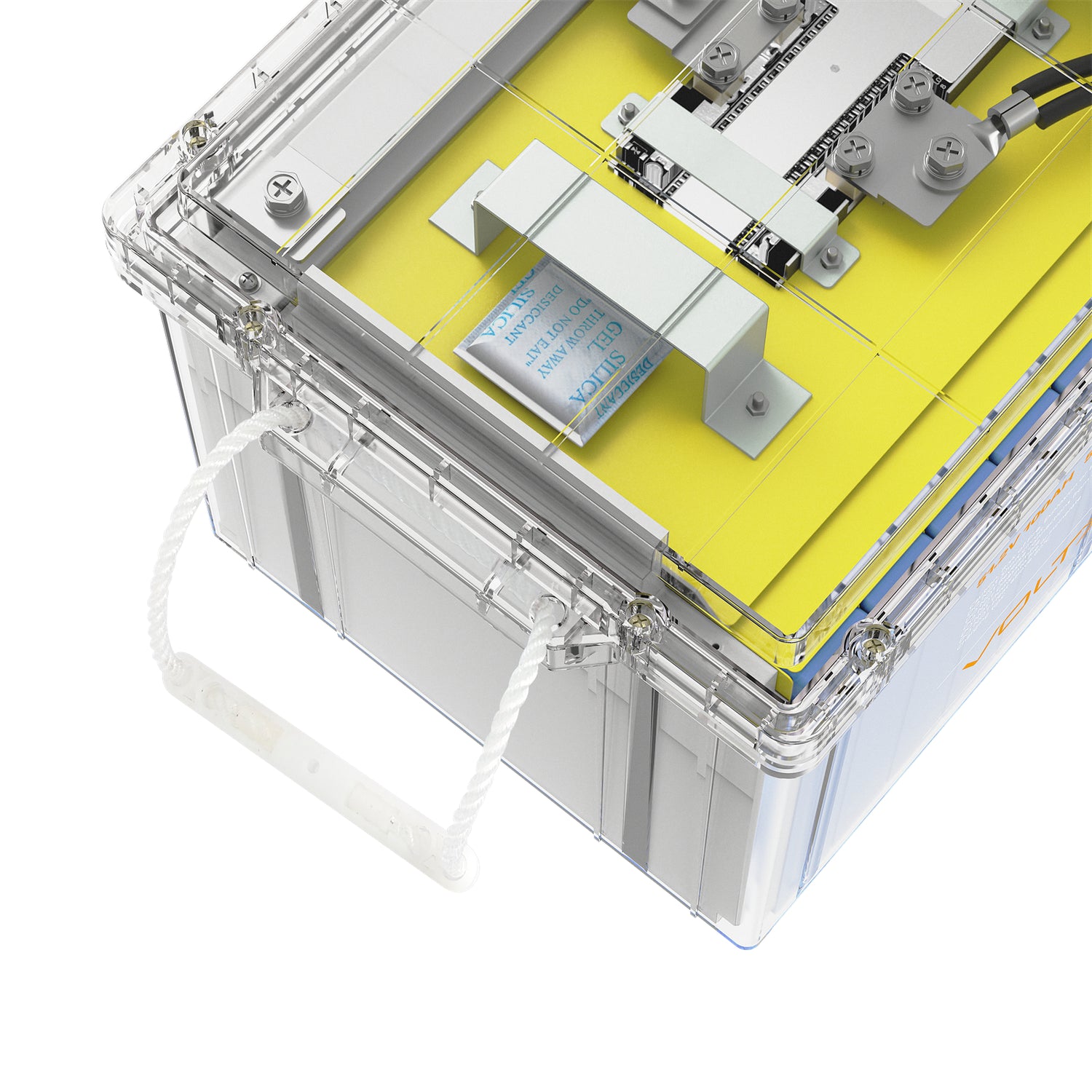

Best of all, it gives you twice the amount of energy and a more stable power output without the extra weight. Pair it with equally reliable solar panels and you're all set for the best camping or road trip experience. Equipped with an LCD voltage indicator and handles on the sides for convenient carrying, this is easily the best lithium battery you can get your hands on!

Want to know more about VoltX batteries? Browse through Outbax for an entire range of them! We have 100Ah batteries and slimline batteries. Whenever you feel like going camping, just pay us a visit and you're sure to find what you need.

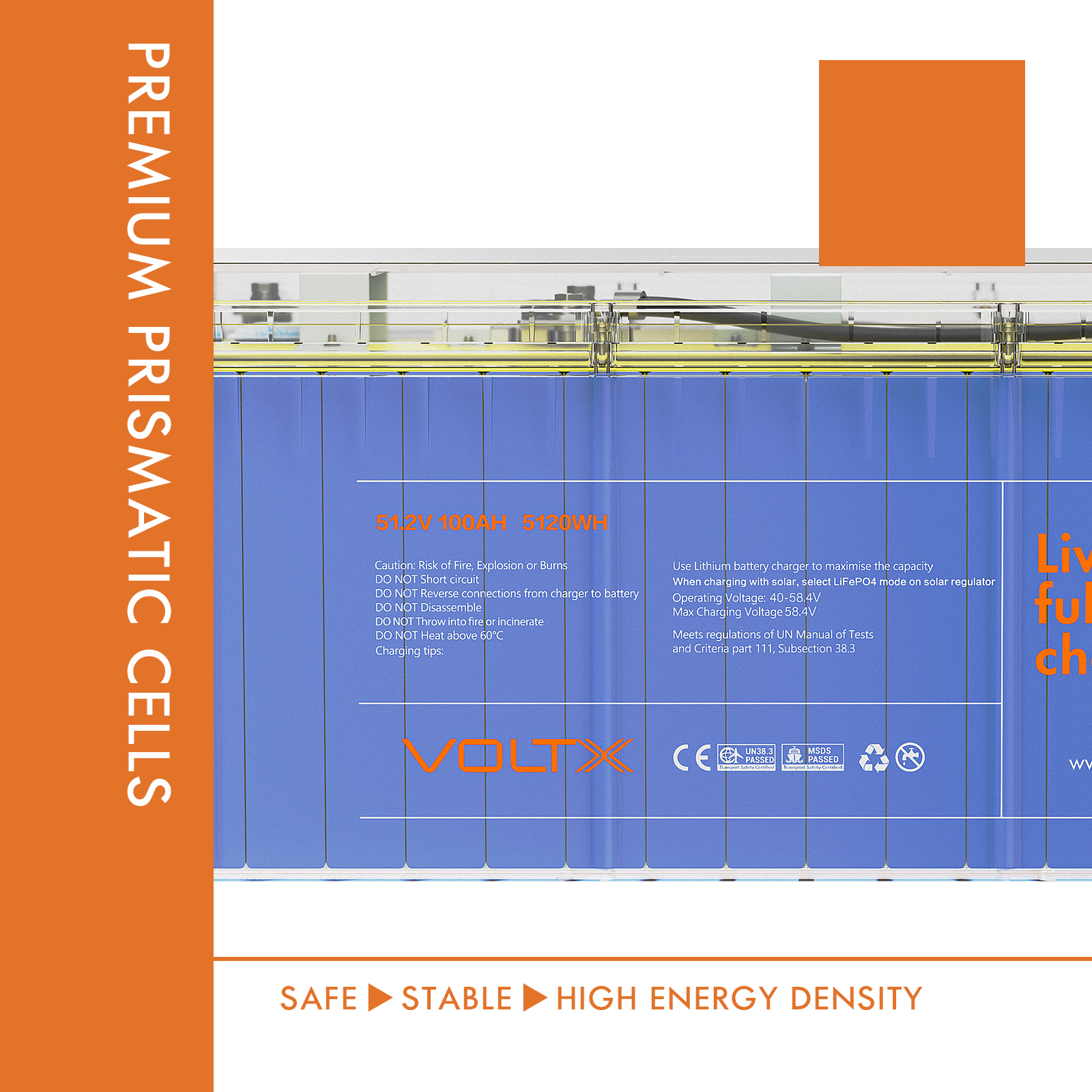

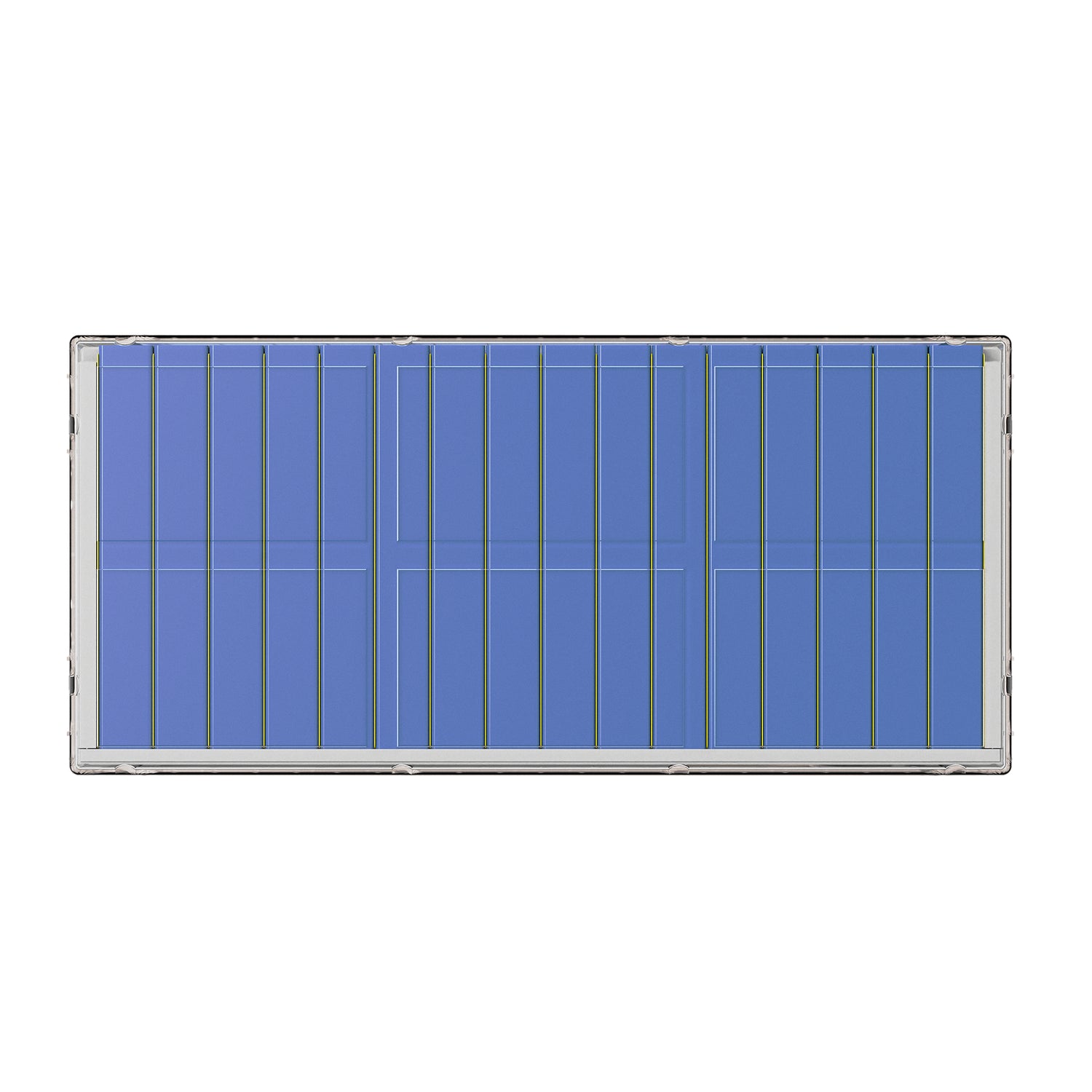

All our battery packs are comprised of prismatic cells & are backed with LiFePO4's signature built-in BMS. They are also tested to deliver 100% real capacity and are suitable for 6 parallel and 3 series.

IMPORTANT: While our LiFePO4 batteries are top-notch & can be wired with other batteries of its kind, it is not advisable to connect any LiFePO4 batteries in parallel or series. This poses several risks and should only be done in emergency situations. If you must wire batteries together, make sure you are familiar with the correct procedure or seek help from a professional if needed.


Suggestions From the Outbax Team

  • Batteries connected in series should have the same amp-hour rating while batteries in parallel bank should have the same voltage rating.
  • As much as possible, only connect batteries in series or parallel during emergency situations.
  • It's better to go for batteries with higher voltage when running high-power electrical appliances instead of wiring two battery packs together.

VoltX 48V 100Ah Lithium LiFePO4 Battery VoltX 48V 100Ah Lithium LiFePO4 Battery VoltX 48V 100Ah Lithium LiFePO4 Battery VoltX 48V 100Ah Lithium LiFePO4 Battery VoltX 48V 100Ah Lithium LiFePO4 Battery VoltX 48V 100Ah Lithium LiFePO4 Battery VoltX 48V 100Ah Lithium LiFePO4 Battery VoltX 48V 100Ah Lithium LiFePO4 Battery VoltX 48V 100Ah Lithium LiFePO4 Battery VoltX 48V 100Ah Lithium LiFePO4 Battery VoltX 48V 100Ah Lithium LiFePO4 Battery VoltX 48V 100Ah Lithium LiFePO4 Battery

Product categories:

Technical specs

SPECIFICATIONS

Nominal Voltage: 51.2V
Nominal Capacity: 100Ah
Charging Voltage: 56.8 - 58.4v
Rated Energy: 5.12KWh
Charge Method: CC/CV
Charger: 56.8-58.4V
Standard Charge Current: 50A
Max. Charging Current: 100A
Standard Discharge Current: 100A
Max. Continuous Discharge Current: 100A
Max. Discharge Current 5 sec: 300A
Approx Life Cycles: 4000
Working Temperature Range: Charge: 0°C to 45°C | Discharge: -25°C to 65°C
Storage Temperature: -10°C to 50°C
Battery Cells: Prismatic
Bolt Type: Hexagon
Bolt Material: Iron nickel-plated
Series Connection: No
Parallel Connection: Yes, Max 6 batteries
Absorption Voltage: 57.6V
Float Voltage: 54.4V
Overcharge Protection: 58.4V
Overcharge Recovery: 56.8V
Overdischarge Protection: 40.0V
Overdischarge Recovery: 42.4V
Cell Grouping: 161P
Case Material: ABS Plastic
Warranty in Years: 5

DIMENSIONS & WEIGHT

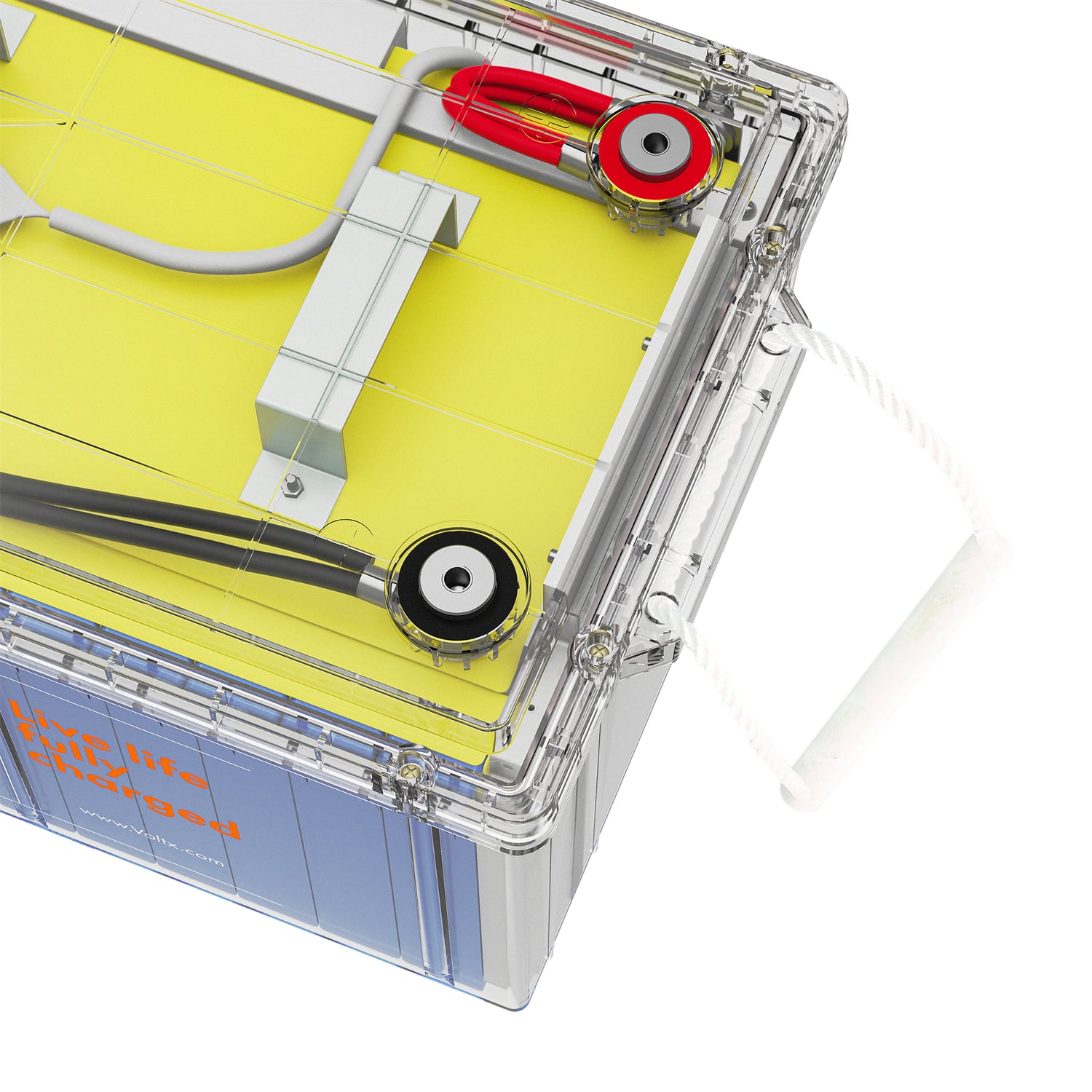

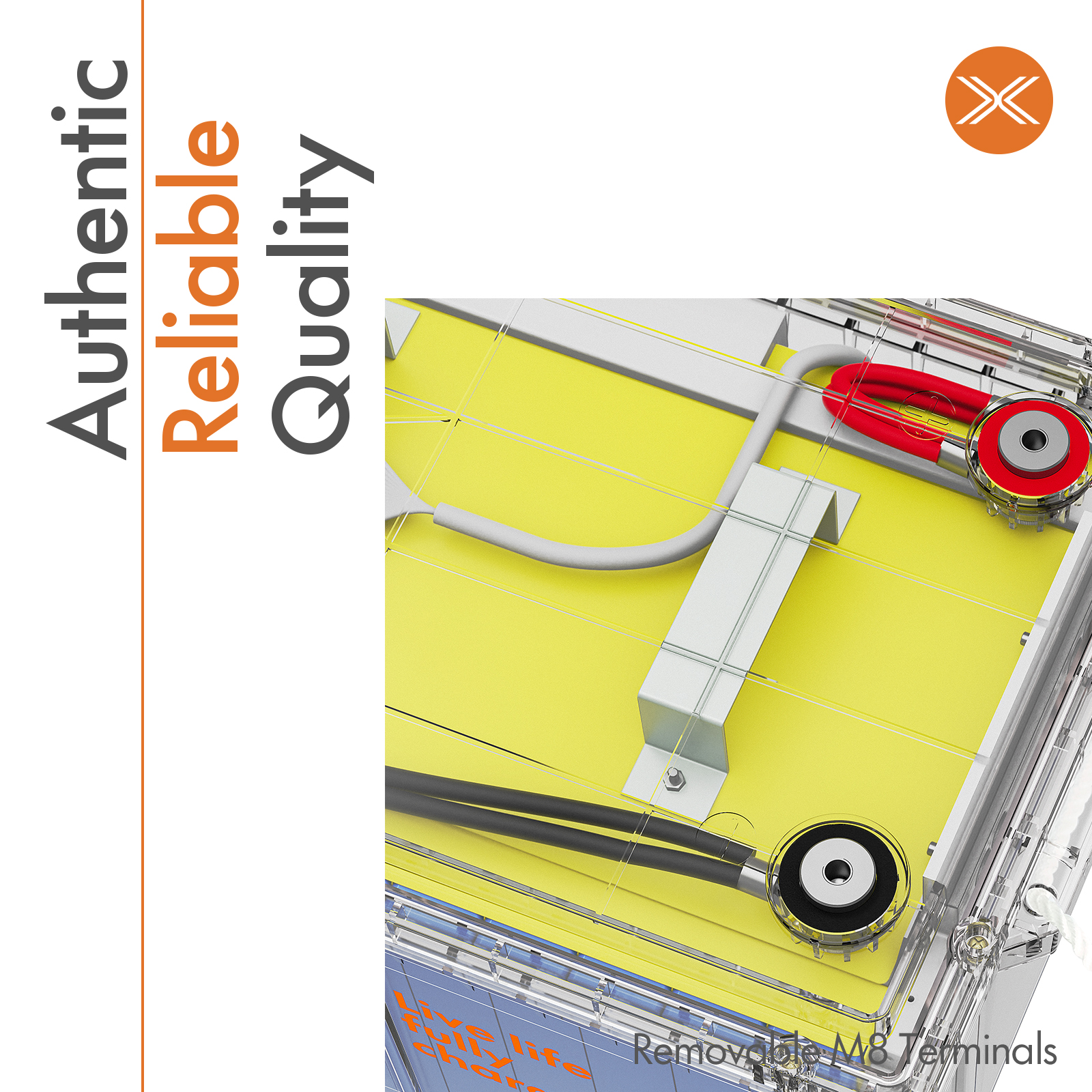

Bolt Terminal Size: M8 (Ø16) x 5(H)mm
Dimensions (includes the terminal posts): 522(L) x 238(W) x 223(H) mm
Weight: 38.0kg

WHAT'S IN THE BOX

1 x Lithium Battery

SKU

bat-li-48-100a-plus
