The complete 48V lithium upgrade for your Universal golf cart

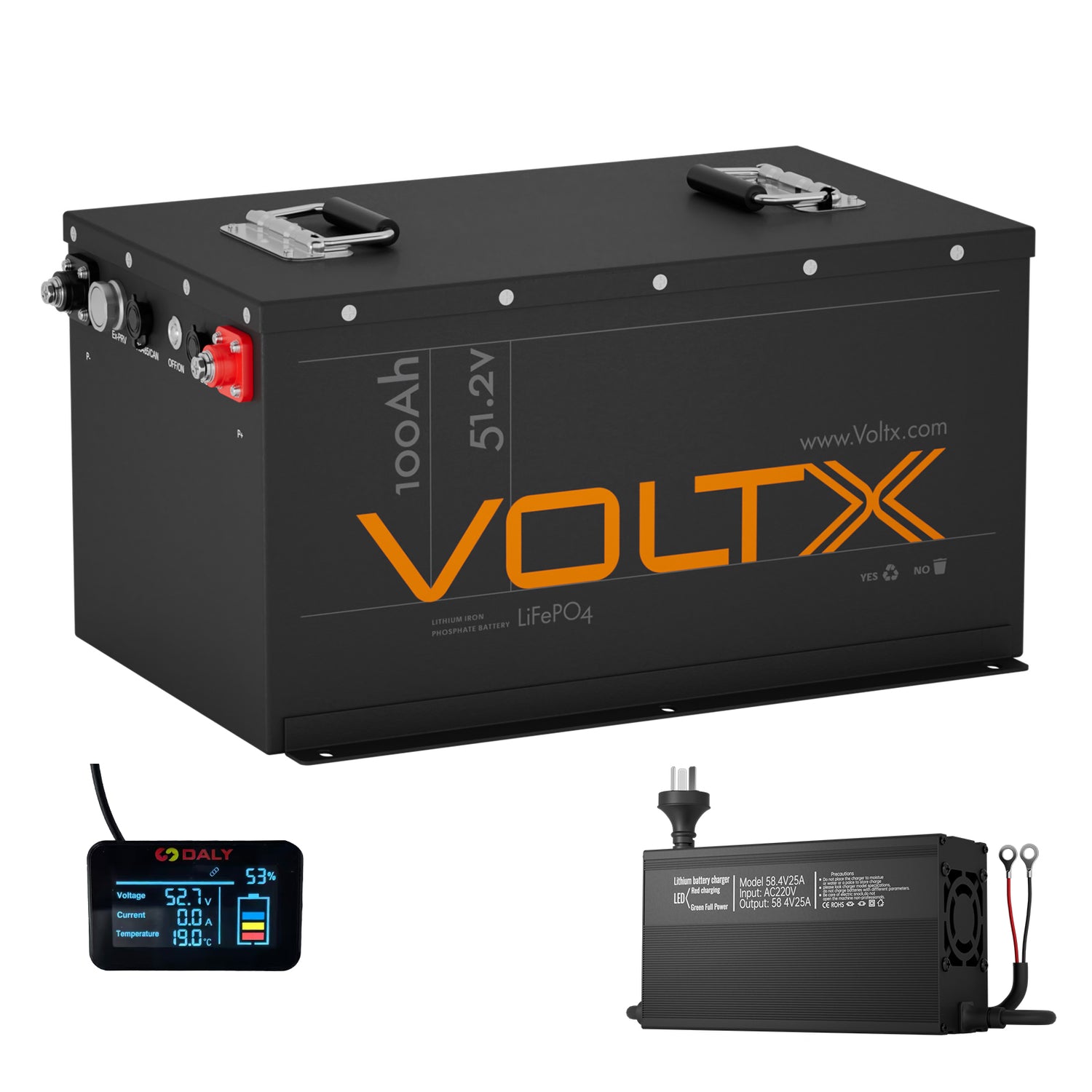

This VoltX bundle pairs a 48V 100Ah LiFePO4 golf cart battery with a matched 58.4V 25A charger for Universal carts, so you have everything needed to switch from lead-acid to lithium in one box. The battery delivers 5120Wh of stable power and the charger brings it back fast.
5120Wh of consistent lithium power
Hold full speed and torque all the way through.
- 48V (51.2V) 100Ah LiFePO4 battery with 5120Wh of usable energy
- Grade A prismatic cells in a 16S1P configuration
- Consistent voltage curve, so the cart does not fade as it drains
200A smart BMS and Bluetooth monitoring
Protected, and easy to keep an eye on.
- Integrated 200A BMS guards against overcharge, over-discharge, overcurrent and short circuits
- Bluetooth and an included LCD display for live status
- UN38.3 certified in a durable IP65 metal case
Matched universal ring-terminal charger
The right charger, already in the box.
- 58.4V 25A charger, up to 1500W, with heavy-duty ring terminals
- Connects to Club Car, EZGO, Yamaha and custom 48V carts
- IP67 waterproof housing with over 90% efficiency
Lighter, maintenance-free and long-lasting
An easier life for you and the cart.
- Far lighter than lead-acid for better acceleration and hill climbing
- Sealed and maintenance-free, with up to 4000 charge cycles
- Backed by a 5 year battery warranty
Not sure which fitment you need? Browse the full VoltX golf cart battery and charger range at Outbax. Shop now.
BATTERY SPECIFICATIONS
| Brand | VoltX |
| Battery Type | LiFePO4 |
| Nominal Voltage | 51.2V (48V) |
| Nominal Capacity | 100Ah |
| Rated Energy | 5120Wh |
| Max Power | 5000W |
| BMS | 200A |
| Cycle Life | Up to 3000 cycles |
| Cell Type | Grade A Prismatic |
| Cell Configuration | 16S1P |
| Charging Voltage | 58.4V |
| Bluetooth | Yes |
| Communication Ports | RS485 / CAN |
| Protection Rating | IP65 |
| Certification | UN38.3 |
| Case Material | Metal |
| Battery Size | 460 x 320 x 242.5 mm |
| Net Weight | 46kg |
| Warranty | 5 Years |
CHARGER SPECIFICATIONS
| Type | Golf Cart Battery Charger |
| Compatible Make | Universal |
| Input Voltage | 180-240V AC |
| Output Voltage | 58.4V |
| Output Current | 25A |
| Max Output Power | 1500W |
| Plug Type | 3 Pin Triangle (AU) |
| Waterproof Rating | IP67 |
| AC Cable Length | 1M |
| DC Cable Length | 1M |
| Charger Size | 237 x 130 x 77 mm |
| Net Weight | 2.1kg |
| Warranty | 1 Year |
WHAT'S IN THE BOX
| 1 x | VoltX 48V 100Ah LiFePO4 Battery |
| 1 x | LCD Display (3M cable) |
| 1 x | User Manual |
| 1 x | Set of Mounting Screws |
| 1 x | 58.4V 25A Universal Charger |
SKU:
| k-batgcc-l4gca0-gen |
