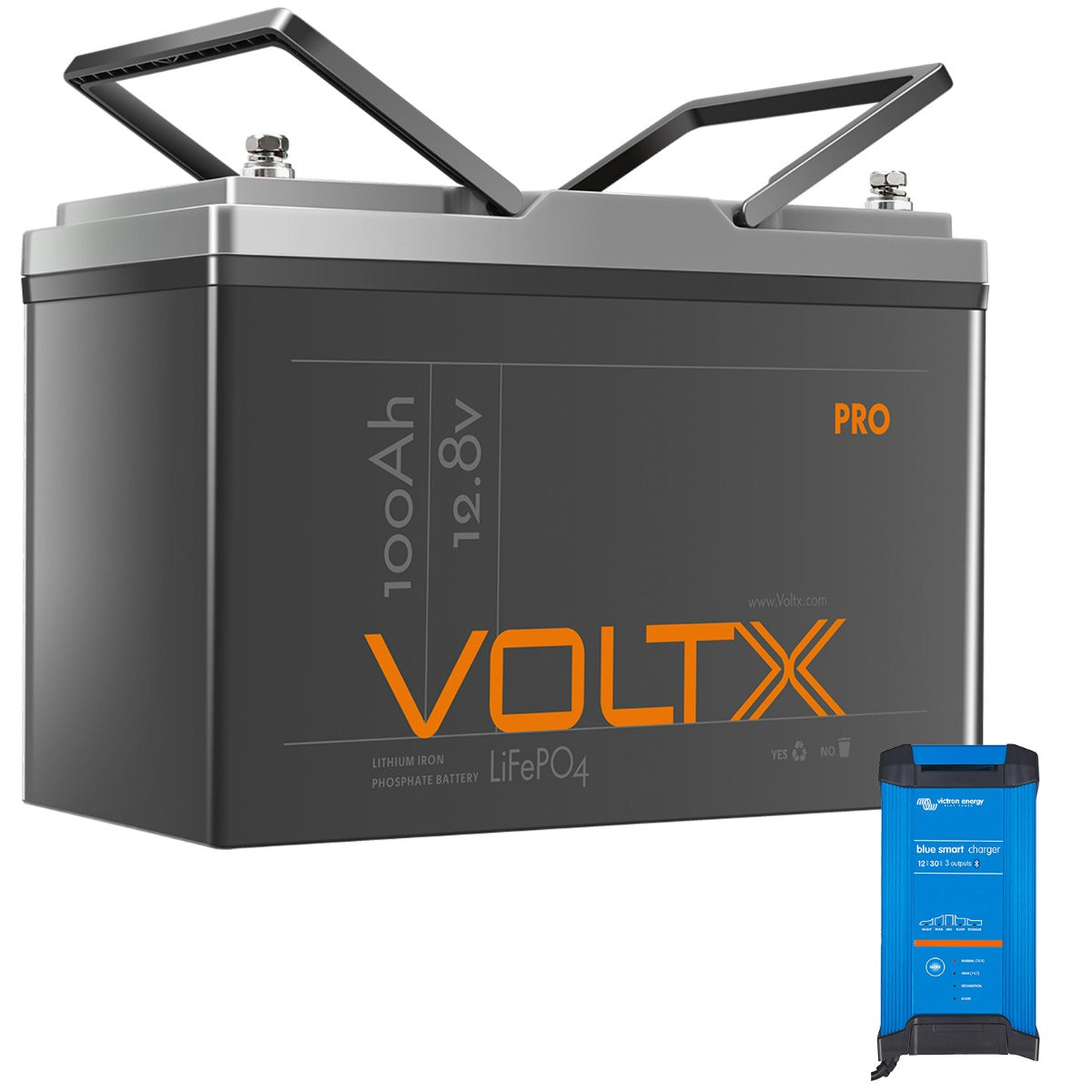

Victron Smart IP22 SLA/VoltX 12V 100Ah Pro LiFePO4 Battery
Couldn't load pickup availability
60 Days
Return
12 Months
Warranty
100% Secured
Payment & Data
Selling fast. Hurry and order now to save 48%
PRODUCT HIGHLIGHTS
- LiFePO4 comprised of prismatic cells & a built-in BMS
- High energy density for increased capacity in lightweight form
- 94% charger efficiency rate and Bluetooth connectivity
- Victron top quality charger with adaptive 6-stage charge algorithm
- Ideal combo for outdoor recreational, backup, and off-grid applications

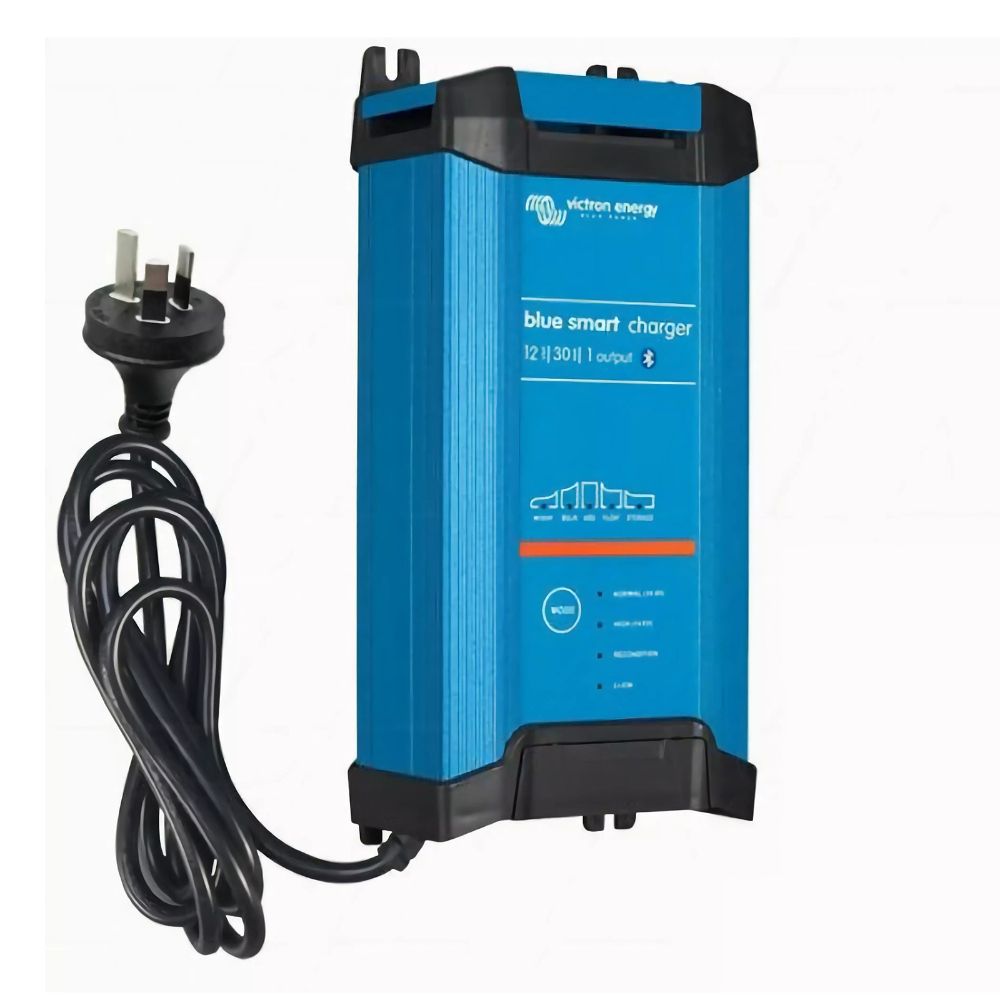

MODEL 1: Victron Blue Smart IP22 SLA/LiFePO4 Charger
Level up your charging experience with the Victron Smart Battery Charger. Highly efficient, Bluetooth-compatible, and equipped with multi-stage charging, this is the perfect pair to your VoltX battery–and you can now get them both in one bundle.
Engineered for Efficiency
Charge your batteries fast with up to 94% maximum efficiency rate. The Victron Smart Charger fuses functionality with safety, generating four times less heat compared to other chargers. Additionally, once the battery is fully charged, power consumption is reduced to five or even 10 times better than the industry standard as well.

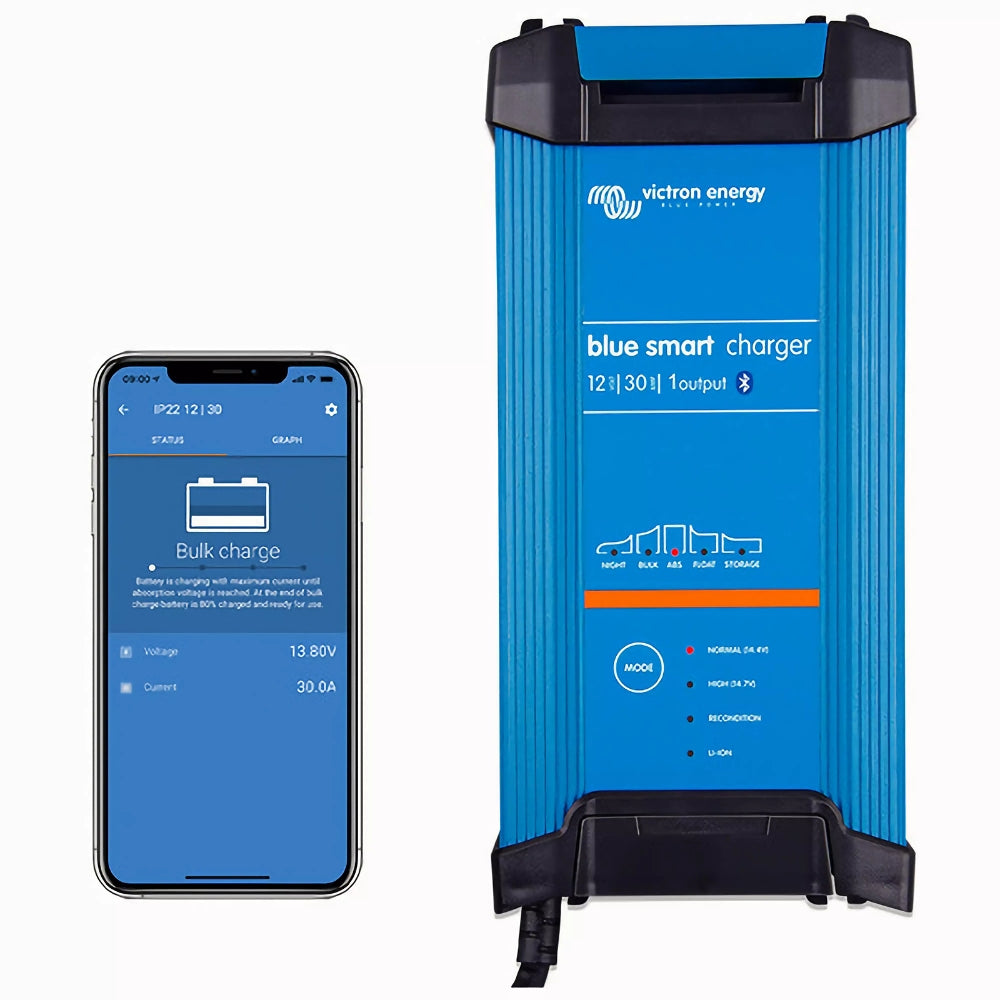

Easy Tracking & 6-Stage Charge Algorithm
Aside from easy monitoring via Bluetooth, the Victron Smart charger features a 6-stage algorithm: test - bulk – absorption - recondition – float – storage. It also has a microprocessor-controlled ‘adaptive’ battery management, which alLows for an optimised charging process in accordance to the way the battery is being used.
Storage Mode
Giving your battery a little break? Make sure it stays in great shape with Victron’s storage mode, which kicks in whenever the battery has not been subjected to discharge during 24 hours. In the storage mode, float voltage is reduced to 2,2V/cell (13,2V for a 12V battery) to minimise gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalise’ the battery. This feature prevents stratification of the electrolyte and sulfation, a major cause of early battery failure.
Night and Low Setting
When in Night or Low mode, the output current is reduced to max. 25% of the nominal output and the charger operates without any noise. The Night mode automatically ends after 8 hours, while the Low mode can be ended manually.
Protected Against Overheating
Overheating is one of the top enemies of a battery. Thanks to Victron’s automatic protection, its output current will reduce as temperature increases up to 50°C, without compromising the performance of the charger itself.

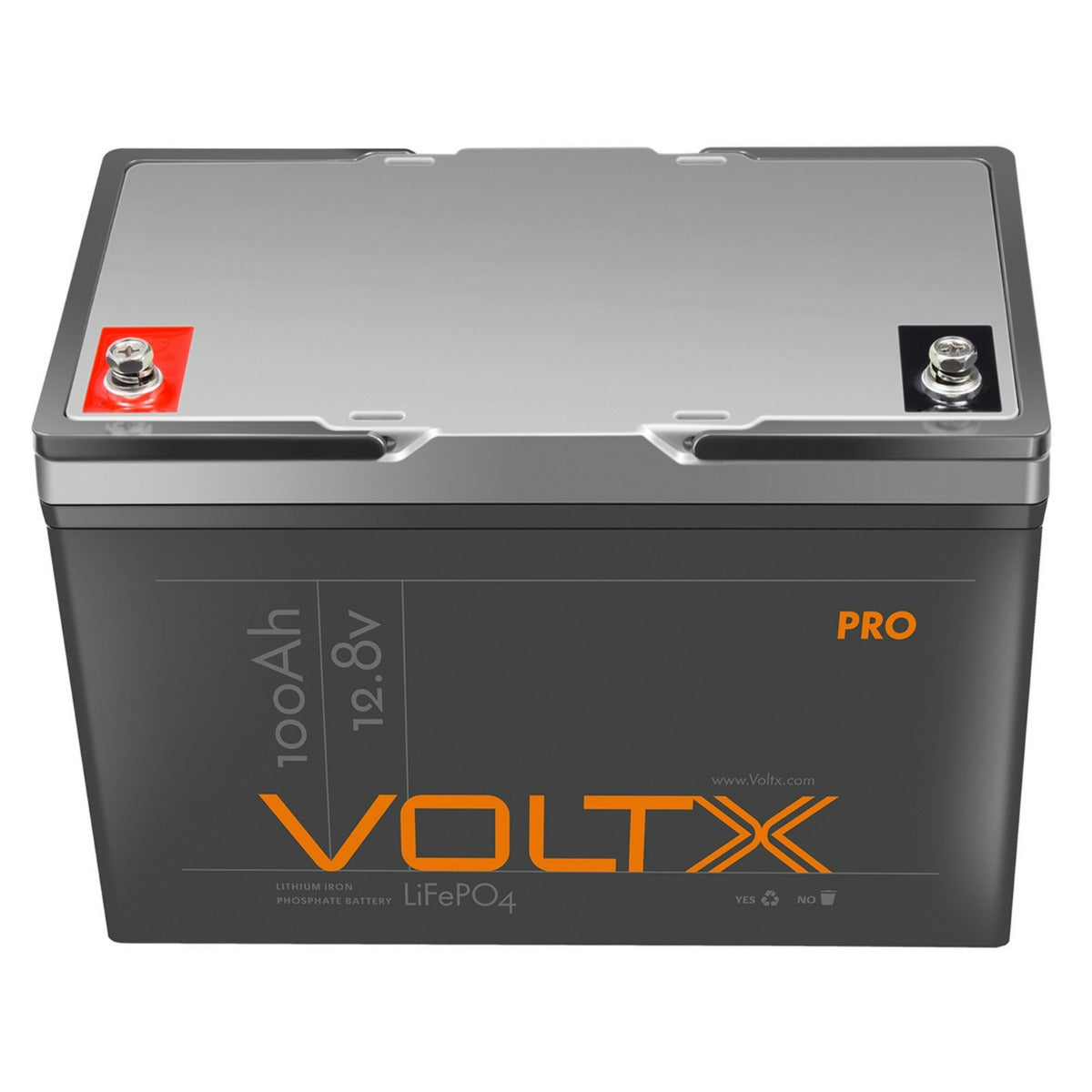

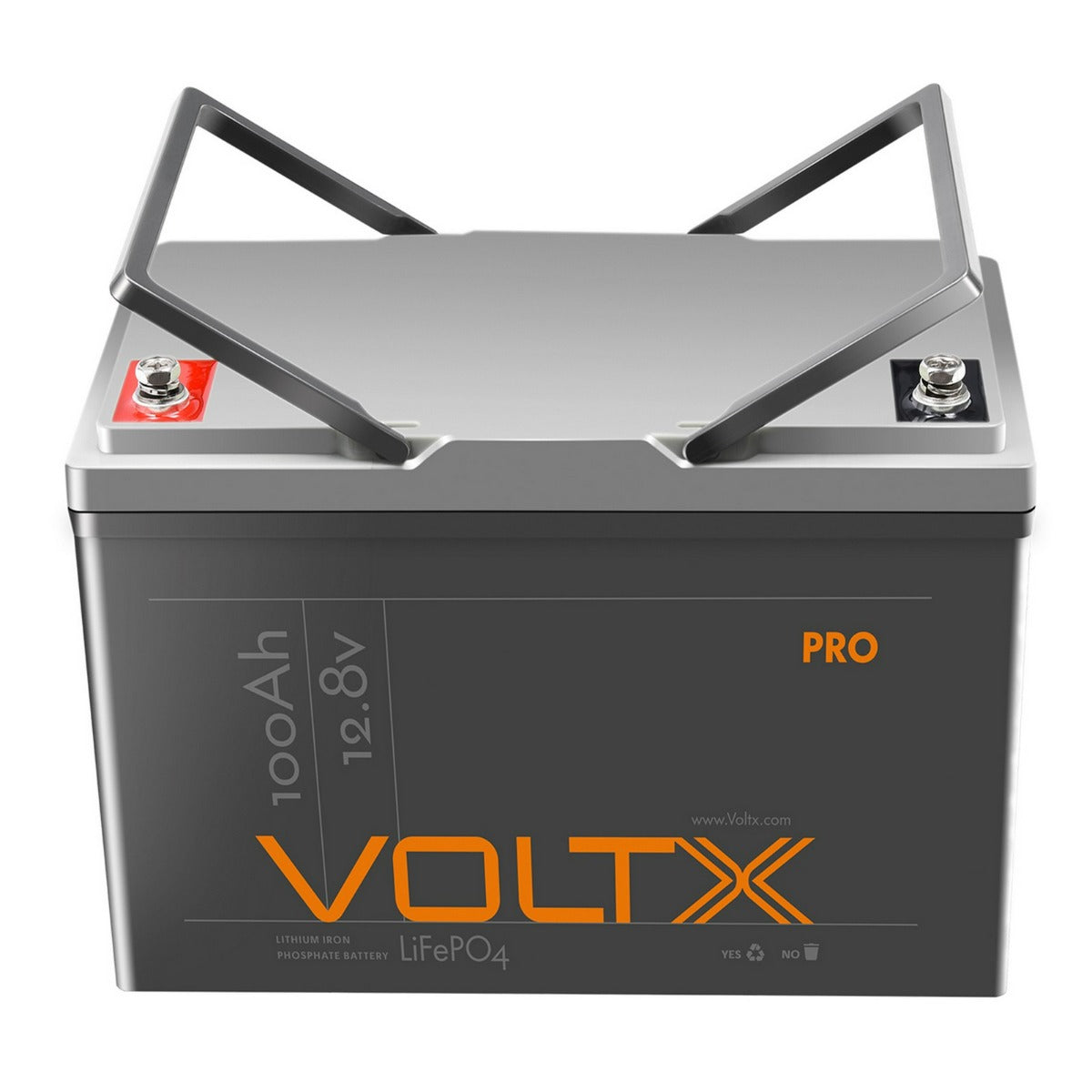

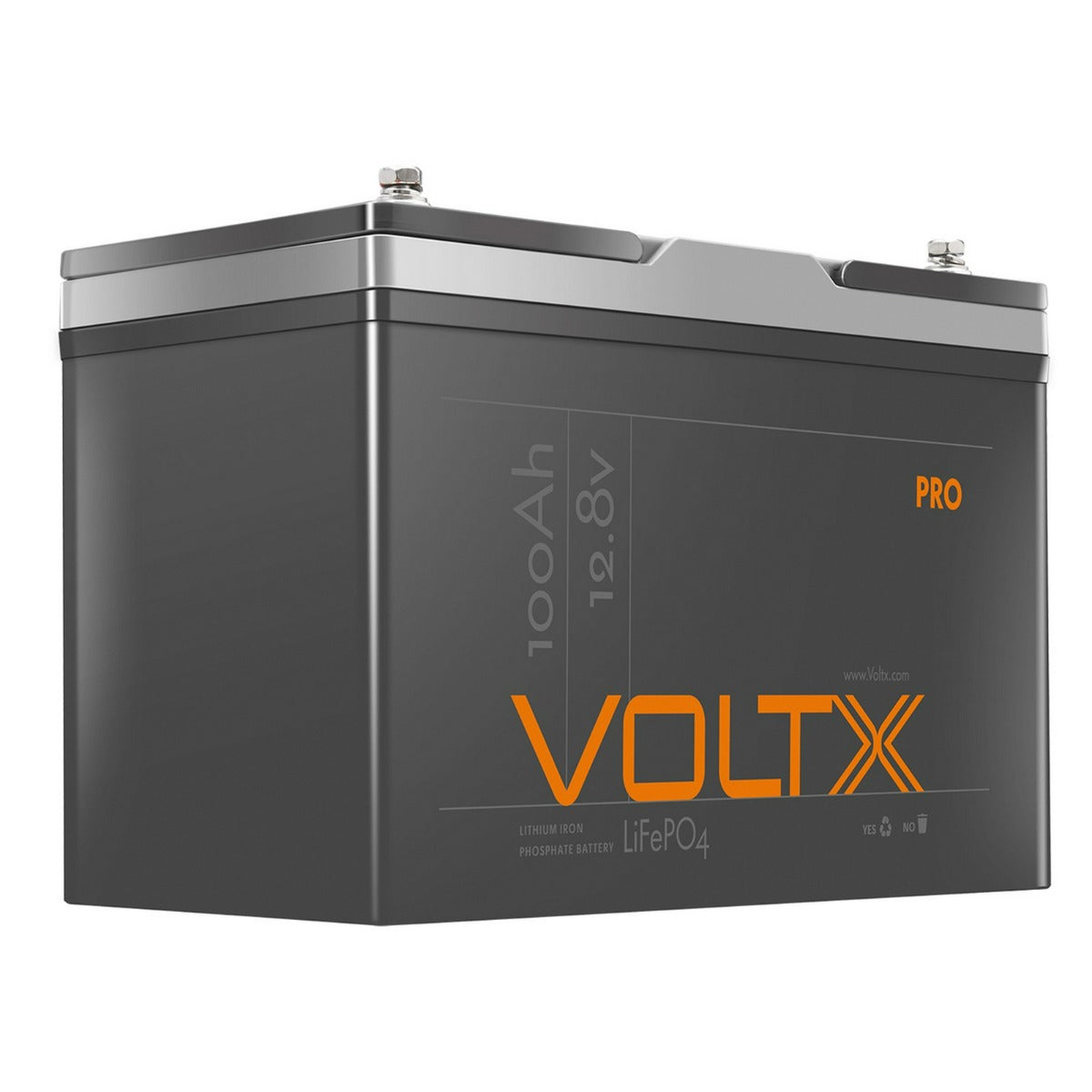

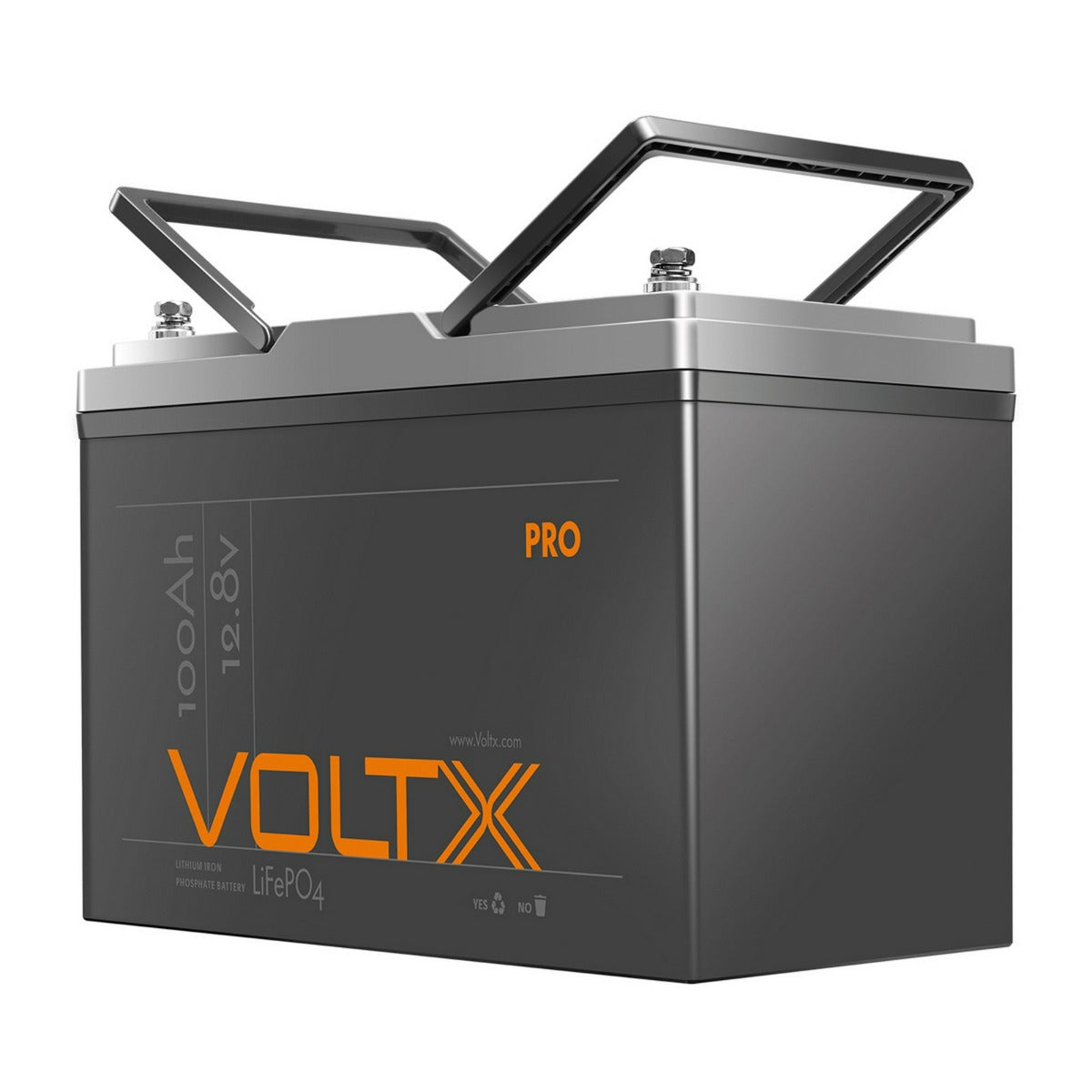

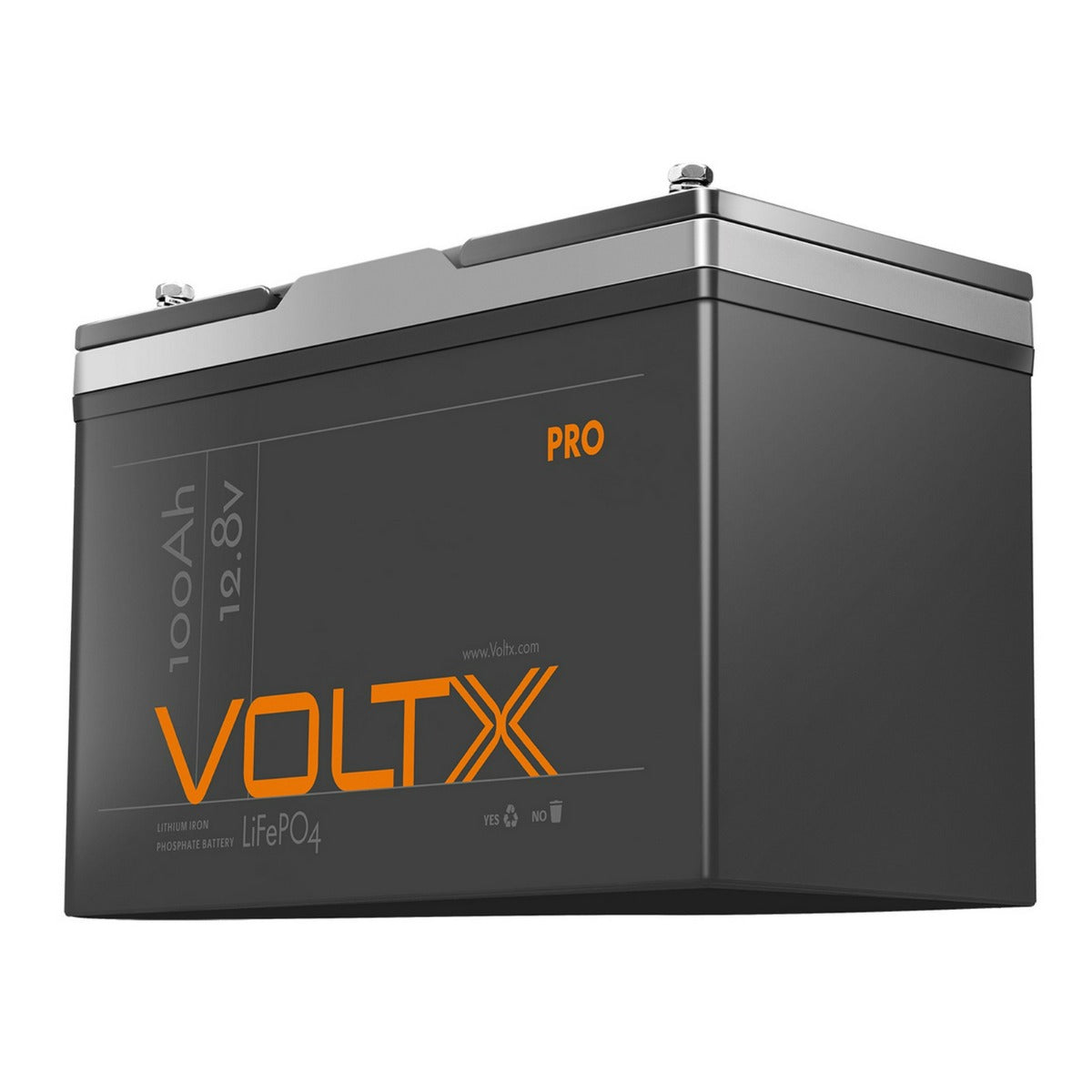

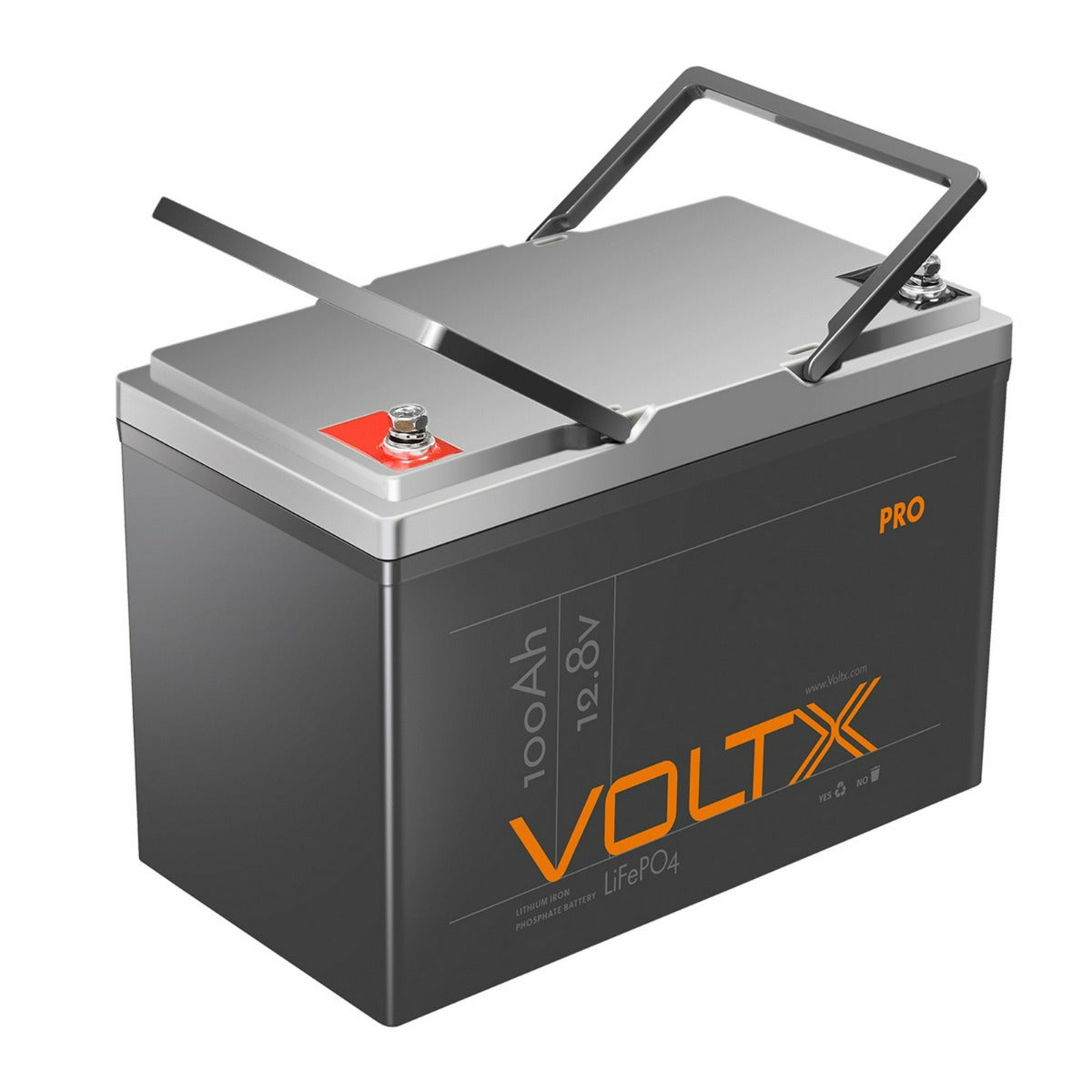

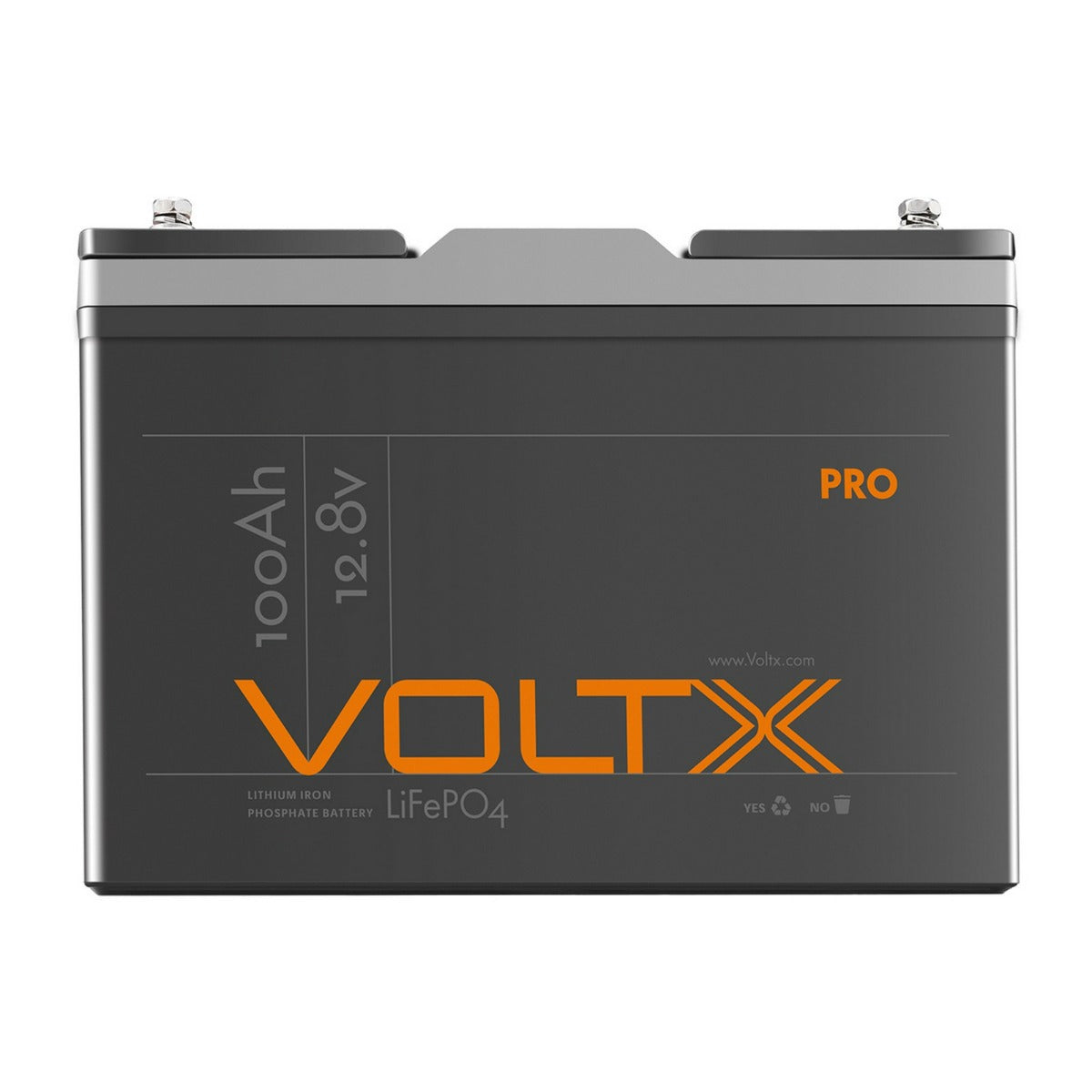

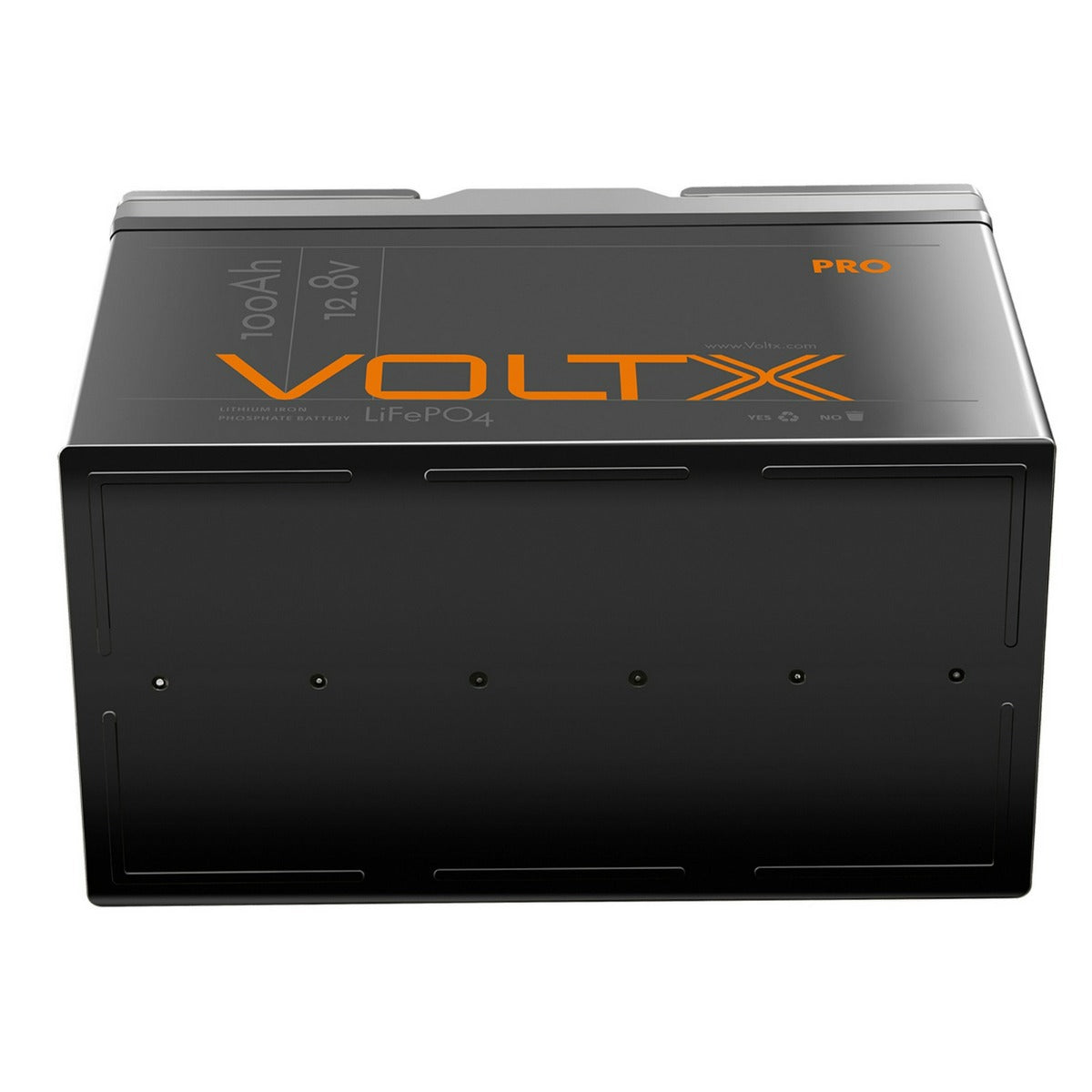

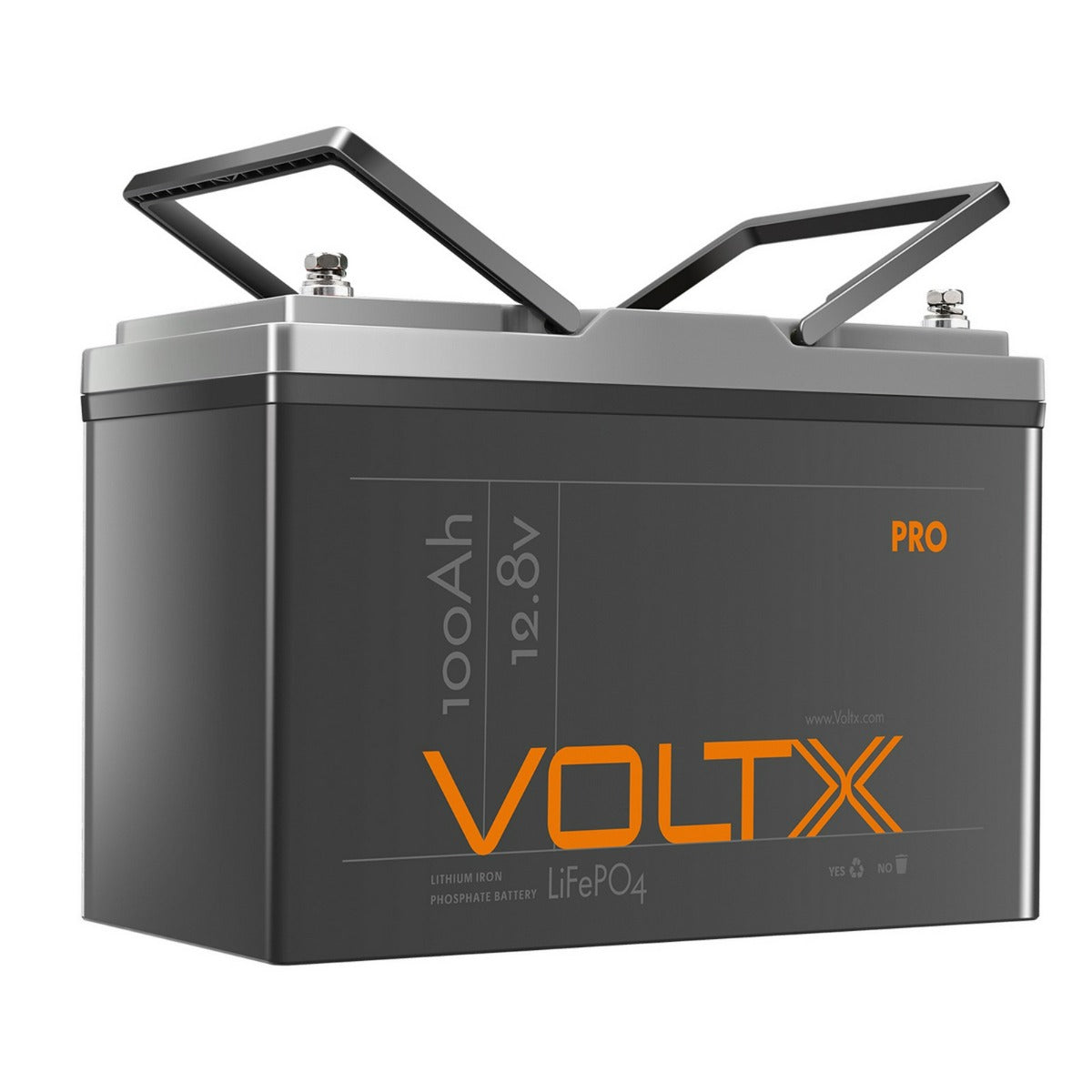

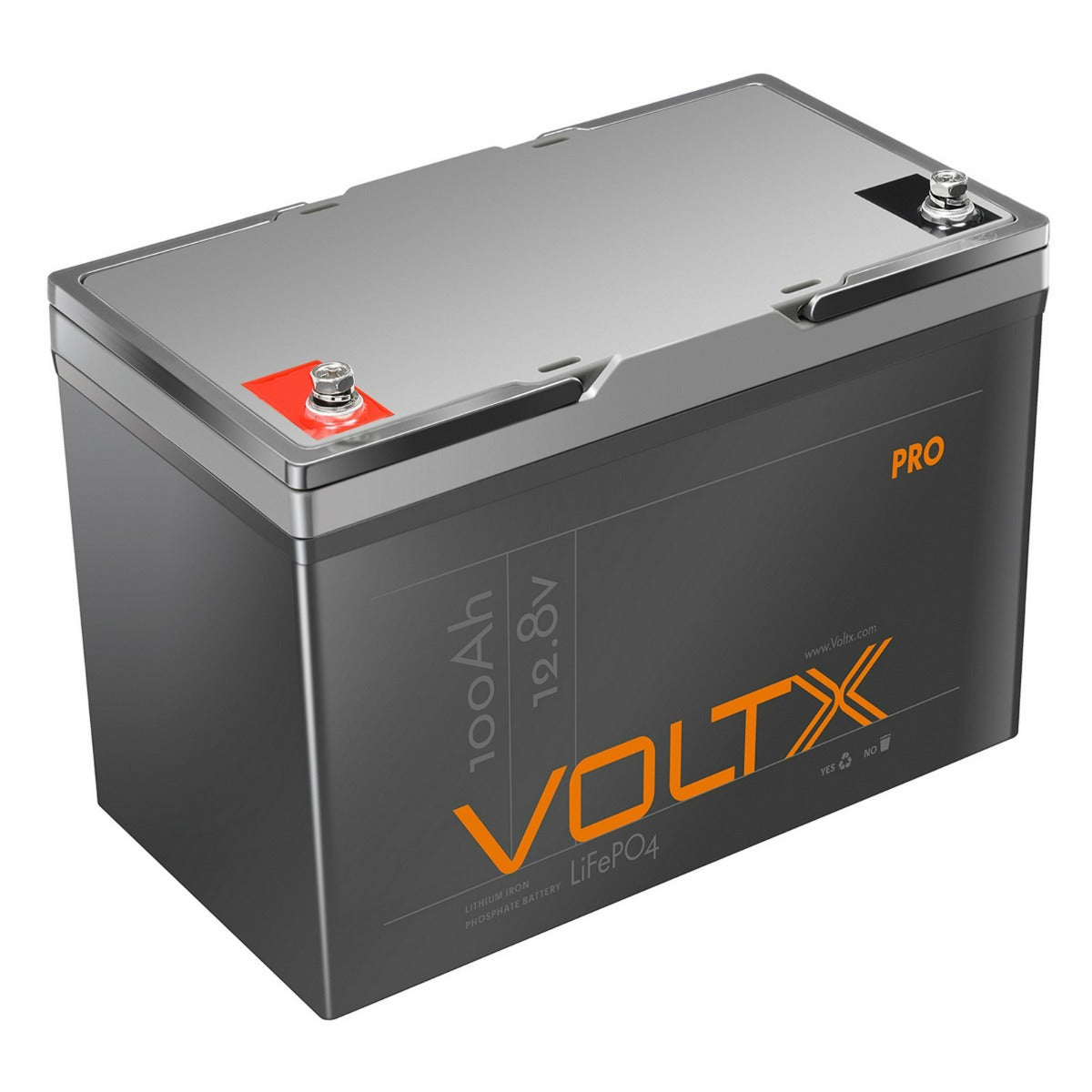

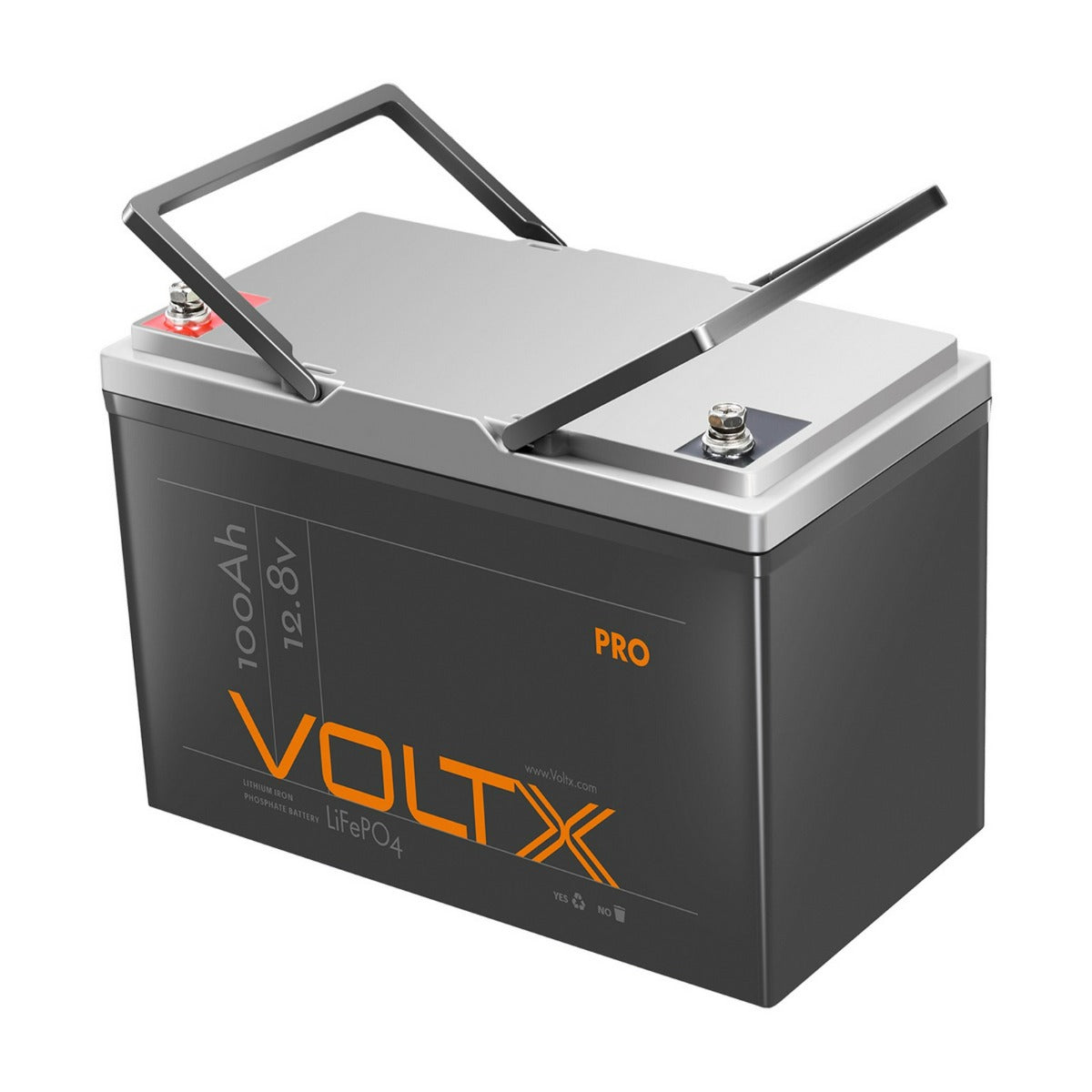

MODEL 2: VoltX 12V 100Ah Pro LiFePO4 Battery
Our Pro LiFePO4 battery is one of our best-sellers, packing 100% real capacity in a standard-sized, lightweight unit. At 13.5kg, this will easily power your outdoor essentials for a weekend exploring the great outdoors, or a bad weather day.
VoltX Made Smart
Equipped with a smart Battery Management System, our VoltX 12V 100Ah Battery operates like no other. Each cell is well-optimized for stable output with every use. The built-in BMS also alLows for maintenance-free operation by keeping your battery safe from overcharging, over-discharging, overheating, and short circuits.
Dual Charge Capability
The great thing about our 100Ah battery is that you can charge it via mains power or solar panels. Now in bundle form with the Victron Smart Charger, this makes it an even better feature. Pair it with a couple of VoltX solar panels and you're all set to become the ultimate adventurer.
Parallel-capable
Have a couple more appliances to power? Staying longer in your favourite campsite? Connect this VoltX battery in parallel for increased output. Moreover, each battery pack also delivers 100% real capacity, so you get to use up every bit of power need.
Sounds awesome, right? Don't miss our bundle offer and get both premium power equipment in one purchase.
IMPORTANT: While our LiFePO4 batteries are top-notch & can be wired with other batteries of its kind, it is not advisable to connect any LiFePO4 batteries in parallel or series. This poses several risks and should only be done in emergency situations. If you must wire batteries together, make sure you are familiar with the correct procedure or seek help from a professional if needed.
Suggestions From the Outbax Team
- Batteries connected in series should have the same amp-hour rating while batteries in parallel bank should have the same voltage rating.
- As much as possible, only connect batteries in series or parallel during emergency situations.
- It's better to go for batteries with higher voltage when running high-power electrical appliances instead of wiring two battery packs together.
- We have available batteries with larger discharge parameters for fast charge/discharge requirements.
- Our batteries are also available in 200Ah and 300Ah for larger capacity demands.
MODEL 1: Victron Blue Smart IP22 SLA/LiFePO4 Charger
Input voltage range: | 180 - 265 VAC |
Charge current, normal mode: | 15 / 20 / 30 A |
Charge current, NIGHT or LOW: | 7.5 / 10 / 15 A |
Efficiency: | 93 % |
No load power consumption: | 0.5 W |
Frequency: | 45 - 65 Hz |
Number of outputs: | 1 |
Charge Voltage Absorption: |
Normal: 14.4V High: 14.7V Li-ion: 14.2V |
Charge Voltage Float: |
Normal: 13.8V High: 13.8V Li-ion: 13.5V |
Charge Voltage Storage: |
Normal: 13.2V High: 13.2V Li-ion: 13.5 V |
Charge algorithm: | 6-stage adaptive |
Can be used as power supply: | Yes |
Protection: | Battery reverse polarity (fuse) Output short circuit Over temperature |
Operating temp. range: | -40 to +60 °C (full rated output up to 40 °C) |
Humidity (non-condensing): | Max 98 % |
ENCLOSURE |
|
Material & Colour: | Aluminium (blue RAL 5012) |

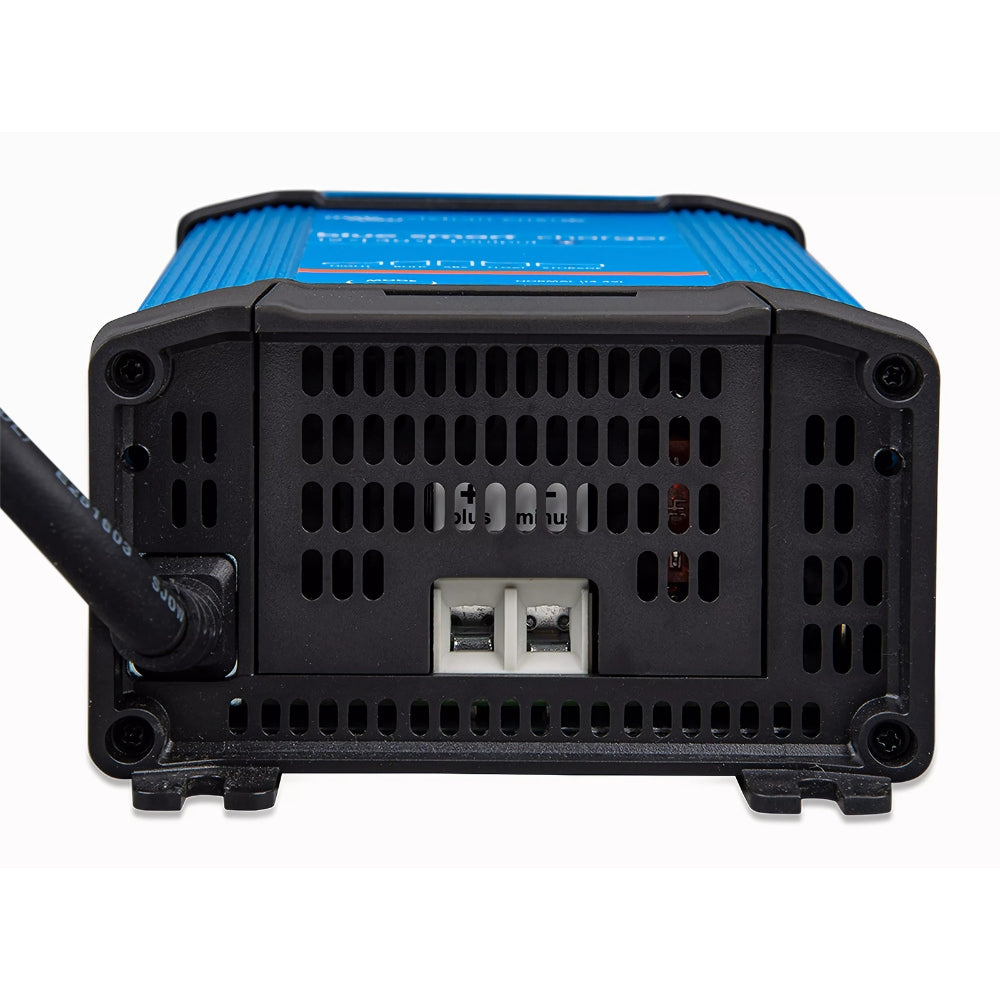

Battery connection: | Screw terminals 16 mm⊃ / AWG6 |
230 VAC connection: | Cable of 1.5 meter with CEE 7/7 plug, BS 1363 plug (UK) or AS/NZS 3112 plug (AU/NZ) |
Protection category: | IP22 |

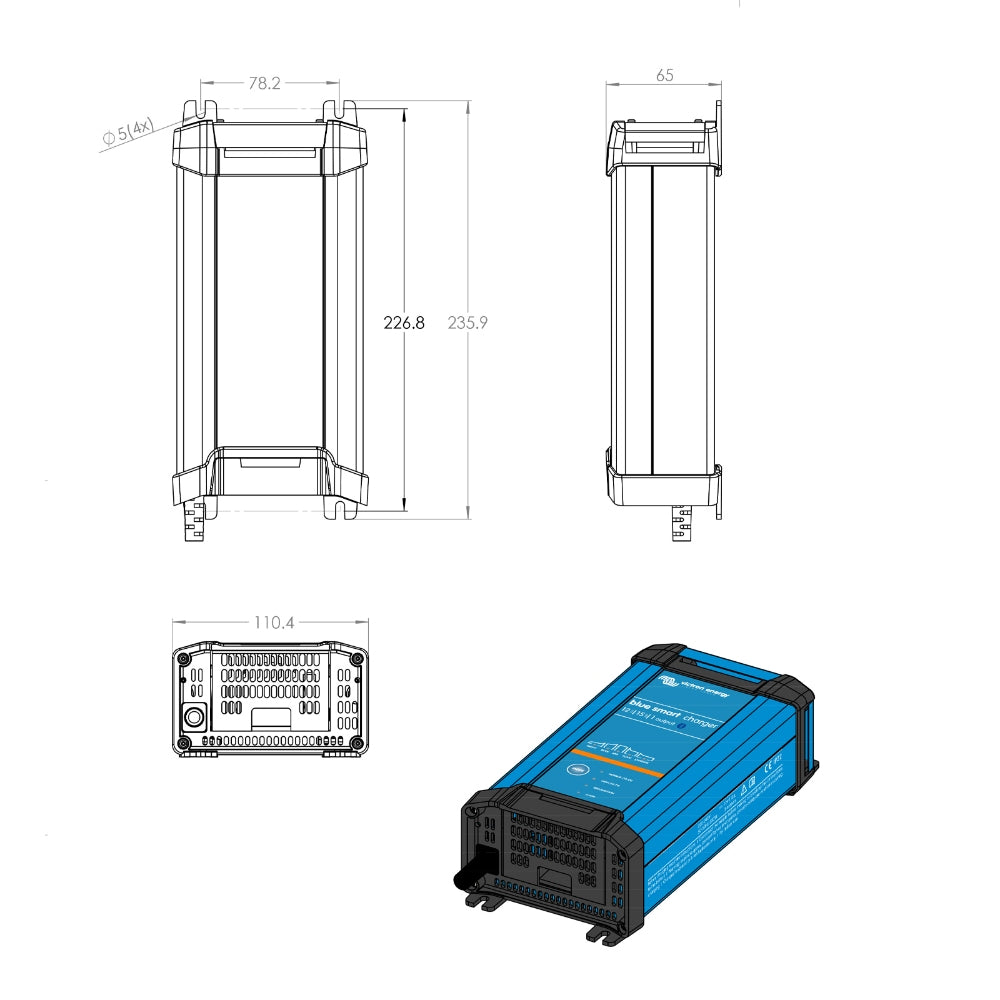

Dimensions: | 235(H) x 108(W) x 65(D) mm |
Weight: | 1.3 kg |
STANDARDS |
|
Safety : | EN 60335-1, EN 60335-2-29 |
Emission: | EN 55014-1, EN 61000-6-3, EN 61000-3-2 |
Immunity: | EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3 |
Automotive: | ECE R10-5 |
MODEL 2: VoltX 12V 100Ah Lithium Iron Phosphate Battery
Nominal Capacity: | 100Ah |
Usable Capacity: | 100Ah |
Nominal Voltage: | 12.8V |
Energy: | 1280Wh |
Charge Voltage: | 14.6V |
Discharge Cut-off Voltage: | 10V |
Charge Method: | CC/CV |
Charger: | 14.6V 50A |
Standard Discharge Current | 100A |
Max. Continues Discharge Current: | 200A |
Max. Discharge Current (5sec): | 600A |
Standard Charge Current: | 50A |
Max. Charge Current: | 100A |
Working Temperature Range Charge: | 0°C to 45°C Discharge:-20°C to 60°C |
Storage Temperature: | -10°C to 50°C |
Dimension: | 306(L) x 169(W) x 215(H)mm |
