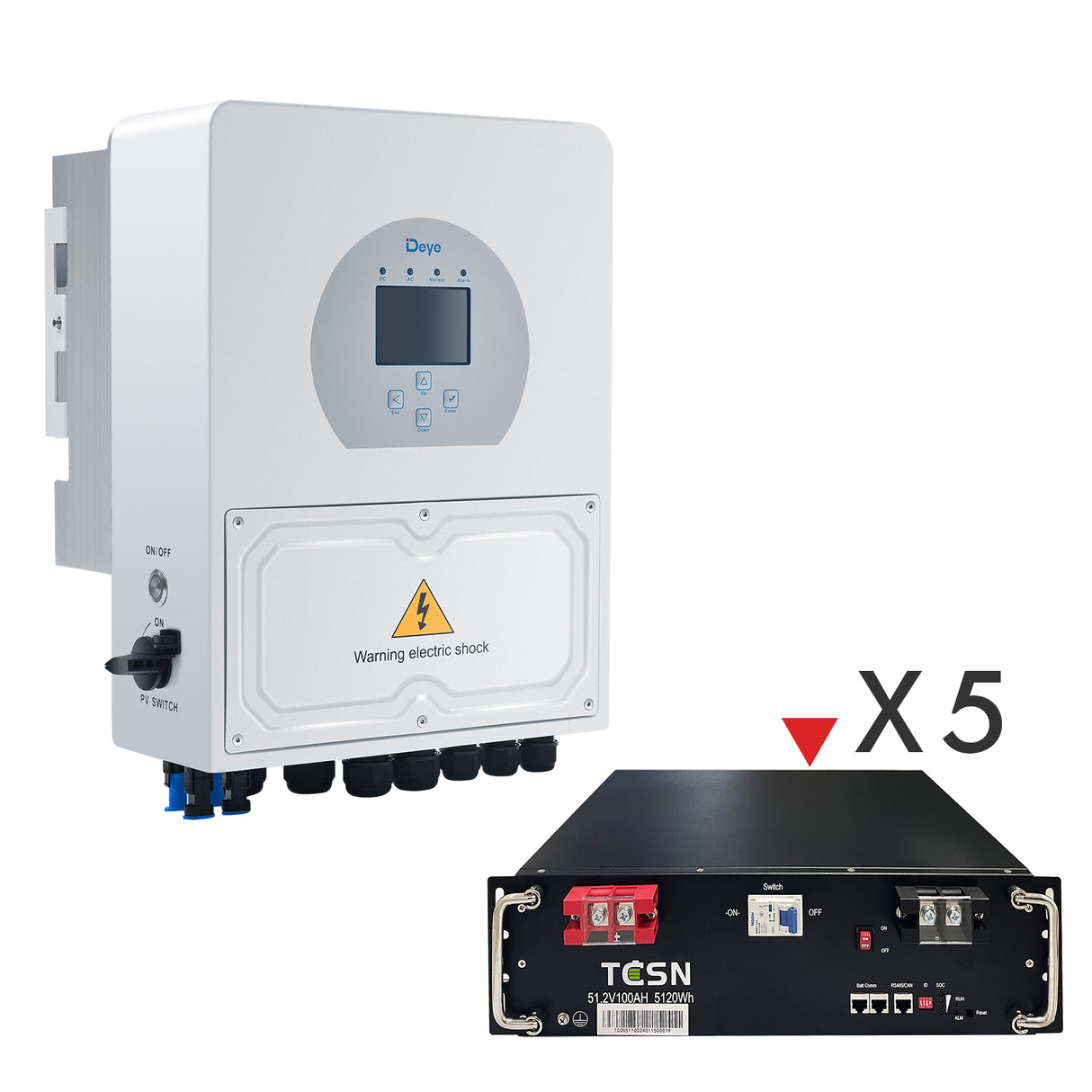

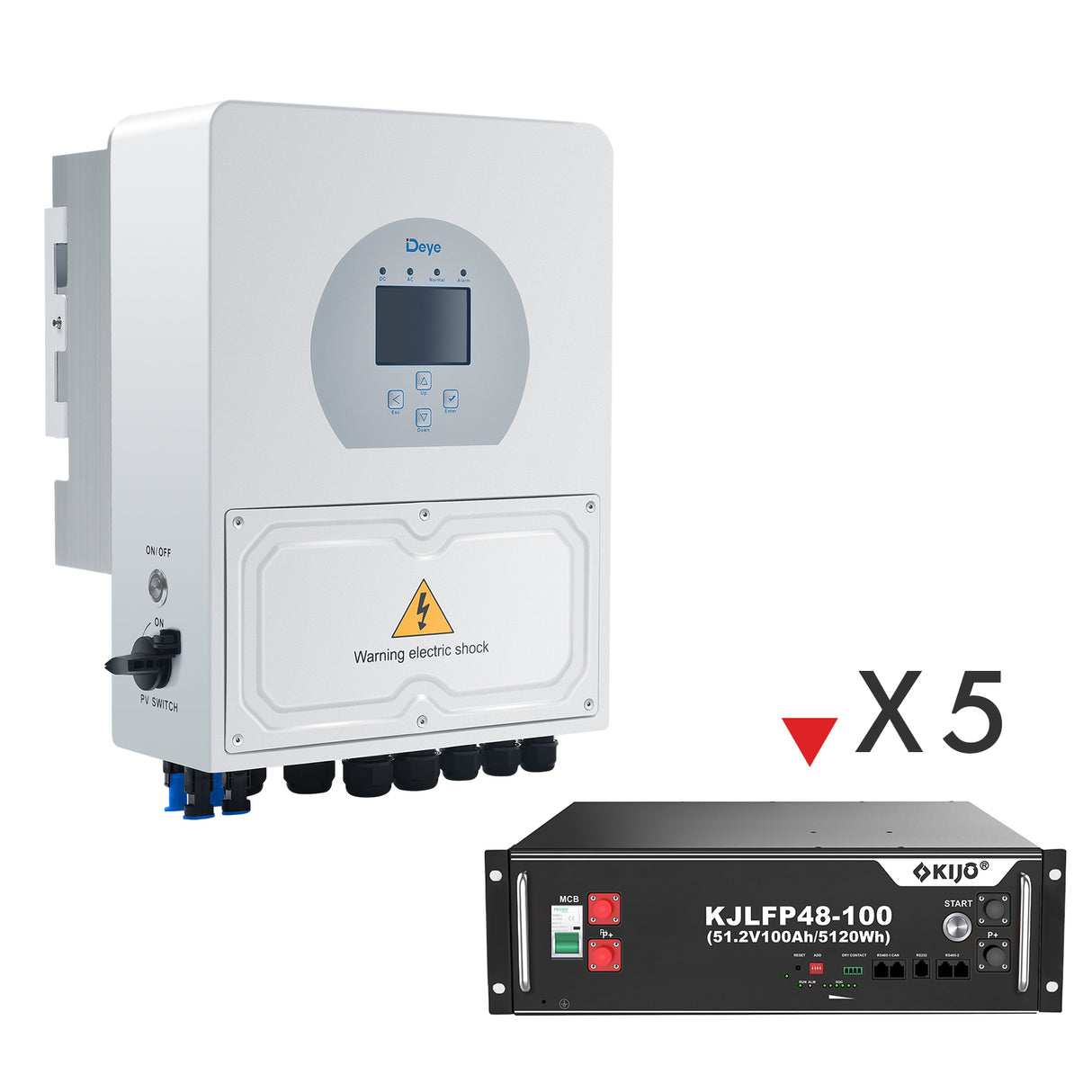

BUNDLE DEAL - Deye 6KW Hybrid Solar Inverter MPPT
Couldn't load pickup availability
60 Days
Return
120 Months
Warranty
100% Secured
Payment & Data
Triple Treat Sale
Get 15% off+ FREE Power Bank (for orders over $899)
+ $79 Shipping Discount (for orders over $1,499)!
Pay only $4,895.15
Hurry! Promo ends 27/03/25 11:59 PM AEDT.
Use Code:
TRIPLE
Selling fast. Hurry and order now to save
PRODUCT HIGHLIGHTS
- Smart hybrid power integration
- High-efficiency battery storage
- Advanced battery management system
- Durable and safe IP65 design
- Flexible off-grid and backup solution

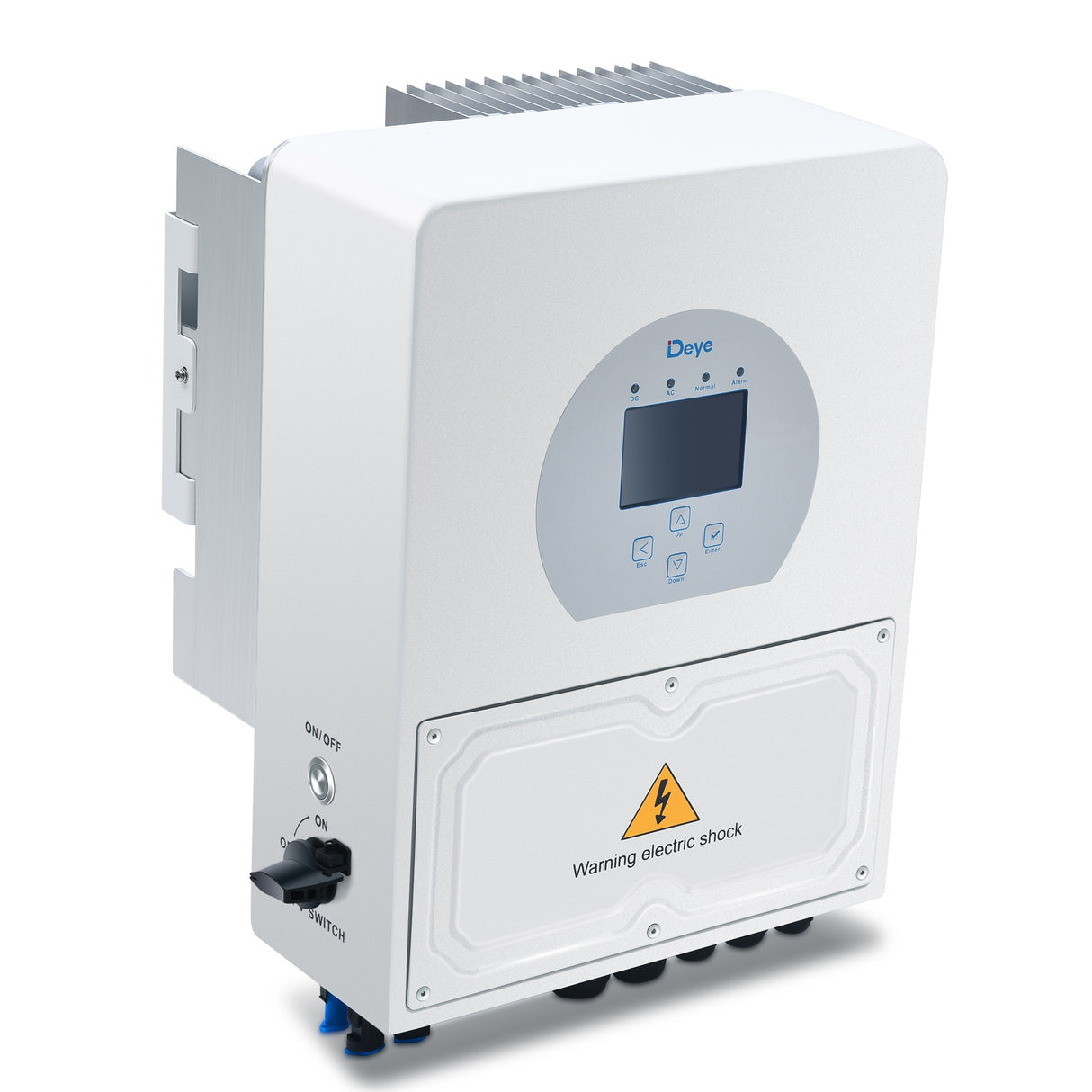

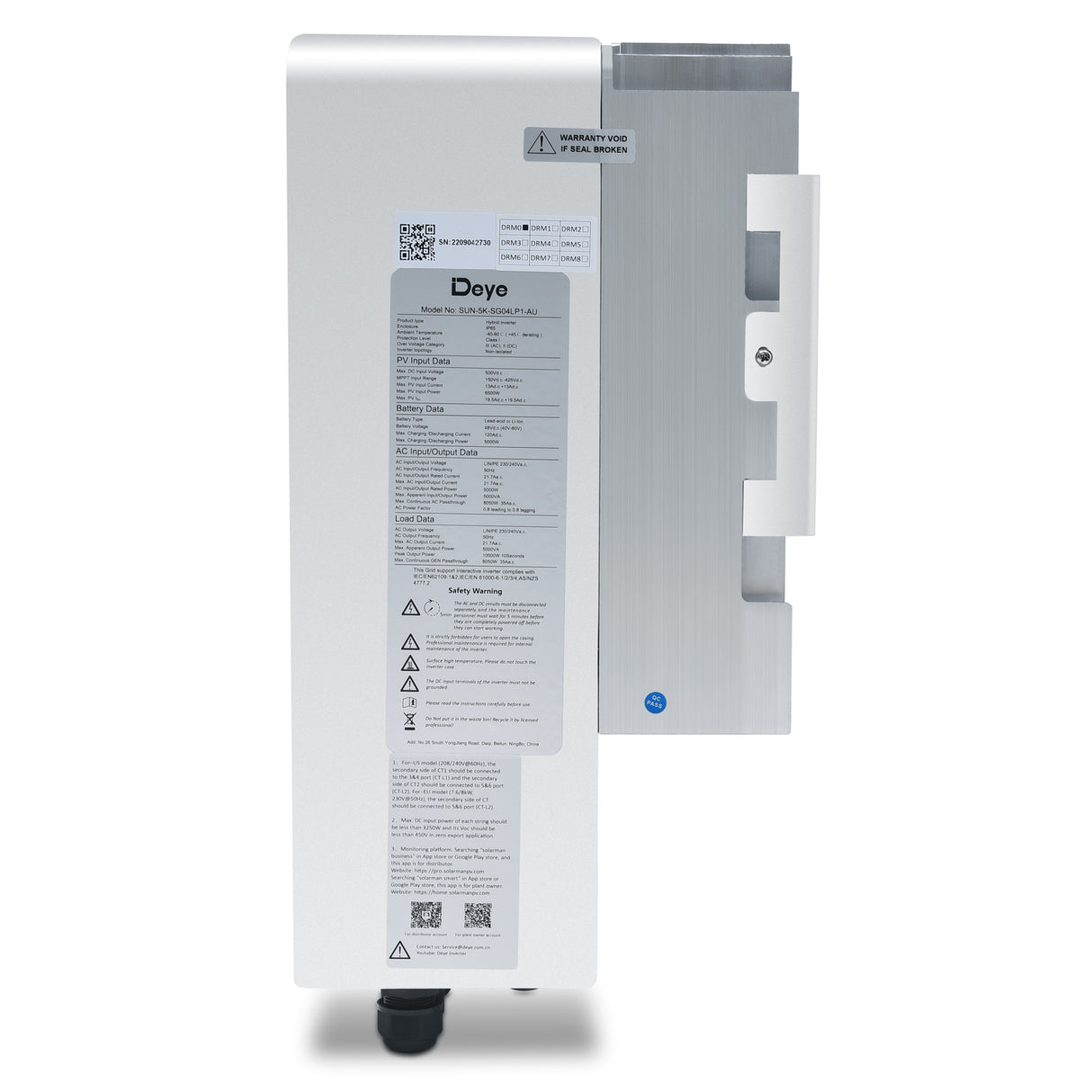

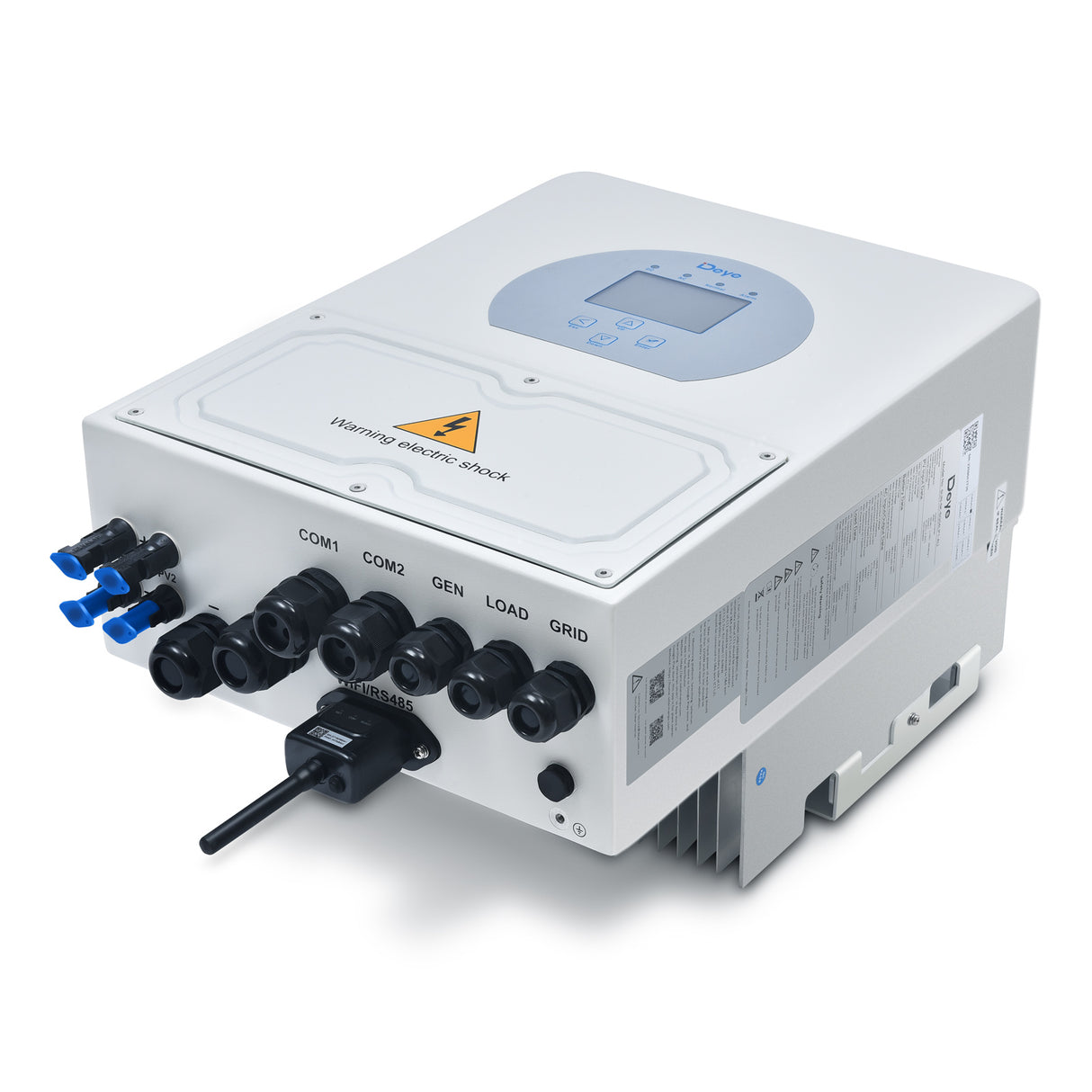

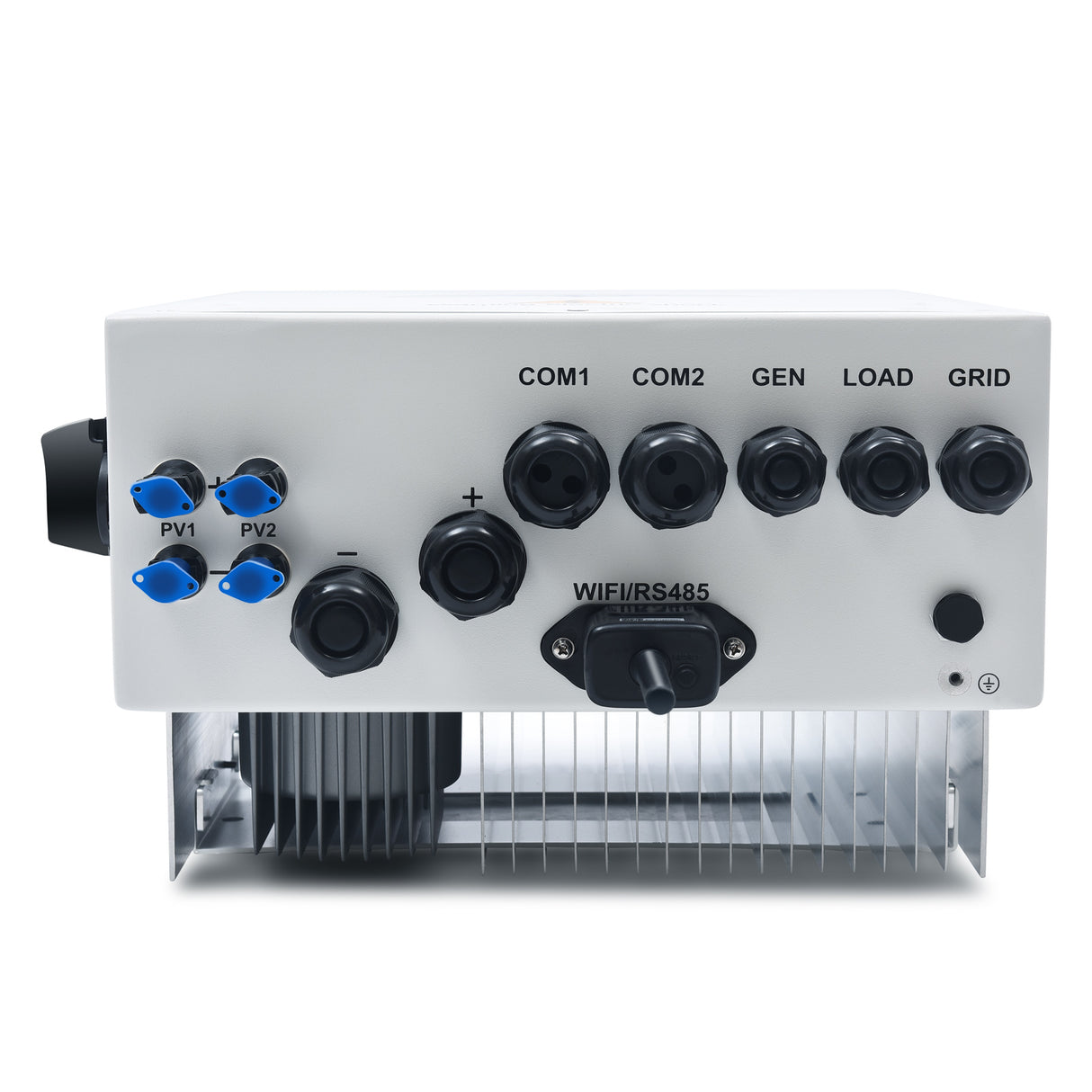

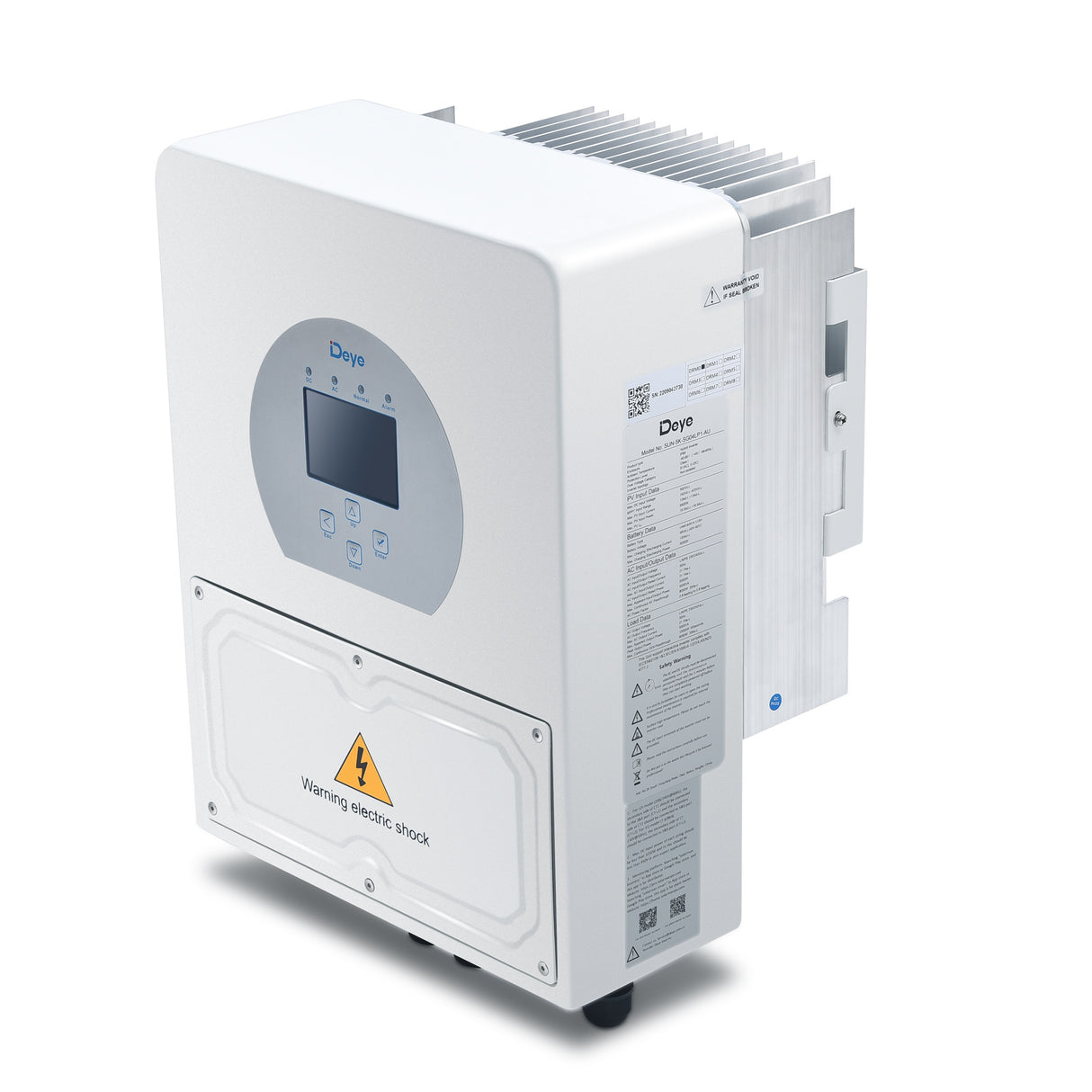

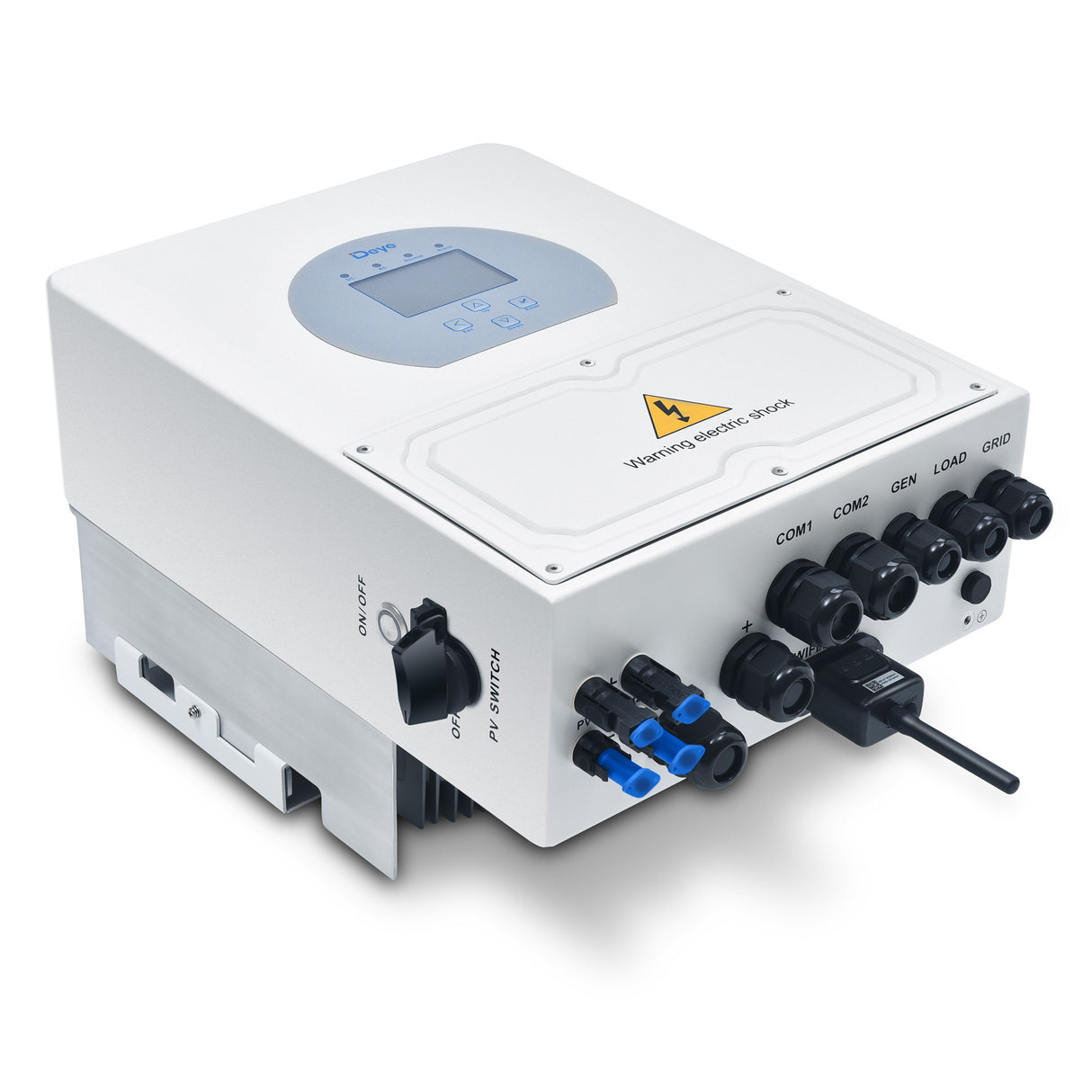

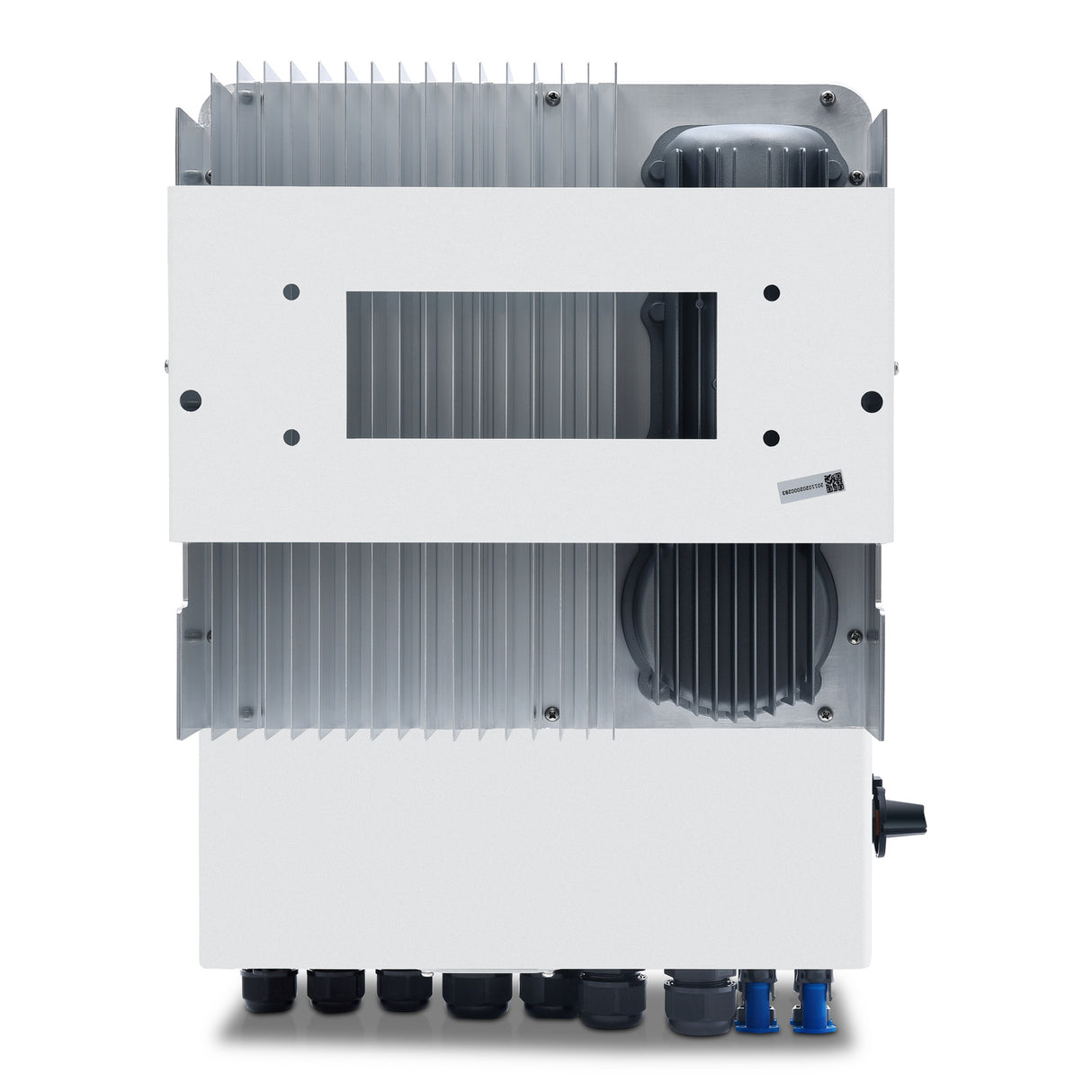

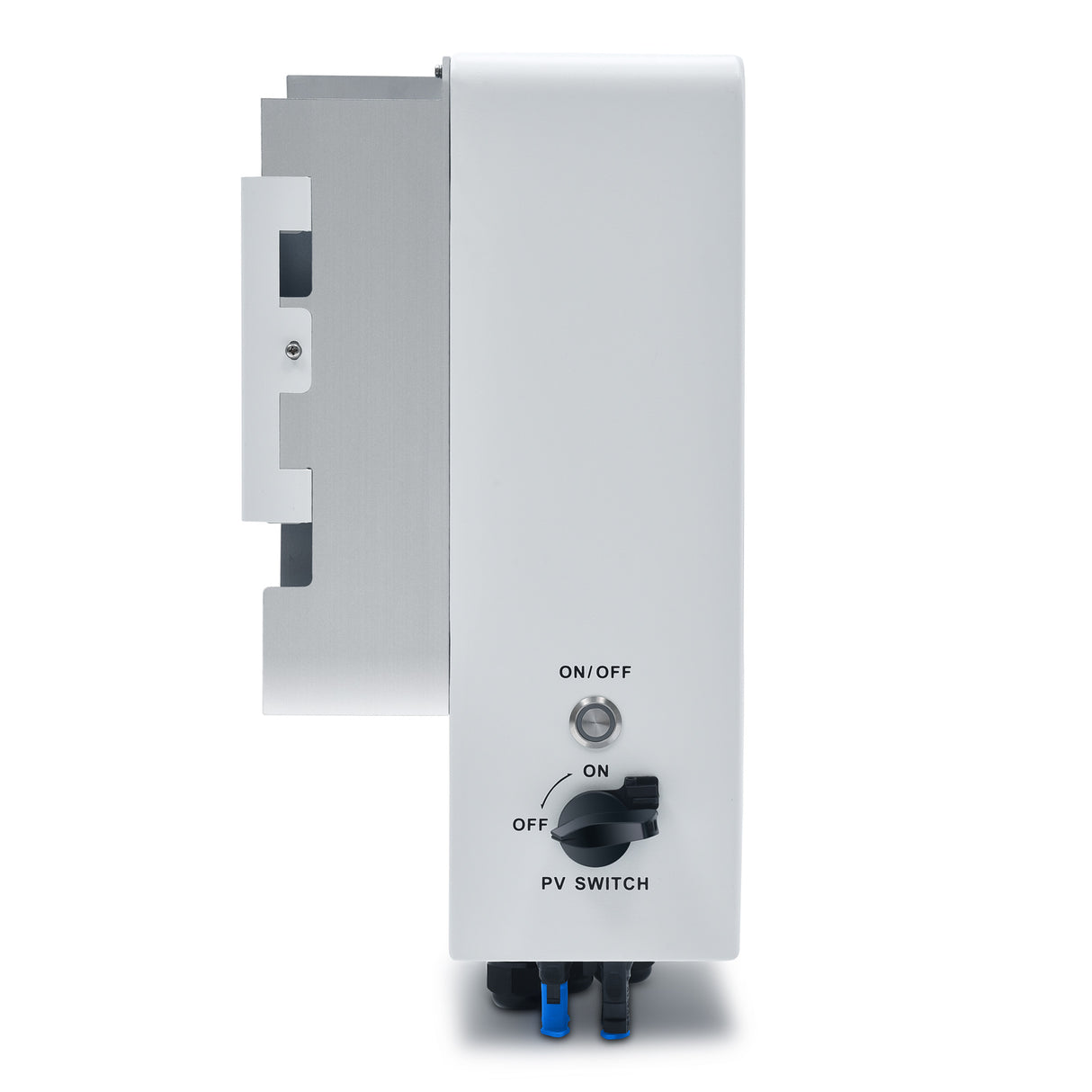

MODEL1: Deye 6KW Hybrid Inverter
This is a multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with portable size and make the most of your solar system.
An on-grid inverter’s main job is to convert DC power generated from the PV array into usable AC power. Hybrid inverters go a step further and work with batteries to store excess power as well. In the developing world, hybrid inverters are more of a necessity to compensate for weak or intermittent grids or a lack of grid electricity all together.
Stop wasting money on inefficient, overpriced inverters. Invest in one of the most versatile and effective solar power management systems out there today. Deye hybrid inverters are next-level and truly worth of your purchase.
Features:
- Colorful touch LCD, IP65
- 6 time periods for battery charging/discharging
- Max.16pcs parallel
- DC couple and AC couple to retrofit existing solar system
- Support storing energy from diesel generator
- 48V low voltage battery, safe and reliable
- Unique Smart Load application and Grid peak shaving function
- 4ms fast transfer from on-grid to off-grid mode, ensuing the traditional fixed frequency air conditioner works well
MODEL2: Kijo 5120Wh Lithium Battery Module
Powerful & Reliable Energy Storage: KIJO 5120Wh LiFePO4 Battery Module
High Capacity for Various Energy Needs
The KIJO LiFePO4 battery provides 5120Wh of reliable energy storage, ensuring stable performance and efficient power delivery. Its high capacity supports extended usage, reducing the need for frequent recharging.
6000+ Cycle Life for Long-Term Use
Built with LiFePO4 cells, this battery provides 6000+ cycles at 80% DOD. Its durability reduces replacement costs, ensuring greater value over time.
Safe & Stable LiFePO4 Battery
With high safety standards, it performs reliably even in extreme conditions, offering stable and secure energy storage.
Versatile Applications for Reliable Power
Designed for home backup, off-grid living, solar energy storage, and emergency power, the KIJO 5120Wh LiFePO4 battery ensures a stable and efficient power supply for both residential and commercial needs.
10-Year Warranty & Local Technical Support
Backed by a 10-year warranty, the KIJO 5120Wh LiFePO4 battery ensures durability and peace of mind. Its high-quality design and advanced technology provide a stable, long-lasting energy solution for various applications.

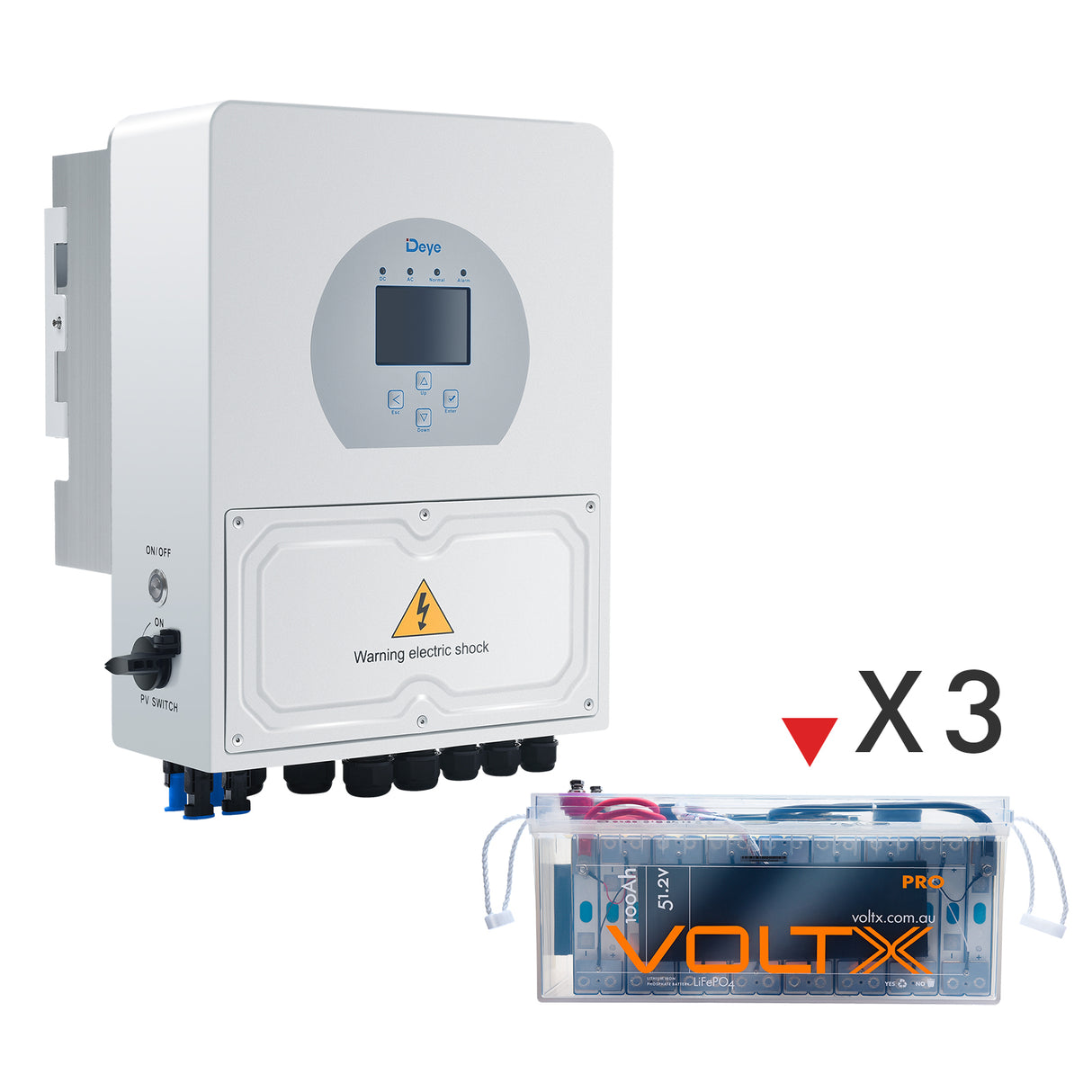

MODEL3: VoltX 48V 100Ah Lithium Battery
Lithium batteries are the future of portable power mainly due to their benefits over AGM and lead-acid batteries in terms of performance, safety and lifespan. Your LiFePO4 maintains steady voltage over the life-cycle of your battery, meaning nominal voltage is held over time so your devices work for longer and your battery doesn’t need to be replaced frequently.
Our newly designed 48V 100Ah Lithium battery is built-in Grade A battery cells, with better performance and longer life, they're easy to store in a car or caravan on your next adventure.
IMPORTANT: All our battery packs are comprised of prismatic cells & are backed with LiFePO4's signature built-in BMS. They are also tested to deliver 100% real capacity and are suitable for parallel and series wiring of up to 6 battery packs.
IMPORTANT: While our LiFePO4 batteries are top-notch & can be wired with other batteries of its kind, it is not advisable to connect any LiFePO4 batteries in parallel or series. This poses several risks and should only be done in emergency situations. If you must wire batteries together, make sure you are familiar with the correct procedure or seek help from a professional if needed.
Suggestions From the Outbax Team:
• Batteries connected in series should have the same amp-hour rating while batteries in parallel bank should have the same voltage rating.
• As much as possible, only connect batteries in series or parallel during emergency situations.
• It's better to go for batteries with higher voltage when running high-power electrical appliances instead of wiring two battery packs together.
• We have available batteries with larger discharge parameters for fast charge/discharge requirements.
• Our batteries are also available in 200Ah and 300Ah for larger capacity demands.
MODEL1: Deye 6KW Hybrid Inverter
SPECIFICATIONS
| Battery Input Data | |
| Battery Type: | Lead-acid or Lithium-ion |
| Battery Voltage Range (V): | 40~60 |
| Max. Charging Current (A): | 135 |
| Max. Discharging Current (A): | 135 |
| Charging Curve: | 3 Stages / Equalization |
| External Temperature Sensor: | Yes |
| Charging Strategy for Li-Ion Battery: | Self-adaption to BMS |
| PV String Input Data | |
| Max. DC Input Power (W): | 7800 |
| Rated PV Input Voltage (V): | 370 (100~500) |
| Start-up Voltage (V:) | 125 |
| MPPT Voltage Range (V): | 125-425 |
| Full Load DC Voltage Range (V): | 240-425 |
| PV Input Current (A): | 13+13 |
| Max. PV ISC (A): | 17+17 |
| Number of MPPT / Strings per MPPT | 2/1+1 |
| AC Output Data | |
| Rated AC Output and UPS Power (VA) | 6000 |
| Max. AC Output Power (W) | 6000 |
| AC Output Rated Current (A) | 26.1 |
| Max. AC Current (A) | 26.1 |
| Max. Continuous AC Passthrough (A) | 40 |
| Peak Power (off grid) | 2 times of rated power, 10s |
| Power Factor | 0.8 leading to 0.8 lagging |
| Output Frequency and Voltage | 50Hz/45Hz-55Hz; L/N/PE 230V/ 195.5V-253V, 240V/204V-264V |
| Grid Type | Single Phase |
| Efficiency | |
| Max. Efficiency | 97.60% |
| Euro Efficiency | 97.00% |
| MPPT Efficiency | 99.90% |
| General Data | |
| Operating Temperature Range | -40~60°C, >45°C derating |
| Cooling | Natural Cooling |
| Noise (dB) | <30 dB |
| Communication with BMS | RS485; CAN |
| Weight (kg) | 15.1 |
| Size (mm) | 330W x 433H x 238D |
| Protection Degree | IP65 |

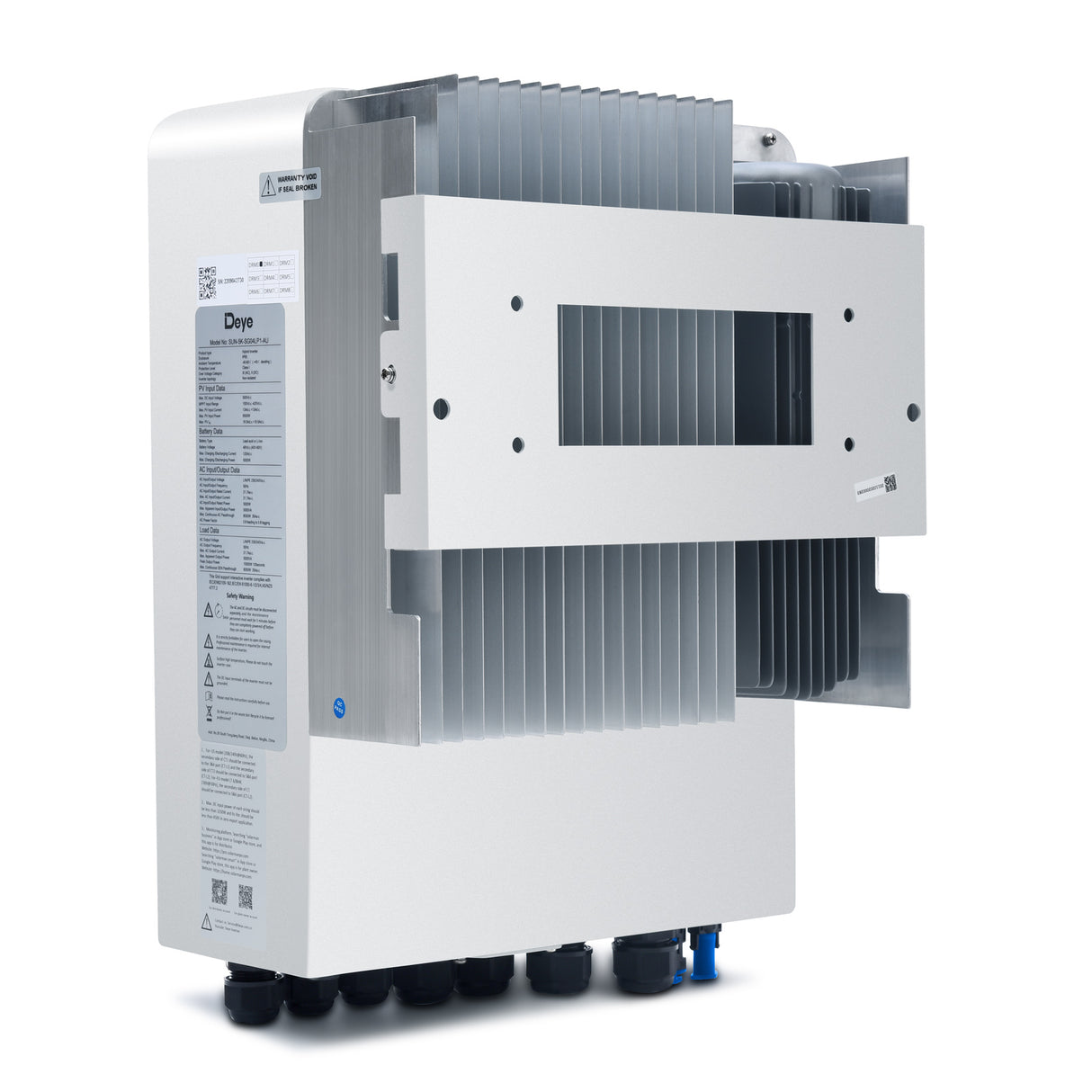

| Installation Style | Wall-mounted |
| Warranty | 5 Years |
MODEL2: Koji 5120Wh Lithium Battery Module
SPECIFICATIONS
| Nominal Capacity: | 100Ah |
| Nominal Voltage: | 51.2VDC |
| Max. Continuous Charging Current: | 95A |
| Max. Continuous Discharge Current: | 95A |
| Voltage Range: | 40-58.4V |
| Total Power Consumption: | ≤20mA |
| Voltage Acquisition Accuracy: | ±10mV |
| Current Acquisition Accuracy: | ±2% |
| Temperature Acquisition Accuracy: | ±2°C |
| Balanced Current: | Possess |
| Protection & Alarm: | Overvoltage, undervoltage, overcurrent, over-temperature, short circuit protection |
| Communication: | RS485/RS232/CAN |
| Product Dimension (mm): | 430 x 442 x 132 |
| Package Dimension (mm): | 514 x 504 x 172 |
| Net Weight (kg): | 44.5 |
| Gross Weight (kg): | 50 |
| Warranty: | 10 Years |
MODEL3: 48V 100Ah Lithium Battery Module
SPECIFICATIONS
| Nominal Capacity: | 100Ah |
| Usable Capacity: | 100Ah |
| Nominal Voltage: | 51.2V |
| Energy: | 5120Wh |
| Charge Voltage: | 58.4V |
| Discharge Cut-off Voltage: | 40V |
| Charge Method: | CC/CV |
| Charger: | 58.4V50A |
| Standard Discharge Current: | 100A |
| Max. Continuous Discharge Current: | 100A |
| Max. Discharge Current (5 Sec): | 300A |
| Standard Charge Current: | 50A |
| Max. Charge Current: | 100A |
| Dimensions (mm): | 522L x 238W x 218H |
| Working Temperature Range: | Charge: 0°C to 45°C, Discharge: -20°C to 60°C |
| Storage Temperature: | -10°C to 50°C |
