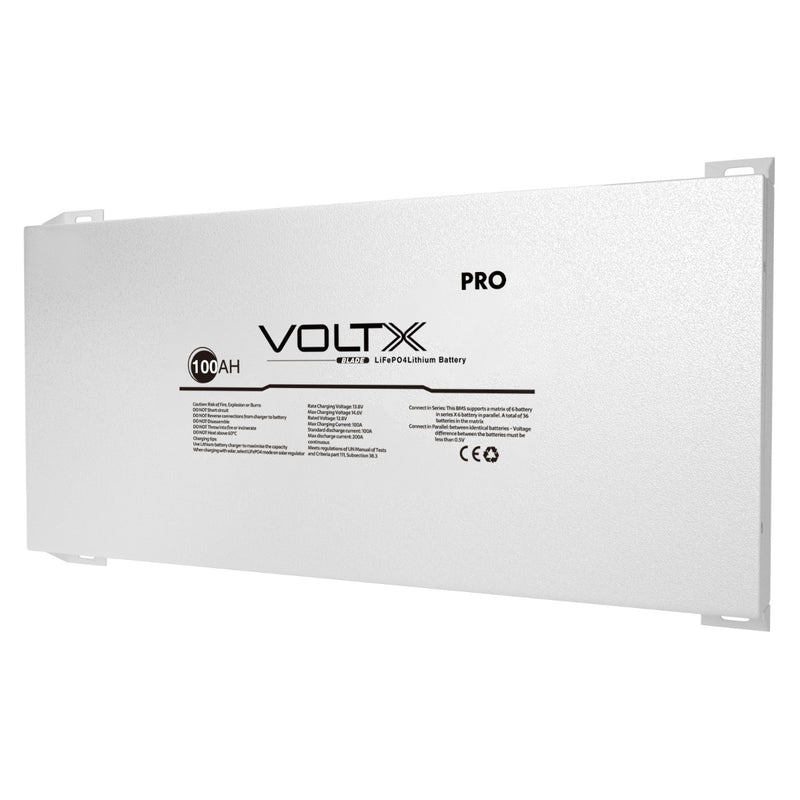

VoltX 12V 100Ah Blade LiFePO4 Battery

Name: VoltX 12V 100Ah Blade LiFePO4 Battery
Brand: OutbaX
SKU: bat-li-12-100a-blade-plus
Price: 1149.0 AUD
Availability: InStock
Rating: 4.88 (8 reviews)

$1,149.00 ~~$1,899.00~~

Tax included

60 Days
Return

60 Months
Warranty

100% Secured
Payment & Data

Spring Clearance Sale

PLUS a further 30% off

Pay only $804.30

Hurry! Promo ends 14/09/24 11:59 PM AEST.

Use Code:

SPRING30

Selling fast. Hurry and order now to save 39%

PRODUCT HIGHLIGHTS

GRAND BATTERY SALE
PLUS a further 15% off using code BATTERY15
Pay only $976.65 Hurry! Promo ends 03/06/24 11:59 PM AEST.

5 Years Australian Warranty
Rated Capacity 100Ah
12.8 Volts
600 x 65 x 270mm
15.5kg
Approved in accordance with IEC 62619

Shipping Calculator

You don't have to carry a bulky, heavy battery to power your camping adventures anymore. Meet VoltX 12V 100Ah LiFePO4 Lithium Battery, Outbax's slimmest lithium battery for sale. You'd easily spot this one because of its ultra-slim design but don't let it fool you—this battery pack is built to provide you with a reliable and steady power source for all your travelling needs.

Made up of prismatic cells for quality power output, it contains a total of 36 batteries in the matrix encased in a heavy-duty case. It's also backed by a built-in battery management system that all LiFEPO4 batteries have. This allows for a maintenance-free operation, as the BMS constantly monitors every cell to ensure the battery is always optimised for best performance.

Our VoltX slimline battery is also a win in lifespan and safety. You get more than 2000 cycles that last for up to 5 years so there's no need to constantly replace your battery. Best of all, LiFEPO4 is considered the safest battery on the market, perfect for both newbies and seasoned battery users.

Want more of our LiFEPO4 batteries? Check out the full range of lithium batteries for sale on our website. For alternative power sources, we also have inverter generators, solar panels, and portable power stations available.

IMPORTANT: While our LiFePO4 batteries are top-notch & can be wired with other batteries of its kind, it is not advisable to connect any LiFePO4 batteries in parallel or series. This poses several risks and should only be done in emergency situations. If you must wire batteries together, make sure you are familiar with the correct procedure or seek help from a professional if needed.

Suggestions From the Outbax Team

Batteries connected in series should have the same amp-hour rating while batteries in parallel bank should have the same voltage rating.
It's better to go for batteries with higher voltage when running high-power electrical appliances instead of wiring two battery packs together.
We have available batteries with larger discharge parameters for fast charge/discharge requirements.
Our batteries are also available in 200Ah and 300Ah for larger capacity demands.

SPECIFICATIONS

Brand	VoltX
Nominal Voltage:	12.8V
Nominal Capacity:	100Ah
Charging Voltage:	14.2-14.6v
Rated Energy:	1280Wh
Rated Discharge Current:	100A
Max. Discharge Current:	200A
Max. Discharge Current 5 sec:	600A
Approx Life Cycles:	4000
Absorption Voltage:	14.4V
Float Voltage:	13.6V
Overcharge Protection:	14.4V
Overcharge Recovery:	14V
Overdischarge Protection:	11.2V
Overdischarge Recovery:	11.6V
Cell Grouping:	4S1P
Working Temperature Range:	Charge: 0°C to 45°C \| Discharge: -25°C to 65°C
Storage Temperature:	-10℃ to 50℃
Battery Cells:	Prismatic
Case Material:	SPCC
Anderson Plug:	175A
Parallel Connection:	Yes, max 6 batteries
Series Connection:	Yes, max 6 batteries
Warranty in Years:	5

DIMENSIONS & WEIGHT

Dimensions:	600(L) x 270(W) x 65(H)mm
Weight:	15.5kgs

WHAT'S IN THE BOX

1 x	Lithium Battery

SKU:

bat-li-12-100a-blade-plus

As described and seem to be good quality

Have installed 2 x these batteries under drawers in my LC300, running a 96L Fridge/Freezer. All good so far, thanks.

Battery Lithium Slimline

Well designed, simple & neat. Great bit of kit.

Thanks for leaving us a review! Enjoy using your new Voltx LiFePO4 battery!

Voltx Ultraslim 100Ah

Battery was delivered quickly and in perfect condition.

Thank you for the great feedback, Paul. Cheers!

100ah slimy

Heaps good

Thank you for the wonderful feedback, Tom. Cheers!

Great battery but Design Changes BEWARE

I purchased one of these batteries a few years ago and wired it up. It came with a 120a Blue Anderson connector on the battery and supplied with the cables from 120a Andersons to 175a Andersons. The bottom Anderson was positive while the top was negative. The battery performed well but could not handle my coffee machine so I purchased a second battery to run in parallel. When the second battery arrived it now has 175a blue Anderson connectors on the battery and no cables or Andersons supplied in the box. They have wired the Anderson plugs correctly so positive and negative on the same Blue Anderson. Contacted Oututbax to ask for Blue Andersons and they do not supply/sell. Blue Anderson you cannot find in Australia. There is one company in Australind Sales67.com.au which can get them but have no stock. Once I got the correct connectors and wired everything in the batteries work perfectly for 200ah and now my coffee machine has not missed a beat. The batteries a slimline and tuck away in the back on my 4WD. Just disappointing in the change of design and no clear instructions.

Thank you for the feedback, Samundo. We are overall glad to hear that you were able to get the correct connectors and that the batteries are working well for you! We hear you about the product change and the issue with the manual. We will share your feedback with the Team for possible product improvements. Cheers!

1 2

The battery manual states low voltage @11.2v would put the battery to sleep. What voltage would be needed to wake the battery back up?

The over-discharge recovery voltage is 10.6V.

What cables should I use to connect the batteries in series or parallel?

The specifications of the selected cables are determined according to the actual charging and discharging current. The overcurrent value varies from different cables. For example, the cross-sectional area of the conductor is 10mm2, and the cable can pass 50A current. The cross-sectional area of the conductor is 25mm2, and the cable can pass 100A current, etc.

How do I maintain the life cycle of battery?

1. Lithium batteries that have not been used for a long time should be stored in a cool and dry place. It's best to store them in a semi-electric state. Storage without any power will also damage the battery. Check the battery every 3 months to see if it needs to be recharged. 2. Lithium batteries should be charged while they are in use, but it should be noted that lithium batteries cannot be over-discharged, which will cause irreversible capacity loss. Don't wait to charge the battery until there is no power at all. The best time to charge is when the power state of the battery is less than 10%. 3. Do not mix the lithium battery with metal objects to avoid metal objects touching the positive and negative poles of the battery. This could result in short circuiting, damage to the battery and even cause danger. 4. Use a regular compatible lithium battery charger to charge the battery. Do not use a charger with inferior quality or other types of lead-acid battery chargers to charge the lithium battery.

Do I need a battery balancer when running in series to 48V?

A battery balancer can better protect the battery and maintain voltage balance, so it's a good choice.

What are the bracket/hole dimensions?

The holes are two semicircles with a radius of 3.25mm + 6.5*10mm rectangular holes. The center distance between the two holes is 562.4mm. The distance between the two brackets is 530mm.
