Matched batteries rarely fail together. Here is what pulls them out of step, and how to fix it before your next remote trip.

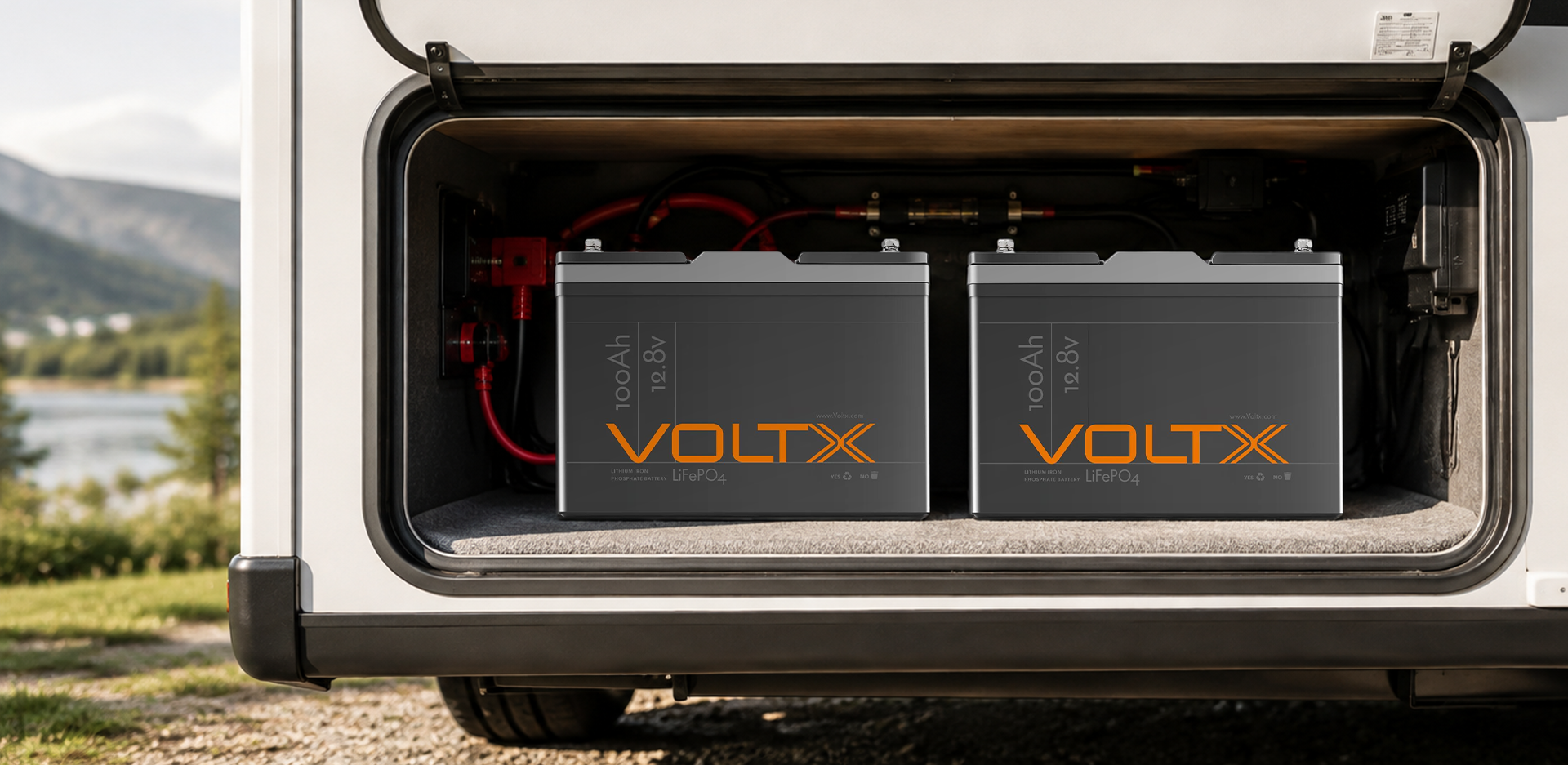

You fitted two identical lithium batteries. Same brand, same capacity, wired in on the same afternoon. Four days into a trip, one is sitting at 40 per cent, and the other is still showing 70. Nothing has failed. But the pair is no longer working as a pair.
This is battery drift, and it is one of the most misdiagnosed complaints in Australian 4WD dual battery setups running lithium. Most tourers assume a dud cell. The cause is almost always in the wiring loom, not inside the battery case.
What Is Battery Drift in a 12V Touring Setup?
Battery drift is a growing divergence in state of charge between two batteries that should be sharing load and charge equally. Both units are healthy. One is doing more of the work, and the gap widens with every cycle. Here are three signs it is already happening.
The Warning Signs Most Tourers Miss Until Day Four
One battery runs warm, the other stays cool. The battery carrying the current heats up. A noticeable difference between the two cases means current is not splitting evenly.
Capacity falls faster than the maths allows. A 200Ah bank running a fridge and lights should not be at half overnight. If it is, you may effectively be running on one battery.
The system cuts out with charge apparently remaining. The battery management system in the harder-working unit hits its low voltage cutoff and disconnects. Your monitor still reads 30 per cent because it averages across the bank.
Why the Flat LiFePO4 Discharge Curve Hides the Problem
Lead-acid sags steadily as capacity falls. LiFePO4 does not. A 12V lithium battery, such as the Gentrax 12V 100Ah LiFePO4 Battery, holds roughly 13.0 to 13.2 volts across most of its usable range, then drops sharply at the bottom.
That flat curve is why lithium runs a fridge so well, and why drift stays invisible. Two batteries can be 25 per cent apart in real charge and still read within a tenth of a volt. You find out when the BMS trips, usually a long way from a workshop.
What a Healthy Pair Should Read at Rest
Disconnect charge and load, wait two hours, then measure at each battery terminal rather than at the busbar. A matched pair should sit within 0.05 volts. A gap of 0.2 volts or more is your investigation threshold. It does not prove a fault. It proves the circuit is not treating both batteries equally.
How Your Charging Input Creates Imbalance Before You Leave Town
Drift usually gets blamed on discharge. Charge is just as often the culprit, because an uncontrolled input rewards whichever battery has the easiest path back to the source.
Why Alternator Charging Through a VSR Is the Wrong Input for Lithium
Lithium cells have very low internal resistance. Connected to the starter battery through a voltage-sensitive relay, they pull as much current as the alternator can produce. Two in parallel double that appetite.
Three things follow. The alternator runs hot. The BMS may trip on overcurrent. And because an alternator cannot deliver a lithium charge profile, neither battery reaches a genuine 100 per cent, so the top balancing that normally resets small differences never happens. A battery isolator protects your starter battery, but it does not regulate current.
» MORE: Browse lithium battery chargers and DC-DC options
Sizing A DC-DC Charger When You Run Two Batteries
Size the charger against the whole bank, not one battery. As a working rule, allow roughly 20 amps of output for every 100Ah of capacity.
A 200Ah bank built from two VoltX 12V 100Ah LiFePO4 Batteries suits a 40-amp charger. That pairing appears repeatedly in Outbax customer feedback, including one reviewer running two 120Ah units off a 40-amp charger in a ute canopy with no issues after twelve months. Undersize it, and the bank sits permanently mid-range, never top balances, and small differences compound.
Here’s what one of our customers said about the VoltX 100Ah Battery:
“This is my 2nd purchase of this type of battery from outbax. These 2 are for my caravan, I have a 300amp which is now 3+ years old and still going strong in the 4wd.”
Cable Symmetry: The Single Biggest Cause of Uneven Wear
If the charging side is right and the batteries still drift, look at the wiring layout. Electricity takes the path of least resistance, and in a parallel bank, that resistance is decided entirely by how you run the cable.
Diagonal Wiring, and Why It Fixes Most Parallel Imbalance
The most common error is connecting both the main positive and the main negative to the same battery. Battery one then sits closer to every load and every charge, so it takes the bulk of the current while battery two idles. Over a season, one unit has done hundreds more cycles than its twin. The fix takes ten minutes.
- Take the main positive load and charge lead from the positive terminal of battery one.
- Take the main negative lead from the negative terminal of battery two.
- Bridge the pair with links of identical length, gauge, and crimp type.
That is diagonal wiring. It equalises the path length to both batteries so current splits evenly with no active balancing hardware.
Matching Cable Gauge, Length, and Crimp Quality
Symmetry means more than roughly similar. A bridge cable 200mm longer than its partner, or crimped with pliers rather than a hex crimper, biases the bank measurably. Here’s what to keep in mind:
- Use the same cable gauge on both sides, with 8 B&S a sensible minimum for engine bay to canopy runs.
- Use bridge links of the same length, ideally cut from the same roll.
- Use hex-crimped lugs with adhesive-lined heatshrink, rather than solder alone, which can crack under corrugations.
- Use consistent terminal hardware, as mixing brass and stainless washers can create different contact resistance at each post.
Anderson Plug and Busbar Choices That Keep Resistance Even
Every Anderson plug and socket pair is a resistance point. If one battery sits behind an Anderson connection and the other is hard-wired, they are not equivalent. Better to run a common positive busbar and a common negative busbar, each battery connected by its own matched cable, with all loads taken from the bars rather than a battery post. Slim units such as the VoltX 12V 100Ah Slim LiFePO4 Battery suit paired canopy builds because they mount side by side, so the runs can be identical.
Here’s what one of our customers said about the VoltX Slim LiFePO4 Battery:
“Purchased as a second battery for my car, compact enough to fit in the rear compartment, perfect. Couldn't be happier with service and quality.”
How to Diagnose Battery Drift at Camp Without Removing Anything
You need a multimeter, a spanner, and fifteen minutes. Work through these checks in order.
The Five-Minute Multimeter Check
- Disconnect all loads and charge sources. Rest the bank for two hours if possible.
- Measure across the terminals of battery one, then battery two. Record both.
- Switch on a known load such as the fridge, then measure both again.
- Compare the deltas. A gap that widens sharply under load means resistance in the circuit, not lost capacity.
- Measure from each negative post to clean chassis. Anything above about 0.1 volts under load points at the earth path.
Earth Point, Fuse Rating, and Terminal Torque After Corrugations
The ground side is half the circuit and gets a fraction of the attention. Check the earth point sits on bare chassis metal, not a painted panel or tub liner. Check fuse rating on both legs, because a 150-amp fuse on one battery and a 100-amp fuse on the other creates a permanent resistance difference. Then torque every terminal. Corrugations loosen hardware, and one loose post will pull a bank out of balance.
When the Reading Points to a Genuine Battery Fault
Treat it as a battery issue when the resting gap persists after you have corrected the wiring and completed a full charge cycle, or when a BMS trips repeatedly well inside its rated range. Note the readings and contact Outbax product support. Most batteries in the 4WD lithium range carry a five-year warranty, and clear measurements make a claim easier to assess.
Two Batteries or One? Choosing the Right Setup for Australian Touring
Worth saying plainly: the most reliable way to avoid parallel drift is not to run a parallel bank at all.
When a Single Higher Capacity Battery Is the Simpler Answer
Building from scratch with space available, one larger battery removes the failure mode entirely. No bridge cables to match, no diagonal wiring to get right, no second BMS to fall out of step. A VoltX 12V 200Ah Pro LiFePO4 Battery does the work of two 100Ah units in one case, and the VoltX 12V 190Ah Pro LiFePO4 Battery suits tighter footprints. Parallel still makes sense where the space is long and shallow, or where you are upgrading in stages.
Heat, Mounting Position, and the 45-Degree Reality of Northern Touring
Heat degrades lithium faster than cycles do. Batteries in the Outbax range are tested for Australian ambient conditions up to 45°C, and most BMS units shut down between roughly 55°C and 60°C. Under bonnet temperatures in a working 4WD exceed that. Mount the bank in the canopy, cabin, or an under-tray box, and if you run two, mount them where airflow reaches both equally.
Specification Checks Before You Buy a Second Battery
Not every lithium battery is rated for parallel operation, and the limits vary. Check three things on the listing.
- Parallel rating. Outbax lists parallel capability on each battery, commonly up to four or six units.
- Matched chemistry and age. Adding a new battery to a two-year-old one guarantees the older unit works harder from day one.
- Capacity headroom. A VoltX 12V 300Ah Pro LiFePO4 Battery or the Gentrax 12V 300Ah LiFePO4 Battery gives you room without a second case.
Getting Your Dual Battery Setup Balanced Before the Next Trip
Two lithium batteries in parallel drift apart because the circuit around them is asymmetric, not because one is faulty. Three things fix most cases: a DC-DC charger with a lithium profile sized for the whole bank, diagonal wiring, and bridge cables matched in length, gauge, and crimp quality.
Check yours in the driveway before you check it 900km from a workshop. If you are still specifying the build, the Outbax team can confirm parallel compatibility by phone on weekdays before you order.
