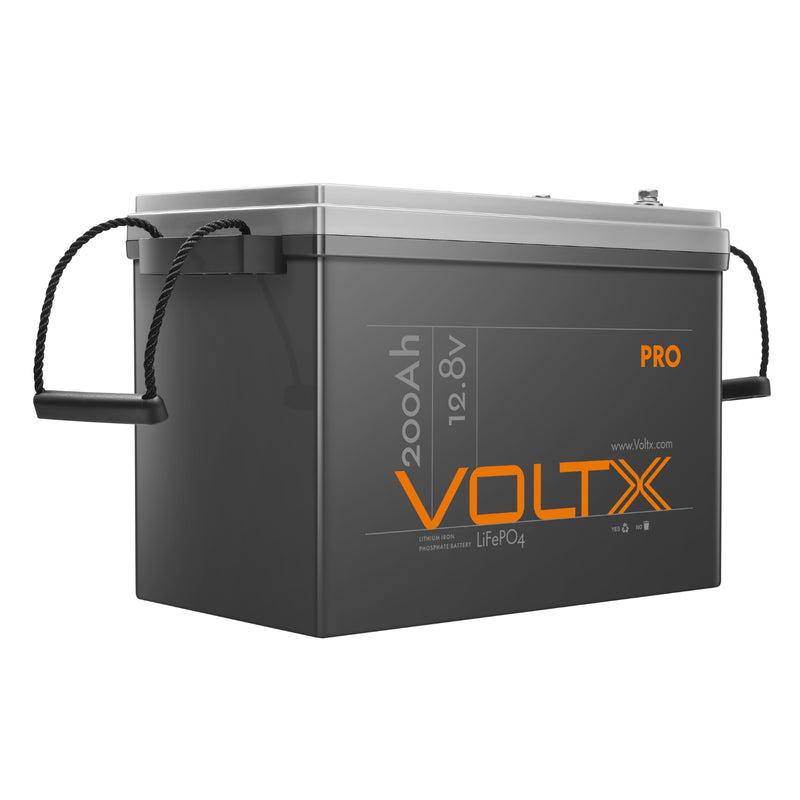

VoltX 12V 200Ah Pro LiFePO4 Battery

Name: VoltX 12V 200Ah Pro LiFePO4 Battery
Brand: OutbaX
SKU: bat-li-12-200a-plus
Price: 1199.0 AUD
Availability: InStock
Rating: 5.0 (5 reviews)

$1,199.00 ~~$2,459.00~~

Tax included

60 Days
Return

60 Months
Warranty

100% Secured
Payment & Data

Selling fast. Hurry and order now to save 51%

PRODUCT HIGHLIGHTS

3 Years Australian Warranty
Rated Capacity 200Ah
12.8 Volts
345 x 190 x 245mm
19kg
Approved in accordance with IEC 62619

Shipping Calculator

Experience ease and reliability in one VoltX battery! VoltX 12V 200Ah LiFePO4 Battery is the best battery you can find.

Safer, Lighter, and Better
This VoltX 200Ah lithium battery is built with LiFePO4 battery cells engineered to deliver superior performance and longevity compared to other traditional gel or lead-acid batteries.

Fuss-Free Operation
There’s no need for complex rewiring or system changes with this VoltX 200Ah lithium battery—simply swap out your old, heavy batteries and experience its lightweight convenience and incredible power.

Maintenance-Free and No-Leak Design
No need to regularly maintain your battery. This VoltX lithium battery is designed to be maintenance-free and leak-free, so you can spend less time worrying about upkeep and messy spills and more time enjoying reliable power.

All our battery packs at Outbax, including this VoltX 200Ah Lithium Battery are comprised of prismatic cells and are backed with LiFePO4’s signature built-in BMS. They are also tested to deliver 100% real capacity and are suitable for parallel and series wiring of up to 6 battery packs.

IMPORTANT: While our LiFePO4 batteries are top-notch & can be wired with other batteries of its kind, it is not advisable to connect any LiFePO4 batteries in parallel or series. This poses several risks and should only be done in emergency situations. If you must wire batteries together, make sure you are familiar with the correct procedure or seek help from a professional if needed.

Suggestions From the Outbax Team

 Batteries connected in series should have the same amp-hour rating while batteries in parallel bank should have the same voltage rating.
 As much as possible, only connect batteries in series or parallel during emergency situations.
 It's better to go for batteries with higher voltage when running high-power electrical appliances instead of wiring two battery packs together.
 We have available batteries with larger discharge parameters for fast charge/discharge requirements.
 Our batteries are also available in 200Ah and 300Ah for larger capacity demands.

Boost Your Setup with the VoltX 200Ah Lithium Battery You Can Trust

The VoltX 12V 200Ah LiFePO4 Battery is the ideal choice for a maintenance-free, high-capacity power solution. Get yours today and enjoy consistent, reliable power for all your adventures!

SPECIFICATIONS

Brand	VoltX
Nominal Voltage:	12.8V
Nominal Capacity:	200Ah
Charging Voltage:	14.2-14.6v
Rated Energy:	2560Wh
Rated Discharge Current:	100A
Max. Discharge Current:	200A
Max. Discharge Current 5 sec:	300A
Approx Life Cycles:	4000
Absorption Voltage:	14.4V
Float Voltage:	13.8V
Overcharge Protection:	14.4V
Overcharge Recovery:	14V
Overdischarge Protection:	10.8V
Overdischarge Recovery:	11.2V
Cell Grouping:	4S2P
Working Temperature Range:	Charge: 0°C to 45°C \| Discharge: -25°C to 65°C
Storage Temperature:	-10℃ to 50℃
Battery Cells:	Prismatic
Case Material:	ABS Plastic
Parallel Connection:	Yes, max 6 batteries
Series Connection:	Yes, max 6 batteries
Warranty in Years:	5

DIMENSIONS & WEIGHT

Dimensions:	345(L) x 190(W) x 245(H)mm Side handles approx. 20-30mm each side
Weight:	19kgs

WHAT'S IN THE BOX

1 x	Lithium Battery

SKU:

bat-li-12-200a-plus

Very happy with the battery to date. It has only been installed for a week so haven’t really used it.

Delivery was terrific as were the communications.

5yr warrantee says it all

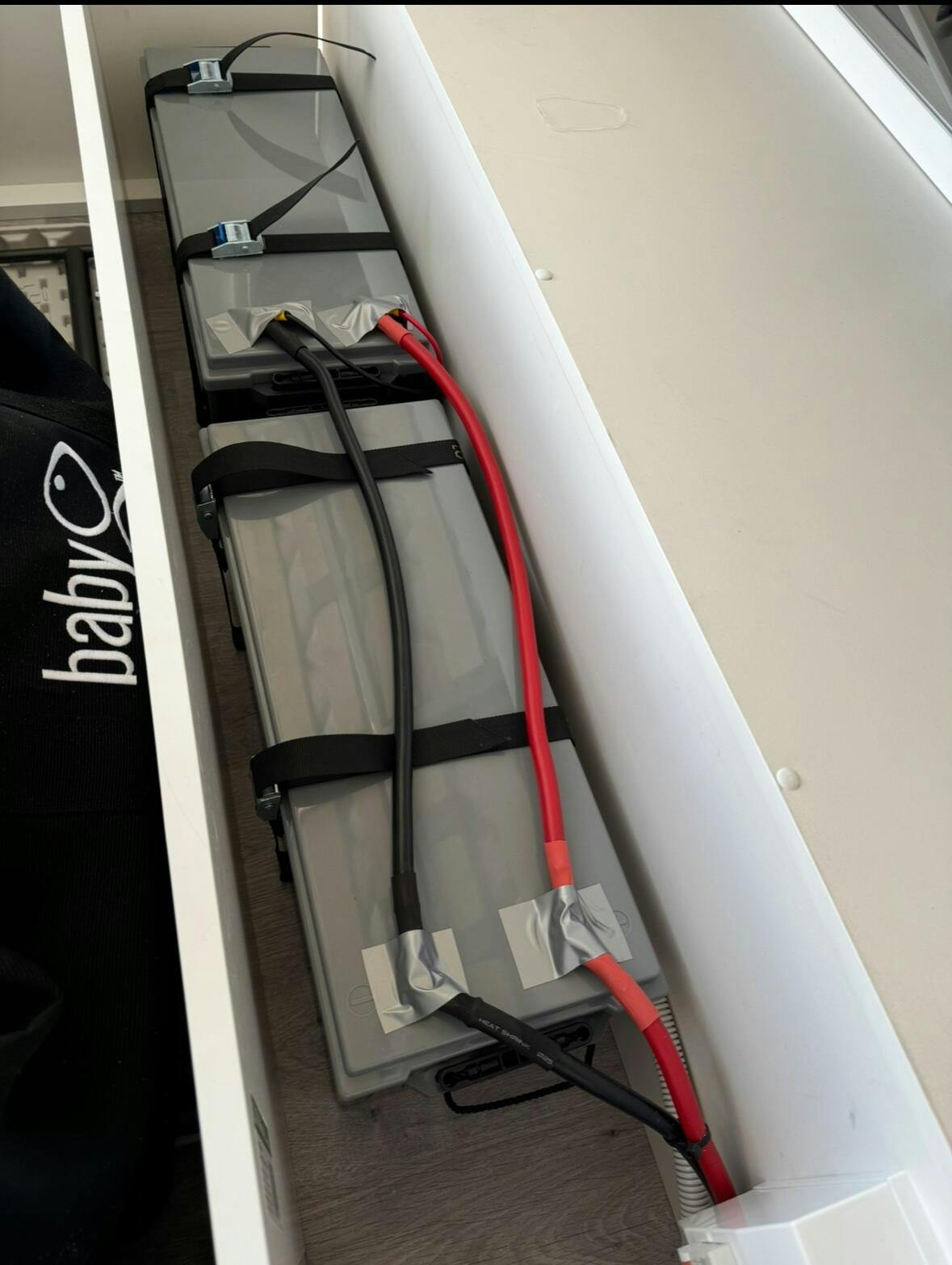

I have been using 4 of these for 2 years now, these shown i think are a newer model but i have had a PERFECT run with them, i cannot overcharge them and they turn off if they get too low, they work both in series and parallel perfectly as i run them as a 24v system. The staff are amazing and will answer all your questions...

Very impressed

Have had this battery for a couple months now and very impressed with it.

A higher discharge rating was needed for my set up, with a 2000W inverter, and this battery has worked perfectly.

Great value for money without being a cheaply made battery. Very happy!

We are glad to know you are satisfied with the unit's performance, Tom. Glad the battery has been working out well for you and meeting your needs. Cheers!

Great Product and Service

Outbax were Excellent to Deal with. The Product turned up in Good Time, and in Good Condition. Yet to test it out.

Thank you for trusting us with your battery purchase and for sharing your experience dealing with the Team, Bob.

200ah Lithium Batteries

Great price with prompt delivery time. They fit perfectly into my caravan to replace the older AGM batteries.

Thank you for the feedback, Peter. VoltX LIFEPO4 batteries are great AGM/Gel replacements. Cheers!

What cables should I use to connect the batteries in series or parallel?

The specifications of the selected cables are determined according to the actual charging and discharging current. The overcurrent value varies from different cables. For example, the cross-sectional area of the conductor is 10mm2, and the cable can pass 50A current. The cross-sectional area of the conductor is 25mm2, and the cable can pass 100A current, etc.

How do I maintain the life cycle of battery?

1. Lithium batteries that have not been used for a long time should be stored in a cool and dry place. It's best to store them in a semi-electric state. Storage without any power will also damage the battery. Check the battery every 3 months to see if it needs to be recharged. 2. Lithium batteries should be charged while they are in use, but it should be noted that lithium batteries cannot be over-discharged, which will cause irreversible capacity loss. Don't wait to charge the battery until there is no power at all. The best time to charge is when the power state of the battery is less than 10%. 3. Do not mix the lithium battery with metal objects to avoid metal objects touching the positive and negative poles of the battery. This could result in short circuiting, damage to the battery and even cause danger. 4. Use a regular compatible lithium battery charger to charge the battery. Do not use a charger with inferior quality or other types of lead-acid battery chargers to charge the lithium battery.

Do I need a battery balancer when running in series to 48V?

A battery balancer can better protect the battery and maintain voltage balance, so it's a good choice.
