Australian summers are unforgiving, and anyone who has tried to sleep in a caravan on a 38°C night knows the value of a working air conditioner. The problem is that most caravan parks charge a premium for powered sites, and free camping by definition means no mains electricity at all. That leaves two options: a generator or a battery system. Generators are loud, heavy, and banned in many campgrounds. Batteries, on the other hand, are silent.
Running a caravan air conditioner from lithium batteries is not only possible — it is increasingly common among travellers who invest in the right components. This guide explains how to size your battery bank, choose between 12V and 240V systems, and set up a reliable off-grid cooling solution. Whether you are building a system from scratch or upgrading an existing one, the principles are the same. The products referenced throughout — including lithium batteries and a 12V rooftop air conditioner — are available from Outbax.
You can buy products from: Caravan Battery
How Much Power Does a Caravan Air Conditioner Actually Use?
Understanding Watts, Amps, and Amp-Hours
Before selecting any hardware, you need to understand how much energy your air conditioner demands. Power consumption is measured in watts (W), but battery capacity is measured in amp-hours (Ah). To convert between them on a 12V battery system, divide watts by 12. A unit drawing 1,200W, for example, pulls 100 amps per hour from a 12V battery bank. That single figure — 100A per hour — frames every decision you make about battery sizing, cable thickness, and recharge strategy.
Cold King 12v Rooftop Air Conditioner
Running Power vs Compressor Startup Surge
Caravan air conditioners have two distinct power states. The running draw — the steady consumption once the compressor is operating — typically sits between 700W and 1,500W, depending on the model and ambient temperature. The startup surge is a separate concern entirely. Conventional direct-on-line (DOL) compressors can spike to two or three times their running wattage for a few seconds when they kick in. Inverter-type compressors ramp up gradually, producing a much softer startup curve. This distinction matters because the surge determines the minimum size of your inverter (if you are using one) and places momentary high-current stress on your battery bank.
Calculating Your Daily Energy Draw
A practical approach is to estimate how many hours per day you plan to run the air conditioner, then multiply by the unit's average amp draw. If your AC draws 60A at 12V and you intend to run it for three hours in the evening, that is 180Ah of battery capacity consumed — before accounting for the fridge, lights, water pump, and phone chargers also drawing from the same bank. Always add a 20% buffer to your calculations. Real-world conditions, including high ambient temperatures and ageing components, reduce efficiency.
What Size Lithium Battery Do You Need to Run a Caravan AC?
Why LiFePO4 Batteries Outperform AGM for Air Conditioning

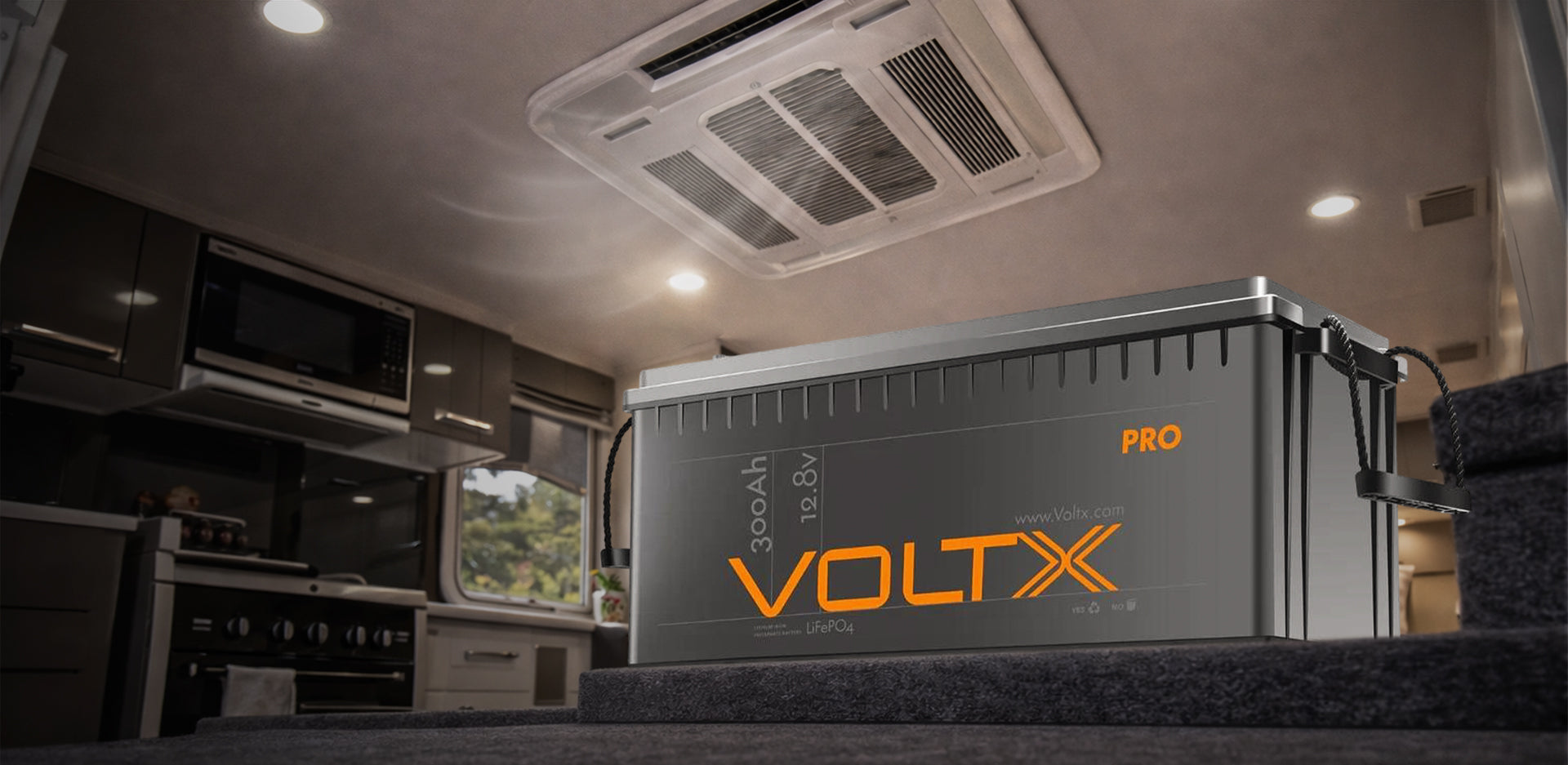

Lithium iron phosphate (LiFePO4) batteries have become the standard for serious off-grid caravan setups, and the reasons are straightforward. A 200Ah LiFePO4 battery, like the VoltX 12V 200Ah Pro LiFePO4 Battery, delivers roughly 180Ah of usable energy because it tolerates a 90% depth of discharge without damage. An AGM battery of the same rated capacity provides only about 100Ah of usable power, since discharging below 50% significantly shortens its lifespan. LiFePO4 cells are also lighter — often half the weight of an equivalent AGM — and they recharge faster, accepting higher current inputs without overheating. Their built-in battery management system (BMS) protects against over-discharge, over-charge, and short circuits.
Here’s what one of our customers said about this battery:
“I’ve had these batteries connected in parallel for about a year feeding a 2.5KW inverter and they have worked faultlessly over this time. Have been off grid for 4 days running aircon for about 3 hours a day, as well as air fryer, coffee machine and everything else that runs of the 12v side, with 650 watts of solar and by the end of the week we still had 100% on battery’s. Excellent buy and excellent quality.”
VoltX 12V 200Ah Slim Lithium LiFePO4 Battery
Battery Sizing for Two to Four Hours of Cooling
For most Australian caravanners, the goal is two to four hours of air conditioning per day — typically in the late afternoon and early evening when the heat is worst. A 12V DC air conditioner drawing around 50-65A requires a minimum of 200Ah of lithium battery capacity for roughly three hours of runtime. If you run a higher-draw 240V unit through an inverter, expect to need 300Ah or more to account for conversion losses. The Outbax range includes VoltX 200Ah and 300Ah Pro LiFePO4 Batteries, as well as the Gentrax 300Ah, all designed for deep cycle caravan applications. Choosing between them comes down to your total daily energy budget and available mounting space.
Here’s what one of our customers said about the VoltX 300Ah Pro LiFePO4 Battery:
“I have one of these batteries installed in our camping trailer to replace two small 40Ahr batteries. What a difference! We comfortably run our Dometic 70litre fridge, StarLink Mini, lighting, Nespresso machine and various other gadgets without fear of ever running out of power even when faced with a day or two of cloudy conditions. Charging is done with a solar system that produces up to 30A in full sun. Connected to a VoltX 2000W 240V inverter it doesn't struggle with voltage dropping to 12.4-12.8v with a 1500W load. On a full bench test discharge and recharge the battery; discharged 312.1Ah and recharged 312.2Ah when delivered. Nine months after installation and frequent use the battery is still sitting at 312Ah capacity. It's a big battery so it won't fit normal battery boxes, but at only 27kg it is light!”
Connecting Batteries in Parallel for Greater Capacity
If a single battery does not meet your requirements, wiring two or more in parallel doubles or triples the available amp-hours while maintaining the same 12V output. Two 200Ah batteries in parallel, for instance, give you a 400Ah bank. When connecting in parallel, use identical batteries of the same brand, capacity, and age. Mismatched cells can cause uneven charging and reduce overall lifespan. Keep cable lengths equal between each battery and the bus bar to ensure balanced current flow.
Do You Need an Inverter, or Can You Run AC Directly on 12V?
The Traditional 240V Setup and Its Drawbacks
Most caravan air conditioners sold in Australia are 240V appliances. To run one from a 12V battery bank, you need a pure sine wave inverter rated above the unit's startup surge — typically 2,000W to 3,000W for an inverter-type compressor, or 4,000W+ for a conventional DOL unit. The inverter itself consumes energy during the DC-to-AC conversion, with typical losses of 10-15%. That means your batteries work harder to deliver the same cooling. The inverter also adds weight, cost, and another potential failure point to the system.
VoltX 12V 1KW Pure Sine Wave Inverter
12V DC-Native Air Conditioners: A Simpler Approach
A growing category of rooftop air conditioners runs directly on 12V DC power, bypassing the inverter entirely. These units draw current straight from the battery bank with no conversion step, which eliminates efficiency losses and dramatically simplifies wiring. The Outbax Cold King 12V Rooftop Air Conditioner is one such unit, offering both cooling and heating from a direct 12V connection. Without an inverter in the chain, the system has fewer components to fail, weighs less overall, and puts less instantaneous stress on the battery bank during startup. For travellers building a new off-grid system, a 12V DC air conditioner paired with a properly-sized lithium battery bank is the most efficient path to campsite power independence.
Setting Up a Complete Off-Grid Caravan Cooling System
Essential Components and Wiring Considerations
An air conditioner places heavy current demands on your wiring. At 60A on a 12V system, undersized cables cause voltage drop, energy waste, and heat buildup — all of which reduce performance and pose a safety risk. Use cables rated for the expected current draw and keep cable runs as short as possible between the battery bank and the AC unit. Install appropriate fuses or circuit breakers close to the battery terminals to protect against short circuits. If you are running a 240V system through an inverter, the high-current DC side between the battery and inverter requires the heaviest gauge cable in the entire setup.
Adding Solar to Recharge While You Camp
Solar panels are the backbone of any sustainable off-grid battery system. Without adequate solar recharge, even a large battery bank will be depleted within a day or two of air conditioner use. A minimum of 400W of rooftop solar is advisable for systems powering an AC unit, with 600-800W preferred for extended free camping in Australia. A quality MPPT solar charge controller like the VoltX SRNE 12V/24V 60A MPPT Solar Charge Controller maximises panel output, and a DC-DC charger connected to the vehicle's alternator provides supplementary charging while driving. Together, solar and alternator charging keep the battery bank topped up so that you arrive at each campsite with full capacity.
VoltX SRNE 12V/24V 60A MPPT Solar Charge Controller
Safety, Fusing, and Australian Electrical Standards
Any 240V work in a caravan must comply with AS/NZS 3001.2:2022 and should be carried out by a licensed electrician. Even on the 12V side, proper fusing, cable sizing, and battery ventilation are critical. Lithium batteries must be mounted securely in a location that prevents physical damage, and their BMS must be compatible with your charging sources. If you are uncertain about any aspect of the installation, consult a qualified auto electrician who has experience with caravan electrical systems.
Five Practical Ways to Maximise Battery Runtime
Pre-Cooling and Thermal Management
The single most effective strategy is to reduce how hard the air conditioner needs to work in the first place. Pre-cool the caravan while connected to mains power or while the engine is running and the alternator is charging. Park in shade wherever possible. Fit reflective window covers and ensure the caravan's insulation is in good condition. A well-insulated van holds cool air longer, which means the compressor cycles less frequently and your batteries last proportionally longer.
Smart Usage Patterns and Duty Cycling
Rather than running the air conditioner continuously for hours, consider duty cycling — running it for 30 to 45 minutes to bring the temperature down, then switching off and relying on insulation to maintain comfort for the next period. Keep filters clean, as restricted airflow forces the compressor to work harder. Use ceiling fans or 12V circulation fans to distribute cool air evenly, reducing the perceived temperature without additional compressor load. These small habits collectively add meaningful runtime to every charge cycle.
Stay Cool Off-Grid with the Right Battery and AC Setup
Running a caravan air conditioner from lithium batteries comes down to three things: adequate battery capacity, an efficient air conditioning unit, and a reliable recharge strategy through solar and alternator charging. Size the system honestly, account for all your appliances, and build in a margin for hot days and cloudy skies. For Australian travellers looking to build or upgrade their off-grid cooling setup, Outbax offers a complete range of LiFePO4 caravan batteries and the Cold King 12V rooftop air conditioner — everything you need to keep the temperature down and the adventure going.
