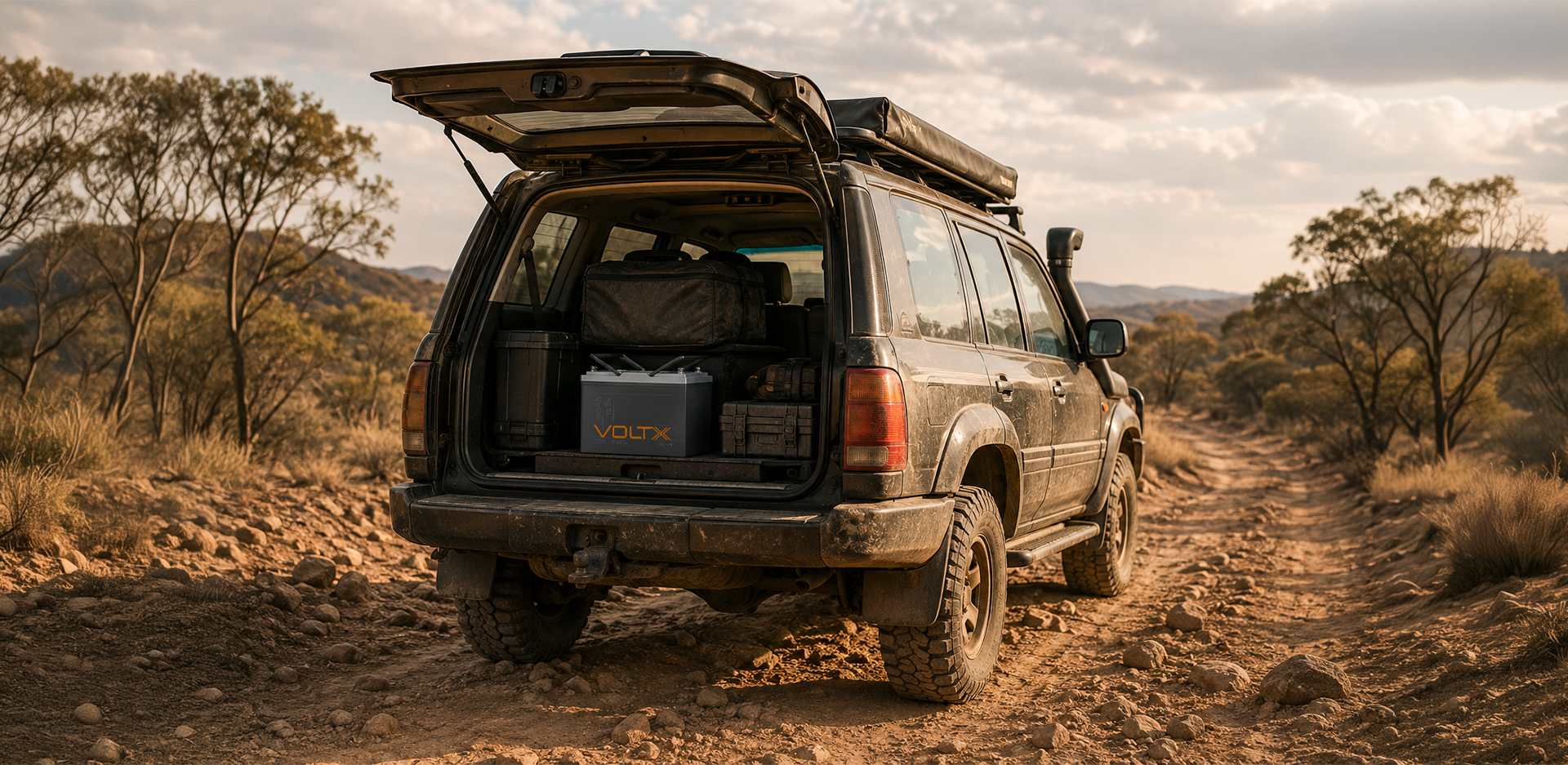

A 4WD dual battery setup can be wired perfectly and still fail 300km up a dirt track. The battery is rarely the problem. The thing holding it in place usually is.
Most 12V systems that die in the outback do not die because the battery was faulty. They die because something that was tight in the driveway stopped being tight somewhere past the last servo.
Corrugations are the reason. A washboard surface delivers a continuous, repeating vertical input for hours at a time, and every fastener, terminal, and cable termination in the auxiliary circuit has to hold position through it. The battery is usually the last component to fail, not the first.
This guide covers the three places a 4WD dual battery setup actually breaks on corrugated dirt roads, in the order they break: the mount, the terminal, then the cable and connectors. The failures that come back through Outbax technical support after the touring season follow that order.
Corrugations are regularly spaced ridges that form across unsealed roads as tyres and suspension work the surface. Spacing typically sits between half a metre and a metre and a half. At 70km/h, everything bolted to the vehicle sees a repeating input in the order of 15 to 40 cycles per second.
Lithium batteries approved for transport are tested against UN 38.3, which includes a sinusoidal vibration sweep from 7Hz to 200Hz. The cell and the case are built for that. Your bracket, terminal bolts, and cable runs are not tested against anything.
Why Lithium Behaves Differently to AGM Here
A LiFePO4 battery, like the VoltX 12V 100Ah Bluetooth Daly LiFePO4 Battery, has a battery management system between the cells and the terminals. If the connection opens for even a fraction of a second, the BMS registers it and responds, which can mean a clean shutdown, a latched fault, or a reset. AGM has no such logic, so the same interruption produces nothing worse than a flicker.
On lithium, it produces a fridge that has switched off and stayed off. That is why the symptom is so distinctive: it works on bitumen and in the driveway, then drops out on dirt where nobody can find the fault standing still.
The Three Failure Points, In Order
- The mount. Fasteners loosen, brackets fatigue, and the battery begins to move inside its restraint.
- The terminal. Bolts lose torque, joints develop fretting corrosion, and contact resistance climbs.
- The cable and connectors. Unsupported heavy cable fatigues its own terminations, and Anderson plugs wear at the contacts.
Battery Mounting Failures on Outback Tracks and How to Prevent Them
Battery mounting means restraining a battery so it cannot move in any direction, including upwards. Containing a battery and restraining it are not the same thing.
A plastic tub with a cargo strap over the top is containment. The battery lifts and lands on every cycle, and the strap does nothing to stop lateral movement. Over a long day, the terminals take that load through the cable.
What a Proper Battery Tray or Under Tray Battery Box Does
- Clamps the battery down against a flat base so it cannot lift
- Restrains it laterally on all four sides, against the case rather than a foam packer
- Bolts through to structural steel, never into a sheet metal panel. A bracket fixed to a canopy floor will fatigue the floor long before the bracket
- Uses nyloc or thread-locked fasteners. A plain nut on a vibrating bracket will walk loose
Matching the Mount to the Battery Case
Slim and blade format batteries change the problem. They present a taller, narrower profile with a higher centre of mass, so lateral restraint matters more than for a standard case. The VoltX 12V 100Ah Blade LiFePO4 Battery and the VoltX 12V 100Ah Slim LiFePO4 Battery both suit under-tray and low-clearance canopy locations, and both want a purpose-built bracket.
Here’s what one of our customers said about the VoltX Blade Battery:
“Have installed 2 x these batteries under drawers in my LC300, running a 96L Fridge/Freezer. All good so far, thanks.”
How tight should a lithium battery terminal be? To the figure the manufacturer specifies, and no tighter. There is no universal number, and this is one specification worth reading rather than guessing.
Over-tightening is the more common error. The terminal post threads into the battery case, and excessive torque can strip that thread. Under-tightening leaves a joint that corrugations will work loose within a day.
What Fretting Corrosion Is and Why It Matters
Fretting corrosion happens when two metal surfaces in contact move against each other in tiny repeated increments. Each cycle abrades the surface, exposes fresh metal, and oxidises it. The joint still looks fine under a torch, but contact resistance climbs.
Rising resistance produces heat, and heat accelerates the oxidation. The first visible sign is usually discoloured insulation near the lug, or a terminal that is warm after a driving day.
Terminal Stacking Order and the Chassis Earth Point
Every extra ring terminal stacked on a post is another interface that can fret. Where a 4WD dual battery setup needs multiple connections, a busbar is the better answer.
The chassis earth point deserves the same attention as the positive. Take paint back to bare metal, use a proper crimp lug, and protect the joint. A degraded earth produces the same symptoms as a degraded positive and gets checked far less often.
Heavy cable has mass. An unsupported span of 8 B&S cable oscillates on corrugations, and every oscillation is carried by the crimp at each end. Support it roughly every 300mm, and always close to a termination.
Cable Gauge, Voltage Drop, and Intermittent Faults
Cable gauge selection normally comes down to voltage drop over the run, which matters because a DC-DC charger lithium profile is sensitive to input voltage. Corrugations add fatigue on top of that, so a cable can be correctly sized electrically and still be poorly supported mechanically.
Anderson Plugs, Fuse Rating, and Isolator Mounting
Anderson plugs wear at the contacts through repeated micro movement. An Anderson plug-to-battery-terminal connection needs strain relief so cable weight is not hanging off the housing.
Fuse rating should protect the cable, not the load. A battery terminal fuse at the post is good practice, but a fuse holder can loosen like anything else. The battery isolator and the DC-DC charger both belong on a damped, structurally sound surface rather than a thin resonant panel.
Choosing a Lithium Battery Built for Australian Corrugations
Capacity is the first thing most buyers compare, and close to the last thing that determines durability on dirt. What matters is case construction, internal cell bracing, and how the BMS board is mounted.
Capacity Against Mass, and What Your Bracket Has to Hold
More capacity means more mass, and mass is what your bracket carries. A 100Ah lithium battery 4WD unit sits under 10kg, roughly a third to half the weight of an equivalent lead-acid battery.
The VoltX 12V 100Ah LiFePO4 Battery sits at the light end. The VoltX 12V 200Ah Pro LiFePO4 Battery is the common touring choice. The VoltX 12V 300Ah Pro LiFePO4 Battery and the Gentrax 12V 300Ah LiFePO4 Battery need a bracket engineered for that load, not a 100Ah bracket with an extra strap over it.
Here’s what one of our customers said about the VoltX 200Ah Battery:
“I’ve had these batteries connected in parallel for about a year feeding a 2.5KW inverter and they have worked faultlessly over this time. I have been off grid for 4 days running aircon for about 3 hrs a day, as well as air fryer, coffee machine and everything else that runs off the 12v side, with 650 watts of solar and by the end of the week we still had 100% on battery’s. excellent buy and excellent quality.”
Where the Weight Belongs, and Why Heat Compounds Vibration
Lower and further forward is better. Weight carried high in a canopy increases the vertical acceleration the battery sees over corrugations, which loads the mount harder for the same road.
Heat compounds it. Batteries in the Outbax range are rated to 45°C ambient, but an under-tray location in a Kimberley summer can exceed that, and a hot joint under vibration degrades faster than a cool one.
Your Inspection Routine Before and During the Trip
Before you leave the bitumen, allow five minutes for the following.
- Check terminal torque on both batteries against the manufacturer figure.
- Check every hold-down fastener on the tray or battery box.
- Inspect cable runs for chafe points, especially at bulkhead pass-throughs.
- Look for heat discolouration at lugs, fuse holders, and the isolator.
- Check the chassis earth point for corrosion and movement.
- Take a voltage reading under load and write it down.
Repeat it after the first full day of corrugations. Fasteners that are going to settle will settle early, and finding a loose terminal at the first camp beats finding it at the fourth.
The battery is rarely the weak link in a 4WD dual battery setup. The mount, the terminal, and the cable termination are, in that order, and all three can be checked in the time it takes to boil a billy.
If you are unsure your mounting is up to a remote trip, have the install looked over by an auto electrician. If you are still choosing a battery, the Outbax team can talk through case format, weight, and mounting.
