Product highlights

  • 7 Years Australian Warranty
  • Rated Capacity 100Ah
  • 12.8 Volts
  • 600 x 65 x 270mm
  • 15.5kg


Have a question? Ask our experts!

Product Details

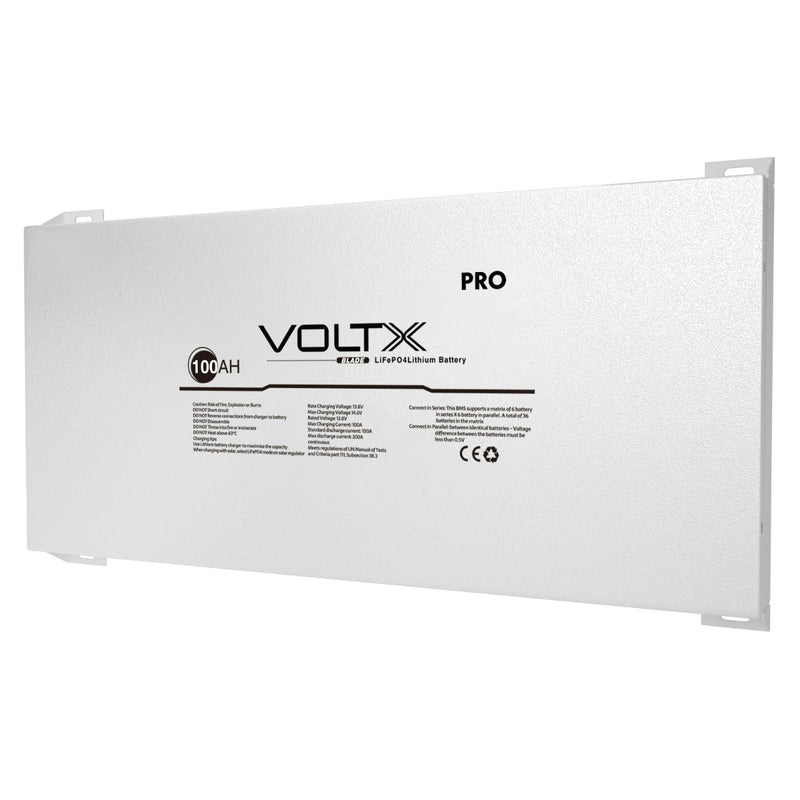

You don't have to carry a bulky, heavy battery to power your camping adventures anymore. Meet VoltX 12V 100Ah LiFePO4 Lithium Battery, Outbax's slimmest lithium battery for sale. You'd easily spot this one because of its ultra-slim design but don't let it fool you—this battery pack is built to provide you with a reliable and steady power source for all your travelling needs.

Made up of prismatic cells for quality power output, it contains a total of 36 batteries in the matrix encased in a heavy-duty case. It's also backed by a built-in battery management system that all LiFEPO4 batteries have. This allows for a maintenance-free operation, as the BMS constantly monitors every cell to ensure the battery is always optimised for best performance.

Our VoltX slimline battery is also a win in lifespan and safety. You get more than 2000 cycles that last for up to 7 years so there's no need to constantly replace your battery. Best of all, LiFEPO4 is considered the safest battery in the market due to its non-toxic component and incombustible feature, so you have one less thing to worry about while using it.

Want more of our LiFEPO4 batteries? Check out the full range of lithium batteries for sale on our website.

Product categories:

Technical specs


Nominal Voltage: 12.8V
Nominal Capacity: 100Ah
Charging Voltage: 14.2-14.6V
Rated Energy: 1.28KWh
Max. Charging Current: 100A
Max.  Discharging Current: 200A
Discharge Cut-off Voltage: 10.0V
Life Cycle (@25℃, 0.5C/0.25C, 80%DOD): Approx. 2800 Cycles
Internal Resistance Fully Charged@ 25℃ ≤10mΩ
Thermal Management: Nature cooling
Operating Humidity: 60±25%R.H.
Operating Temperature:  Charging: 0°C to 50°C
Discharging: -25°C to 65°C
Cell: 3.2V-100Ah
Cells Grouping: 4S1P
Bolt Type: Hexagon
Bolt Material: 304 Stainless Steel
Series Connection: Yes, max of 6 batteries
Parallel Connection: Yes, max of 6 batteries
Warranty: 7 years


Dimensions: 600(L) x 65(W) x 270(H)mm
Weight: 15.5kg


1 x Lithium Battery




The battery manual states low voltage @11.2v would put the battery to sleep. What voltage would be needed to wake the battery back up?
Can I place the battery under the bonnet?
What cables should I use to connect the batteries in series or parallel?
How do I maintain the life cycle of battery?
What charger can I use and how do I charge the battery?
Can I charge my battery away from mains power?
How often should I recharge my battery?
What's the best way to charge my battery?
What charge level should I charge my battery at?
How do I store the battery if I will not be using it for a long time?
Can these batteries be used for trolling motors?
What level of the battery affects its life-cycle?
Can it discharge 100% or needs to be left with 20%?
Do I need a battery balancer when running in series to 48V?
Can I connect our LiFePO4 batteries to AGM?
What percentage of the capacity is considered faulty after years of using the battery?
Can you use the battery to crank or jump start?
Would there be gas emissions when the battery is charging and discharging? I want to put it below the dining seat which is near gas.
What are the bracket/hole dimensions?
