The specifications of the selected cables are determined according to the actual charging and discharging current. The overcurrent value varies from different cables. For example, the cross-sectional area of the conductor is 10mm2, and the cable can pass 50A current. The cross-sectional area of the conductor is 25mm2, and the cable can pass 100A current, etc.
About Outbax
We provide your camping and outdoor needs at consistently low prices,
without compromising quality.
At Outbax, our team of 60+ staff are passionate about offering quality products at a low price.
Customer service is the core of our business. We have 24 full-time customer service champions to answer all of your queries and you’ll never be caught unaware with our 60-day money back guarantee.
Selling fast. Hurry and order now to save 38%
Product highlights
WHITE WEDNESDAY SALE!
Extra 15% off using the code WHITE
Hurry! Promo ends 13/12/23 11:59pm AEDT
- 3 Years Australian Warranty
- Rated Capacity 200Ah
- 12.8 Volts
- 552 x 110 x 290mm
- 19kg
Have a question? Ask our experts!
Need big capacity but have limited space?

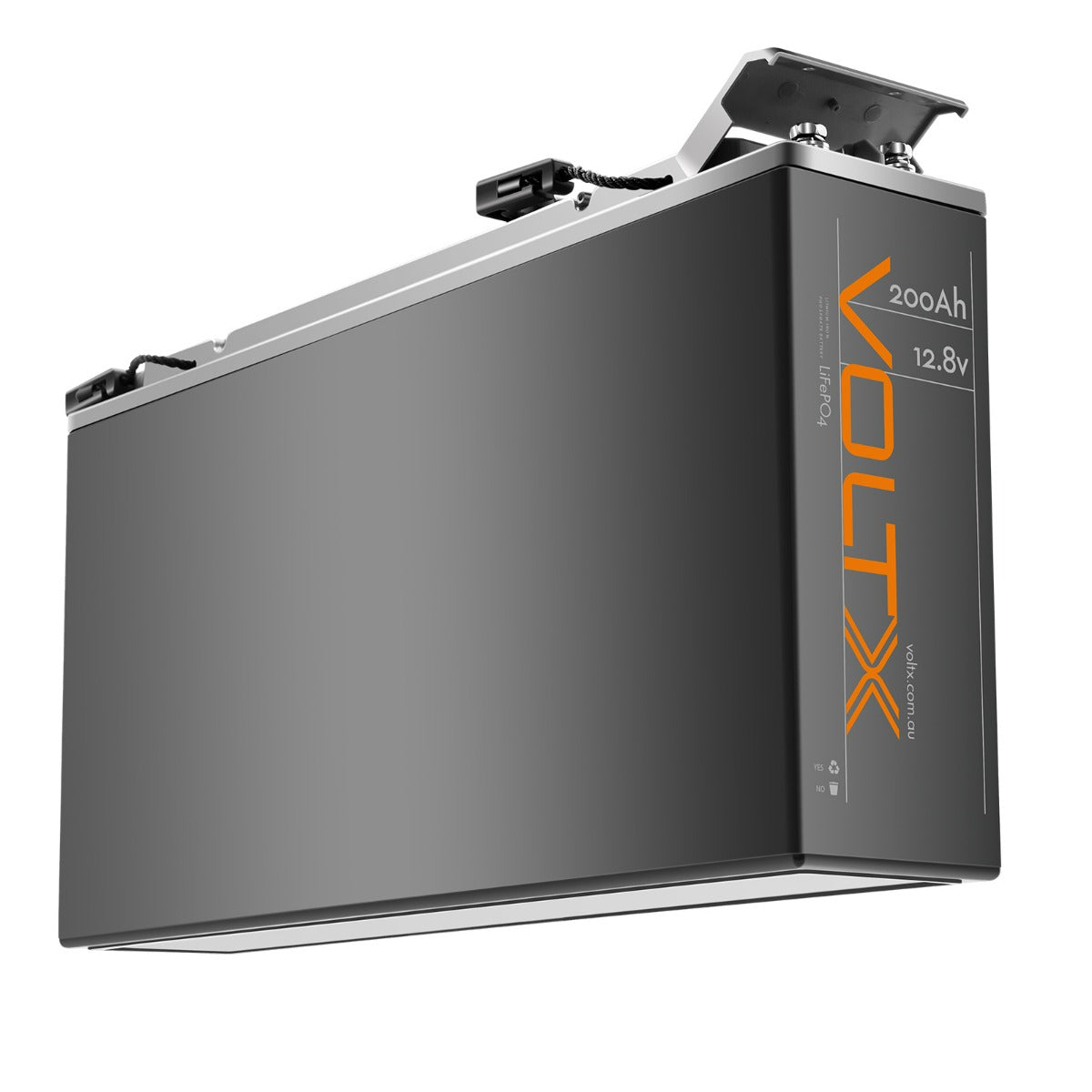

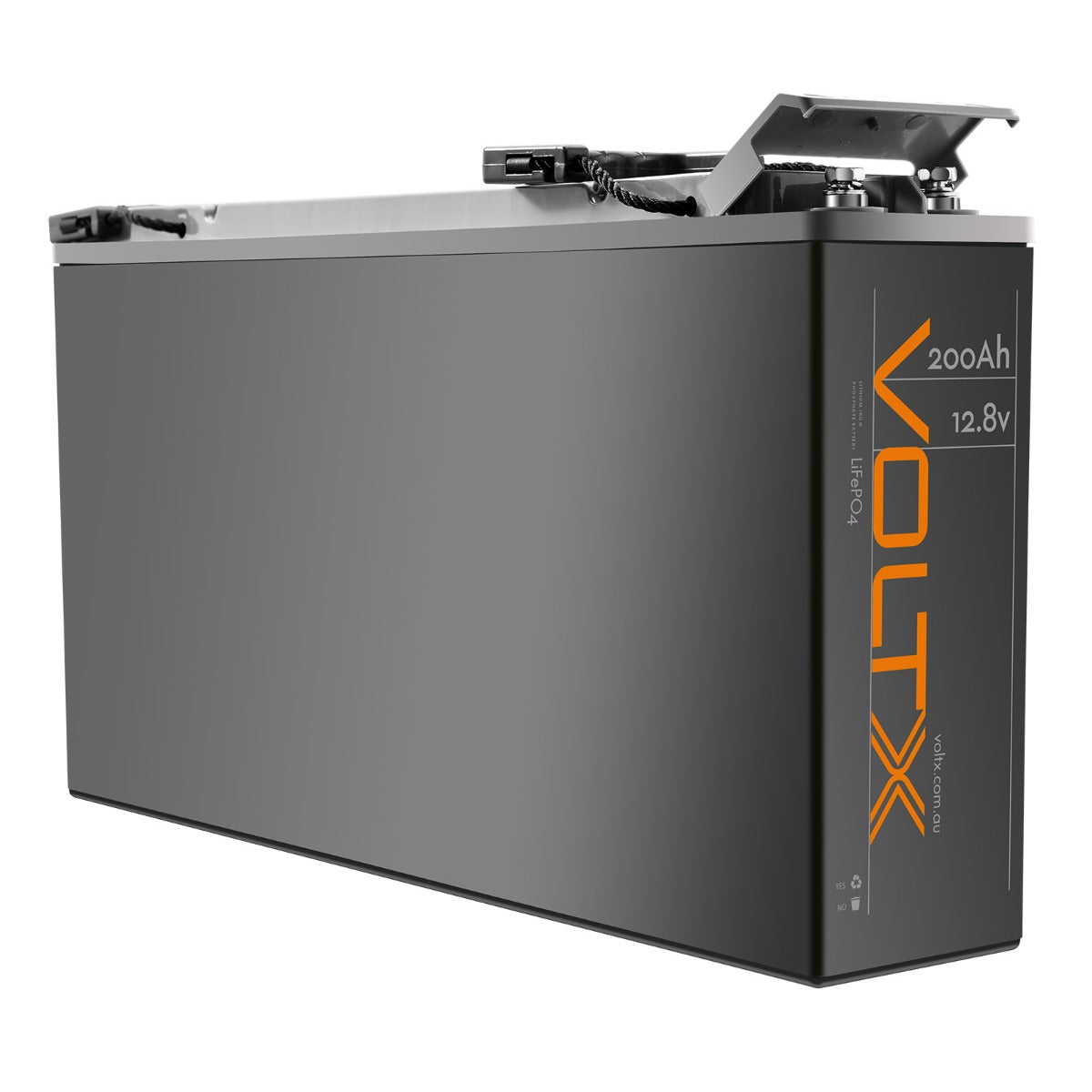

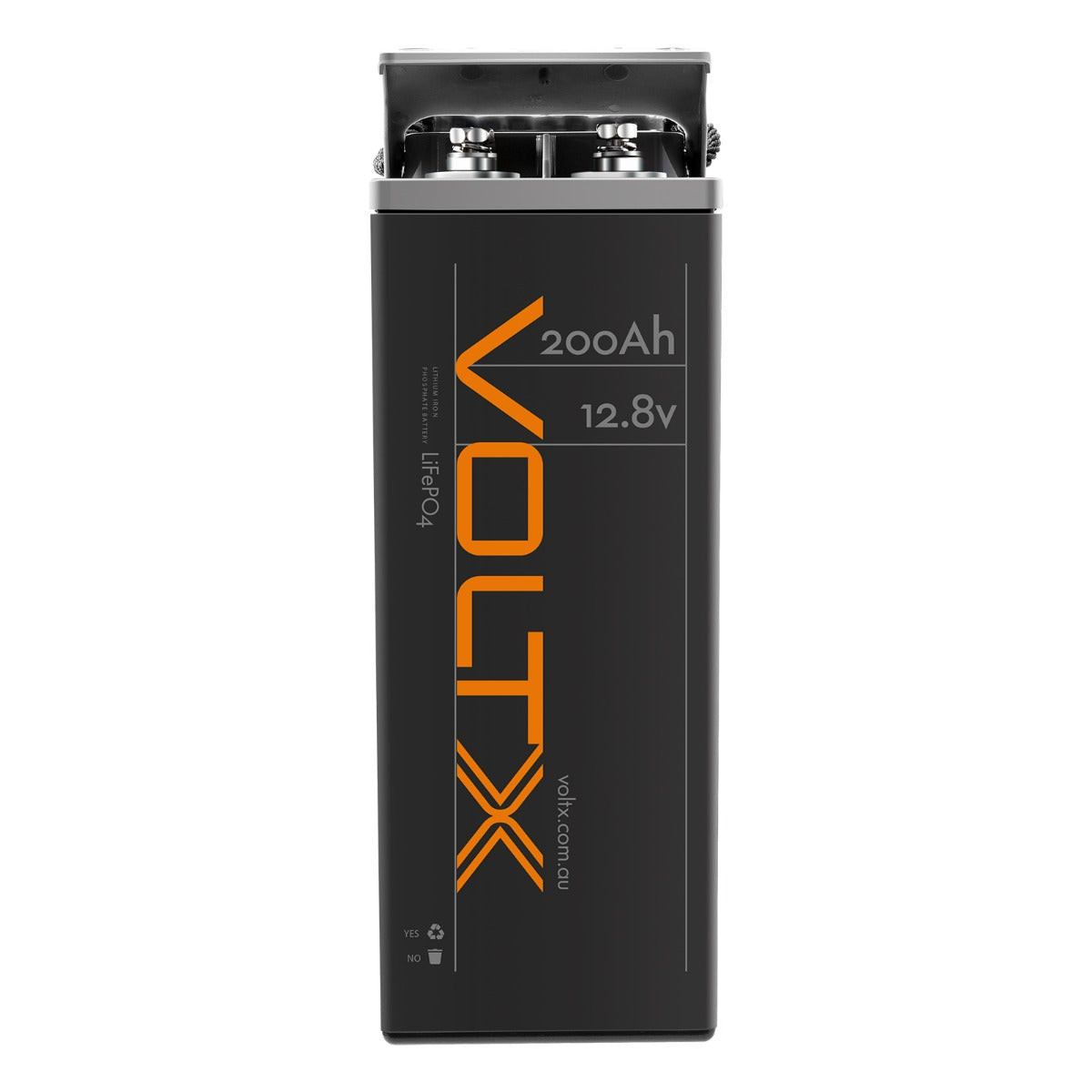

Introducing our NEW 12V 200Ah VoltX lithium battery. Our LiFePO4 Battery is supplied fully protected by a sophisticated specially designed lithium battery management system that constantly monitors every cell to ensure the battery is always optimized for best performance and life. Unlike gel or lead-acid batteries, Lithium battery is safer, lighter, and more powerful with a long service and shelf life comparing to all traditional lead acid batteries. No changing of systems, equipment or extensive re-wiring is required. You simply pull your old heavy batteries out (if your back allows it) and put the new lightweight LiFePO4 battery in. It's as easy as that. This 12V 200ah battery is the perfect drop-in upgrade for your existing old and heavy batteries, Invest in this sealed, maintenance-free battery for your off-grid system today!
FEATURES:
- Now with 3 years Australian warranty
- Ideal battery if you have limited space
- Lithium iron Phosphate Battery(LiFePO4)
All our battery packs are comprised of prismatic cells & are backed with LiFePO4's signature built-in BMS. They are also tested to deliver 100% real capacity and are suitable for parallel and series wiring of up to 6 battery packs.
IMPORTANT: While some of our LiFePO4 batteries are top-notch & can be wired with other batteries of its kind, it is not advisable to connect any LiFePO4 batteries in parallel or series. This poses several risks and should only be done in emergency situations. If you must wire batteries together, make sure you are familiar with the correct procedure or seek help from a professional if needed.
Suggestions From the Outbax Team
- Batteries connected in series should have the same amp-hour rating while batteries in parallel bank should have the same voltage rating.
- As much as possible, only connect batteries in series or parallel during emergency situations.
- It's better to go for batteries with higher voltage when running high-power electrical appliances instead of wiring two battery packs together.
- We have available batteries with larger discharge parameters for fast charge/discharge requirements.
- Our batteries are also available in 200Ah and 300Ah for larger capacity demands.
Product categories:
- Lithium Batteries
- Camping
- LiFePO4 Lithium Battery
- Deep Cycle Battery
- Cheap Lithium Battery
- 12 Volt Lithium Battery
- 12v Lithium Ion Battery
- 200Ah Lithium Battery Price Australia
- Lithium Deep Cycle Battery
- Lithium Solar Batteries
- Portable Lithium Battery Packs
- Slimline Lithium Batteries
- Solar Batteries
- Gel Batteries
- Dual Batteries
- Boat Batteries
- AGM Batteries
- Lead acid batteries
- Marine Batteries
- Golf cart Batteries
- Inverter Batteries
- Trolling Motor Batteries
- 200Ah Lithium Battery
- Batteries Cairns
- 100ah Deep Cycle Battery
- 200 Amp Hour Lithium Battery
- Batteries Darwin
- Batteries Fyshwick
- Batteries Bendigo
- Batteries Brisbane
- Batteries Brendale
- Battery for Camping Fridge
- Camping Battery
- What is a Deep Cycle Battery
- Slimline Deep Cycle Battery
- Lifepo4 Battery Review
- Marine Battery
- BMS Battery
- 12v Portable Battery
- 12v Battery
- 12v Battery Systems for Caravans
- 12v Marine Battery
- Battery Backup
- 12v Solar Battery
- 12v Rechargeable Battery
- 12v Battery Pack
- 12v Dual Battery System
- Lithium Battery Pack Camping
- Batteries Perth
- Batteries Near Me
- Camper Trailer Battery
- Best Marine Battery
- Lithium Dual Battery System
- Battery Cell
- Small 12V Battery
- Caravan Battery Setup
- How to Charge a Deep Cycle Battery
- Lithium Iron Phosphate Battery
- Marine Battery Prices
- How To Tell If A Deep Cycle Battery Is Bad
- Slim Deep-Cycle Batteries
- Battery Cycle
- Solar Battery Camping
- Battery Price
- Deep Cycle Battery Camping
- Solar Panel Setup
- Slimline Lithium Battery 200ah
- Deep Cycle Battery Prices
- Batteries Melbourne
- Lithium Iron Battery
- Off Grid Battery
- Batteries Sunshine Coast
- Rechargeable Batteries
- Solar Battery
- Marine Battery Perth
- Battery Pack
- Solar Panel Battery
- Battery Shop
- Camping Battery Pack
- Dual Battery
- Solar Batteries For Home
- Rechargeable Lithium Batteries
- Batteries Toowoomba
- Camping Power
- Deep Cell Battery
- Deep Cycle Battery Solar
- Solar Panel and Battery
- Solar Panel Battery Price
- What Is the Best Deep Cycle Battery
- Batteries Geelong
- Batteries Gold Coast
- Battery Power
- Deep Cycle Batteries In Adelaide
- Deep Cycle Batteries In Brisbane
- Portable Battery Pack
- House Battery
- Lithium Battery Systems
- Camping Equipment
- Ah Battery
- Batteries Launceston
- Deep Cycle Caravan Battery
- Lithium Batteries Brisbane
- Lithium Battery Price
- Lithium Marine Batteries
- Local Battery
- Small Deep Cycle Battery
- Batteries in Gympie
- Camping Battery Setup
- Batteries in Osborne Park
- Lithium Deep Cycle Battery Reviews
- New Batteries
- What is a Lithium Battery
- Sydney Batteries
- Batteries in Hobart
- Batteries in West Gosford
- 12V Lithium Battery
- Lithium Cell
- Battery Wholesale
- Batteries
SPECIFICATIONS
Brand: | Voltx |
Nominal Voltage: | 12.8V |
Nominal Capacity: | 200Ah |
Charging Voltage: | 14.2-14.6v |
Rated Energy: | 2560Wh |
Standard Charging Current: | 50A |
Max. Charging Current: | 100A |
Rated Discharge Current: | 100A |
Max. Discharge Current: | 150A |
Max. Discharge Current 5 sec: | 300A |
Approx Life Cycles: | 4000 |
Absorption Voltage: | 14.4V |
Float Voltage: | 13.8V |
Overcharge Protection: | 14.6V |
Overcharge Recovery: | 14V |
Overdischarge Protection: | 10.8V |
Overdischarge Recovery: | 11.2V |
Cell Grouping: | 4S2P |
Working Temperature Range: | Charge: 0°C to 45°C | Discharge: -25°C to 65°C |
Storage Temperature: | 10°C to 50°C |
Battery Cells: | Prismatic |
Case Material: | ABS Plastic |
Parallel Connection: | Yes, max 6 batteries |
Series Connection: | Yes, max 6 batteries |
Warranty in Years: | 3 |
DIMENSIONS & WEIGHT
Dimensions: | 552(L) x 110(W) x 290(H)mm |
Weight: | 19kgs |
WHAT'S IN THE BOX
1 x | Lithium Battery |
SKU
bat-li-12-200a-slim-plus |
What cables should I use to connect the batteries in series or parallel?
How do I maintain the life cycle of battery?
Do I need a battery balancer when running in series to 48V?
- Your item will be shipped next business day.
- On average, items are delivered between 3 to 7 business days following shipping around Australia.
- Check out our shipping and delivery calculator above for more information.
- We can't ship products to PO Boxes, Parcel Lockers or Post Offices. We need to have an actual address to proceed with the order.
- Outbax offers a 36-month warranty on our VoltX Lithium Batteries from the date of purchase unless otherwise stated. Outbax warrants its products against defects in materials and/or workmanship. This is further to your rights under Australian Consumer Law.
- Outbax products come with a 60-day money-back guarantee. You must contact us within 60 days of receiving the product and it must be returned in its original condition.
