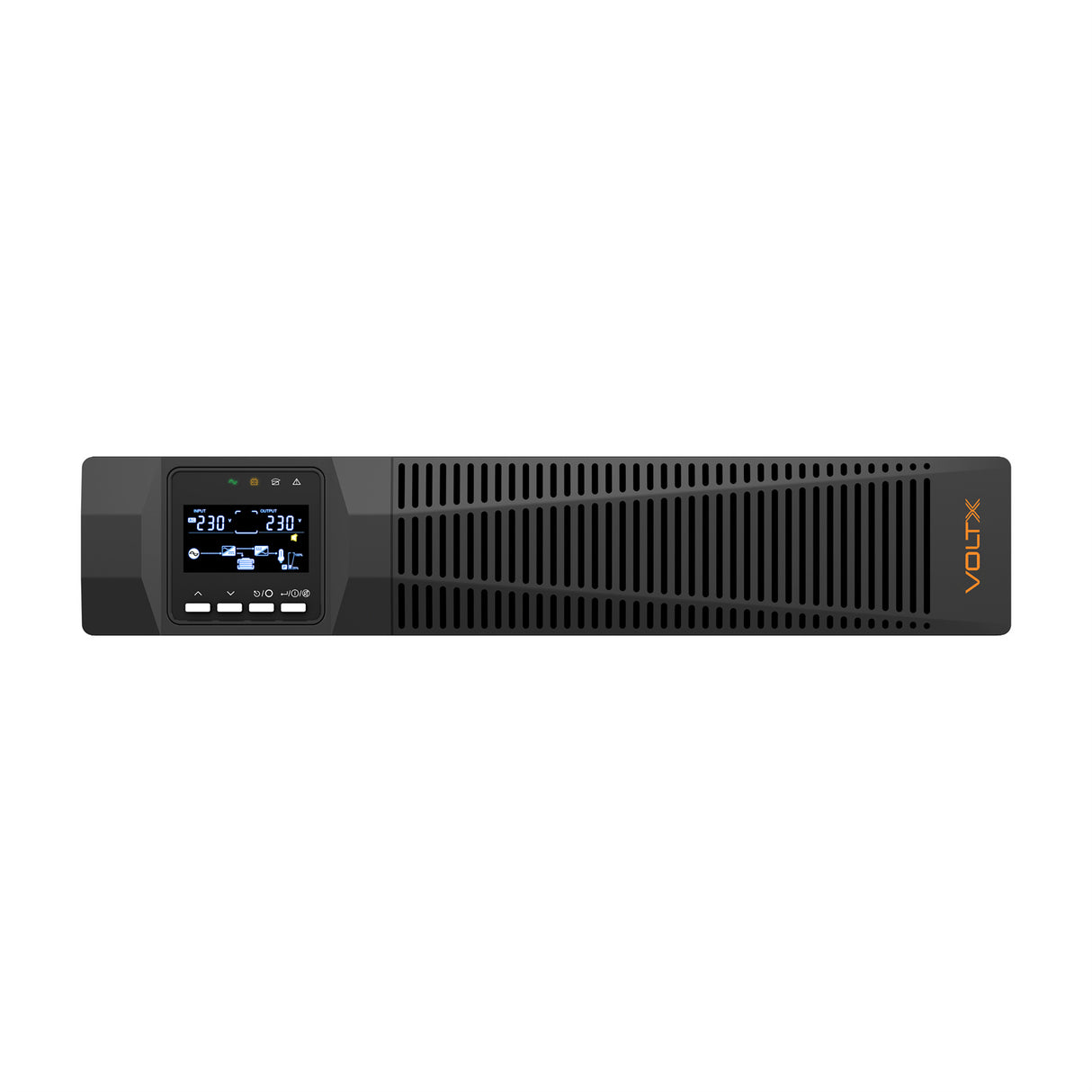

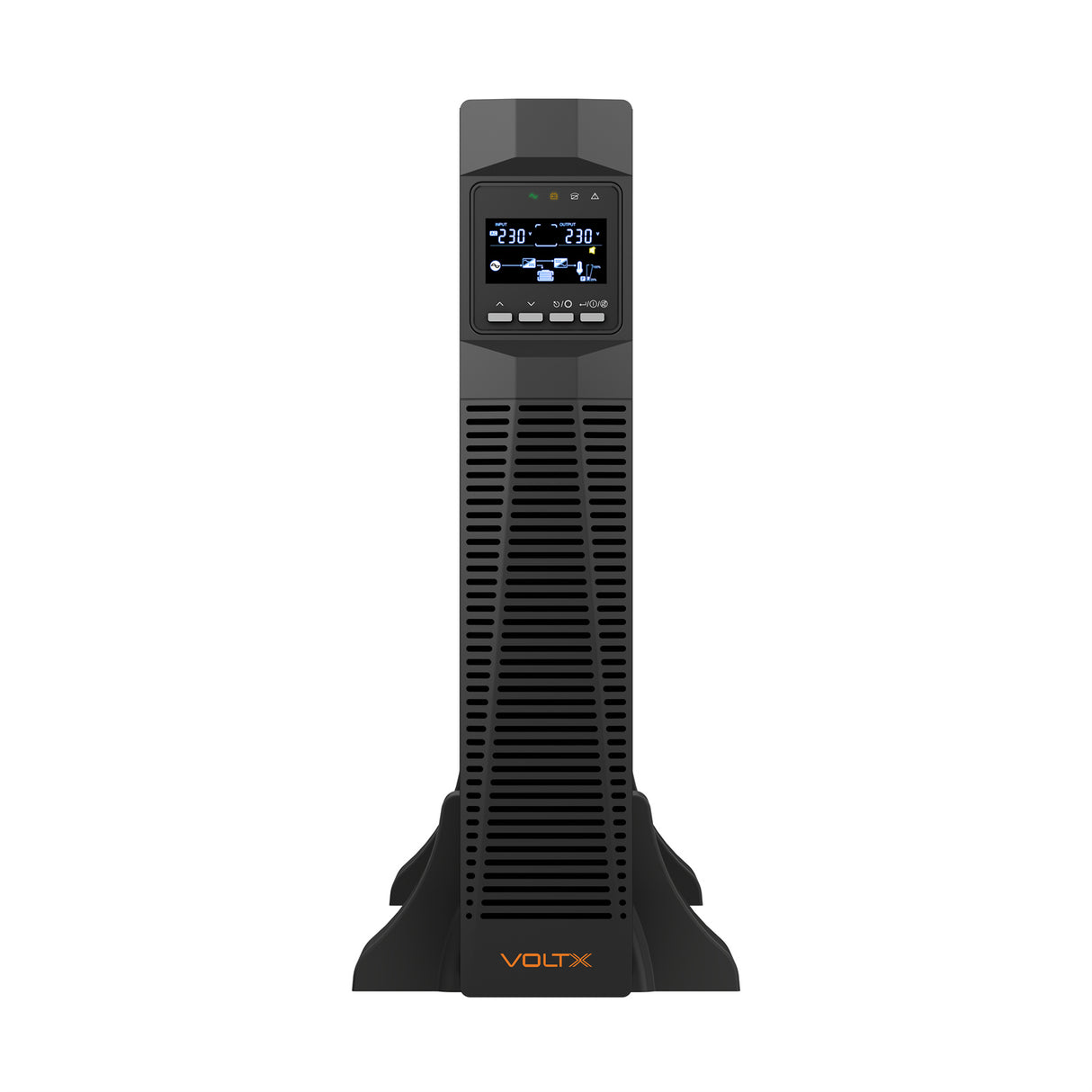

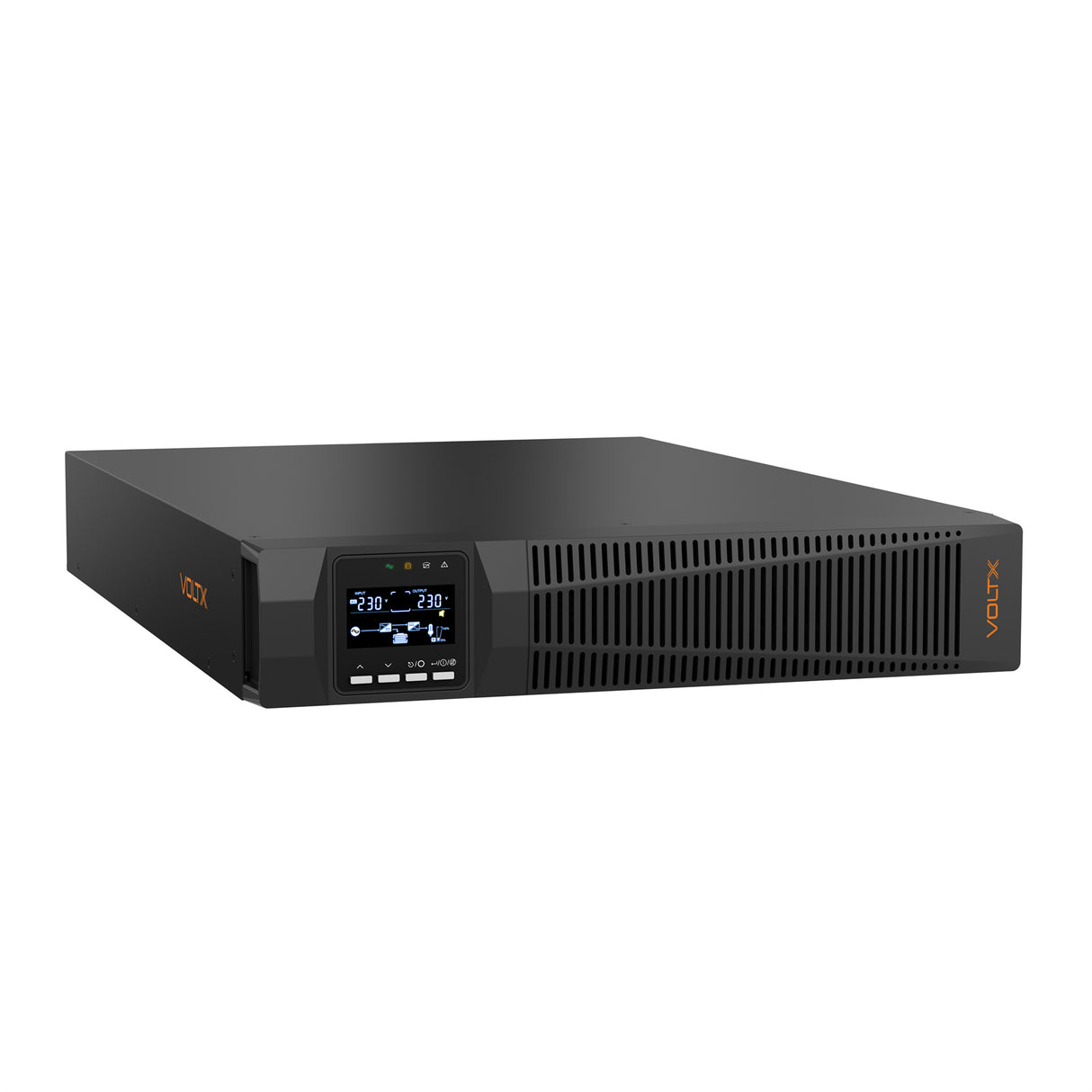

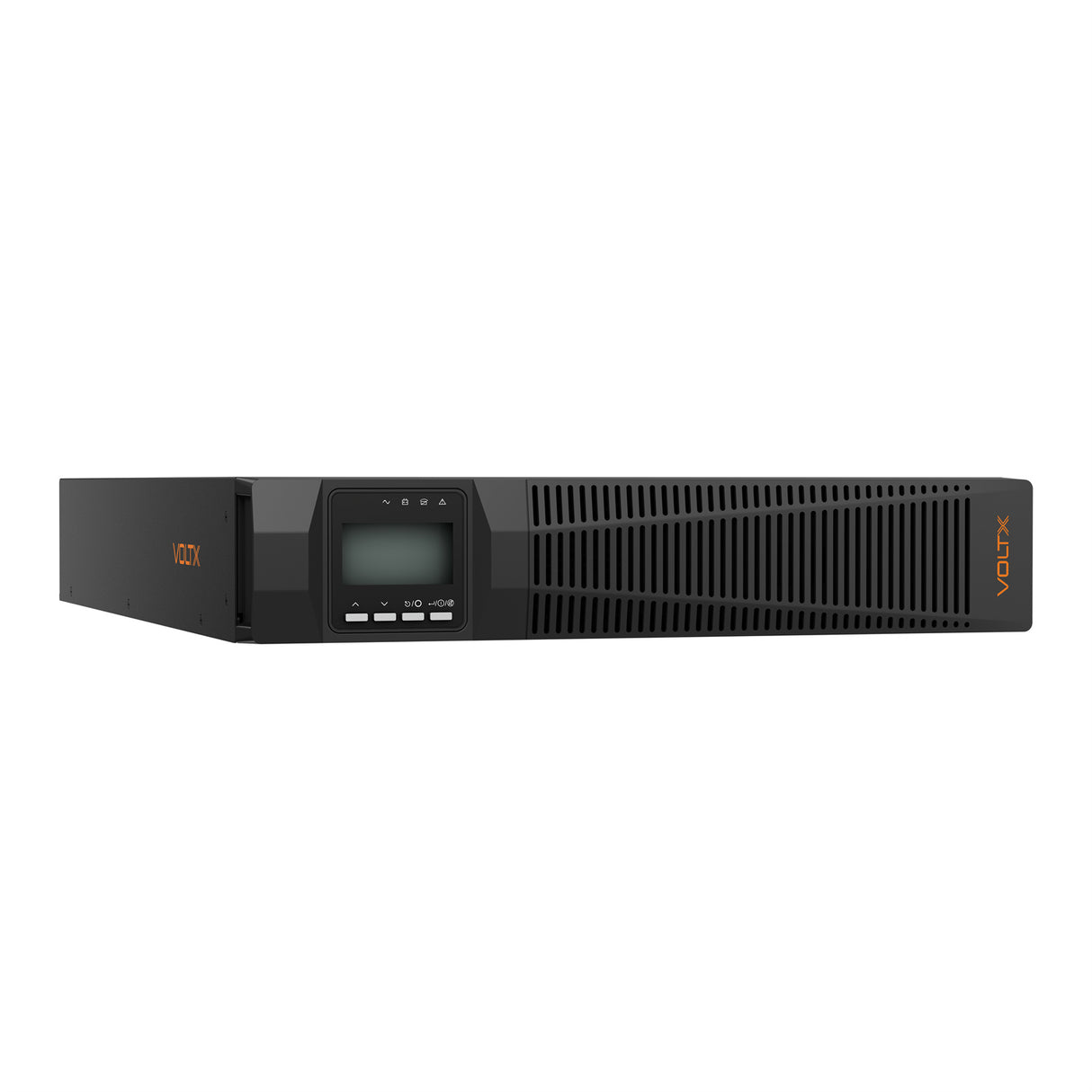

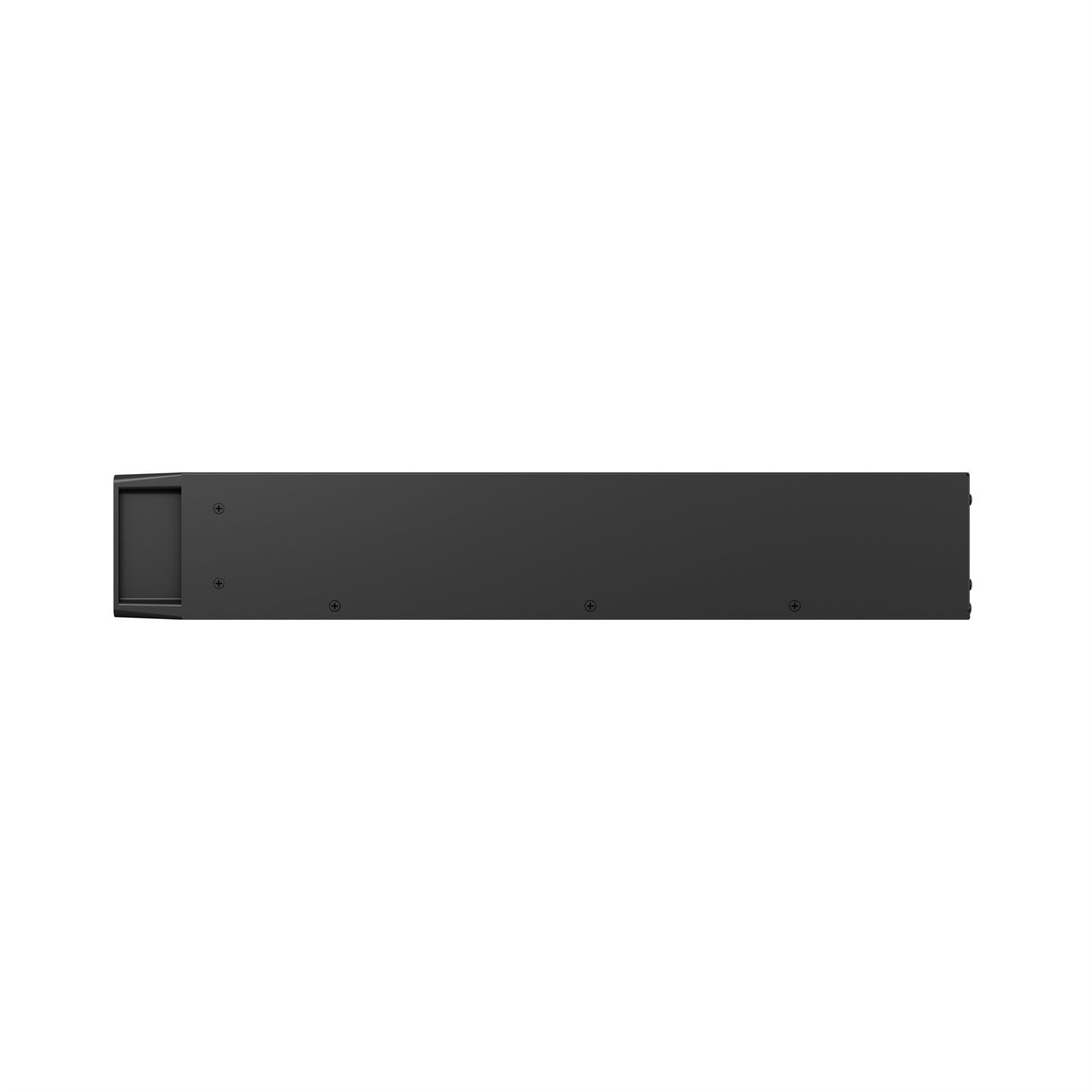

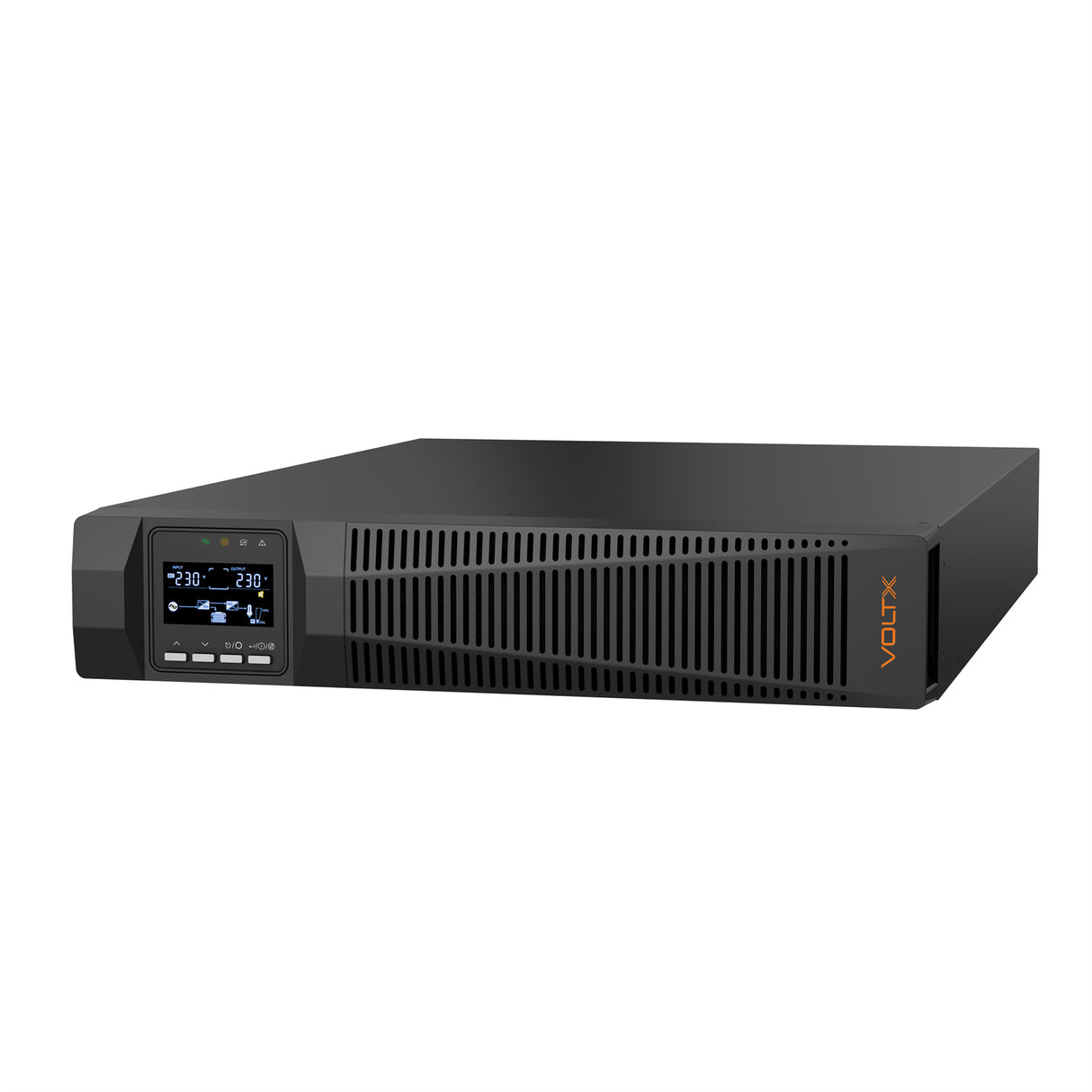

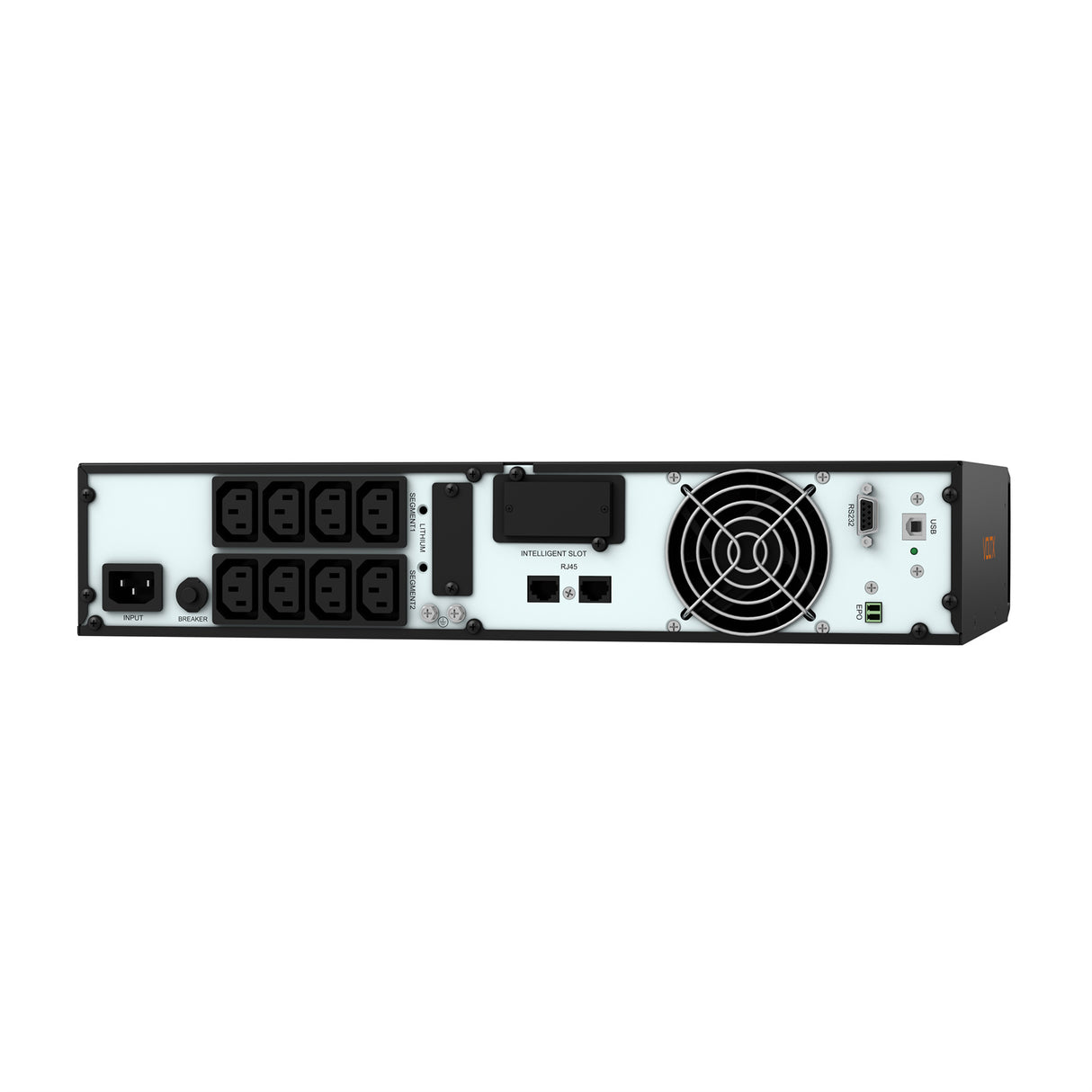

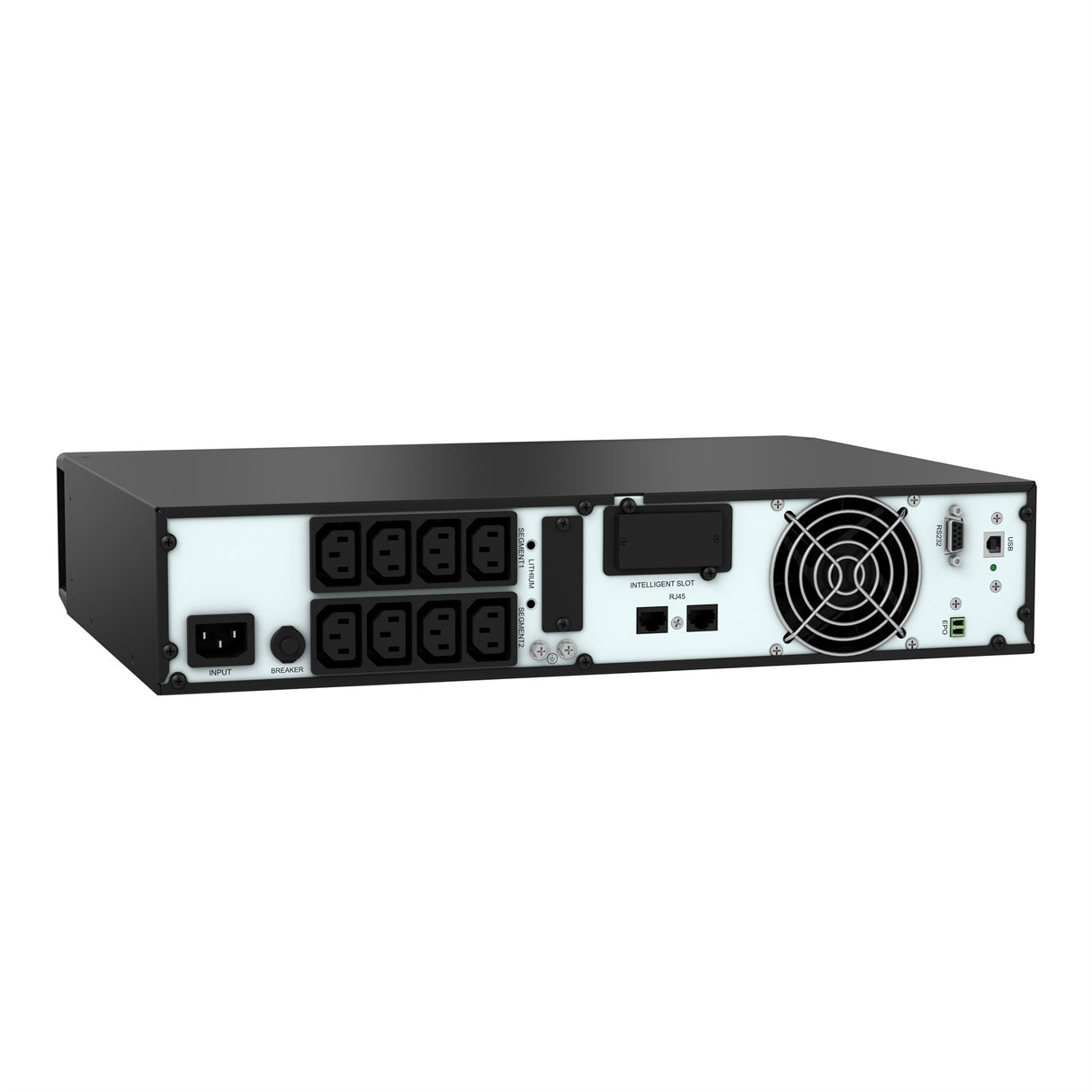

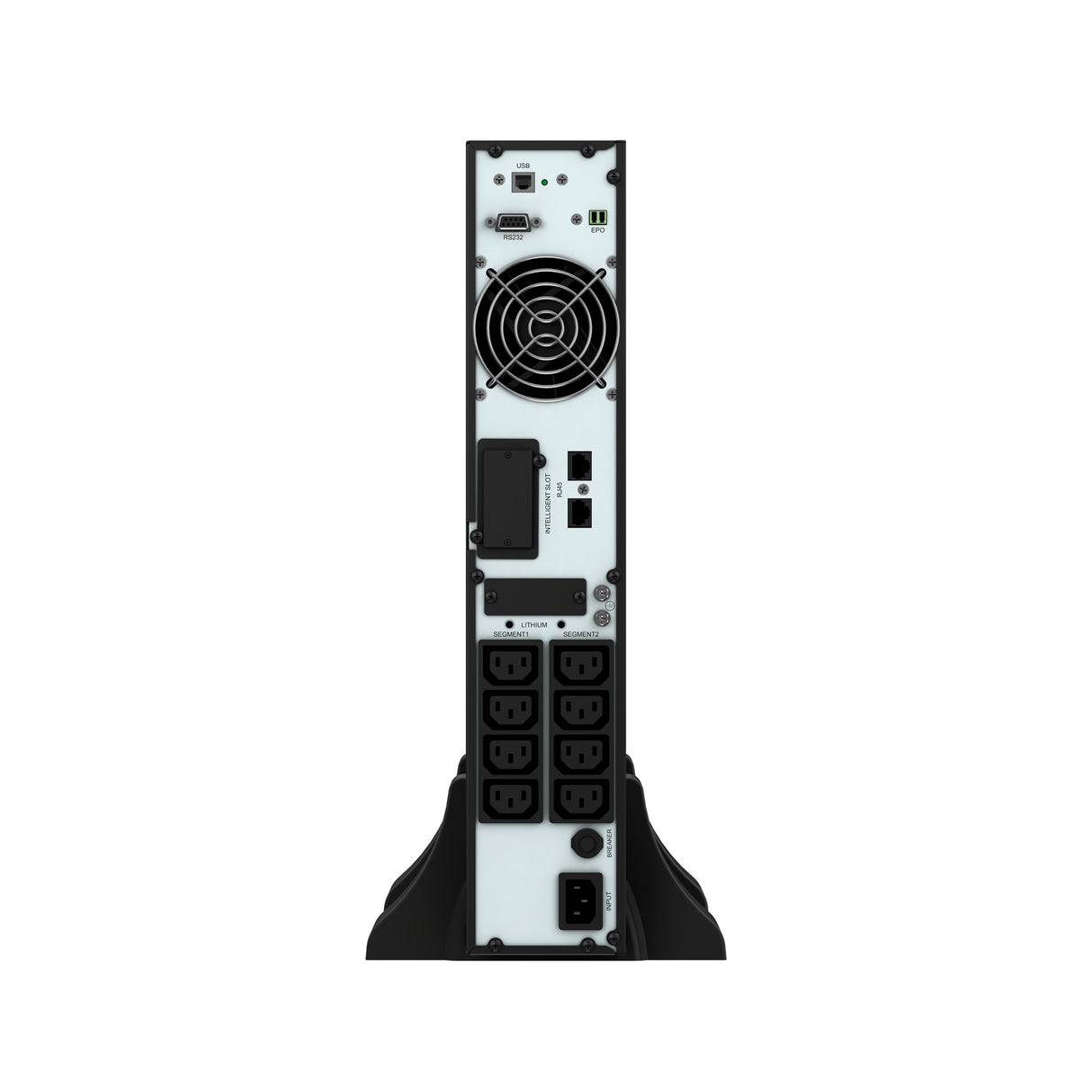

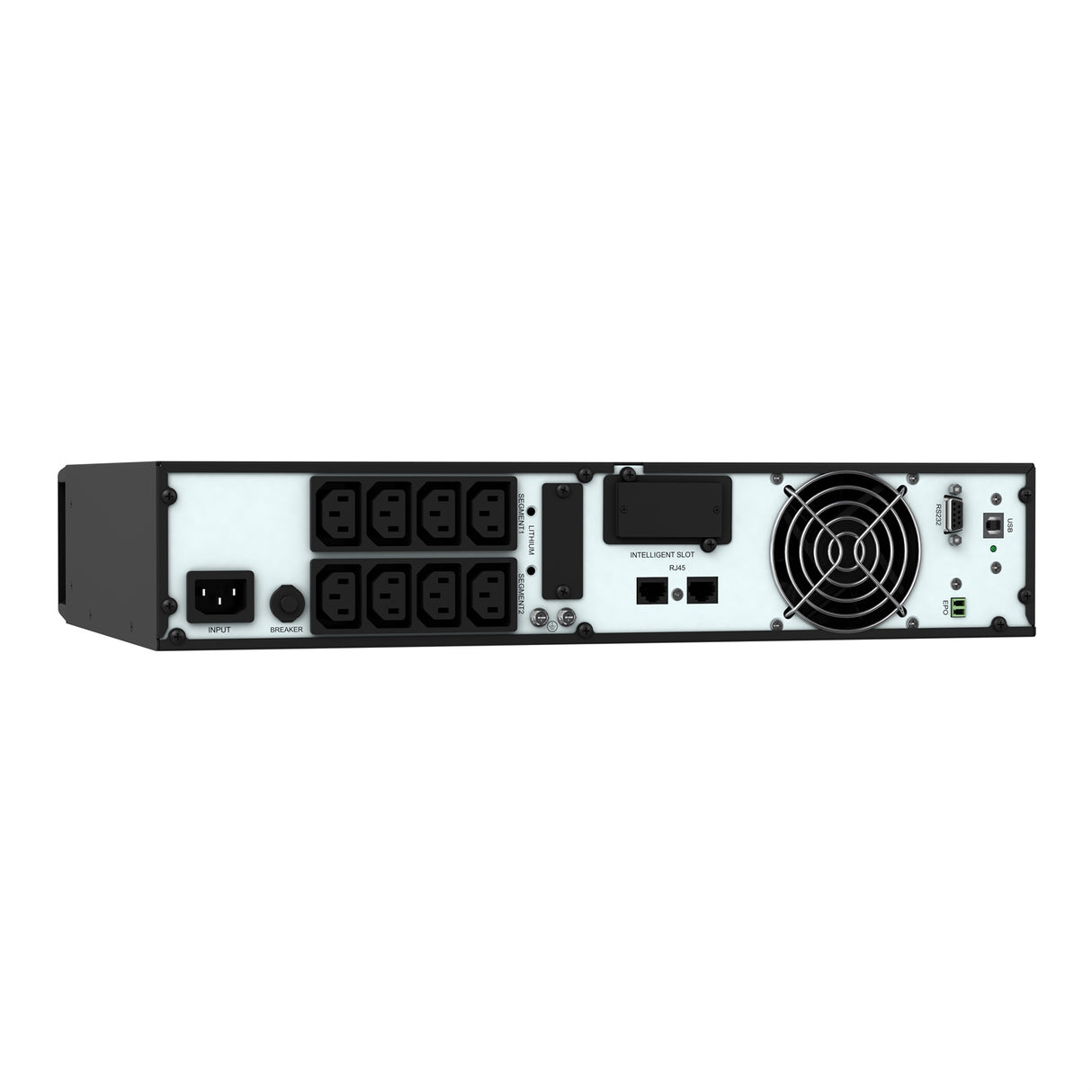

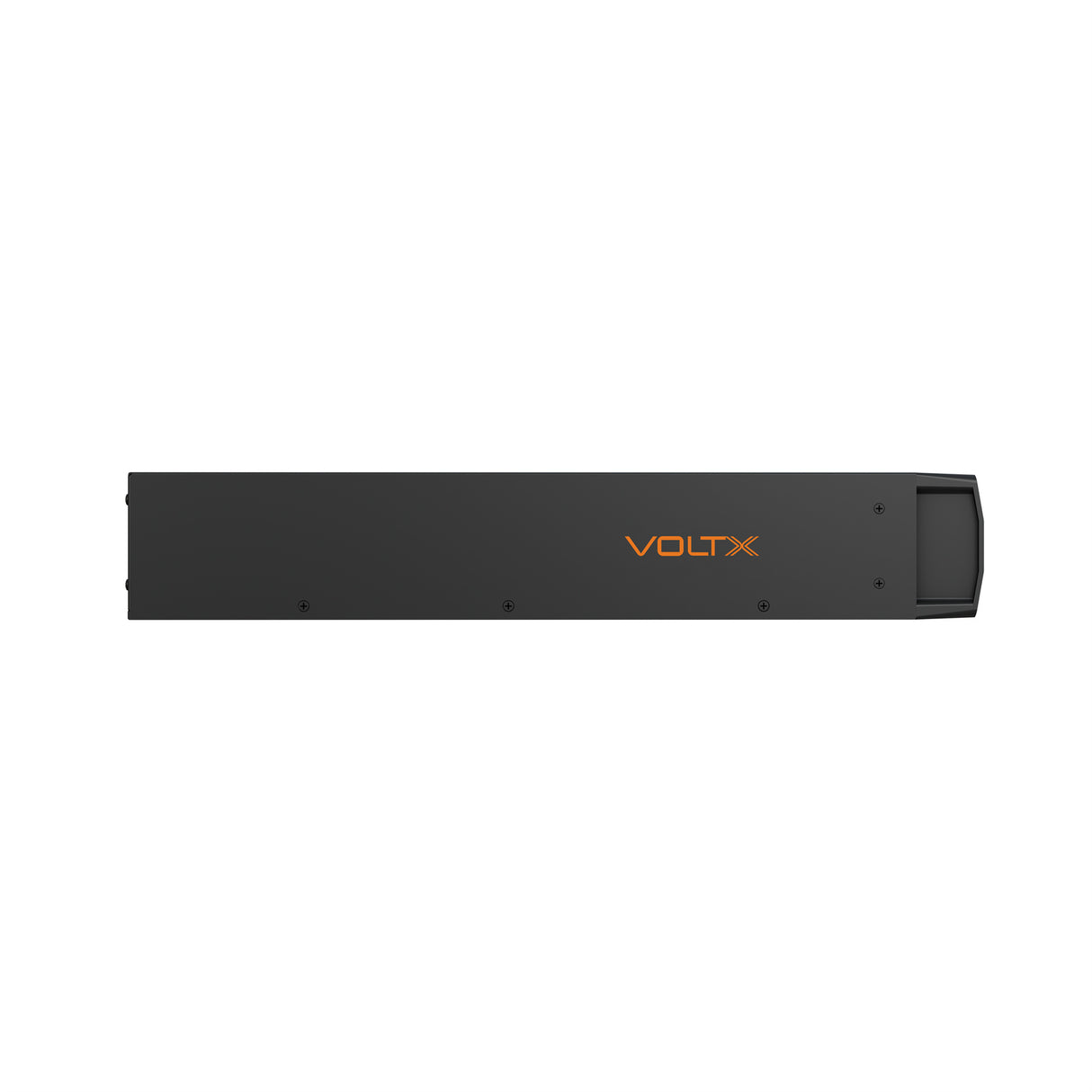

VoltX UPS 1500VA 1500W LiFePO4 Lithium Battery Charger Power Supply LED LCD
Couldn't load pickup availability
60 Days
Return
60 Months
Warranty
100% Secured
Payment & Data
Selling fast. Hurry and order now to save 22%
PRODUCT HIGHLIGHTS
- Reliable Power for All Devices
- Extended 5-Year Warranty
- Real-time power status with LED and LCD screens
- Remote Monitoring Capability
- Smart Battery Management
Efficient protection, continuous power - VoltX UPS 1500VA UPS
Multiple usage scenarios: Whether playing computer games, processing important documents in the office, or maintaining the normal operation of your home network, VoltX UPS can provide you with stable and reliable power support. You no longer have to worry about data loss or equipment damage caused by sudden power outages.
5-year extended warranty: Enjoy the extended 5-year warranty service, allowing you to use it worry-free and with full confidence.
Advanced display technology: Equipped with LED and LCD dual display screens, real-time monitoring of power status, clear at a glance, and full control.
Support remote monitoring: Through the remote monitoring function, you can control the operation of the device anytime and anywhere, providing more convenience for your work and life.
Intelligent battery management, comprehensive protection: The intelligent battery management system has overcharge and over-discharge protection functions to extend battery life and ensure equipment safety.
To provide lasting power for your critical equipment, choose VoltX high-quality UPS to ensure stability and worry-free every moment.
SPECIFICATIONS
| Phase: | Single phase with ground |
| Capacity: | 1500VA /1500W |
|
INPUT |
|
| Nominal voltage: | 220/230/240VAC |
| Low line transfer: | 176Vac±5% @100%-50% load; 110Vac±5% @50%-0% load |
| Low line comeback: | 186Vac±5% @100%-50% load; 120Vac±5% @50%-0% load |
| High line transfer: | 300Vac±5% @100%-0% load |
| High line comeback: | 290Vac±5% @100%-0% load |
| Operating frequency range: | 40-70Hz |
| Input Power factor: | >0.98@100% load(Nominal Input Voltage) |
| Bypass high voltage point 230-264: | setting the high voltage point in LCD from 230Vac to 264Vac (Default: 264Vac) |
| Bypass low voltage point 176-220: | setting the low voltage point in LCD from 176Vac to 220Vac. (Default: 176Vac) |
| Generator input: | Support |
|
OUTPUT |
|
| Output voltage: | 200/208/220/230/240Vac |
| Power factor: | 1.0 |
| Voltage regulation: | ±1% |
| Frequency Line Mode (synchronized range): | 46-54Hz or 56-64Hz |
| Bat. Mode: | (50/60±0.1)Hz |
| Crest factor: | 3:1 |
| Harmonic distortion (THDv): |
≤3% THD with linear load ≤5% THD with non linear load |
| Waveform: | Pure Sine Wave |
| Transfer time: |
AC mode <->Batt. mode: 0ms(Typical) Inverter <-> bypass: 4ms(Typical) On Line Efficiency: 91% Economy mode efficiency: 96.5% |
|
BATTERY |
|
| Battery Type(Lithium): | 48.0V6AH |
| Backup time: | 7.5 min @ full Load |
| Typical recharge time(standard model): | 4 hours recover to 90% capacity (Typical) |
| Charging voltage: | 52.5 VDC ±0.2VDC |
| Charge current: | 2A |
|
SYSTEM FEATURES |
|
| Over Load Capability (Online mode): |
105%-125%: UPS transfer to bypass after 1 minute when the utility is normal 125%~130%: UPS transfer to bypass after 30 seconds when the utility is normal >130%:UPS transfer to bypass after 0.2 second when the utility is normal |
| Over Load Capability (Battery mode): |
105%-125%: UPS after 1minute shut down 125%~130%: UPS after 10 seconds shut down >130%: UPS after 0.2 second shut down |
| Short Circuit: | Hold Whole System |
| Overheat: | Line Mode: Switch to Bypass; Backup Mode: Shut down UPS immediately |
| Low battery voltage: | Alarm and Switch off |
| EPO (optional): | Shut down UPS immediately |
| Audible & Visual alarms: | Line Failure, Battery Low, Overload, System Fault |

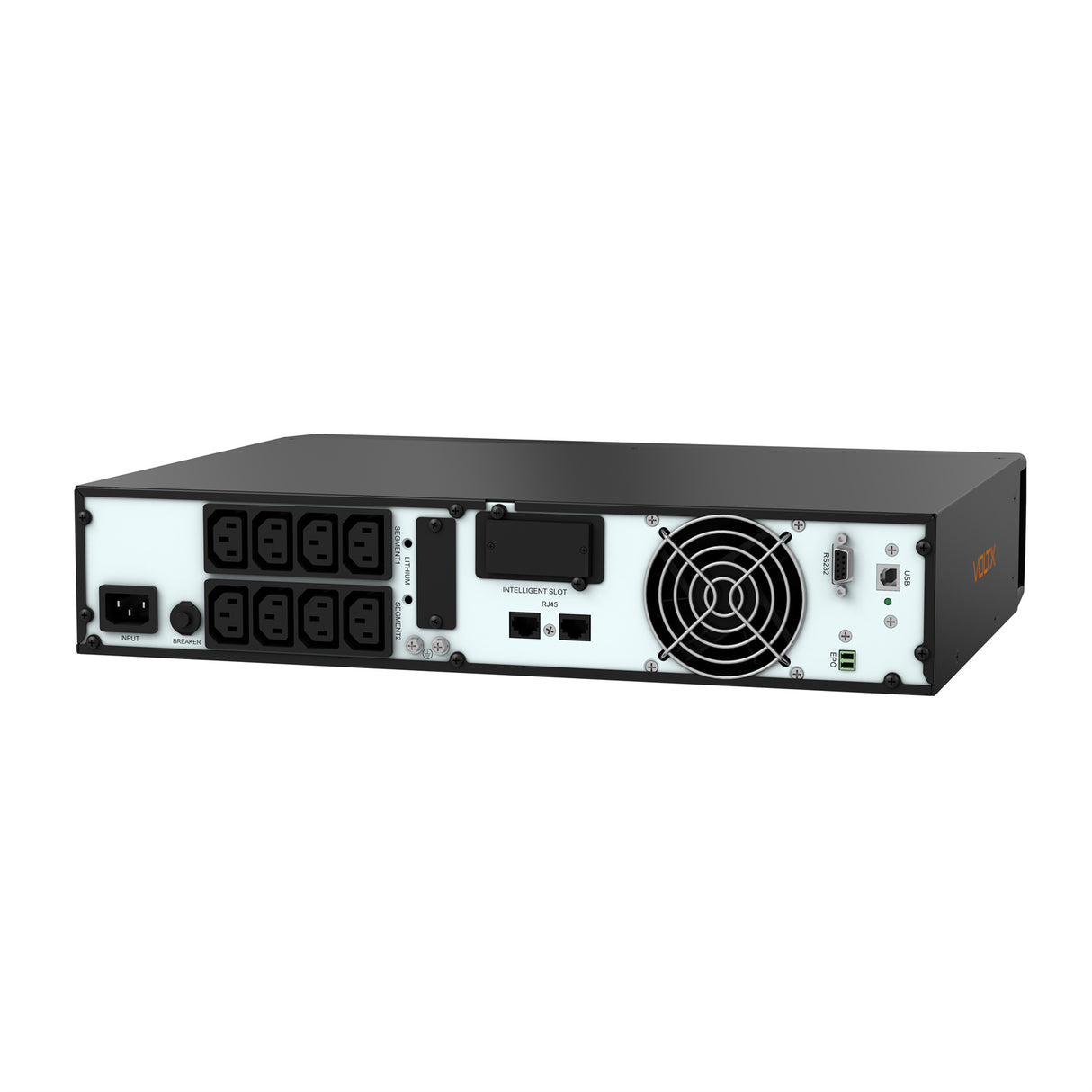

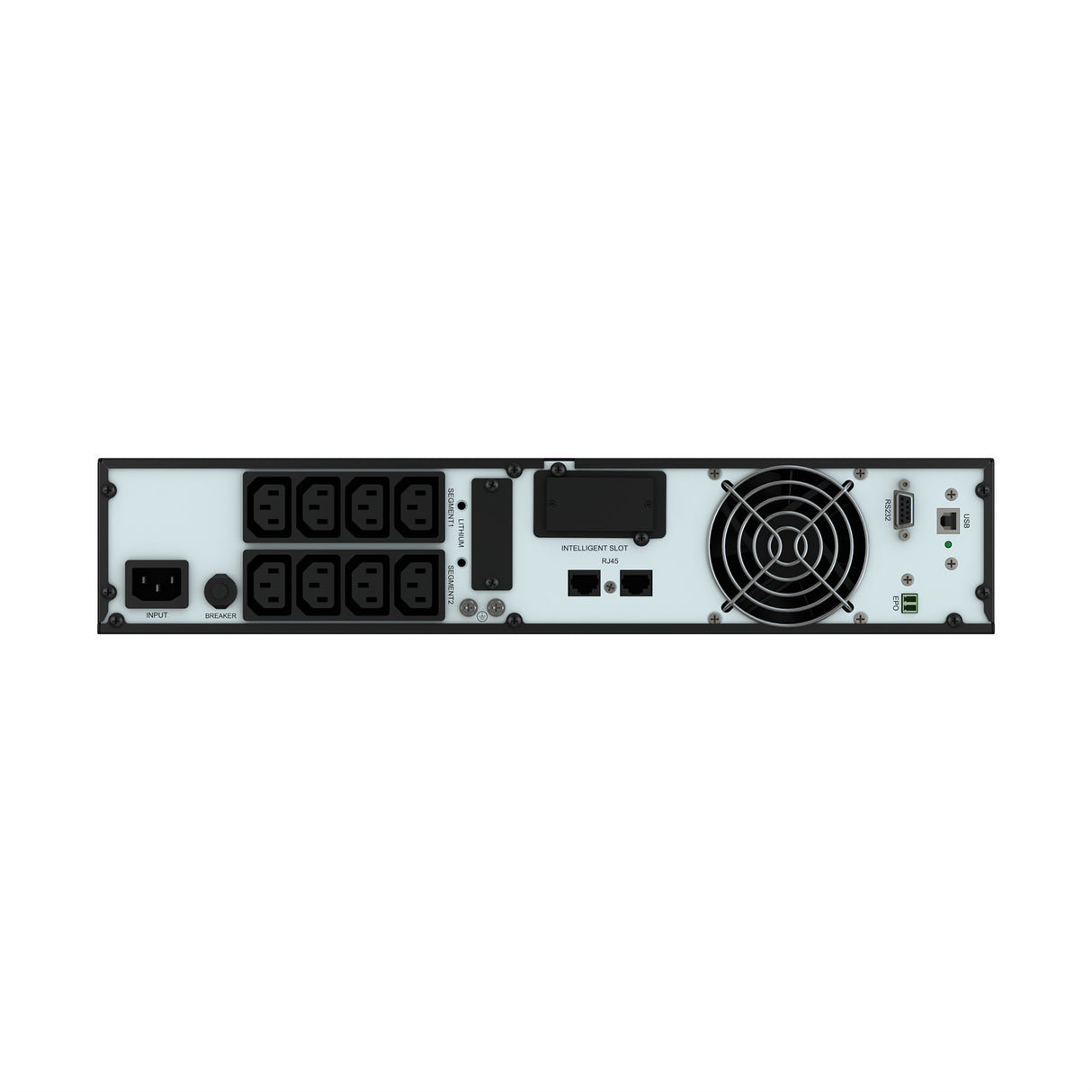

| Communication interface: | USB(or RS232), SNMP card(optional), Relay card (optional) |
|
ENVIRONMENTAL |
|
| Operating temperature: | 0℃~40℃ |
| Storage temperature: | -25℃~55℃ |
| Humidity range: | 0~95% (non-condensing) |
| Altitude: | Up to 1000m (no derating) |
| Noise level: | <50 dB at 1m |
|
STANDARDS |
|
| EMC: | IEC 62040-2-2016, EN 62040-2-2018 C2 |
| Transportation: | ISTA Procedure 2A |
| Surge protection: | IEC 61000-4-5 |
DIMENSIONS & WEIGHT
| Dimensions: | 44(W) x 46(D)x 8.65(H)cm |
| Weight: | 12.5kg |
WHAT'S IN THE BOX
| 1 x | VoltX UPS |
SKU:
| aebo-a_upsksv-1500sli |
- Your item will be shipped next business day.
- On average, items are delivered between 3 to 7 business days following shipping around Australia.
- Check out our shipping and delivery calculator above for more information.
- We can't ship products to PO Boxes, Parcel Lockers or Post Offices. We need to have an actual address to proceed with the order.
- Outbax offers a 60-month warranty on the VoltX UPS 1500VA from the date of purchase unless otherwise stated. Outbax warrants its products against defects in materials and/or workmanship. This is further to your rights under Australian Consumer Law.
- Outbax products come with a 60-day money-back guarantee. You must contact us within 60 days of receiving the product and it must return in its original condition.
