PRODUCT HIGHLIGHTS
- Complete 10kWh system: PowerFlex 3000 Power Module plus 4 battery modules, delivering up to 3000W
- Charge low, use later: store free or off-peak power and use it during higher-rate hours or an outage
- 10kWh for more of your loads: 10054.4Wh across the system for compatible fridges, freezers, routers, CCTV, security and lighting
- Smart app control: schedule charge and discharge, set a Backup SOC and monitor status from your phone
- Built to last and expandable: LiFePO4, up to 8000 cycles, a 10-year AU warranty, room for 1 more module to reach 12kWh
Calculate shipping cost

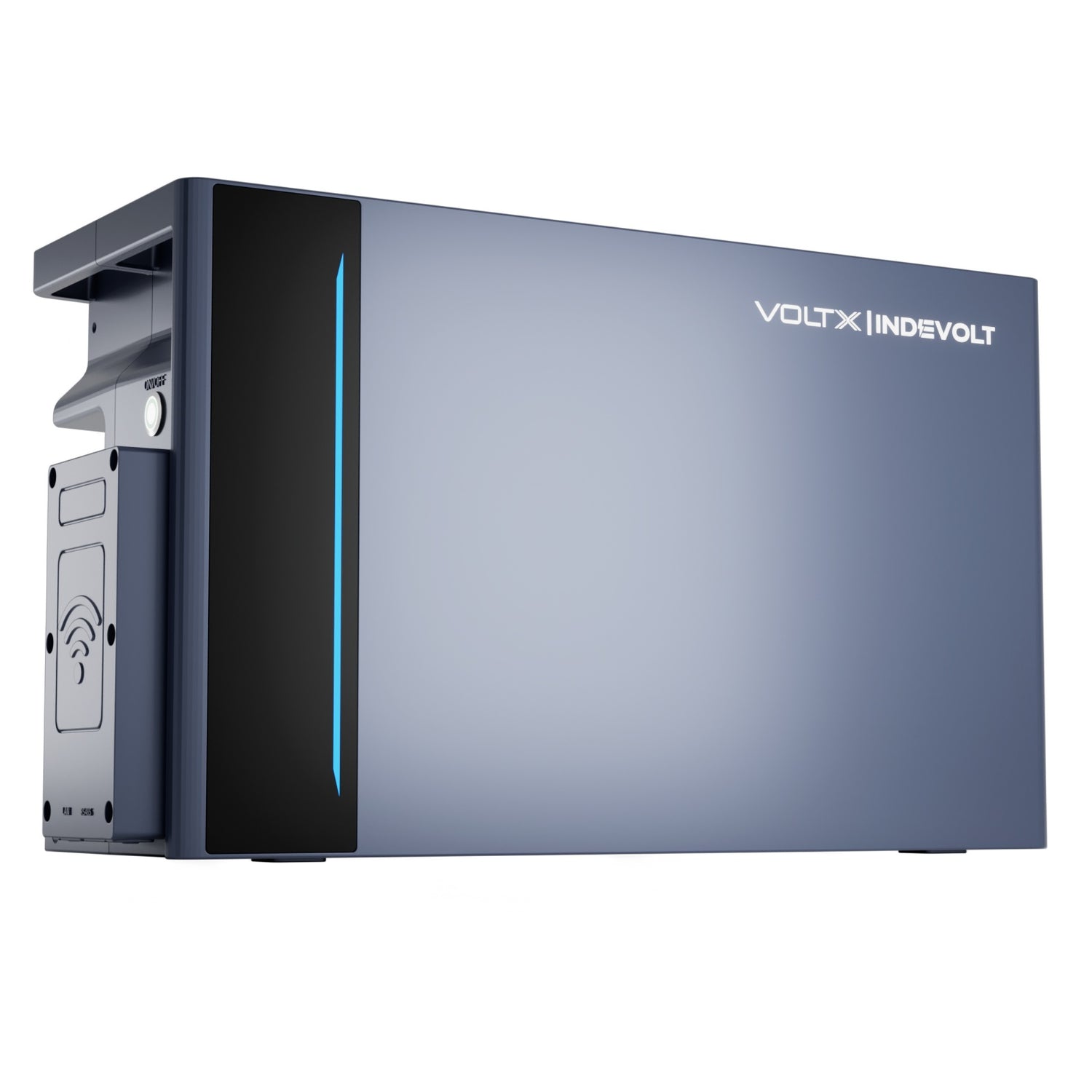

A complete 10kWh home battery system
This VoltX PowerFlex 3000 kit pairs the Power Module with 4 battery modules for 10kWh (10054.4Wh) of LiFePO4 storage in one package. Store free or off-peak electricity and use it during higher-rate hours or an outage, with a simple plug-in AC connection. It suits homeowners, renters, time-of-use customers and small businesses managing everyday energy and backup for selected loads.
Cut peak costs and back up outages
Charge when electricity is cheapest, then use stored energy when it costs more.
- Store free or off-peak power and discharge during higher-rate periods
- Up to 3000W output for compatible household and small-business loads
- Set a Backup SOC in the app so a reserve stays ready for the next outage
10kWh of LiFePO4 capacity
More stored energy for longer runtime.
- 10054.4Wh across the Power Module and 4 battery modules
- Supports compatible fridges, freezers, routers, NBN equipment, CCTV, security systems and lighting
- LiFePO4 cells rated for up to 8000 cycles
Expand further, any time
Room to grow as your needs change.
- Add 1 more Battery Module to reach 12kWh
- Tool-free stacking beneath the existing modules, no rewiring
- Capacity adds runtime; output stays at the 3000W maximum
Plan your installation space
Confirm the area can safely fit the complete stacked system, with room for ventilation and at least 30mm clearance behind the heatsink. Follow the user manual when stacking or securing modules, and switch off the system and disconnect AC input before adding or removing a module. Check the running and starting power of any appliance before use.
SYSTEM
| Configuration | Power Module + 4 battery modules |
| Total Capacity | 10kWh (10054.4Wh) |
| Max AC Output | 3000W |
| Max Output (inverter) | 3000W |
| Expandable To | 12kWh (1 more module) |
AC INPUT
| Max AC Input Power | 2300W |
| Max AC Input Current | 10A AC |
| AC Input Voltage / Frequency | 230V AC, 50Hz (L+N+PE) |
AC OUTPUT
| Battery Output (single Power Module) | 1000W |
| Max AC Output Power (inverter) | 3000W |
| Max AC Output Current | 13A AC |
| AC Output Voltage / Frequency | 230V AC, 50Hz (L+N+PE) |
| Power Factor | 0.8 (lagging) to 0.8 (leading) |
BYPASS OUTPUT
| Max Bypass Output Power | 2300W |
| Max Bypass Output Current | 10A AC |
| Voltage / Frequency | 230V AC, 50Hz (L+N+PE) |
BATTERY
| Battery Type | LiFePO4 |
| Total Rated Energy | 10054.4Wh |
| Cycle Life | Up to 8000 cycles |
| BMS | Intelligent BMS protection |
GENERAL
| Per Module Dimensions | 425 x 195 x 260 mm |
| Units in Stack | 5 (1 Power Module + 4 battery modules) |
| Net Weight | Approx. 101.2kg |
| Package Weight | 106.72kg |
| Charging Temperature | -20C to 55C |
| Discharging Temperature | -20C to 55C |
| Overvoltage Category | OVC II (DC), OVC III (AC) |
| Protection Class | Class I |
CONNECTIVITY
| Bluetooth | Bluetooth 5.0 |
| Wi-Fi | 2.4GHz and 5GHz |
| App Control | Yes |
WHAT'S IN THE BOX
| 1 x | Power Module (with AC cable, manual, 2 wall mounts, 4 levelling feet and fixings) |
| 4 x | Battery Module (each with 2 wall mounts and fixings) |
SKU:
| ivx-pf3k-m1-b4-sc |
