PRODUCT HIGHLIGHTS
- Output that grows: one module lifts max output from 1000W to 2000W, two or more unlock up to 3000W; further modules add energy and runtime
- Expand from 2kWh to 12kWh: start with what you need and expand later without replacing the system, up to five modules per Power Module
- Store more energy, use it later: hold more free or off-peak power and more backup for compatible fridges, freezers, routers and security gear
- Stackable modular design: each module connects directly beneath the Power Module or another module for compact, organised expansion
- Built for long-term expansion: LiFePO4 chemistry for up to 8000 cycles, a 10-year AU warranty and local after-sales support
Calculate shipping cost
Flexible expansion, longer backup runtime

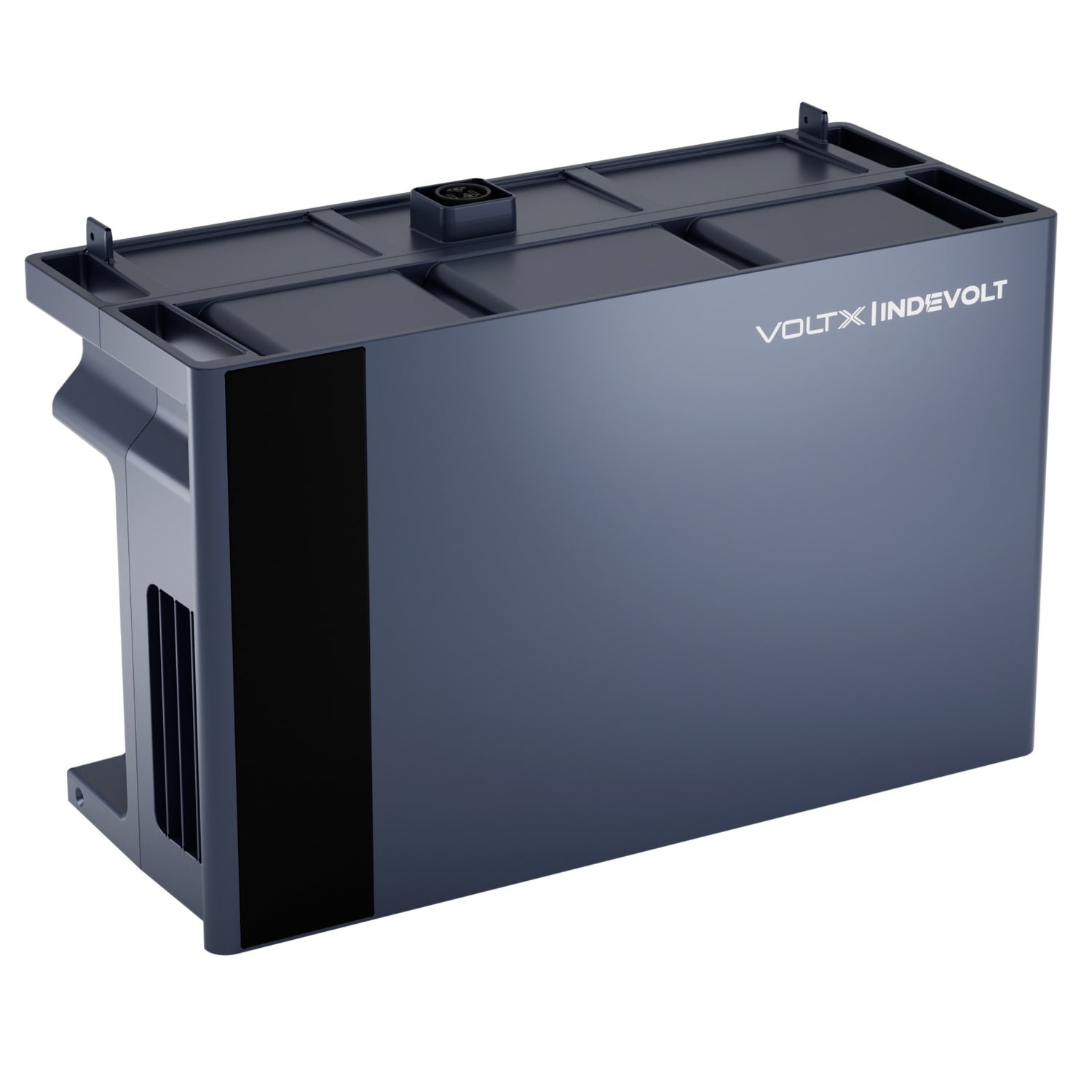

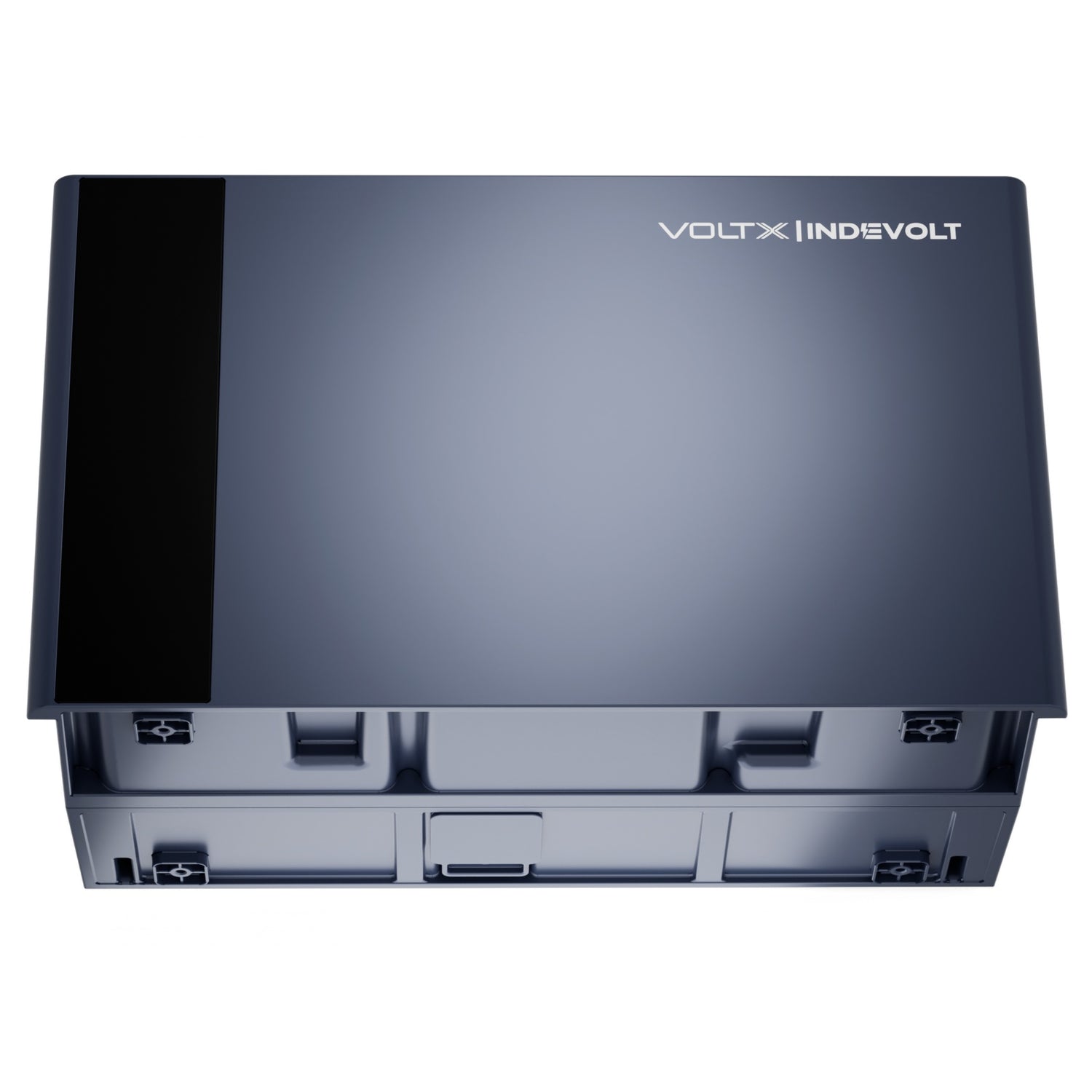

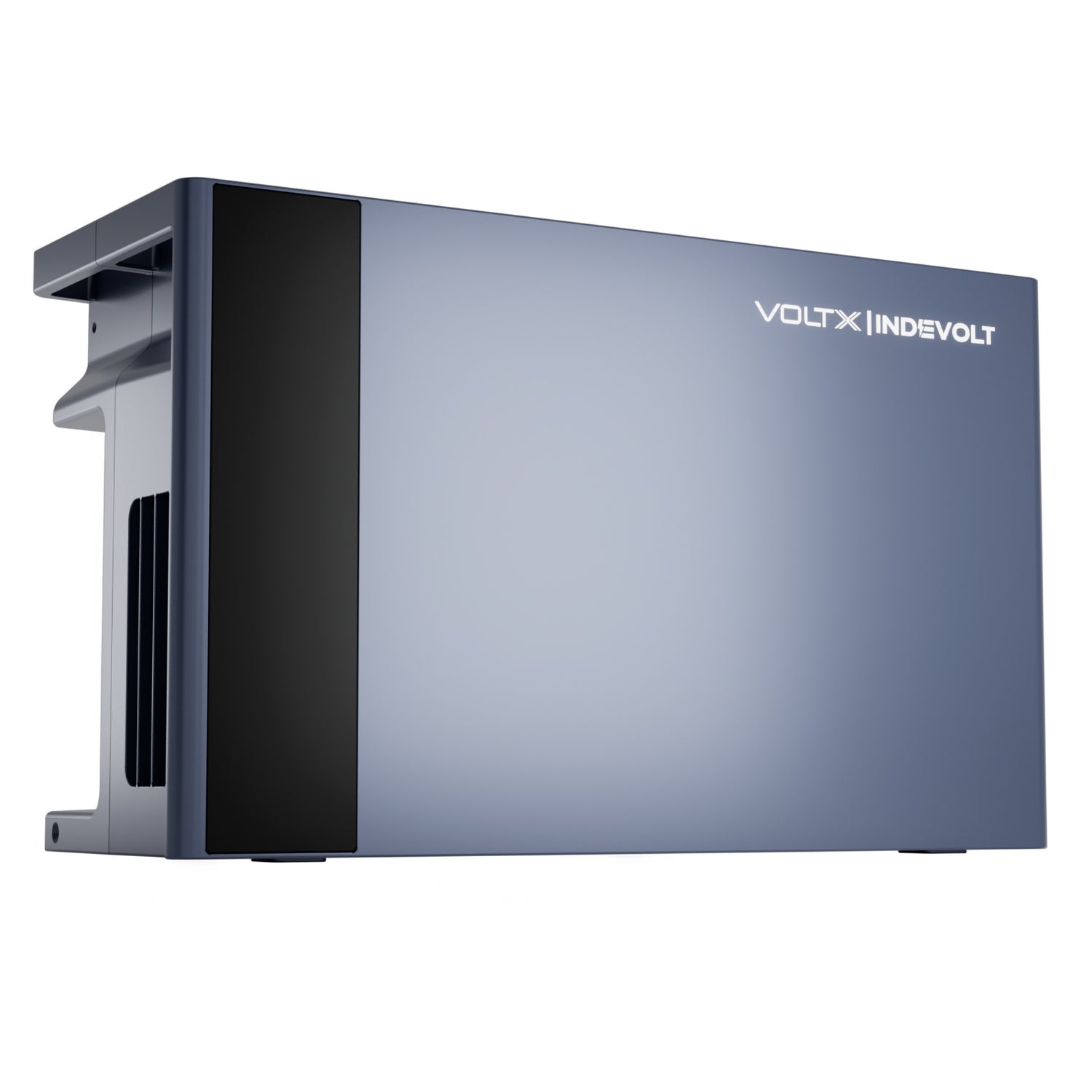

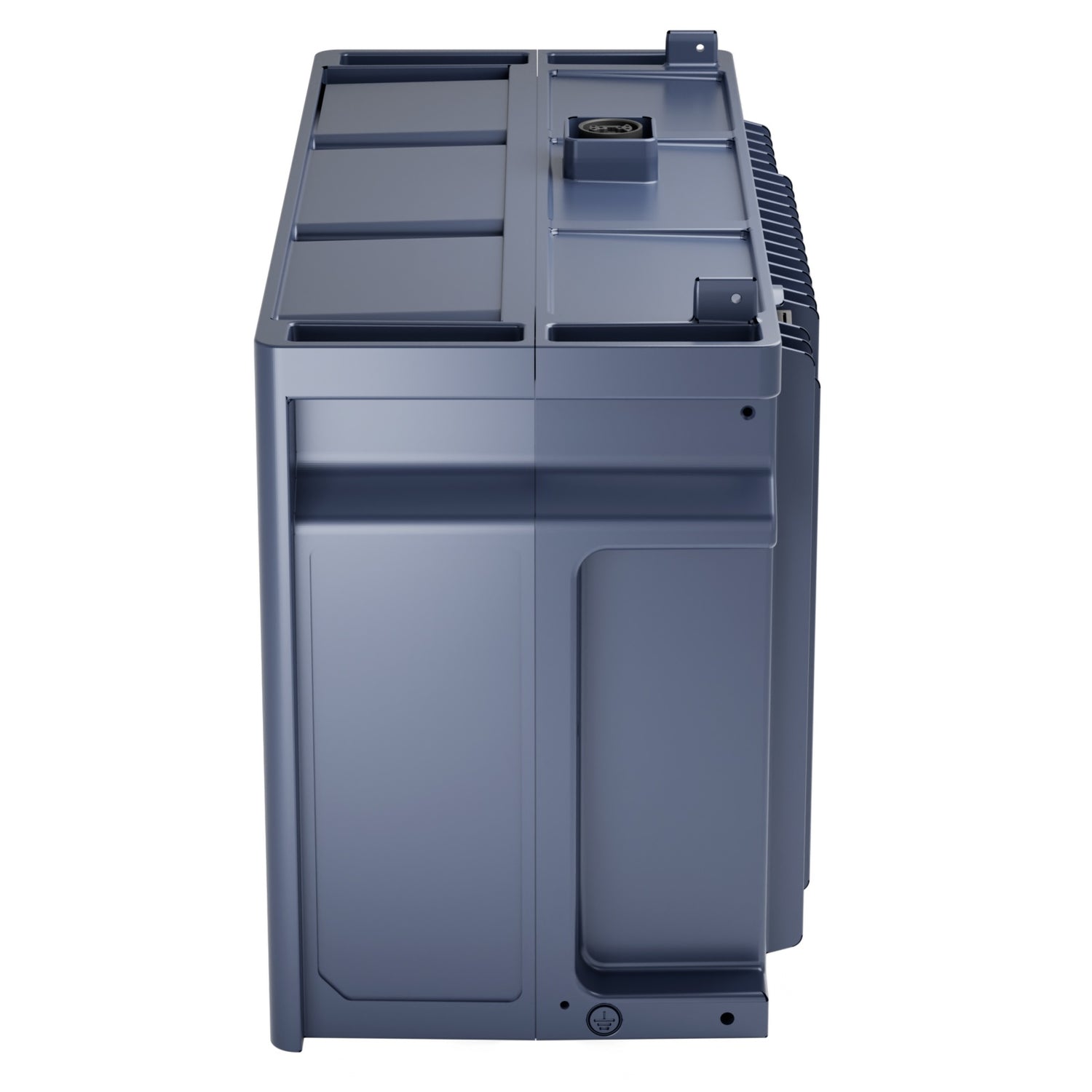

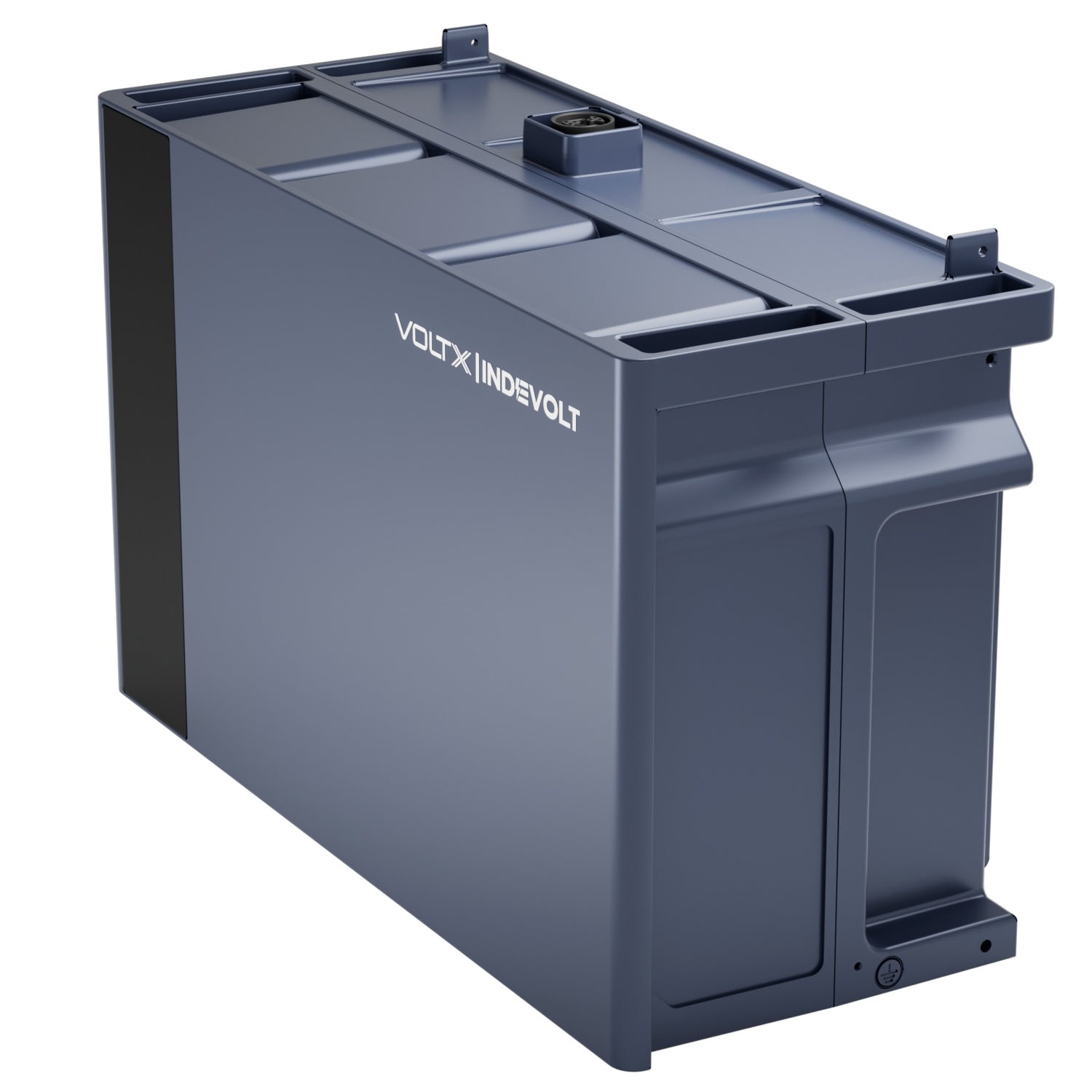

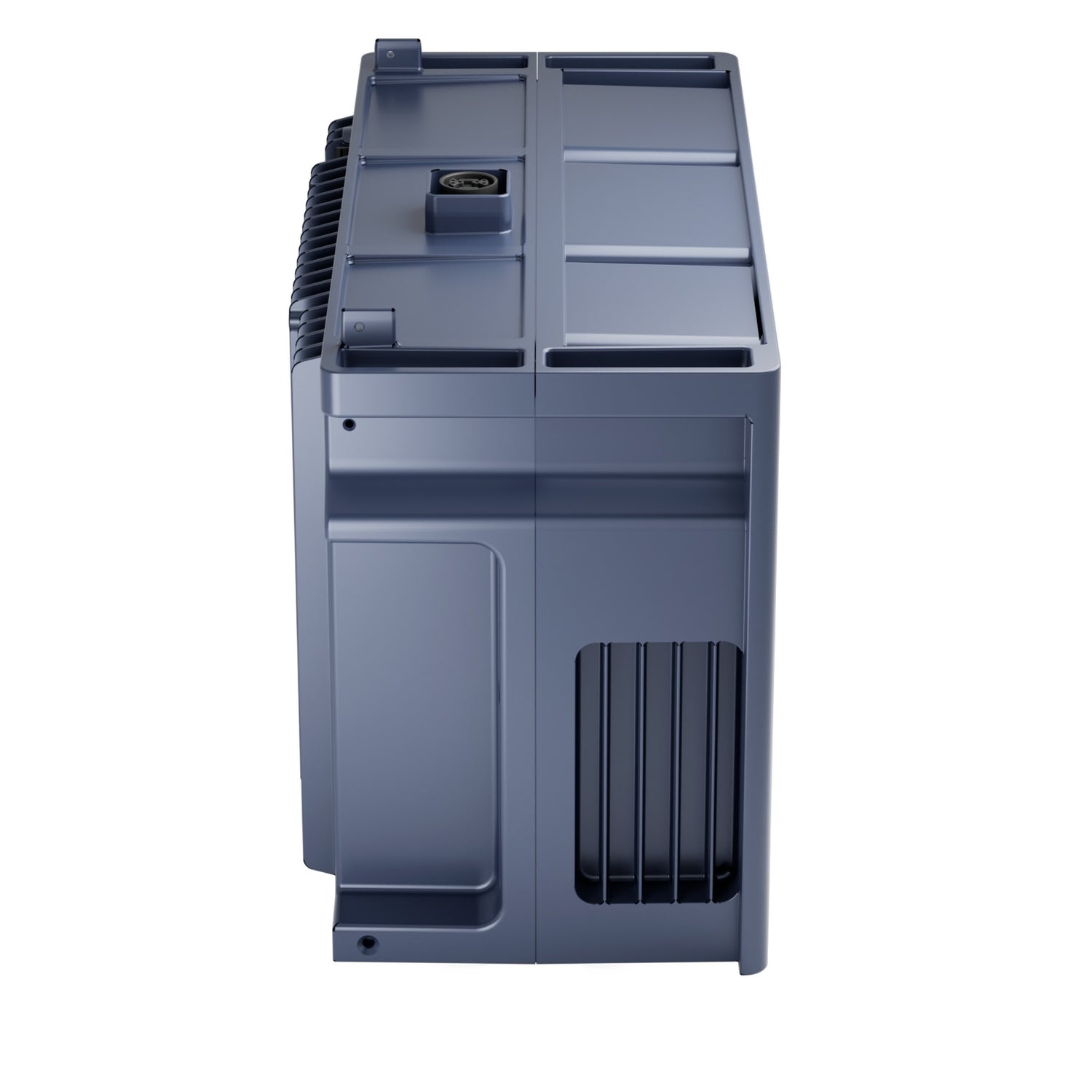

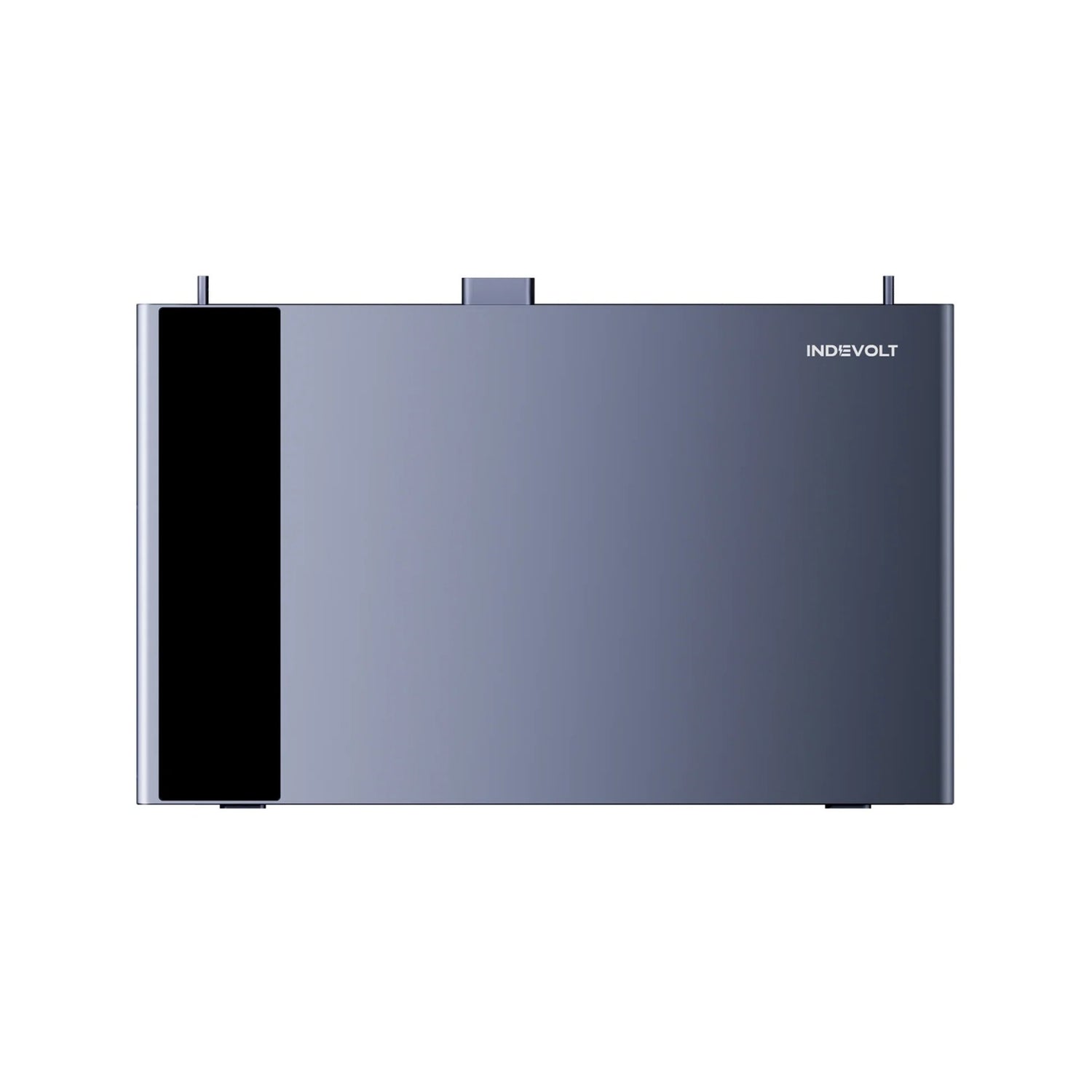

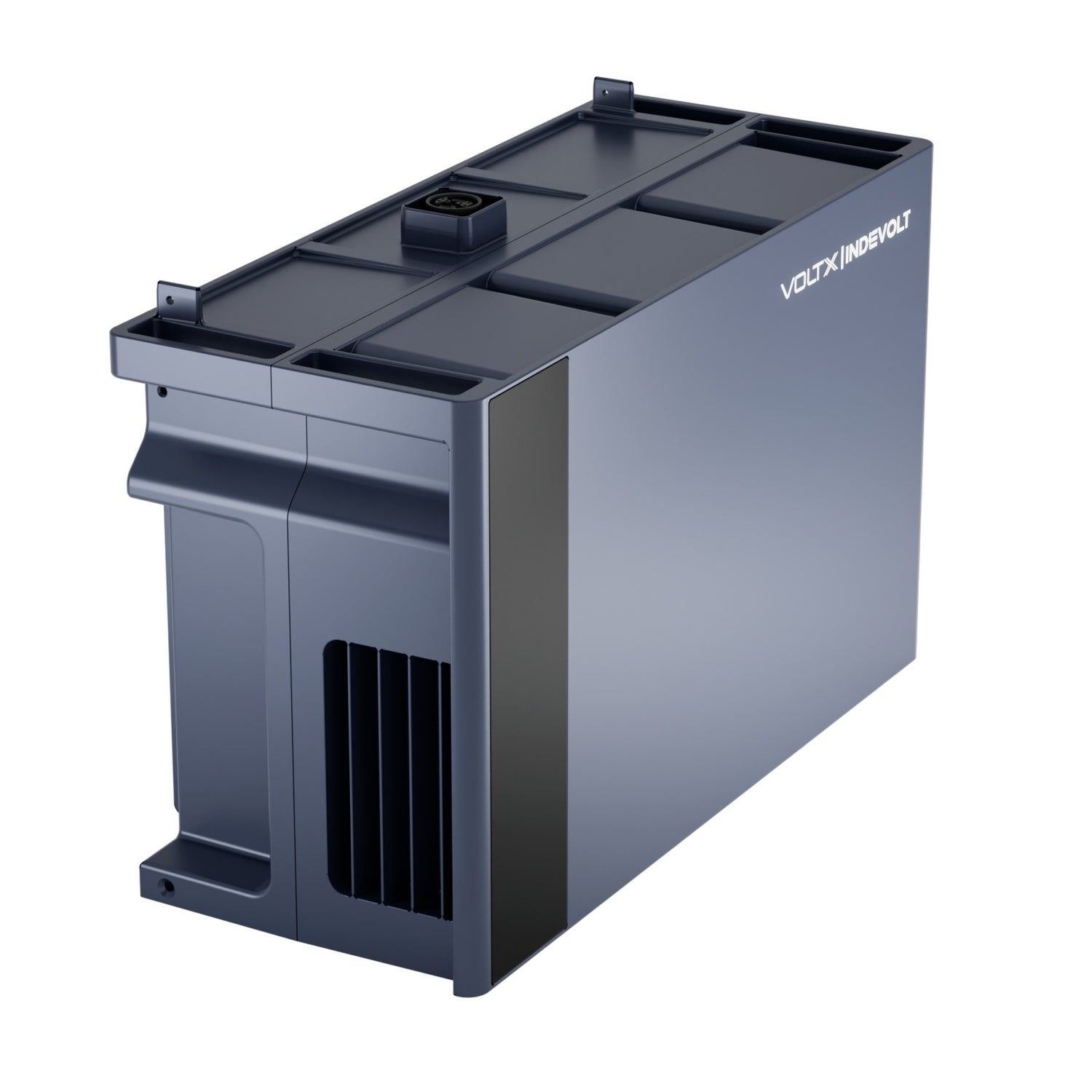

Expand your VoltX PowerFlex 3000 with this 2009.6Wh LiFePO4 Battery Module. Add capacity for longer backup runtime, store more free or off-peak electricity, and unlock higher system output as your needs grow. One Power Module supports up to five Battery Modules, for a flexible system from about 2kWh to 12kWh.
Please note: this Battery Module cannot operate on its own and requires a compatible VoltX PowerFlex 3000 Power Module.
System configuration guide
- Power Module only: 1000W, 2kWh
- Power Module + 1 Battery Module: 2000W, 4kWh
- Power Module + 2 Battery Modules: 3000W, 6kWh
- Power Module + 3 Battery Modules: 3000W, 8kWh
- Power Module + 4 Battery Modules: 3000W, 10kWh
- Power Module + 5 Battery Modules: 3000W, 12kWh
Capacity extends runtime; output determines load compatibility. A third, fourth or fifth module adds stored energy and runtime but does not raise maximum output above 3000W. Higher output does not automatically make every high-power appliance suitable, so check the running and starting power of your load first.
Who it is for
- Existing Power Module owners who want more stored energy, longer runtime or higher supported output
- Time-of-use customers storing more free or off-peak power for later
- Selected-load backup users wanting longer runtime for fridges, freezers, routers, NBN equipment, CCTV or lighting
- Anyone planning for future growth, starting small and adding capacity later
Plan your installation space

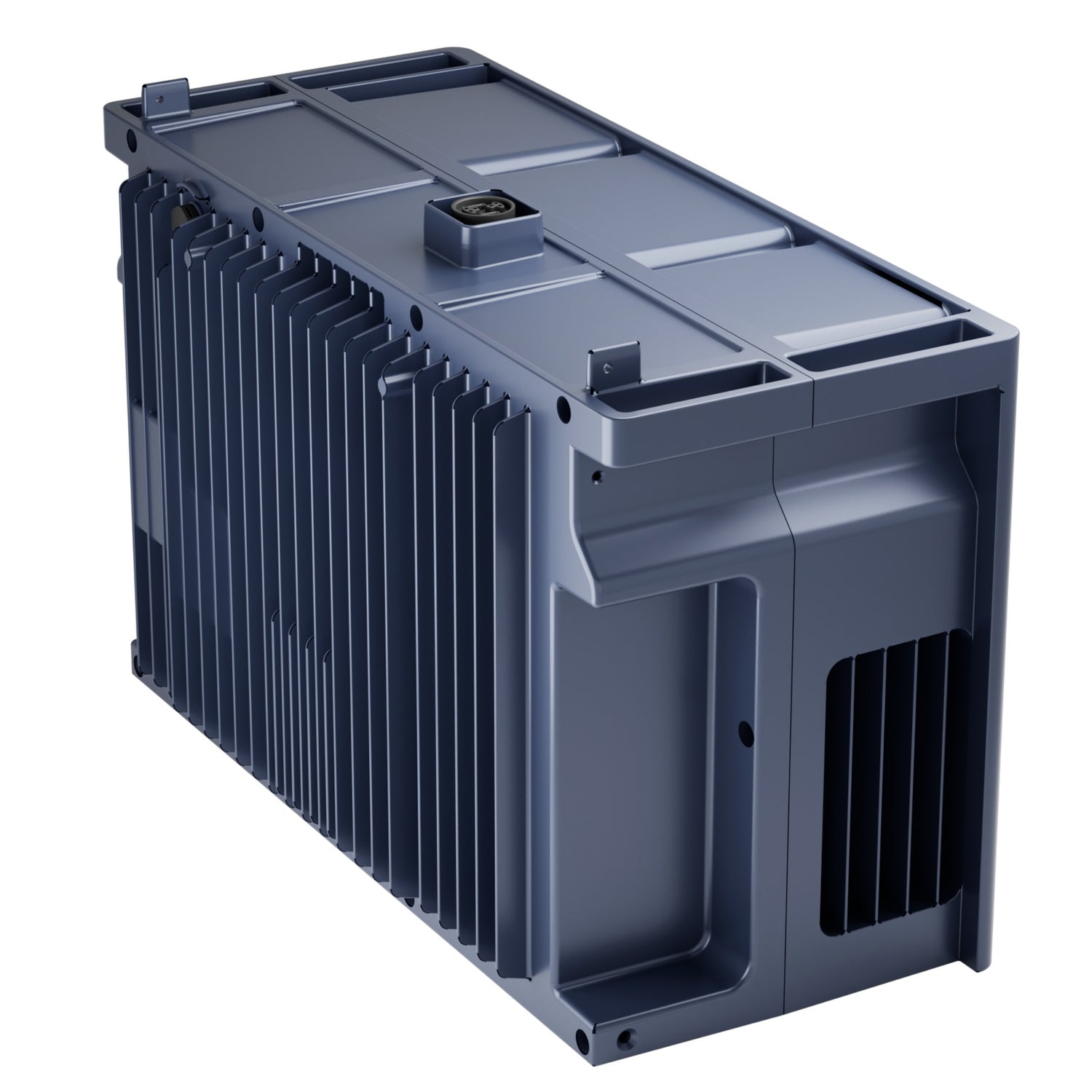

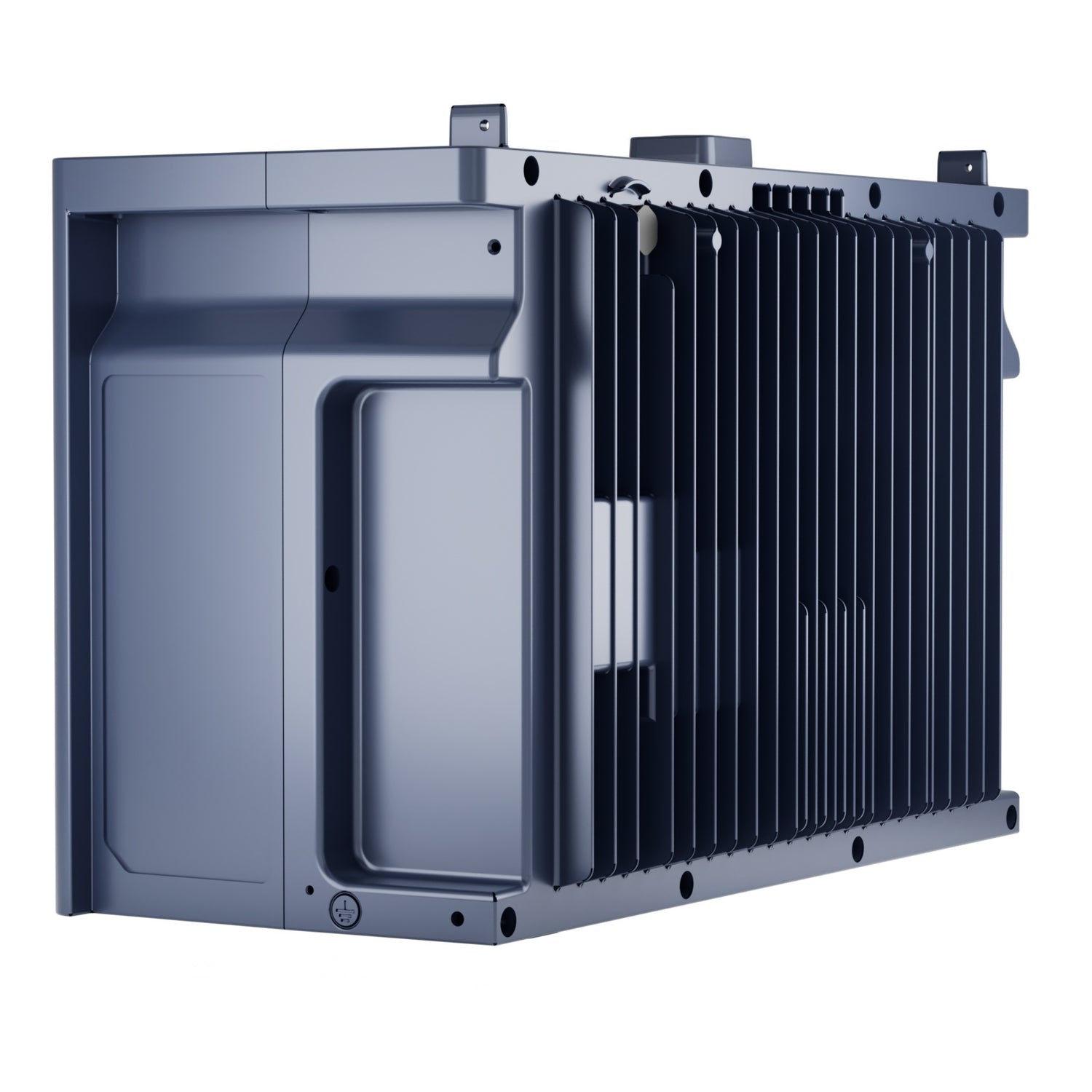

Each module is about 425 x 195 x 260 mm and 20 +/-1 kg. Before ordering, confirm there is room for the full stacked system, wall restraint fittings, safe access and ventilation, with at least 30mm clearance behind the heatsink. Follow the user manual when stacking, securing or removing modules.
BATTERY
| Product Type | Expansion Battery Module |
| Standalone Use | No (requires a Power Module) |
| Battery Type | LiFePO4 |
| Battery Rated Energy | 2009.6Wh |
| Max Modules per System | 5 |
GENERAL
| Dimensions | 425 x 195 x 260 mm |
| Weight | 20.0 +/-1 kg |
| Charging Temperature | -20C to 55C |
| Discharging Temperature | -20C to 55C |
| Waterproof Rating | IP65 |
| Protection Class | Class I |
WHAT'S IN THE BOX
| 1 x | Battery Module |
| 2 x | Wall Mount Fittings |
| 2 x | M5 x 60 Self-drilling Screws |
| 2 x | M4 x 20 Screws |
| 3 x | M4 x 8 Screws |
SKU:
| ivx-hbp-2010wh-sc |
