Product highlights

STAFF PICK OF THE MONTH
PLUS a further 10% off using code JONATHAN10
Pay only $1,214.10  Hurry! Promo ends 30/04/24 11:59 PM AEST.

  • 5 Years Australian Warranty
  • Rated Capacity 100Ah
  • 24V Volts
  • 522 x 238 x 218mm
  • 19.5kg
  • Approved in accordance with IEC 62619

Have a question? Ask our experts!

Product details

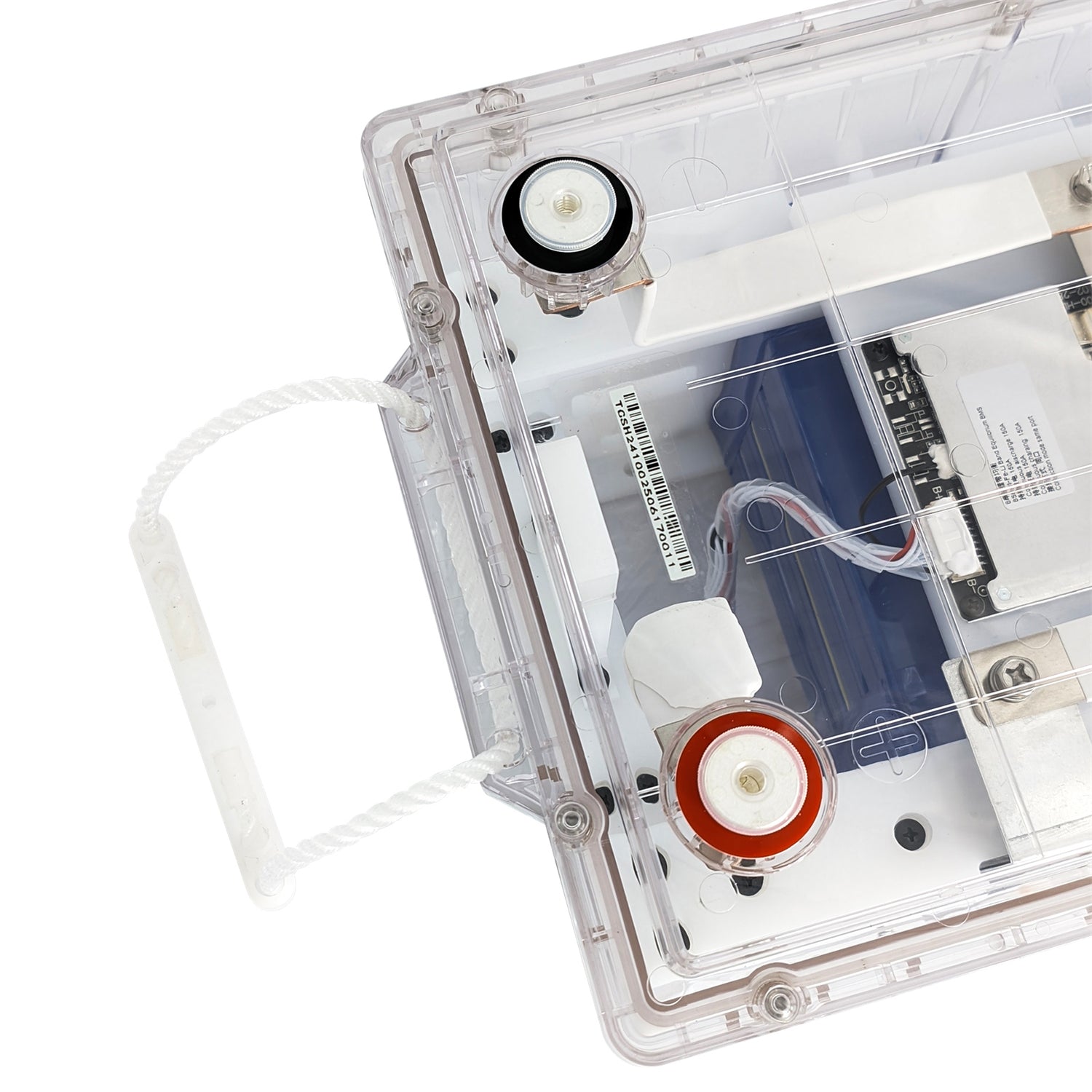

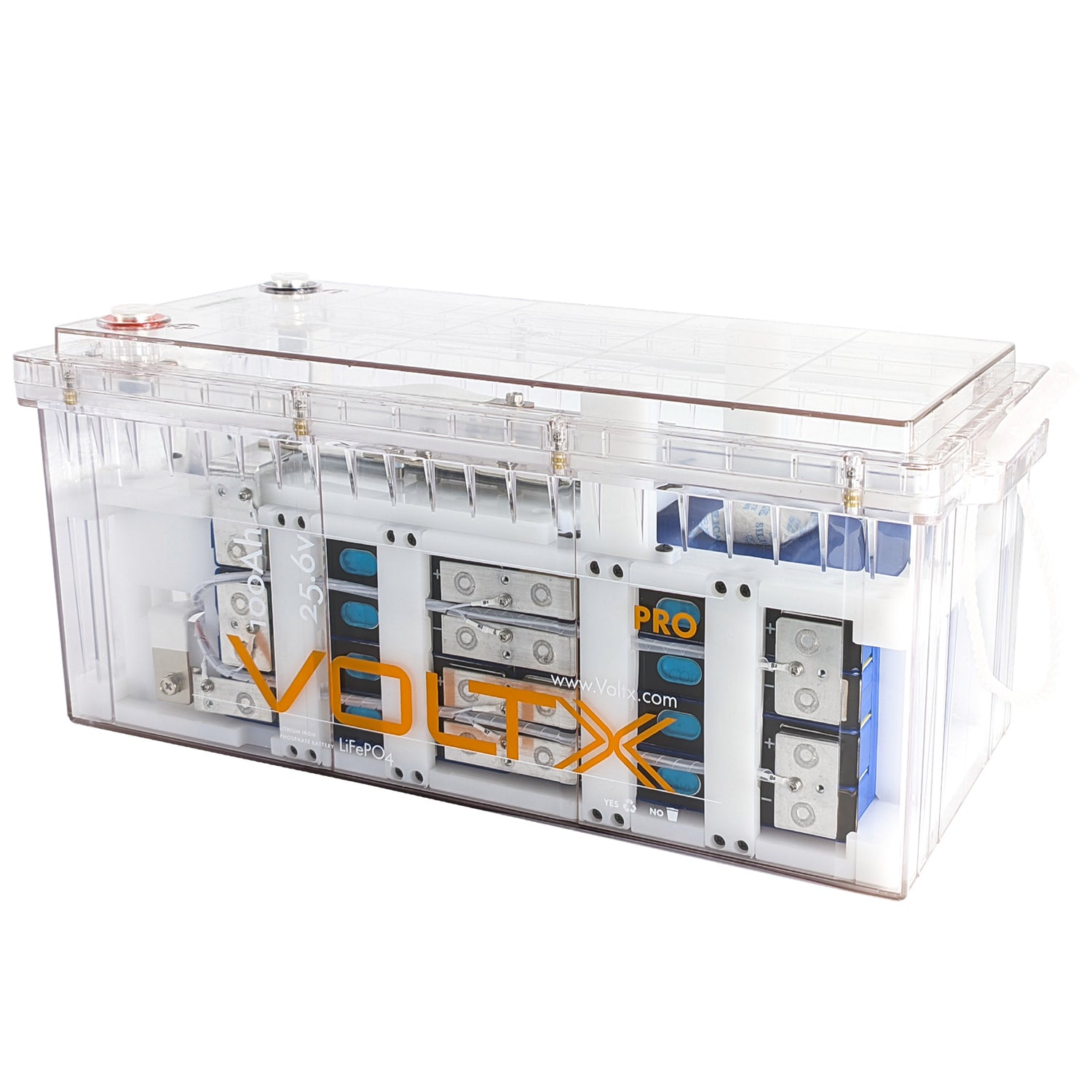

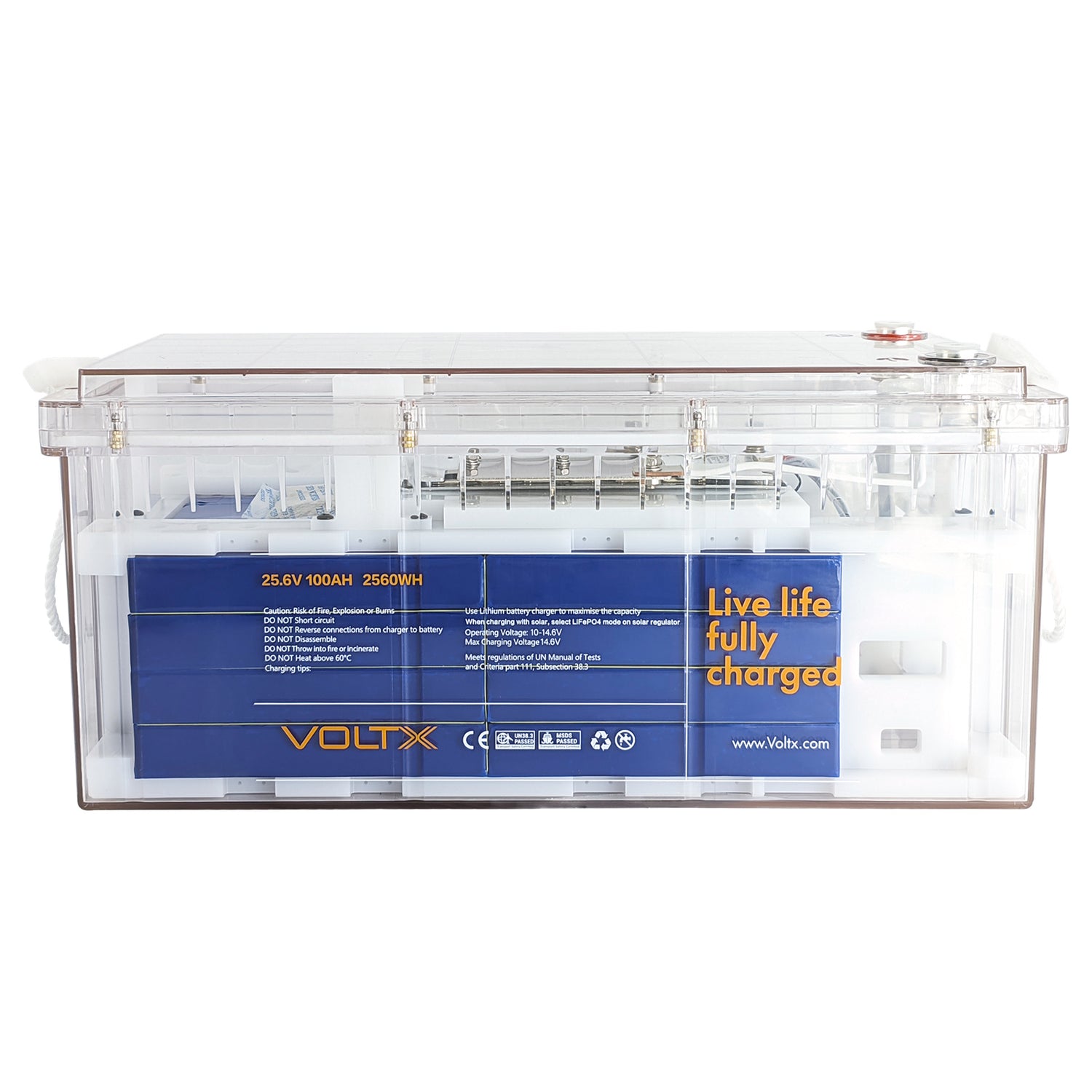

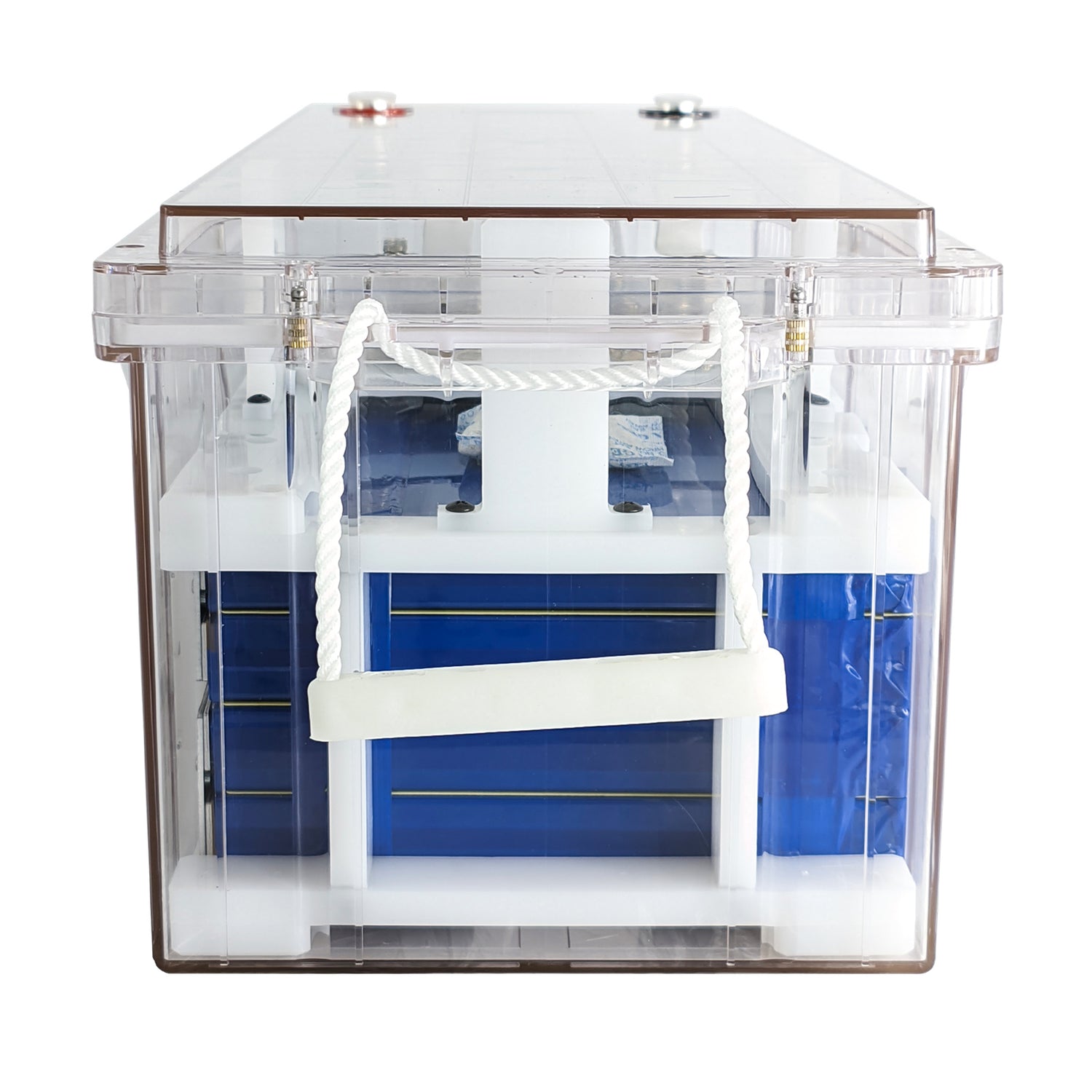

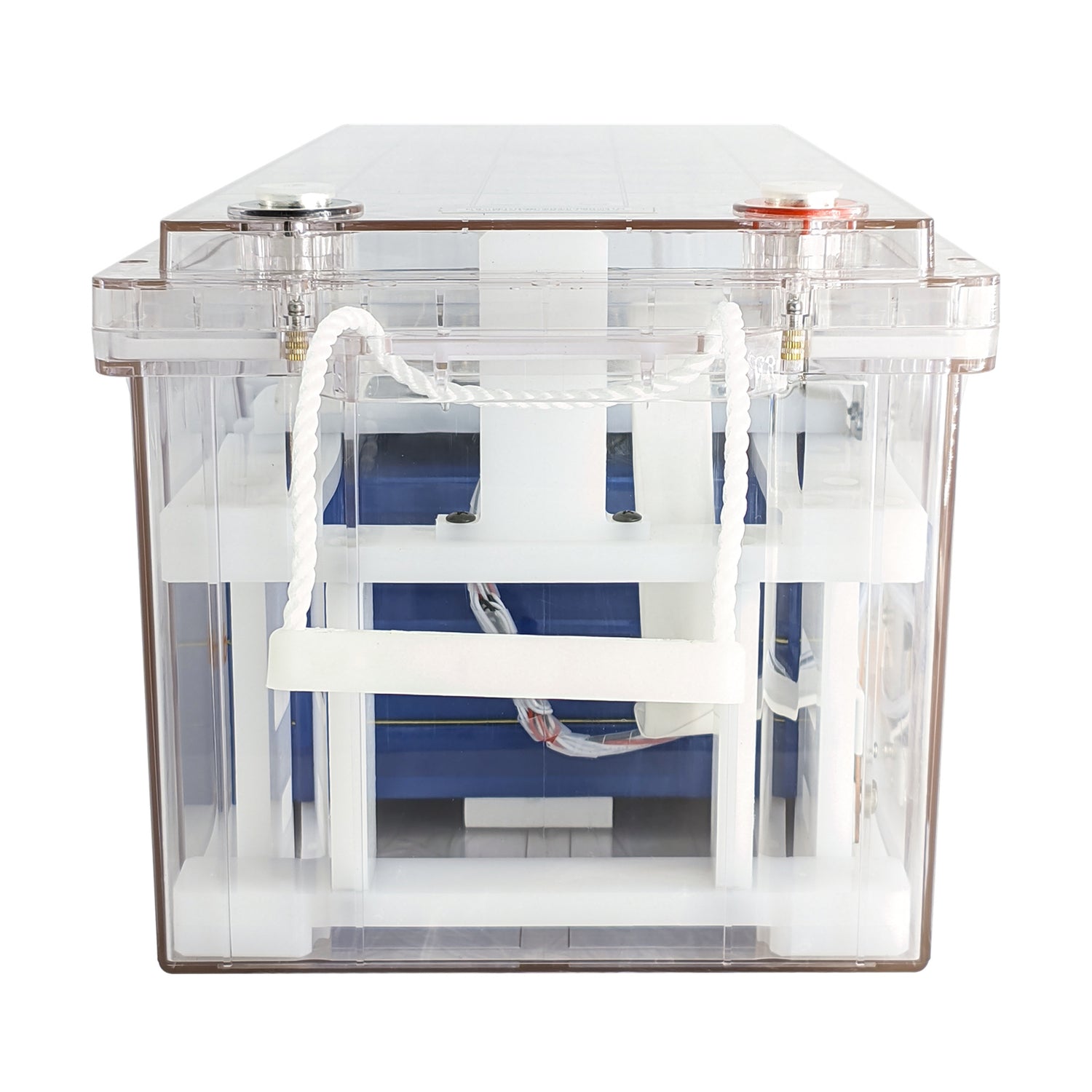

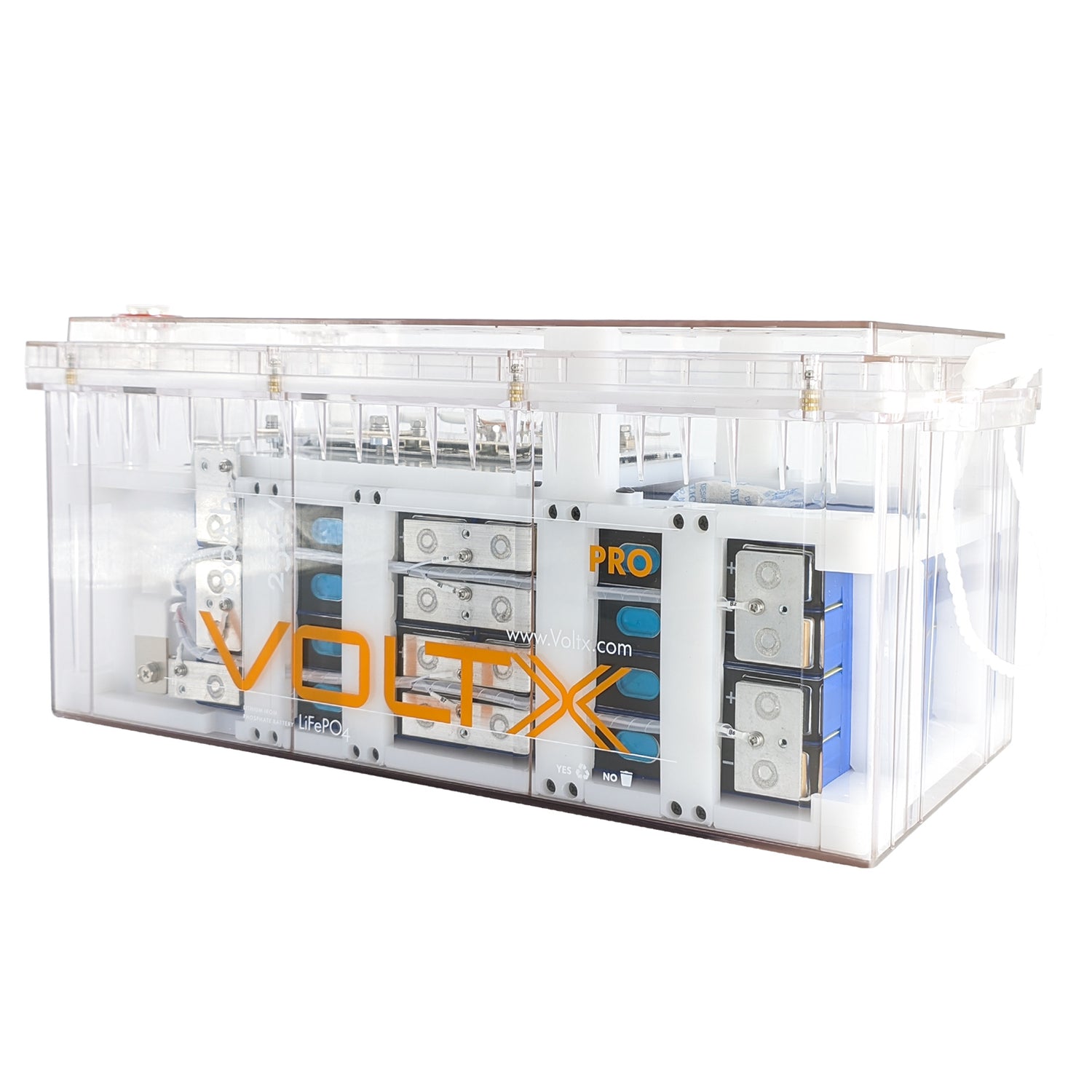

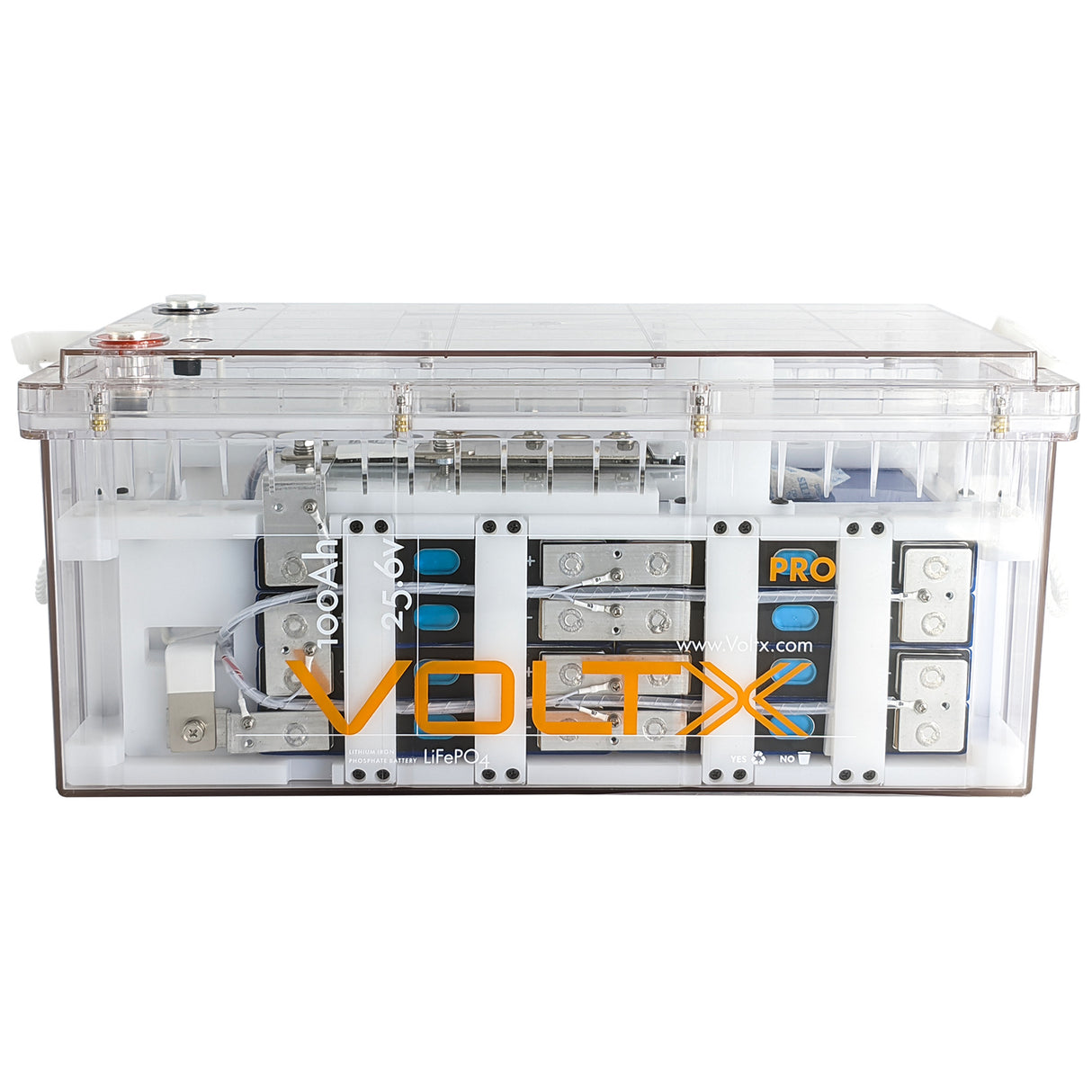

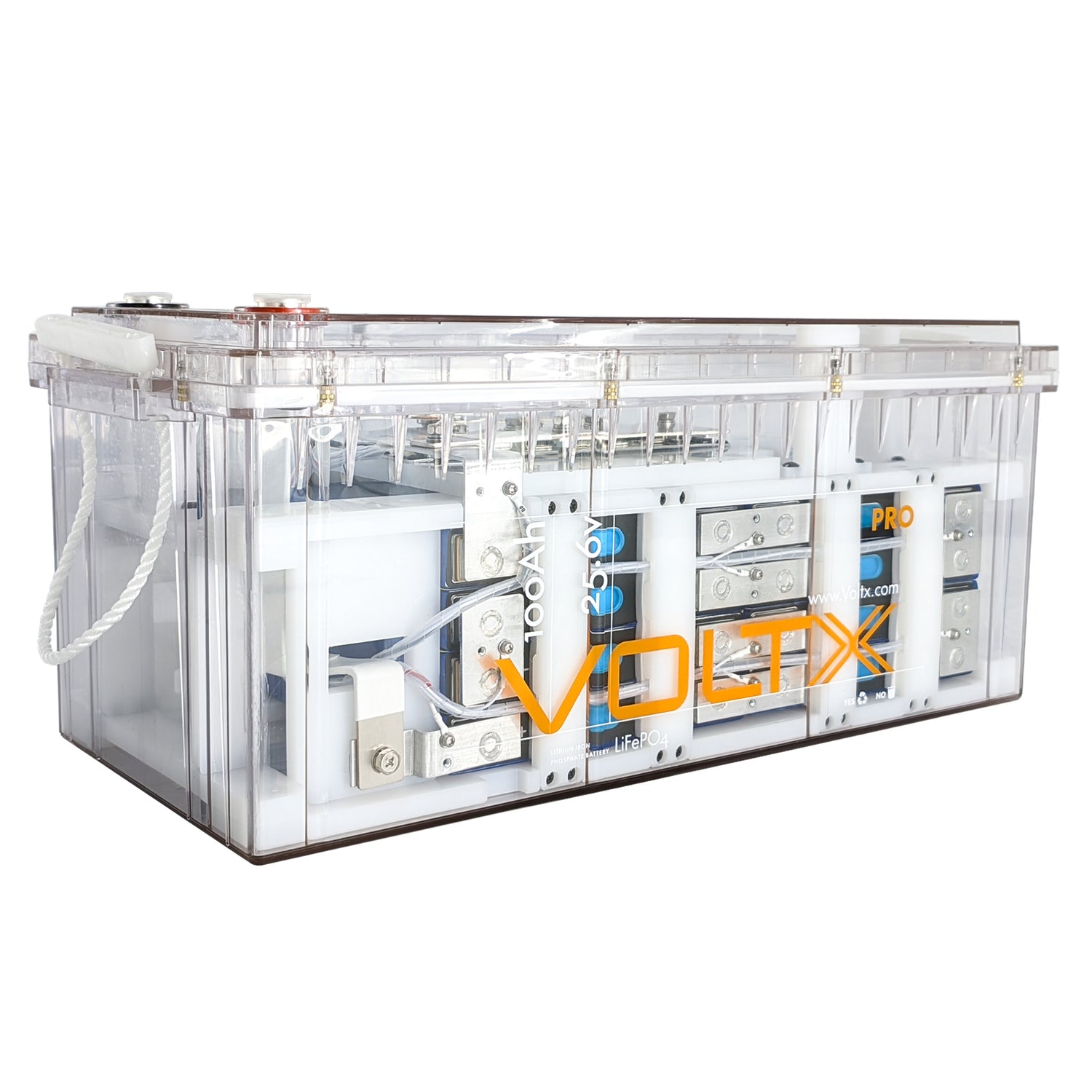

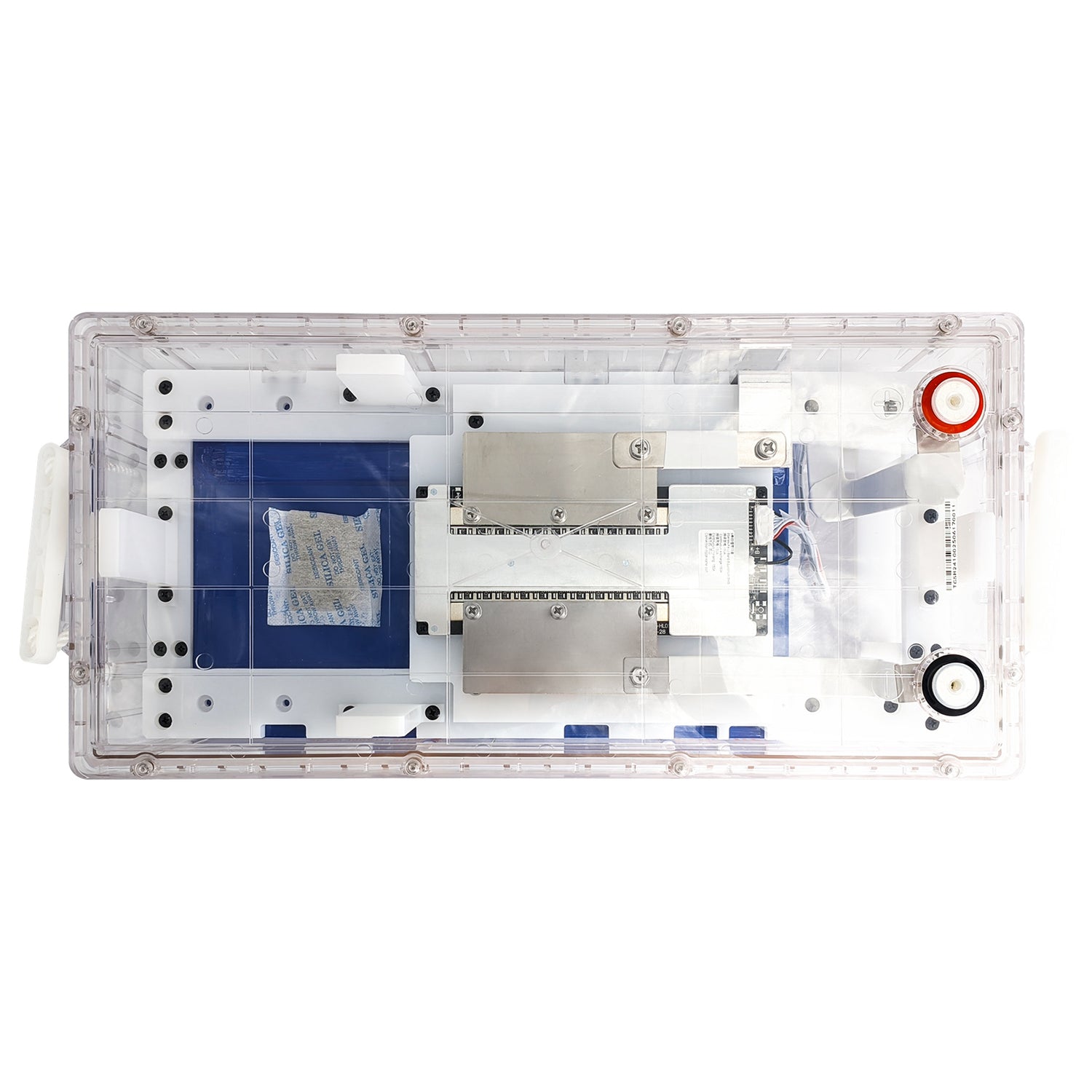

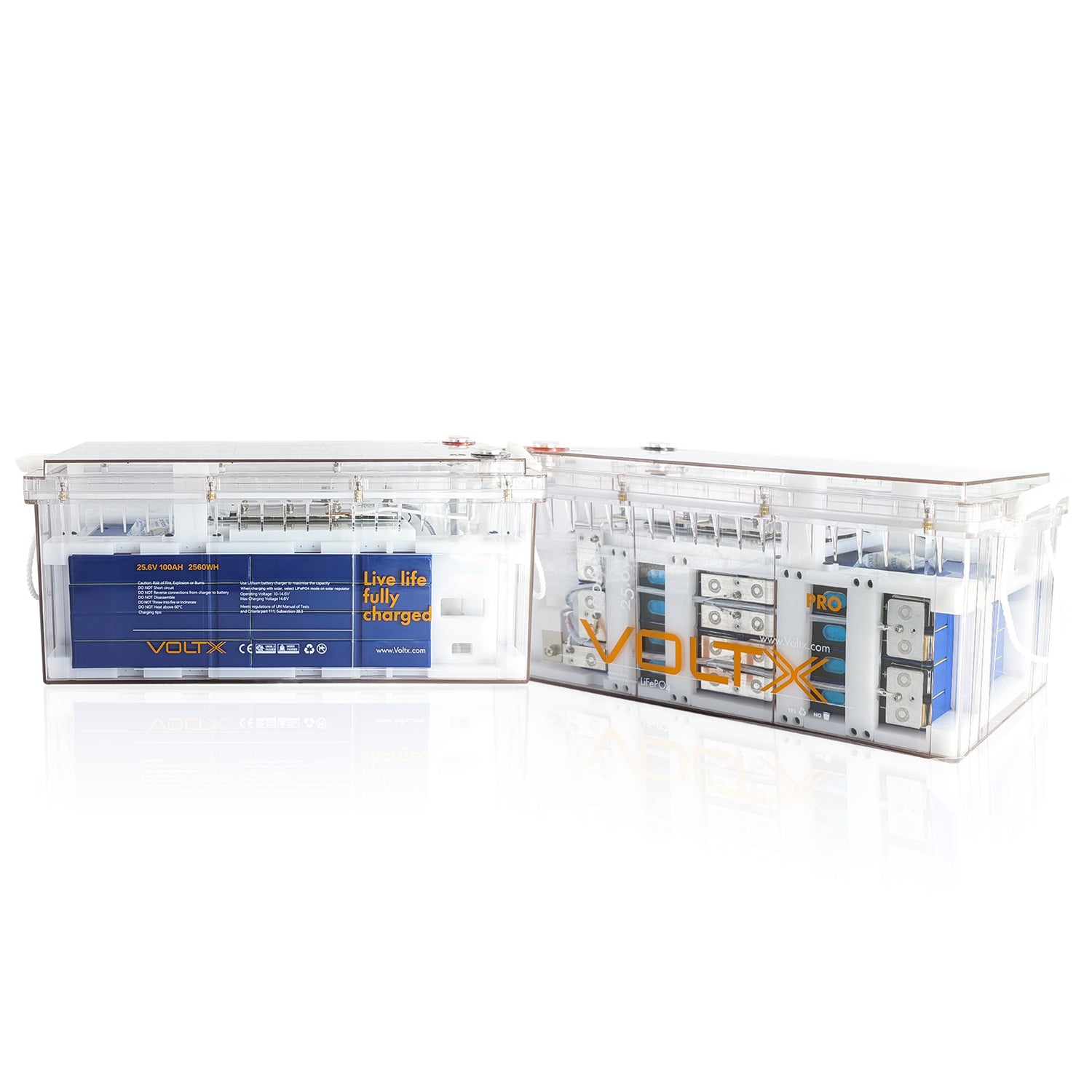

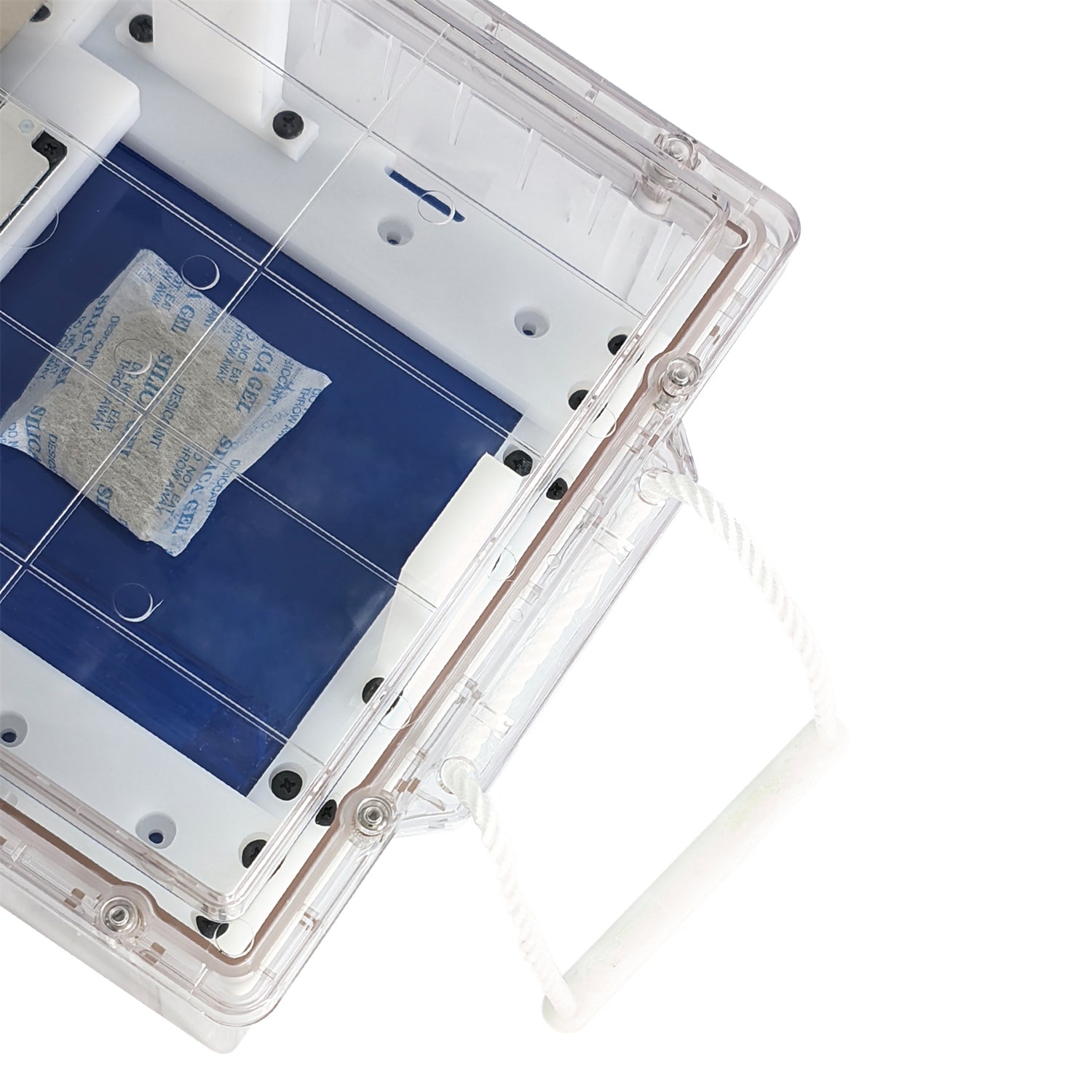

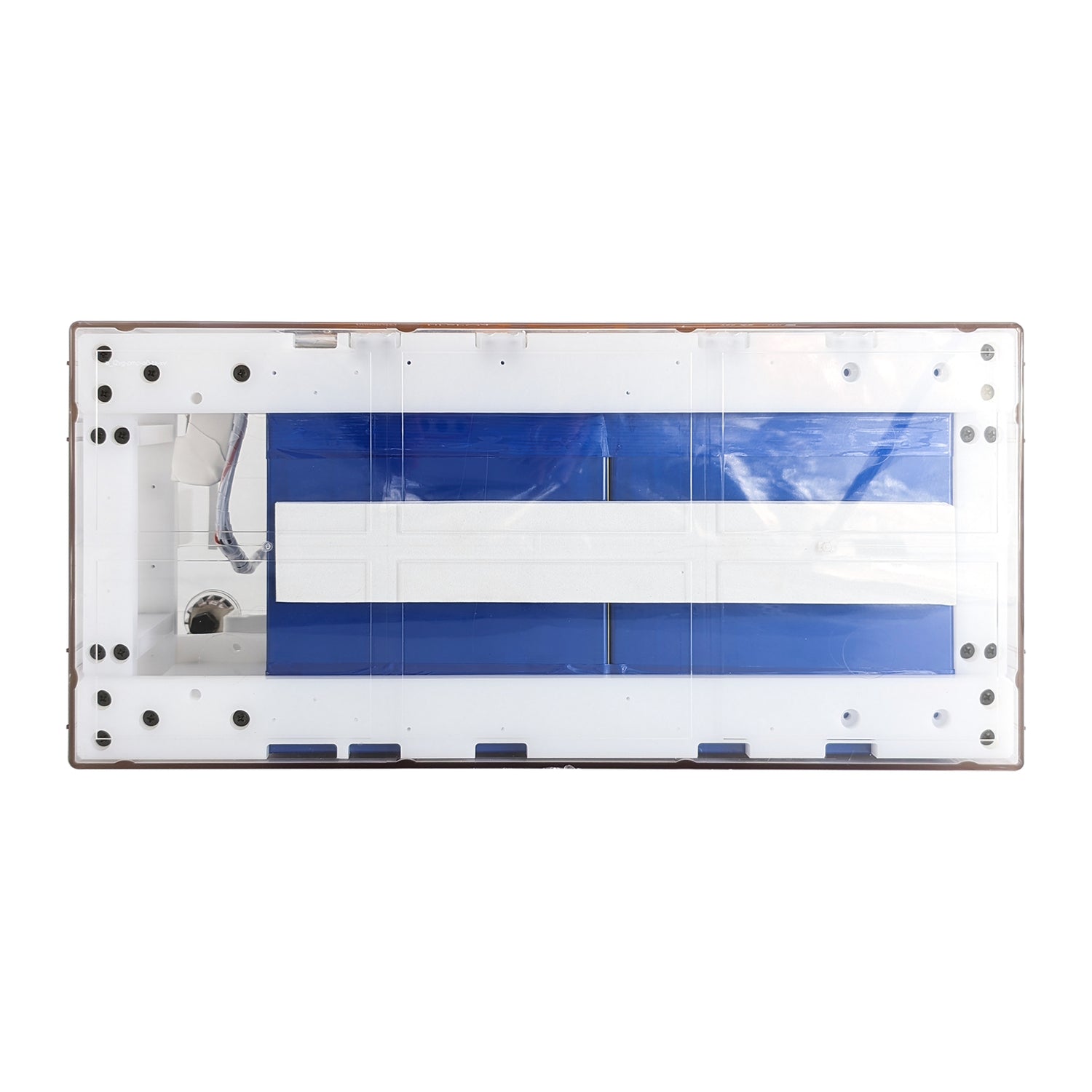

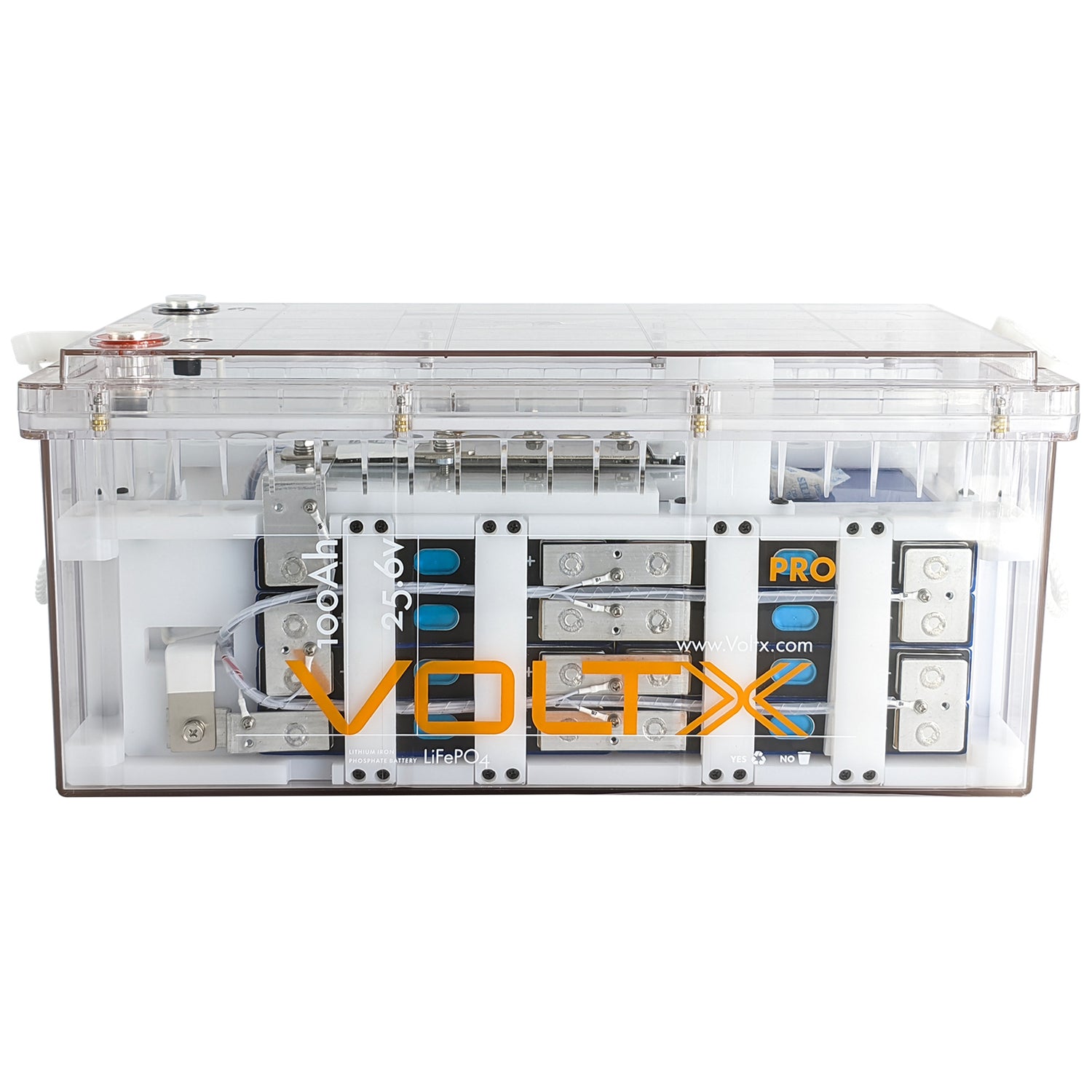

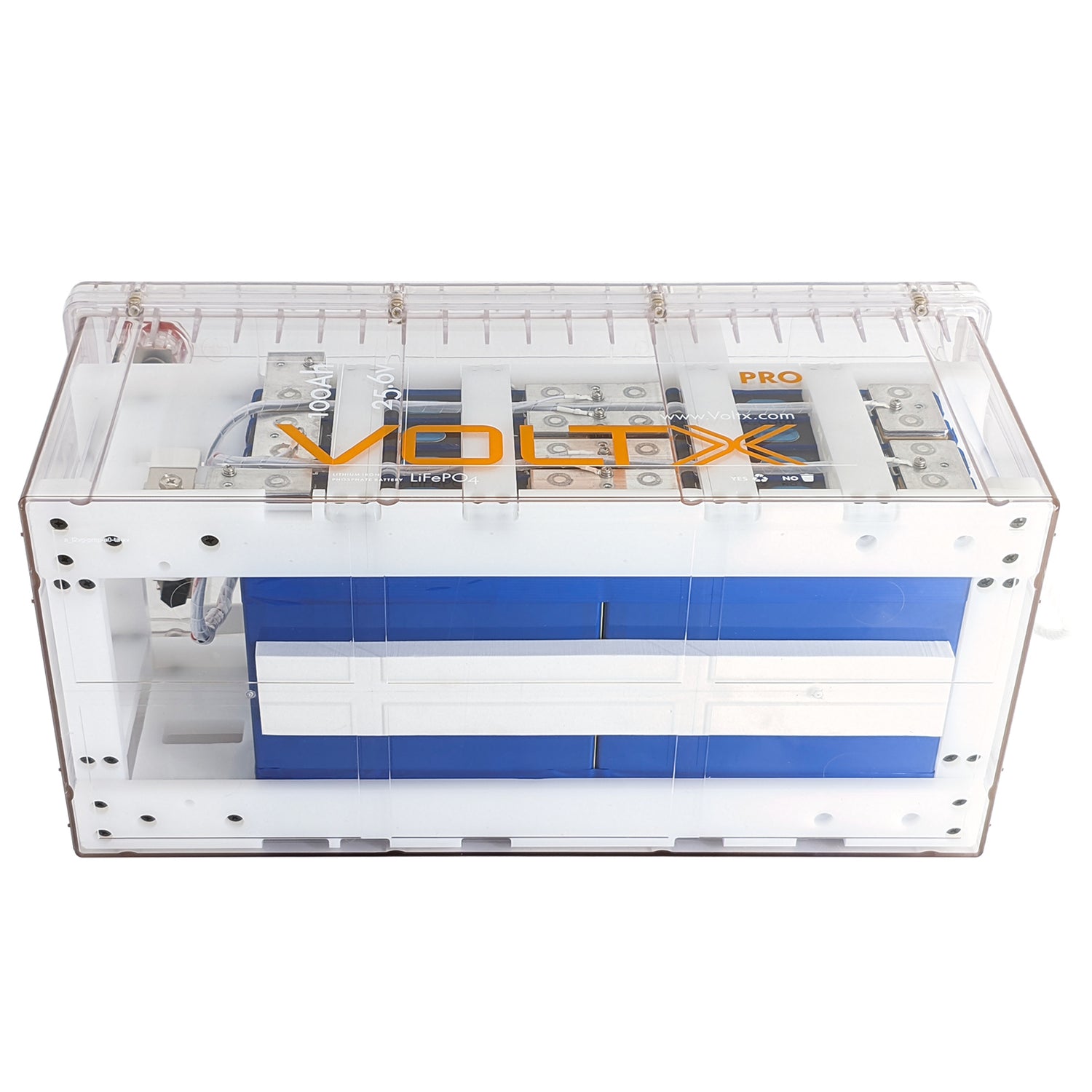

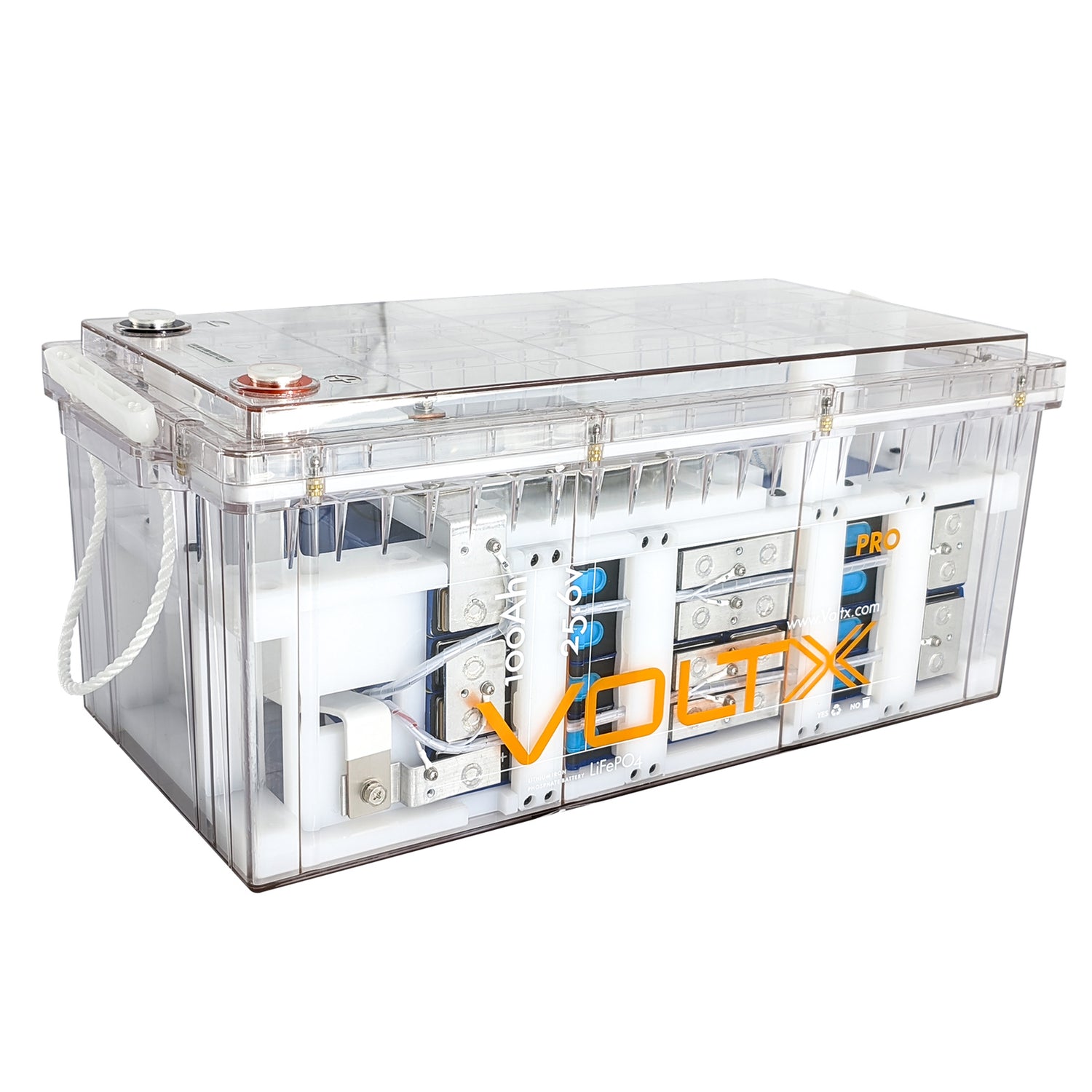

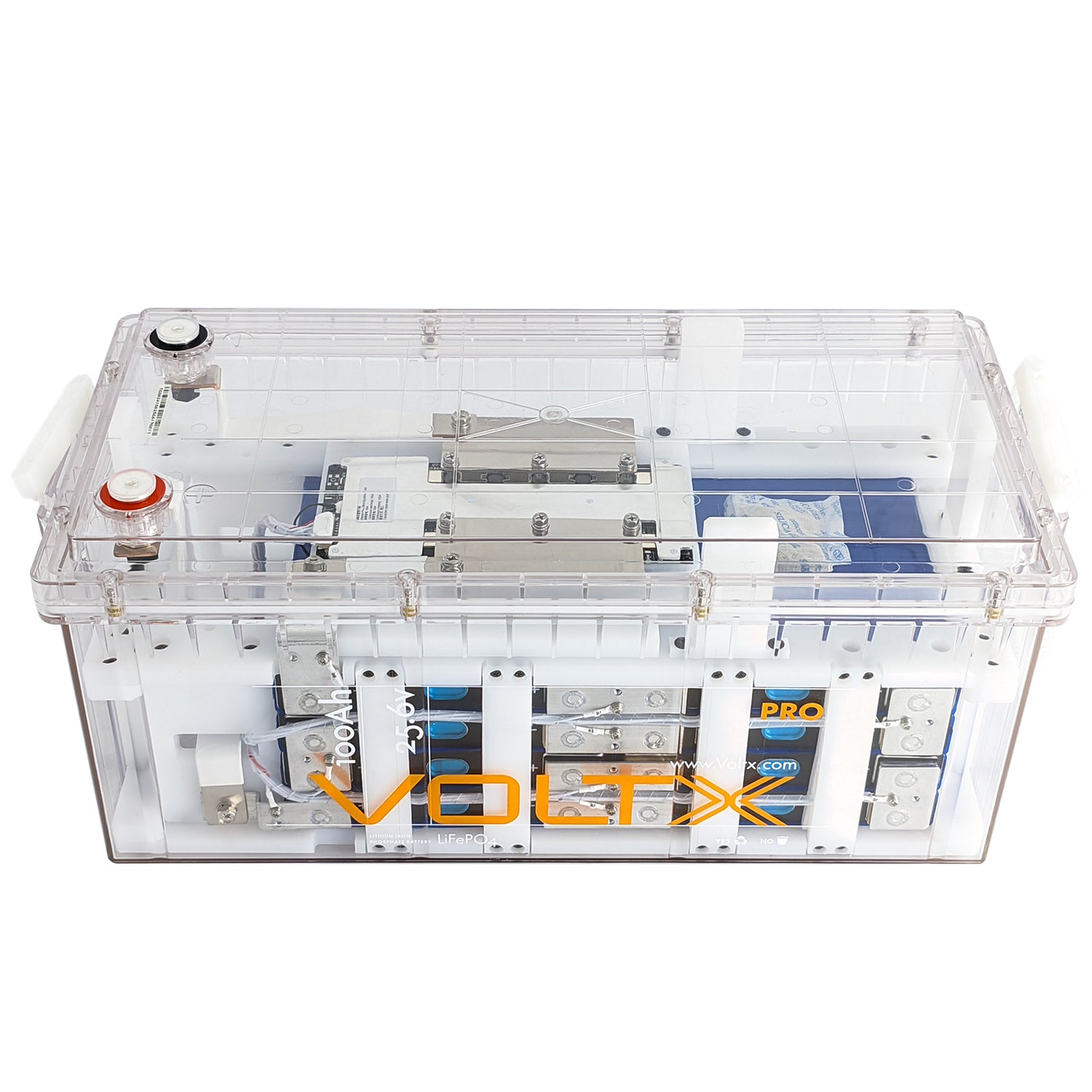

Make way for our clear-case battery! This VoltX 24V 100Ah Lithium Battery LiFePO4 allows you to easily see its premium built from the BMS down to the wirings. Built for the Aussie outdoors, it can withstand harsh elements such as rough terrains and extreme weather conditions all while running your essential appliances smoothly.

All our battery packs are comprised of prismatic cells & are backed with LiFePO4's signature built-in BMS. They are also tested to deliver 100% real capacity and are suitable for 6 parallel and 3 series.

IMPORTANT: While some of our LiFePO4 batteries are top-notch & can be wired with other batteries of its kind, it is not advisable to connect any LiFePO4 batteries in parallel or series. This poses several risks and should only be done in emergency situations. If you must wire batteries together, make sure you are familiar with the correct procedure or seek help from a professional if needed.

Suggestions From the Outbax Team:

  • Batteries connected in series should have the same amp-hour rating while batteries in parallel bank should have the same voltage rating.
  • As much as possible, only connect batteries in series or parallel during emergency situations.
  • It's better to go for batteries with higher voltage when running high-power electrical appliances instead of wiring two battery packs together.
  • We have available batteries with larger discharge parameters for fast charge/discharge requirements.
  • Our batteries are also available in 200Ah and 300Ah for larger capacity demands.

VoltX 24V 100Ah Lithium LiFePO4 Battery VoltX 24V 100Ah Lithium LiFePO4 Battery VoltX 24V 100Ah Lithium LiFePO4 Battery VoltX 24V 100Ah Lithium LiFePO4 Battery VoltX 24V 100Ah Lithium LiFePO4 Battery VoltX 24V 100Ah Lithium LiFePO4 Battery VoltX 24V 100Ah Lithium LiFePO4 Battery VoltX 24V 100Ah Lithium LiFePO4 Battery VoltX 24V 100Ah Lithium LiFePO4 Battery VoltX 24V 100Ah Lithium LiFePO4 Battery

Technical specs

SPECIFICATIONS

Brand VoltX
Nominal Voltage: 25.6V
Nominal Capacity: 100Ah
Charging Voltage: 28.4-29.2V
Rated Energy: 1280Wh
Standard Charging Current: 50A
Max. Charging Current: 100A
Rated Discharge Current: 150A
Max. Discharge Current: 200A
Max. Discharge Current 5 sec: 450A
Approx Life Cycles: 4000
Absorption Voltage: 28.8V
Float Voltage: 27.2V
Overcharge Protection: 29.2V
Overcharge Recovery: 28.4V
Overdischarge Protection: 20.0V
Overdischarge Recovery: 21.2V
Cell Grouping: 8S1P
Working Temperature Range: Charge: 0°C to 45°C | Discharge: -25°C to 65°C
Storage Temperature: -10℃ to 50℃
Battery Cells: Prismatic
Case Material: ABS Plastic
Parallel Connection: Yes, max 6 batteries
Series Connection: Yes, max 3 batteries
Warranty in Years: 5

DIMENSIONS & WEIGHT

Dimensions: 522(L) x 238(W) x 223(H)mm
Weight: 19.5kgs

WHAT'S IN THE BOX

1 x Lithium Battery

SKU

bat-li-24-100a-pro-plus

FAQs

Shipping and delivery

  • Your item will be shipped next business day.
  • On average, items are delivered between 3 to 7 business days following shipping around Australia.
  • Check out our shipping and delivery calculator above for more information.
  • We can't ship products to PO Boxes, Parcel Lockers or Post Offices. We need to have an actual address to proceed with the order.

Warranty

  • Outbax offers a 60-month warranty on this VoltX Lithium Battery from the date of purchase unless otherwise stated. Outbax warrants its products against defects in materials and/or workmanship. This is further to your rights under Australian Consumer Law.
  • Outbax products come with a 60-day money-back guarantee. You must contact us within 60 days of receiving the product and it must be returned in its original condition.
