PRODUCT HIGHLIGHTS
- LiFePO4 comprised of prismatic cells & a built-in BMS
- High energy density for increased capacity in lightweight form
- 94% charger efficiency rate and Bluetooth connectivity
- Victron top quality charger with adaptive 6-stage charge algorithm
- Ideal combo for outdoor recreational, backup, and off-grid applications

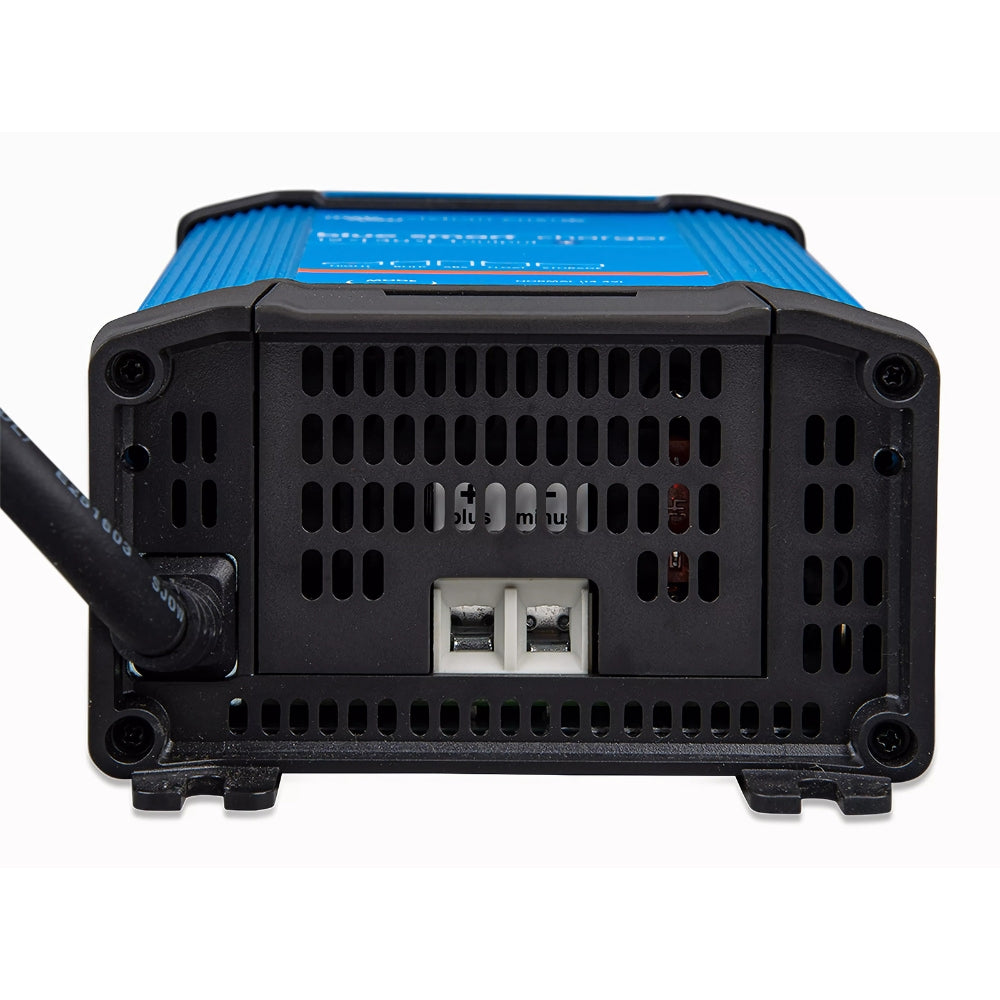

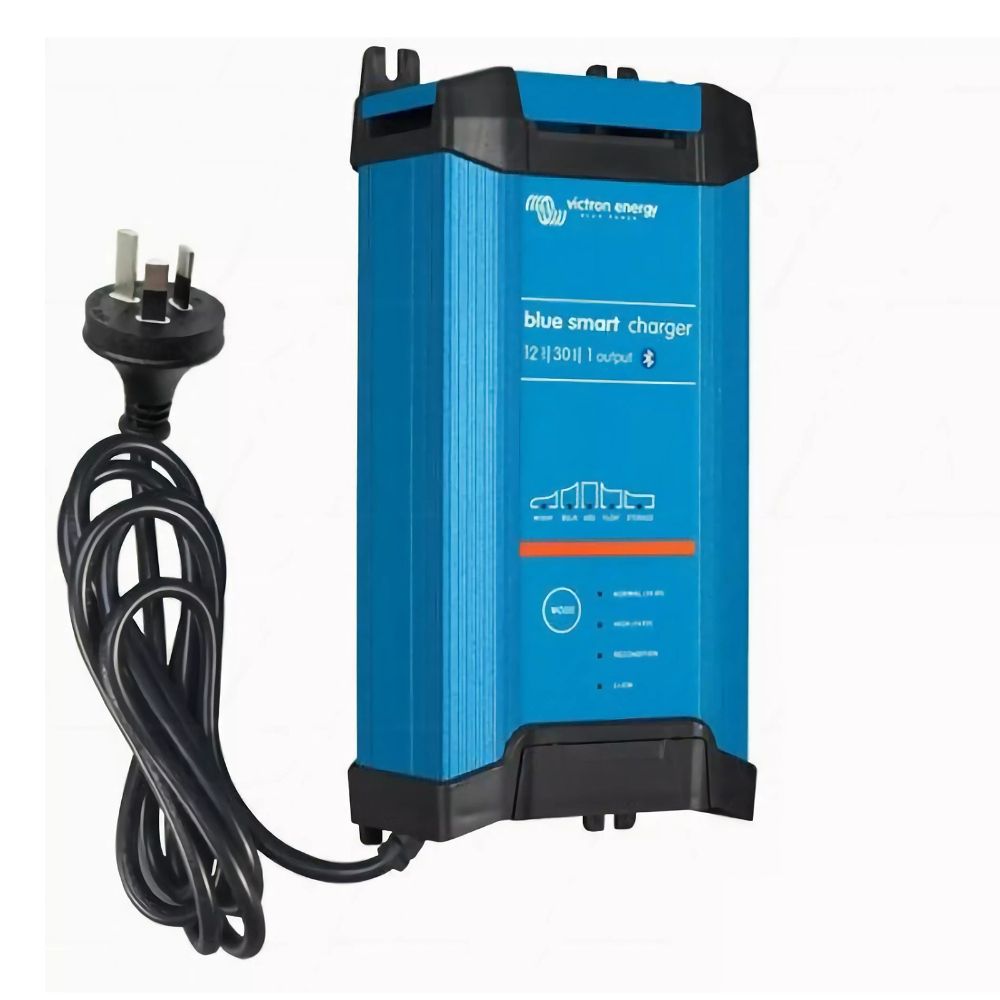

MODEL 1: Victron Blue Smart IP22 SLA/LiFePO4 Charger

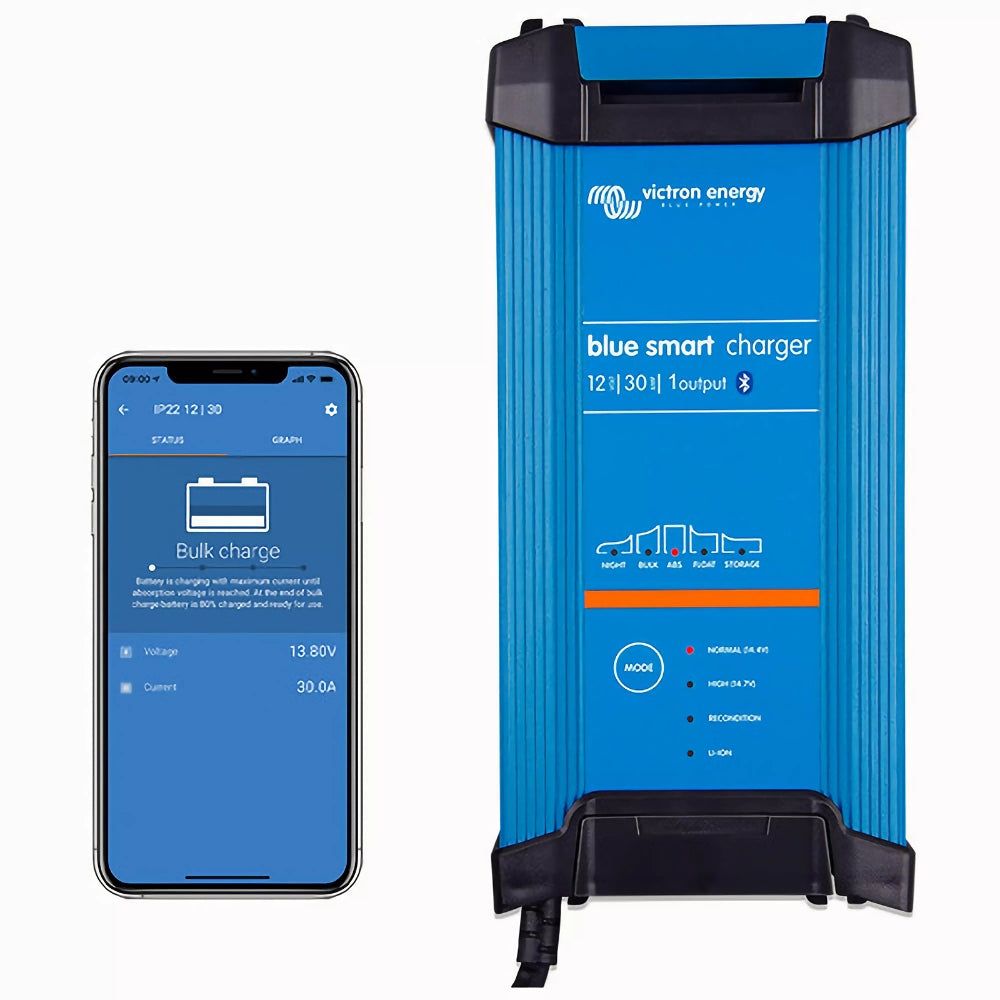

The Victron Blue Smart IP22 Charger is the wireless solution to monitor voltage and current, to change settings and to update the charger when new features become available.
High Efficiency
With up to 94% efficiency, these chargers generate up to four times less heat when compared to the industry standard. And once the battery is fully charged, power consumption reduces to 0.5 Watt, some five to ten times better than the
industry standard.
Adaptive 6-stage charge algorithm
test - bulk – absorption - recondition – float – storage. The Blue Smart Charger features a microprocessor controlled ‘adaptive’ battery management. The adaptive feature will automatically optimize the charging process relative to the
way the battery is being used.
Storage Mode
Less maintenance and aging when the battery is not in use. The storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the storage mode, float voltage is reduced to 2.2V/cell (13.2V for a 12V
battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulfation, a major
cause of early battery failure.
Li-ion (LiFePO4) batteries
LiFePO4 batteries are charged with a simple bulk – absorption – float algorithm.
NIGHT and LOW setting
When in NIGHT or LOW mode, the output current is reduced to max. 25% of the nominal output and the charger will be totally noiseless. The NIGHT mode automatically ends after 8 hours. The LOW mode can be ended manually.
Protected against overheating
Output current will reduce as temperature increases up to 50°C, but the Blue Smart Charger will not fail.
Eleven LEDs for status indication
Charge algorithm: TEST / BULK / ABSORPTION / RECONDITION / FLOAT / STORAGE / READY.

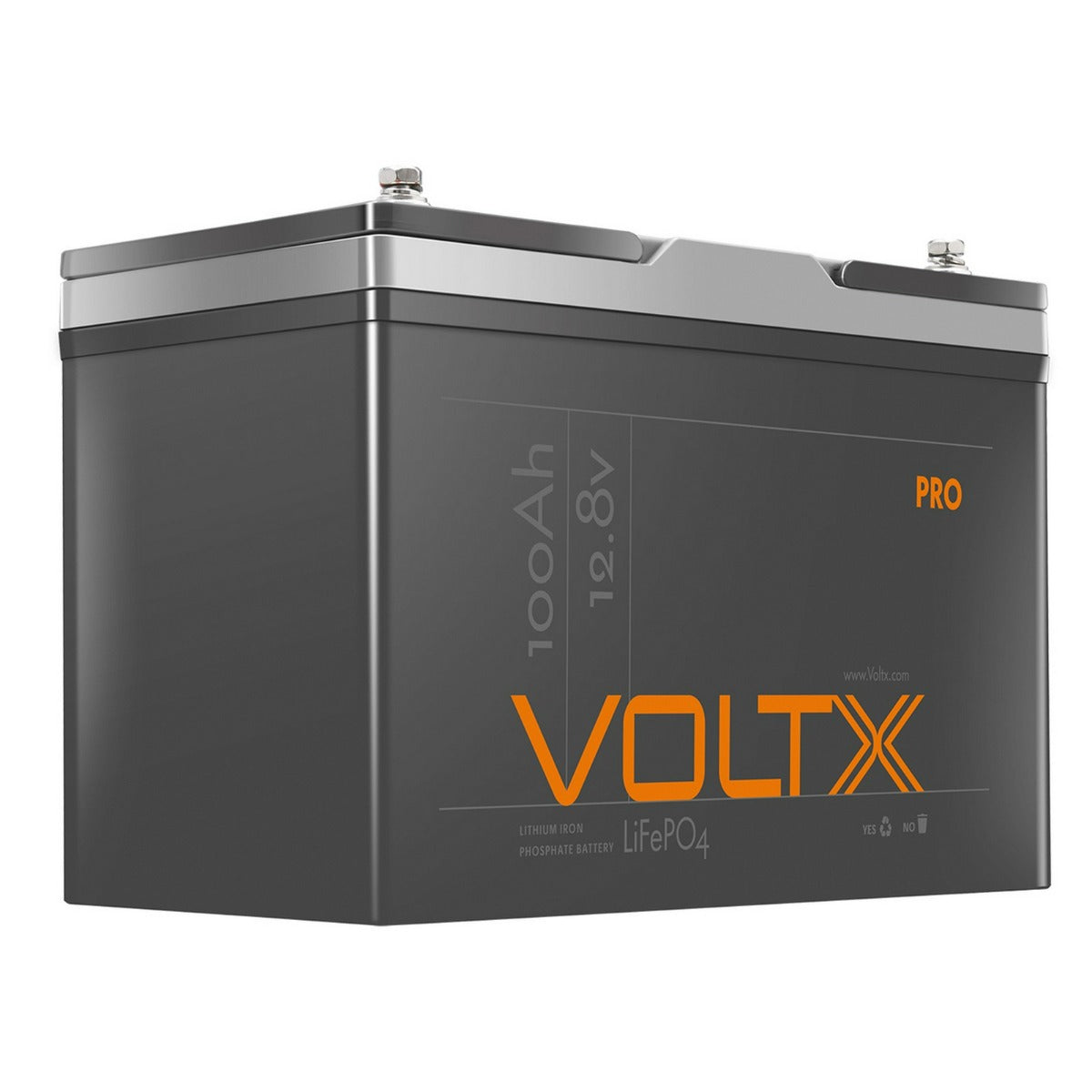

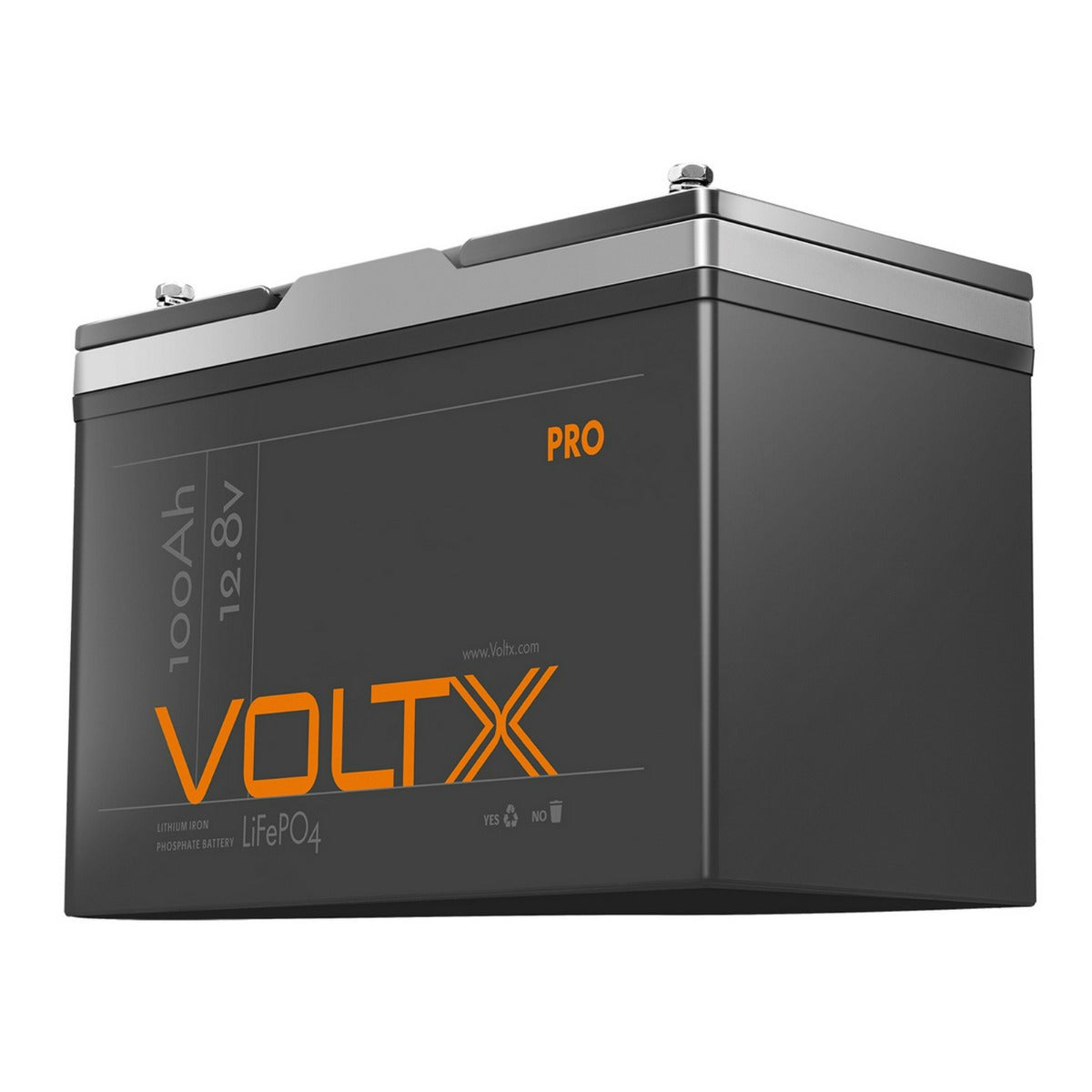

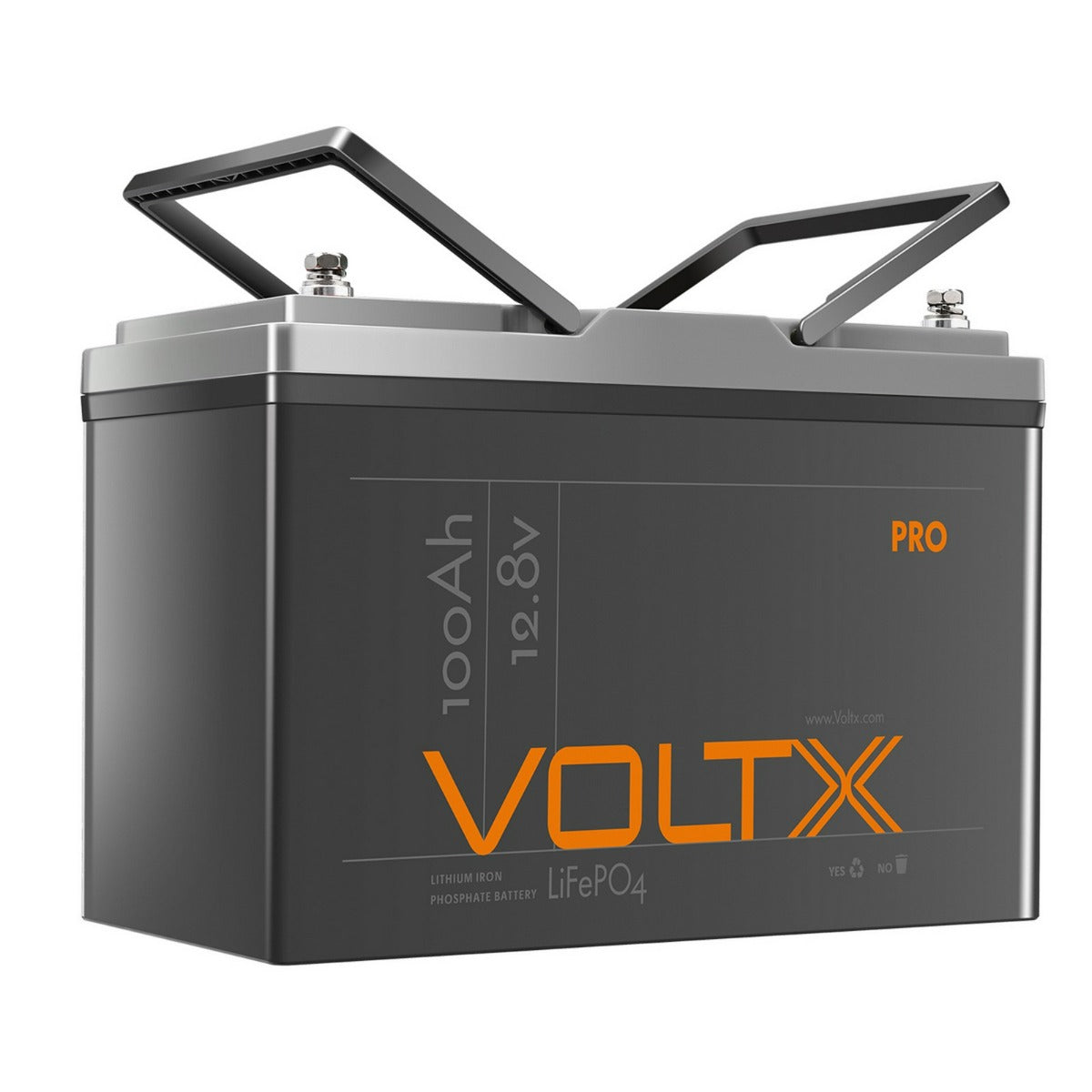

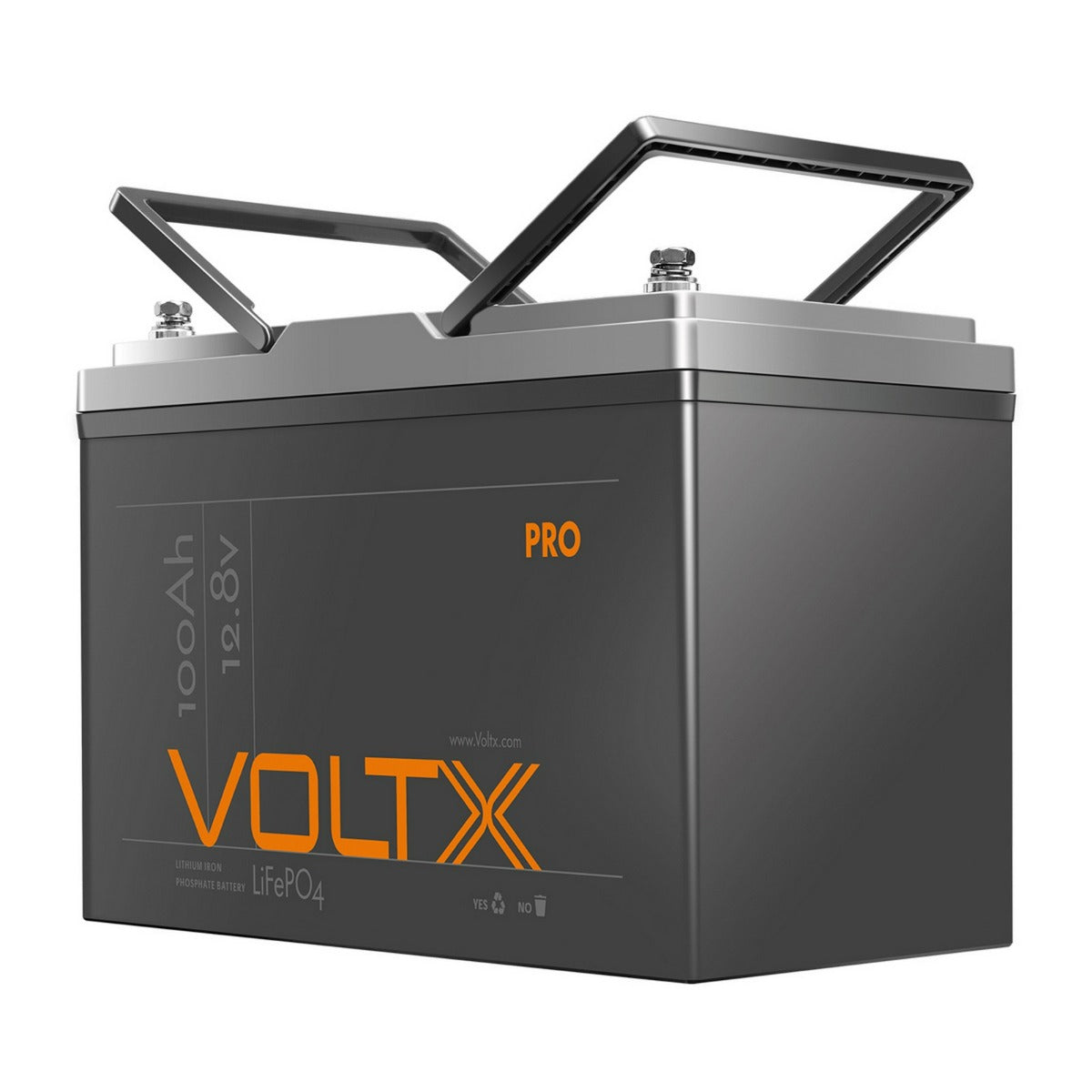

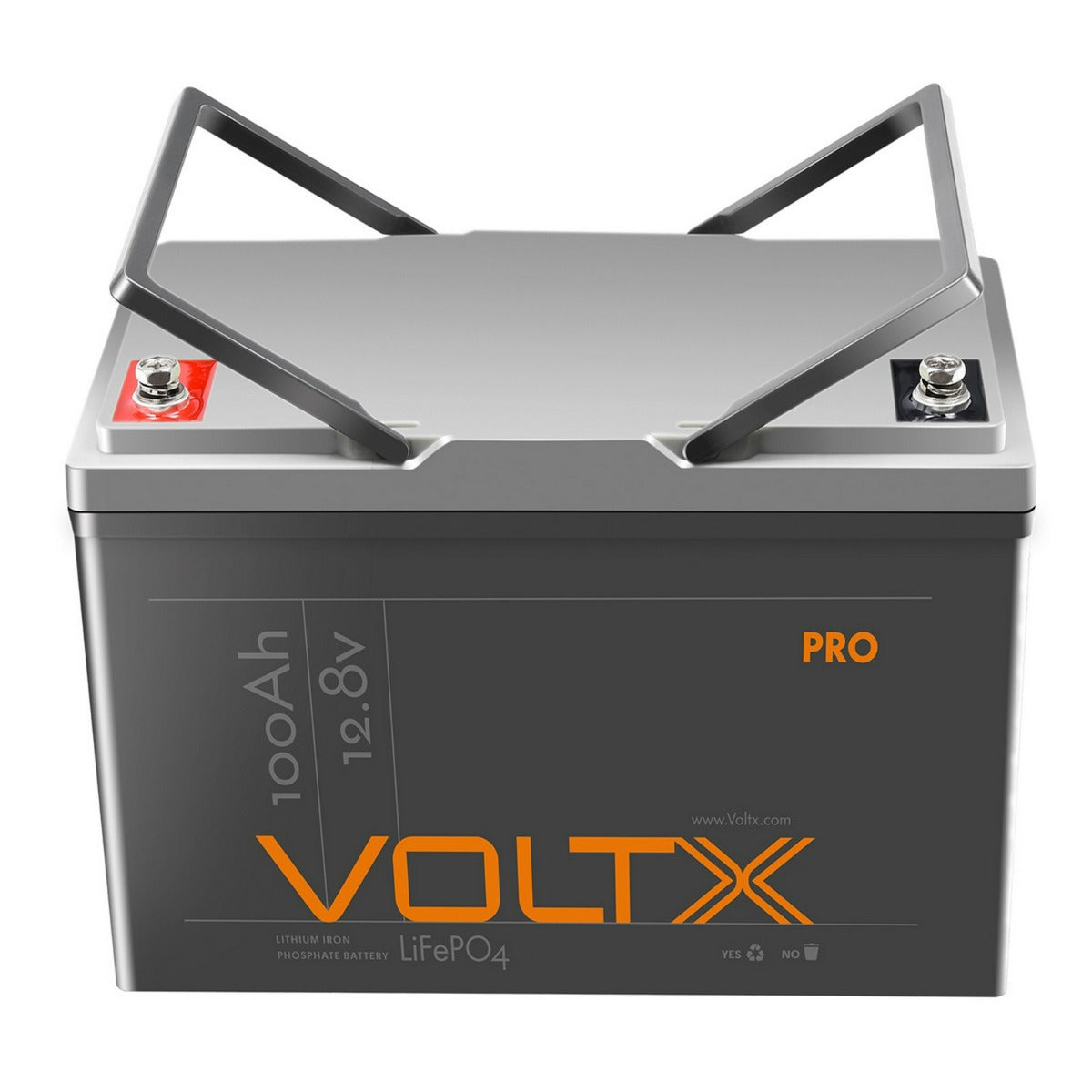

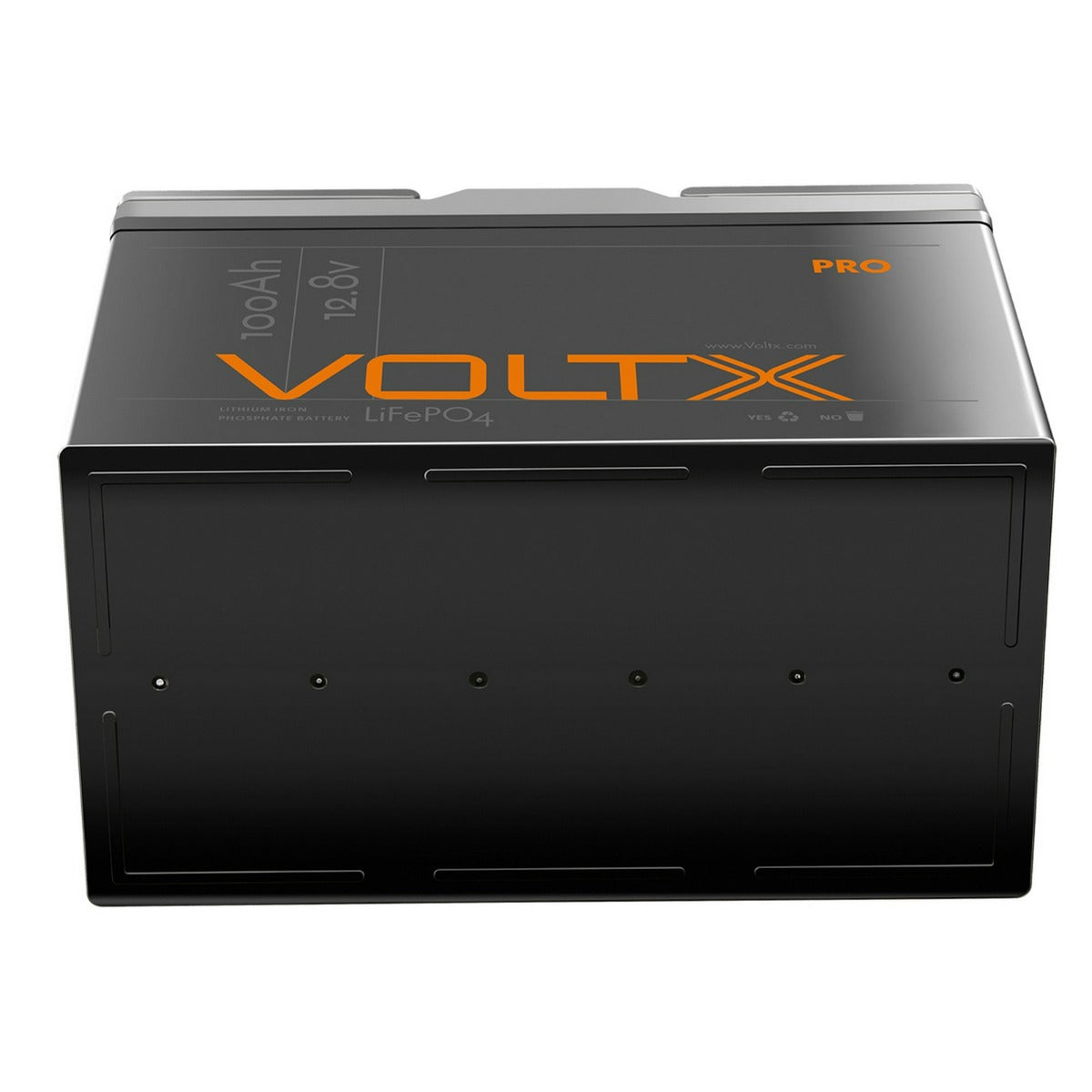

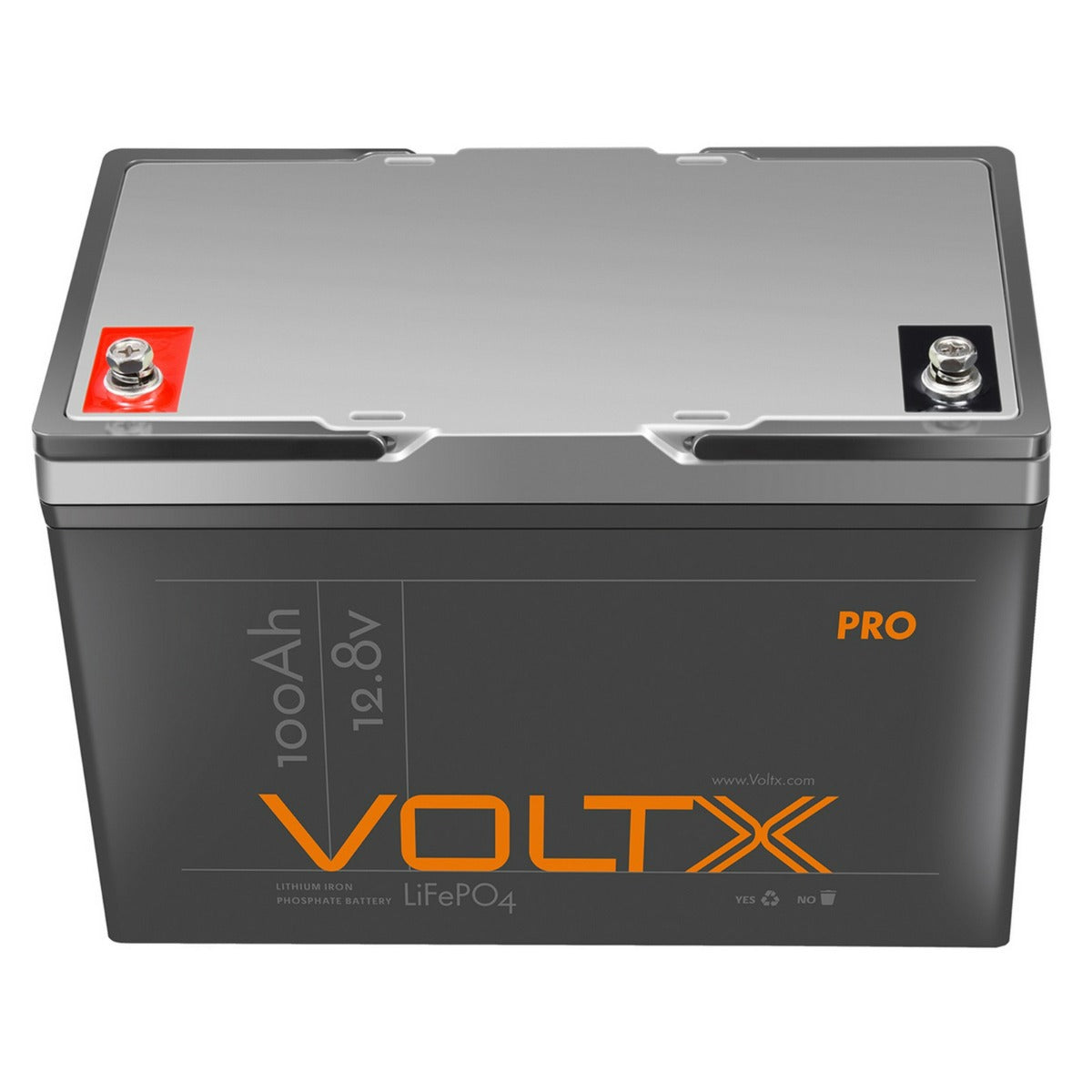

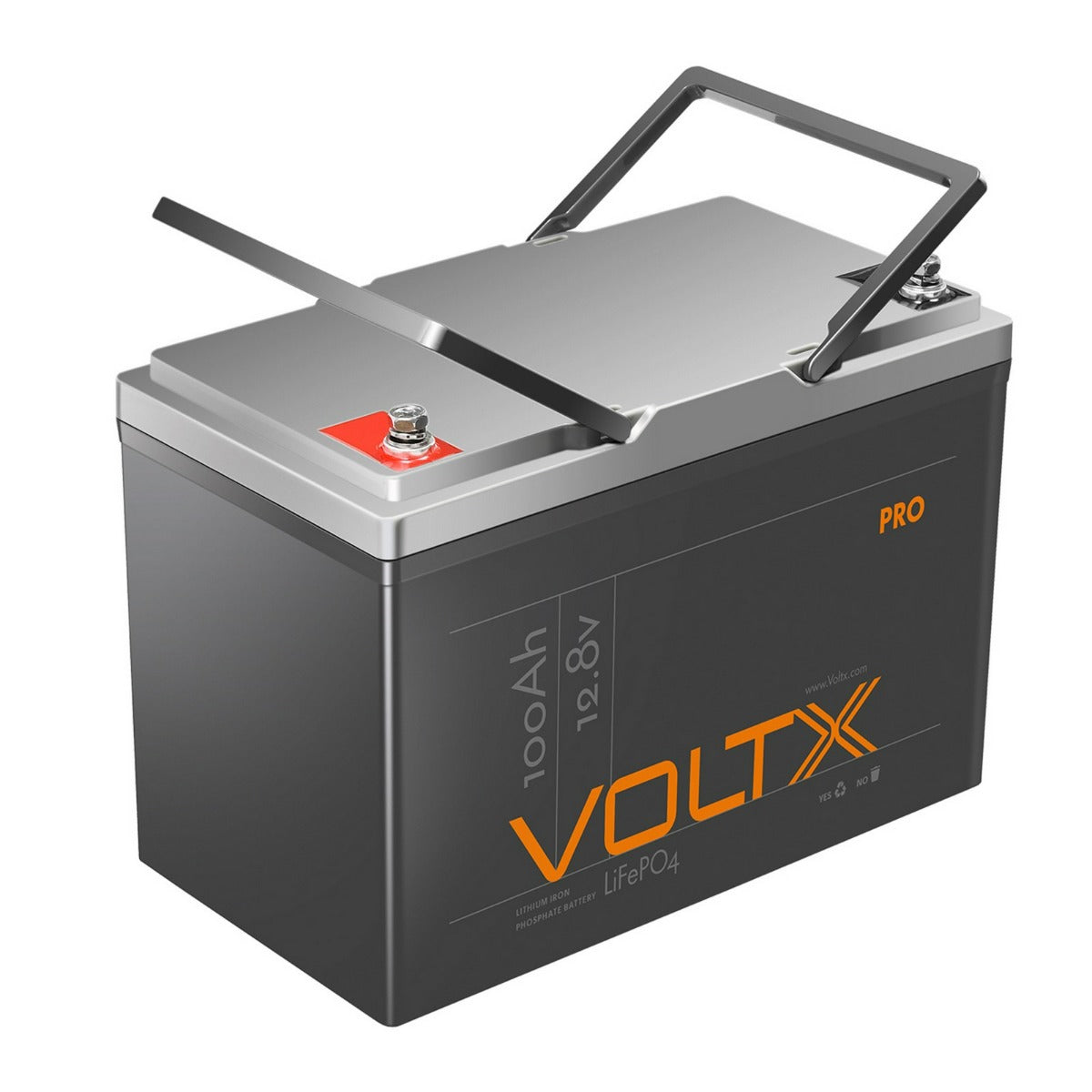

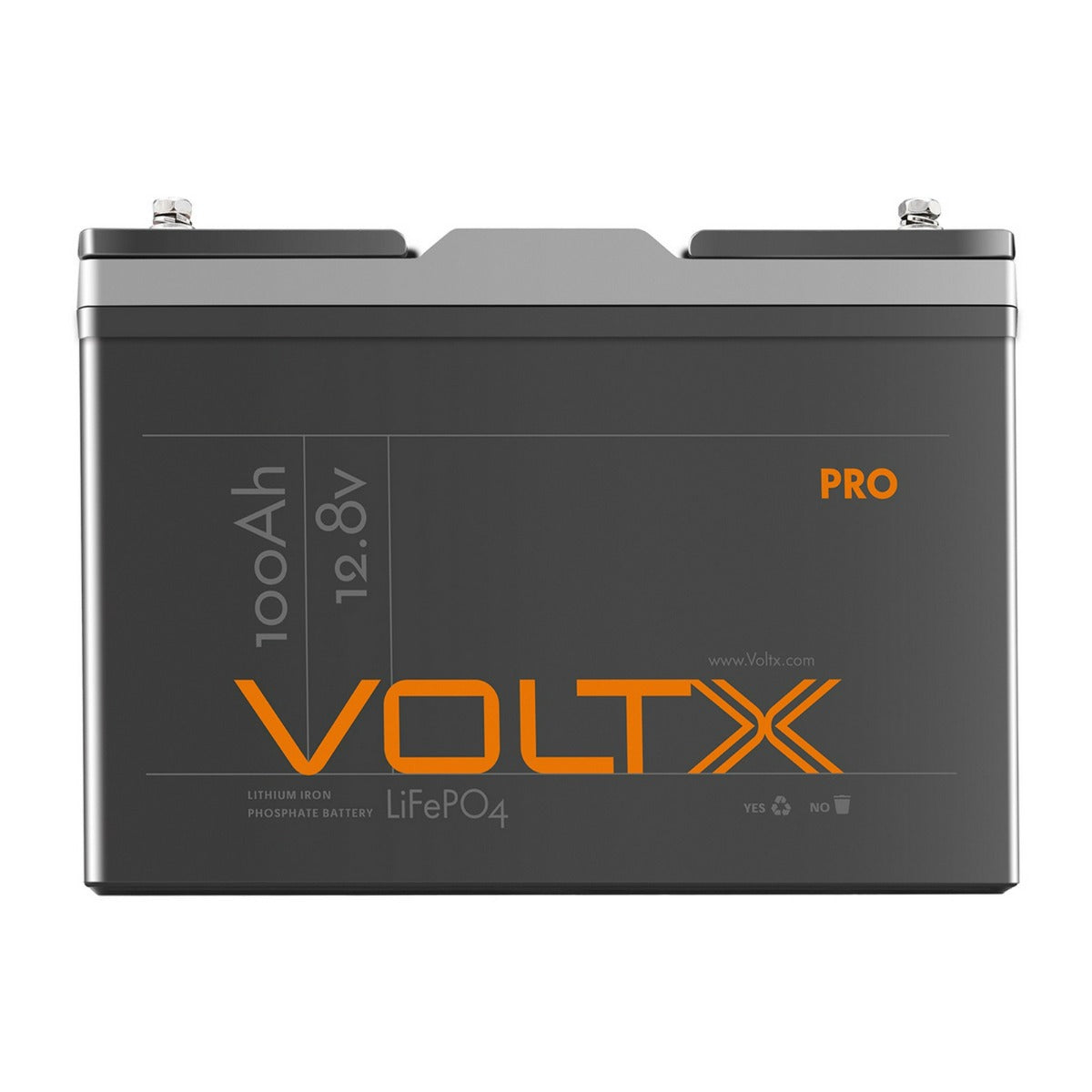

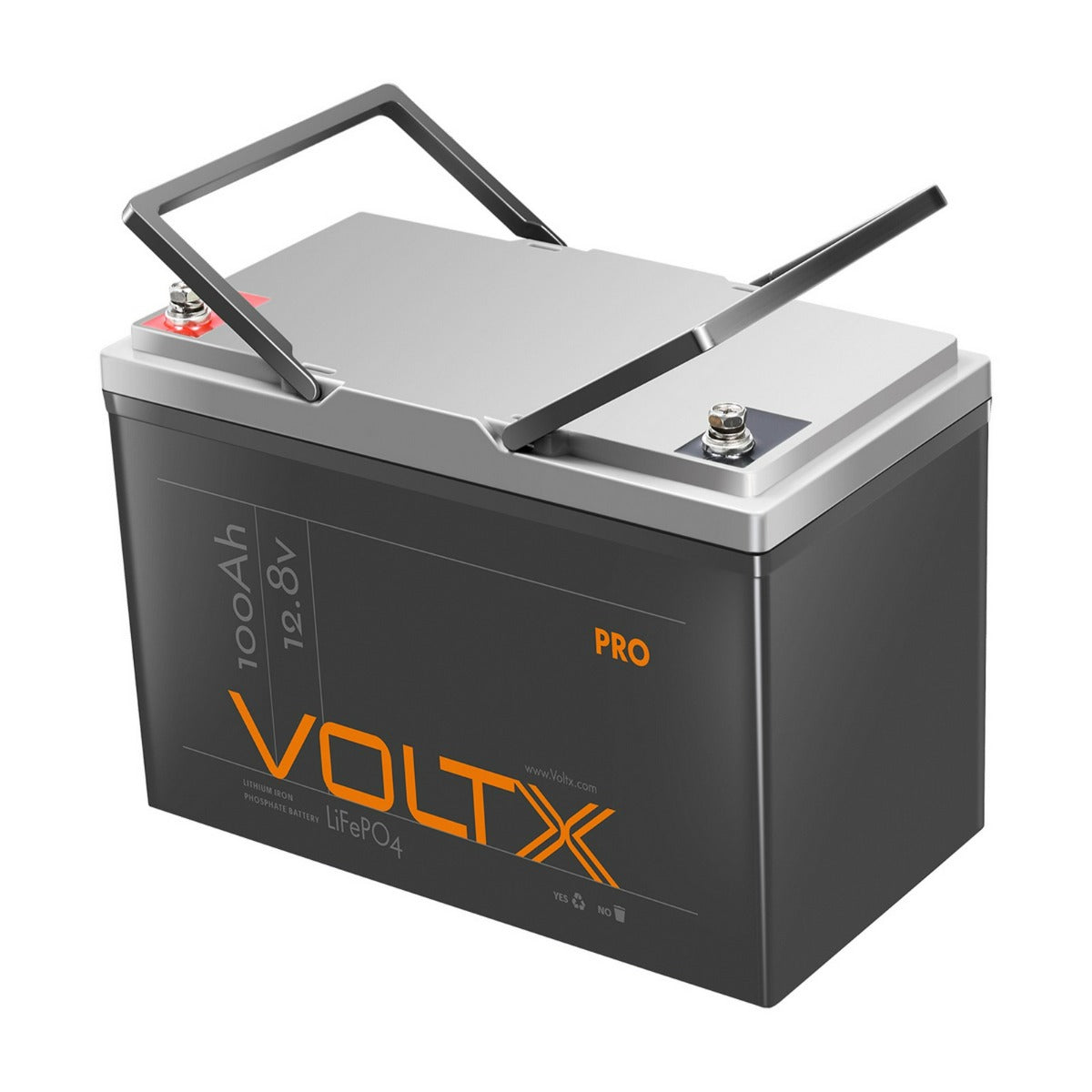

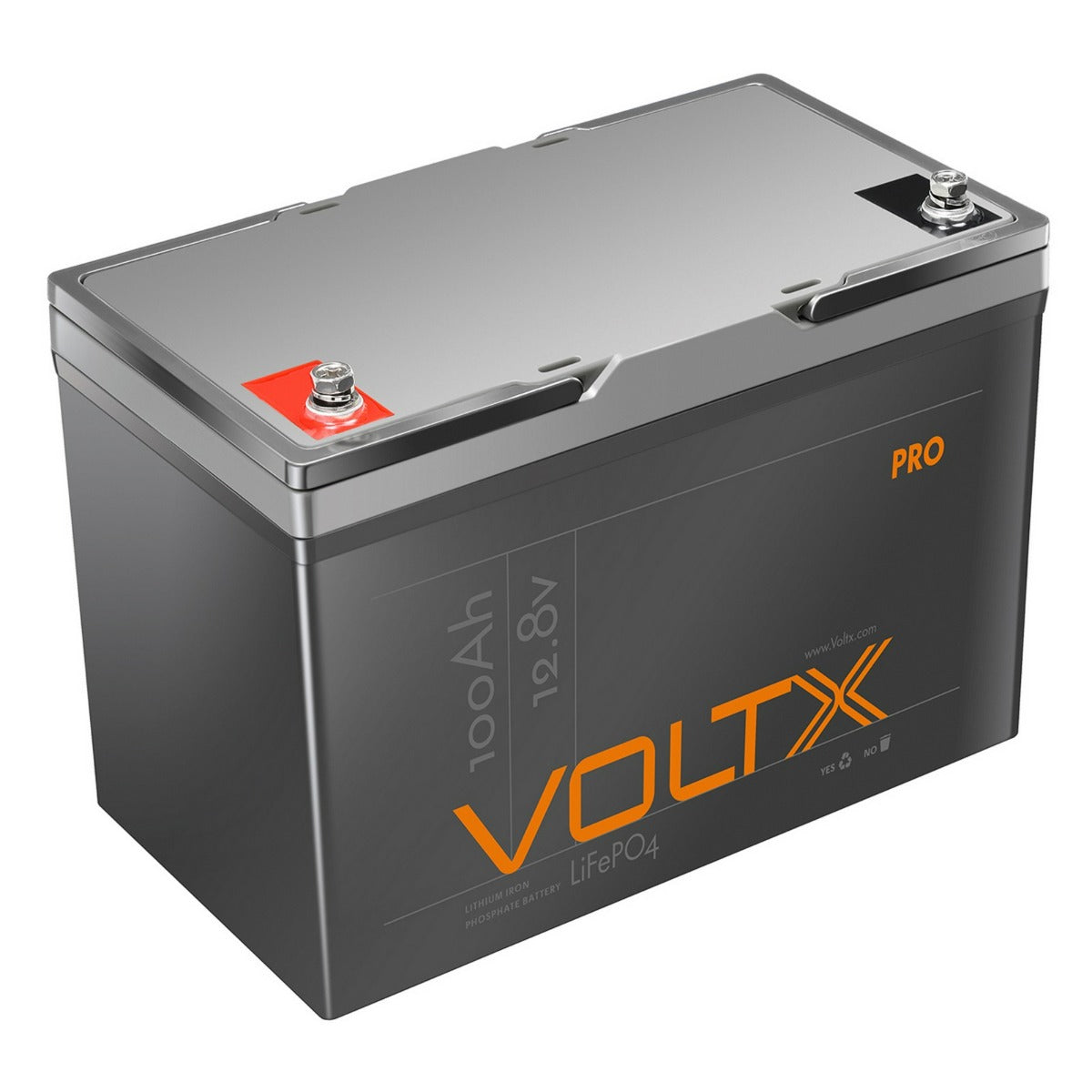

MODEL 2: VoltX 12V 100Ah Lithium Iron Phosphate Battery
Efficient and stable, VoltX 12V lithium iron phosphate battery provides you with a reliable energy solution!
We are proud to introduce VoltX lithium iron phosphate battery, an advanced energy storage solution that provides efficient, stable and reliable energy supply for various application scenarios. Whether you're using your electronics at home or need reliable power for your outdoor adventures, our Lithium Iron Phosphate batteries can meet your needs.
Long Lifespan: VoltX lithium iron phosphate battery uses high-quality materials and advanced manufacturing process, with 4000 deep cycle and 3-year warranty. This means you can safely use our batteries without frequent replacement.
Fast Charging: VoltX lithium iron phosphate battery has excellent charging performance and can be fast charged in a short time. That means you spend your time more efficiently, spend less time waiting to charge, and keep your devices running productively.
Safe and reliable: We pay attention to the safety performance of our products. The lithium iron phosphate battery adopts Battery Management System, which effectively reduces safety risks such as overcharge, overdischarge and short circuit. Enjoy peace of mind no matter what environment you're using the battery in.
We are committed to providing customers with the highest quality products and services, and strictly comply with relevant safety standards. Lithium iron phosphate battery will bring you excellent performance and reliable energy solution. Buy it now and experience efficient, stable and reliable energy storage technology!
All our battery packs are comprised of premium prismatic cells & are backed with LiFePO4's signature built-in BMS. They are also tested to deliver 100% real capacity and are suitable for parallel and series wiring of up to 6 battery packs.
IMPORTANT: While our LiFePO4 batteries are top-notch & can be wired with other batteries of its kind, it is not advisable to connect any LiFePO4 batteries in parallel or series. This poses several risks and should only be done in emergency situations. If you must wire batteries together, make sure you are familiar with the correct procedure or seek help from a professional if needed.
Suggestions From the Outbax Team
- Batteries connected in series should have the same amp-hour rating while batteries in parallel bank should have the same voltage rating.
- As much as possible, only connect batteries in series or parallel during emergency situations.
- It's better to go for batteries with higher voltage when running high-power electrical appliances instead of wiring two battery packs together.
- We have available batteries with larger discharge parameters for fast charge/discharge requirements.
- Our batteries are also available in 200Ah and 300Ah for larger capacity demands.

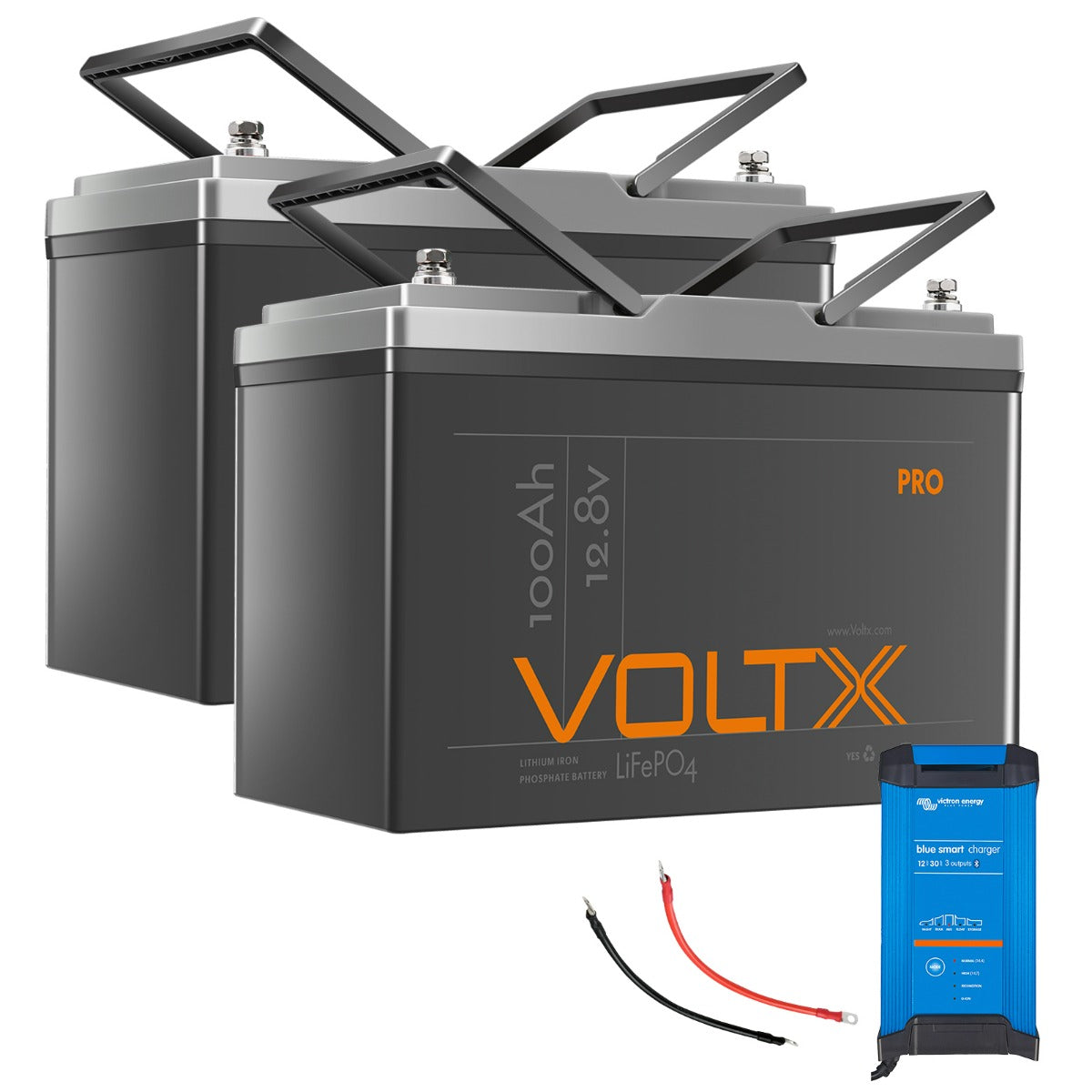

Kit bonus: you will also get an extra battery parallel cable for free !
MODEL 1: Victron Blue Smart IP22 SLA/LiFePO4 Charger
| Input voltage range: | 180 - 265 VAC |
| Charge current, normal mode: | 15 / 20 / 30 A |
| Charge current, NIGHT or LOW: | 7.5 / 10 / 15 A |
| Efficiency: | 93 % |
| No load power consumption: | 0.5 W |
| Frequency: | 45 - 65 Hz |
| Number of outputs: | 1 |
| Charge Voltage Absorption: |
Normal: 14.4V High: 14.7V Li-ion: 14.2V |
| Charge Voltage Float: |
Normal: 13.8V High: 13.8V Li-ion: 13.5V |
| Charge Voltage Storage: |
Normal: 13.2V High: 13.2V Li-ion: 13.5 V |
| Charge algorithm: | 6-stage adaptive |
| Can be used as power supply: | Yes |
| Protection: | Battery reverse polarity (fuse) Output short circuit Over temperature |
| Operating temp. range: | -40 to +60 °C (full rated output up to 40 °C) |
| Humidity (non-condensing): | Max 98 % |
ENCLOSURE |
|
| Material & Colour: | Aluminium (blue RAL 5012) |
| Battery connection: | Screw terminals 16 mm⊃ / AWG6 |
| 230 VAC connection: | Cable of 1.5 meter with CEE 7/7 plug, BS 1363 plug (UK) or AS/NZS 3112 plug (AU/NZ) |
| Protection category: | IP22 |

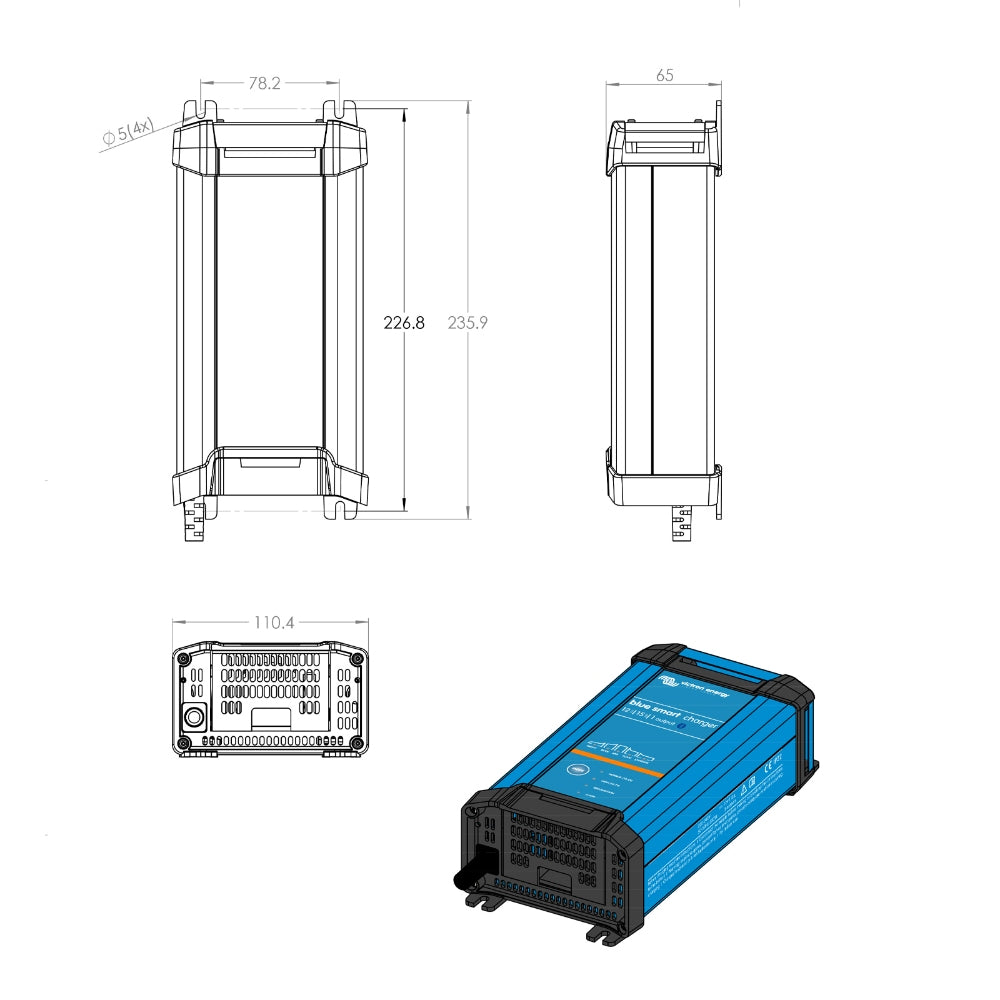

| Dimensions: | 235(H) x 108(W) x 65(D) mm |
| Weight: | 1.3 kg |
STANDARDS |
|
| Safety : | EN 60335-1, EN 60335-2-29 |
| Emission: | EN 55014-1, EN 61000-6-3, EN 61000-3-2 |
| Immunity: | EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3 |
| Automotive: | ECE R10-5 |
MODEL 2: VoltX 12V 100Ah Lithium Iron Phosphate Battery
| Nominal Capacity: | 100Ah |
| Usable Capacity: | 100Ah |
| Nominal Voltage: | 12.8V |
| Rated Energy: | 1280wh |
| Charge Voltage: | 14.6V< |
| Discharge Cut-off Voltage: | 10V |
| Charge Method: | CC/CV |
| Charger: | 14.6V50A |
| Standard Discharge Current | 100A |
| Max. Continues Discharge Current: | 200A |
| Max. Discharge Current (5sec): | 600A |
| Standard Charge Current: | 50A |
| Max. Charge Current: | 100A |
| Working Temperature Range Charge: | 0°C to 45°C Discharge:-20°C to 60°C |
| Storage Temperature: | -10°C to 50°C |
| Dimension: | 306(L) x 169(W) x 215(H)mm |
