Deye 48V 10kW Single Phase Hybrid Solar Inverter
Selling fast. Hurry and order now to save
20%
Couldn't load pickup availability
60 Days
Return
120 Months
Warranty
Australia-wide Fast Shipping
PRODUCT HIGHLIGHTS
- Parallel-capable up to 16pcs
- 6 time periods for battery charging/discharging
- DC couple and AC couple to retrofit existing solar system
- IP65 waterproof rating
- 48V low voltage battery, safe and reliable
Calculate shipping cost
Powerful Hybrid Energy Control for Large Homes

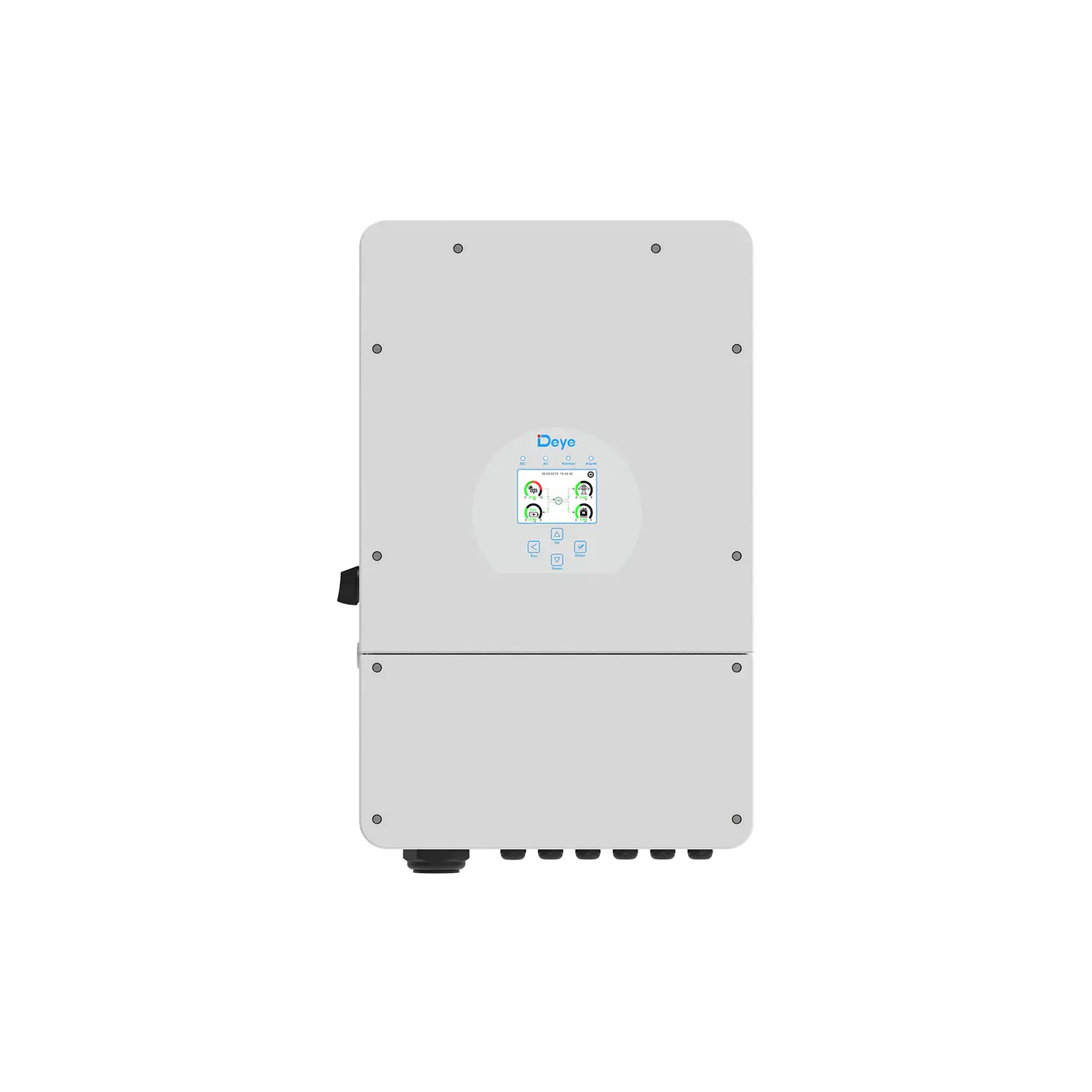

The Deye SUN-10K-SG02LP1 is a high-performance power inverter designed to manage modern home energy systems with ease. This advanced solar power inverter seamlessly integrates solar panels, batteries, the grid, and even diesel generators into one intelligent system. With its powerful 10kW output and support for 48V battery systems, it's built for large Australian households and small businesses looking to maximise energy independence.
10kW Output for High-Demand Homes
Delivering a strong 10kW rated output, this single-phase inverter easily powers energy-hungry appliances like air conditioners, pool pumps, and workshop equipment. It ensures consistent performance for larger homes that require dependable and efficient power management.
Fast Charging with Industry-Leading 220A Capacity
Equipped with a massive 220A charge and discharge current, this 48V inverter enables rapid battery charging and efficient energy storage. It's an ideal partner for high-capacity lithium battery systems, helping you store more solar energy and use it when you need it most.
Expandable System with Up to 16 Units in Parallel
Designed with scalability in mind, this solar power inverter supports up to 16 units operating in parallel for both on-grid and off-grid setups. Whether you're building a powerful home system or expanding into a light commercial installation, the system can grow alongside your energy needs.
Built for Australian Conditions
The inverter features a rugged IP65-rated enclosure that protects against dust and water, making it suitable for outdoor installations. Fully compliant with AS/NZS 4777.2 standards, this power inverter delivers safe and reliable performance across Australia's demanding climates.
Reliable Performance Backed by a 10-Year Warranty
For long-term peace of mind, the Deye SUN-10K-SG02LP1 comes with a robust 10-year warranty. This ensures dependable operation and lasting value for homeowners investing in a high-quality 48V inverter and solar energy system.
SPECIFICATIONS
| Brand: | Deye |
| Installation Style: | Wall-mounted |
| Operating Temperature Range: | -40 to +60℃ (>45℃ derating) |
| Cooling: | Intelligent Air Cooling
|
| Noise level: | <45 dB |
| Communication with BMS： | RS485 / CAN |
| Protection Degree: | IP65 |
| Warranty: | 10 Year |
BATTERY INPUT DATA
| Battery Type: | Lead-acid or Lithium-ion |
| Battery Voltage Range: | 40–60V |
| Max. Charging Current: | 220A
|
| Max. Discharging Current: | 220A
|
| Charging Strategy for Li-Ion Battery: | Self-adaption to BMS |
| Number of Battery Input: | 1 |
PV STRING INPUT DATA
| Max. PV Access Power: | 20000W
|
| Max. DC Input Power: | 15000W
|
| Rated PV Input Voltage: | 500V |
| Start-up Voltage: | 125V |
| MPPT Voltage Range: | 150–425V |
| Max. Operating PV Input Current (A): | 370A |
| Rated DC Input Voltage (V): | 26+26+26 |
| Max. Input Short-Circuit Current (A): | 44+44+44 |
| Number of MPPT / Strings per MPPT: | 3 / 2+2+2 |
AC OUTPUT DATA
| Rated AC Output Active Power (W): | 9999W |
| Max. AC Input/Output Apparent Power (VA): | 9999VA |
| AC Output Rated Current (A): | 43.5A |
| Max. AC Output Current (A): | 43.5A |
| Max. Continuous AC Passthrough (A): | 60A |
| Peak Power (Off Grid): | 2× rated power, 10 s |
| Power Factor Adjustment Range: | 0.8 leading to 0.8 lagging |
| Rated Input/Output Voltage / Range (V): | 50Hz / 45Hz–55Hz |
| Rated Input/Output Grid Frequency / Range: | 230 / 240, 0.85Un–1.1Un |
| Grid Connection Form: | L+N+PE |
| Total Harmonics Current Distortion (THD): | <3% (of nominal power) |
| DC Current Injection: | <0.5% In |
| Efficiency： |
Max. Efficiency：97.60%
Euro Efficiency：96.50% MPPT Efficiency: 99.90% |
| Integrated Protection: | DC Polarity Reverse Connection Protection; AC Output Overcurrent Protection; Thermal Protection; AC Output Overvoltage Protection; AC Output Short Circuit Protection; DC Component Monitoring; Overvoltage Load Drop Protection; Ground Fault Current Monitoring; Arc Fault Circuit Interrupter (optional); Power Network Monitoring; Island Protection Monitoring; Earth Fault Detection; DC Input Switch; DC Terminal Insulation Impedance Monitoring; Residual Current (RCD) Detection; Surge Protection Level |
| Surge Protection Level: | TYPE II (DC), TYPE II (AC) |
CERTIFICATIONS & STANDARDS
| Grid Regulation: | AS/NZS 4777.2 |
| Safety / EMC Standard: | IEC/EN 61000-6-1/2/3/4; IEC/EN 62109-1; IEC/EN 62109-2 |
DIMENSIONS & WEIGHT
| Weight： | 35.6kg |
| Size: | 420W × 670H × 233D |
Additional Specifications
| Monitor Mode: | GPRS / WIFI / Bluetooth / 4G / LAN (optional) |
| Permissible Ambient Humidity: | 0–100% |
| Permissible Altitude: | 2000 m |
| Inverter Topology (solar/battery): | Transformerless / HF Transformer |
| Over Voltage Category: | OVC II (DC), OVC III (AC) |
SKU:
| dy-ivt-10k-sg02lp1-am3 |
