PRODUCT HIGHLIGHTS
Calculate shipping cost

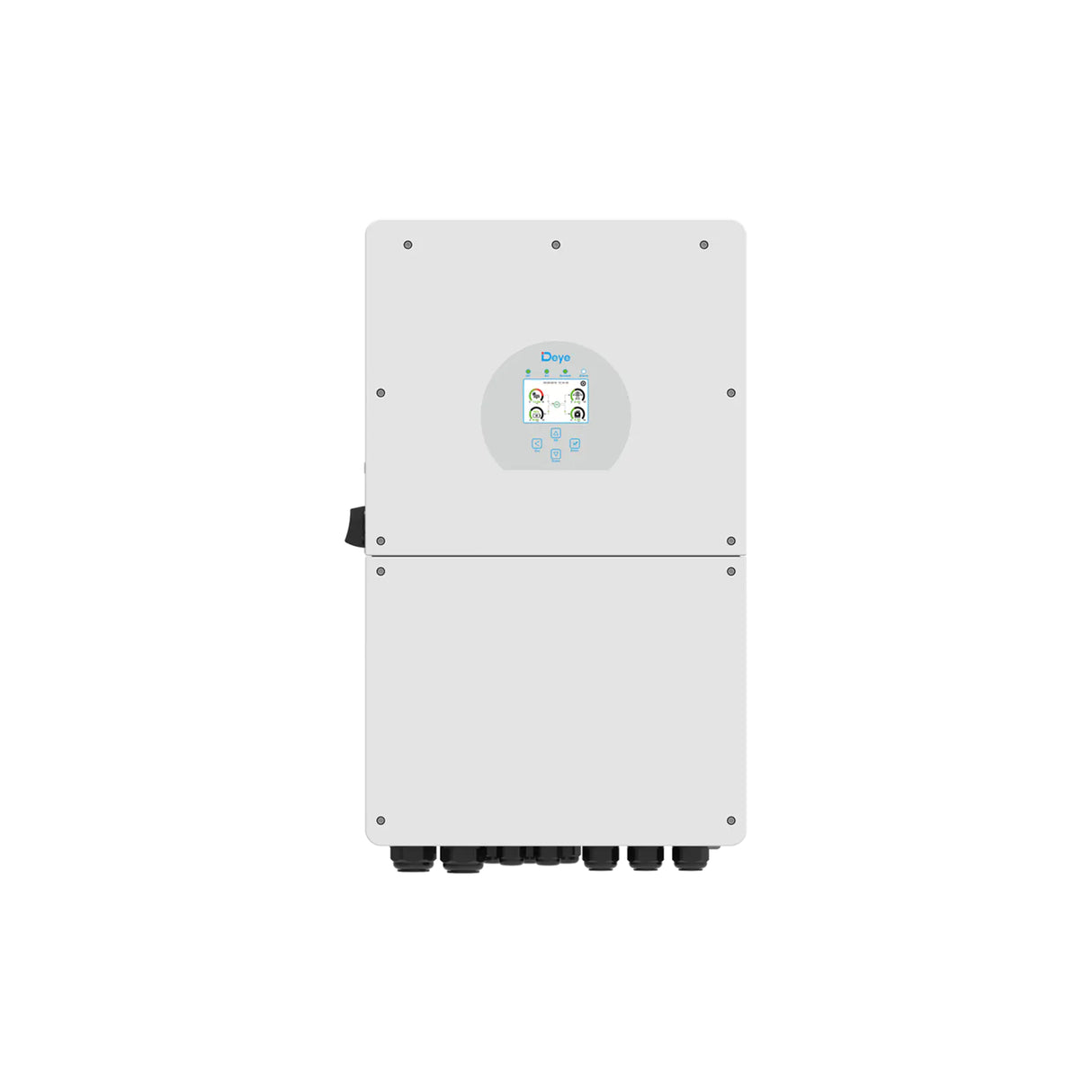

Elevate your home energy independence with the Deye SUN-16K-SG01LP1-AU, the most powerful single-phase hybrid inverter in its class. Specifically designed for the Australian market, this 16kW powerhouse features a massive 290A charge/discharge capability, making it the perfect partner for high-capacity low-voltage lithium batteries. Whether you are building a new off-grid sanctuary or retrofitting an existing solar system via AC coupling, its IP65 rating and smart touch LCD ensure reliability and ease of use in harsh environments.
16kW Massive Power Output
Boasting a rated power of 16kW and support for up to 32,000W PV input, this inverter handles heavy household loads like air conditioners and pumps with ease, ensuring zero energy wasted.
Industry-Leading 290A Current
Equipped with a record-breaking 290A maximum charge and discharge current, it significantly shortens battery charging times and supports high-power discharge during peak hours.
Extreme Scalability - 16 Parallel
Unique support for up to 16 units in parallel for both on-grid and off-grid operation, allowing your energy system to grow seamlessly from a residential home to a small commercial setup.
Flexible AC Coupling & Retrofit
Perfect for upgrading existing solar systems, it supports AC coupling and diesel generator input, providing a versatile solution for energy storage and backup power.
IP65 Protection & 10-Year Warranty
Built with an IP65 rated enclosure for superior outdoor durability and backed by a comprehensive 10-year warranty, it ensures maximum protection and long-term peace of mind for your investment.
SPECIFICATIONS
| Brand: | Deye |
| Installation Style: | Wall-mounted |
| Operating Temperature Range: | -40 to +60℃, >45℃ derating |
| Cooling: | Intelligent Air Cooling
|
| Noise level: | <50 dB |
| Communication with BMS： | RS485/CAN |
| Protection Degree: | IP65 |
| Warranty: | 10 Years |
BATTERY INPUT DATA
| Battery Type: | Lead-acid or Lithium-ion |
| Battery Voltage Range: | 40-60V |
| Max. Charging Current: | 290A
|
| Max. Discharging Current: | 290A
|
| Charging Strategy for Li-Ion Battery: | Self-adaption to BMS |
| Number of Battery Input: | 1 |
PV STRING INPUT DATA
| Max. PV Access Power: | 32000W |
| Max. DC Input Power: | 24000W |
| Rated PV Input Voltage: | 500V |
| Start-up Voltage: | 125V |
| MPPT Voltage Range: | 150-425V |
| Rated DC Input Voltage: | 370V |
| Max. Operating PV Input Current: | 26+26+26 |
| Max. Input Short-Circuit Current: | 44+44+44 |
| Number of MPPT / Strings per MPPT: | 3/2+2+2 |
AC OUTPUT DATA
| Rated AC Output Active Power (W): | 16000W |
| Max AC Output Active Power (W): | 16000W |
| AC Output Rated Current (A): | 69.6A |
| Max. AC Output Current (A): | 69.6A |
| Max. Continuous AC Passthrough (A): | 100A |
| Peak Power (off grid): | 2 time of rated power, 10 S |
| Power Factor Adjustment Range: | 0.8 leading to 0.8 lagging |
| Rated Input/Output Voltage/Range (V): | 230 /240 0.85Un-1.1Un |
| Rated Input/Output Grid Frequency/Range: | 50Hz/45Hz-55Hz |
| Grid Connection Form: | L+N+PE |
| Total Harmonics Current Distortion (THDi): | <3% (of nominal power) |
| DC Current Injection: | <0.5% In |
| Efficiency： |
Max. Efficiency：97.60%
Euro Efficiency：96.50% MPPT Efficiency: 99.90% |
| Protection: |
DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection,
AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional), Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch, DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level |
| Over Voltage Category: | TYPE II(DC), TYPE II(AC) |
CERTIFICATIONS & STANDARDS
| Grid Regulation: | AS/NZS 4777.2 |
| Safety EMC / Standard: | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
DIMENSIONS & WEIGHT
| Weight： | 48 |
| Cabinet size (mm): | 464W x 763H x282D |
Additional Specifications
| Monitor Mode: | GPRS/WIFI/Bluetooth/4G/LAN(optional) |
| Permissible Ambient Humidity: | 0-100% |
| Permissible Altitude: | 2000m |
| Inverter Topology（solar/battery）: | Transformerless/ HF Transformer |
| Over Voltage Category: | OVC II(DC), OVC III(AC) |
SKU:
| dy-ivt-16k-sg01lp1 |
