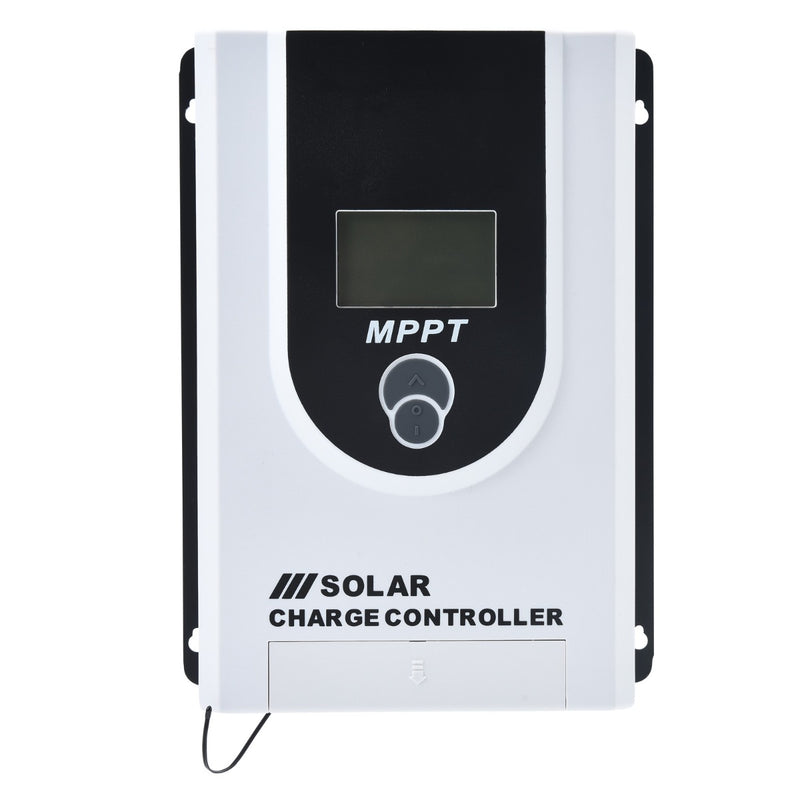

Solar Charge Controller 60A 12V/24V MPPT
Couldn't load pickup availability
60 Days
Return
12 Months
Warranty
100% Secured
Payment & Data
Year-End Flash Sale
Get 20% OFF + FREE VoltX 5000mAh Power Bank for every single-transaction purchase over $500!
Pay only $247.20
Hurry! Promo ends 31/12/24 11:59 PM AEDT.
Use Code:
YEAREND20
Selling fast. Hurry and order now to save 50%
PRODUCT HIGHLIGHTS
- 60A MPPT Regulator
- Lithium battery activation function
- 12V/24V Automatic System Recognition
- Supports Gel, Flooded, Sealed and Lithium batteries
- RJ45 PORT/RS485 communicate
Ensure optimal charging and maximise the performance of your solar setup with our MPPT solar charge controller 60A. Engineered for maximum efficiency and reliability, it seamlessly regulates power flow from your solar panels to your battery pack, which helps avoid issues such as overcharging. It’s also compatible with a wide range of battery chemistries for versatile use.
Why Choose MPPT Technology Over PWM?
When comparing PWM vs MPPT for small systems, MPPT controllers prove to be better both in terms of performance and efficiency. As the name suggests, it tracks the "maximum power point" of a solar panel, allowing it to operate at its best and generate 20-30% more energy compared to what a PWM controller can obtain.
This one in particular delivers up to 99% tracking efficiency, significantly outperforming PWM alternatives. This translates to more energy captured, faster charging, and better overall system performance.
Smart Battery Compatibility and Protection
This MPPT solar charge controller 60A automatically recognises and supports 12V and 24V systems, adjusting for smooth operation. It works well with Gel, Flooded, Sealed/AGM, and Lithium-Iron Phosphate batteries, making it a versatile must-have for any power setup. Equipped with built-in safeguards that protect against overcharging, over-discharging, reverse polarity, and other potential risks, our charge controller also helps extend the lifespan of your batteries.
User-Friendly Features
Our MPPT regulator features advanced microchip technology that ensures precise monitoring and efficient performance. Aside from this, it also has an RJ45 port that allows for communication and system integration. Easy to operate with high monitoring accuracy, this is an essential component in any solar power setup for smooth and safe operation.
Common Solar Charge Controller Issues and How To Troubleshoot Them
Overcharging or Undercharging the Battery
This often happens when the charge controller is not configured to match the battery type or solar panel output. To troubleshoot, check and adjust the controller’s settings to ensure compatibility with your system, and monitor voltage levels regularly.
Controller Not Turning On
This could be a common topic when discussing issues on PWM vs MPPT for small systems. It can be due to loose or incorrect wirings, so try to double-check all connections and ensure the controller is receiving adequate power from the solar panels.
Battery Not Charging
A damaged fuse or faulty connection might prevent charging. Inspect the wiring, replace any blown fuses, and confirm the solar panels are generating sufficient power.
Experience the superior performance and reliability of this MPPT solar charge controller 60A and bring out the best in your solar power system. Shop yours at Outbax now!
To properly wire your solar charge controller, click here.
SPECIFICATIONS
| Rated Charge Current: | 60A |
| System Rated Voltage: | 12V/24V Auto Recognized |
| Maximum Battery Voltage: | 8V-32V |
| Static Loss: | 50mA |
| HVD: | Lead acid battery 16V |
| Light Control Voltage: | 5V/10V/15V/20V |
| LCD Temperature: | -20℃~+70℃ |
| Operating Temperature: | -20℃~+55℃ |
| Storage Temperature: | -30℃~+80℃ |
| Protection Class: | IP30 |
| Grounded Type: | Positive grounded |
DIMENSIONS
| Dimensions: | 261mm x 191mm x 84mm |
WHAT'S IN THE BOX
| 1 x | MPPT Controller |
SKU:
| scm-mpj60-60a |
