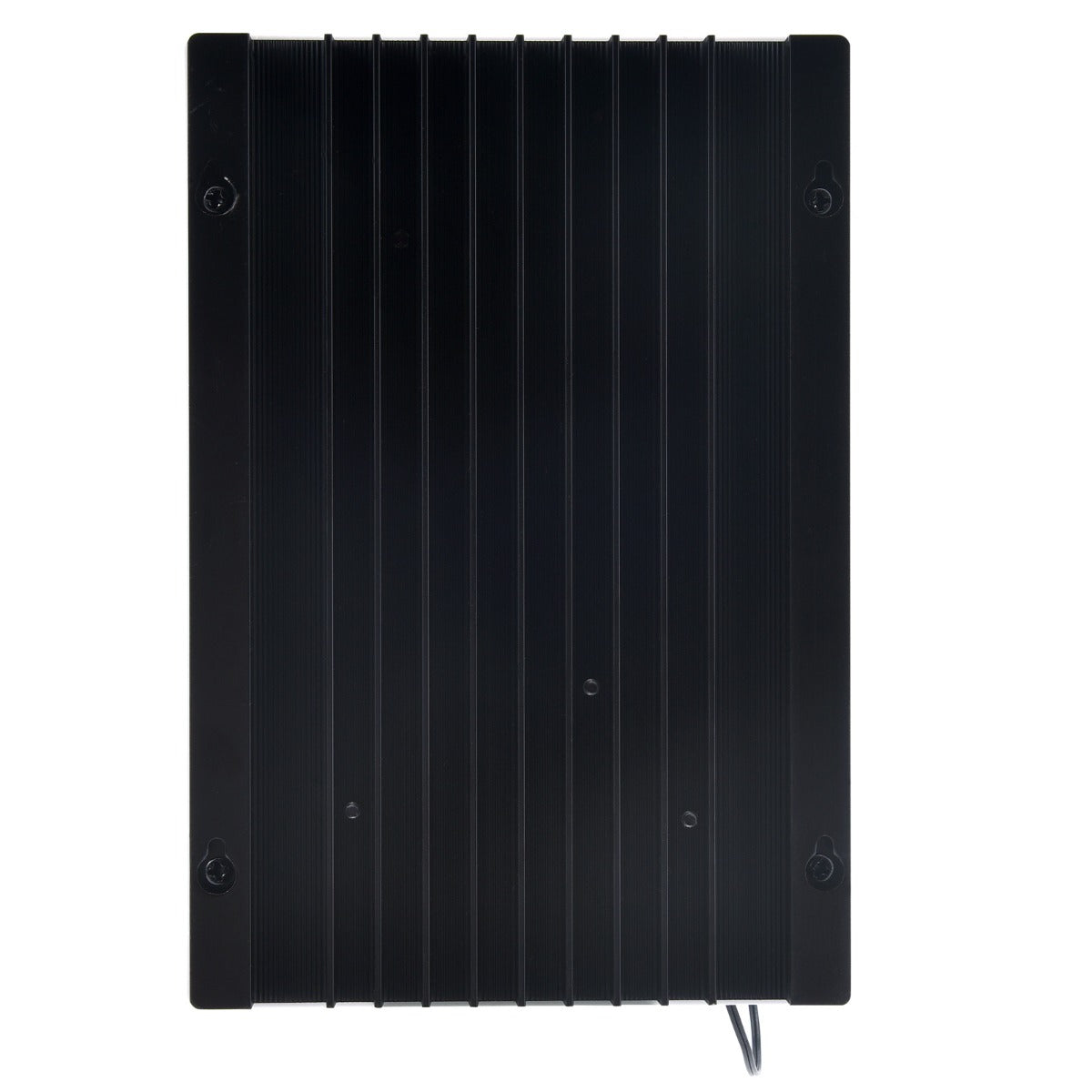

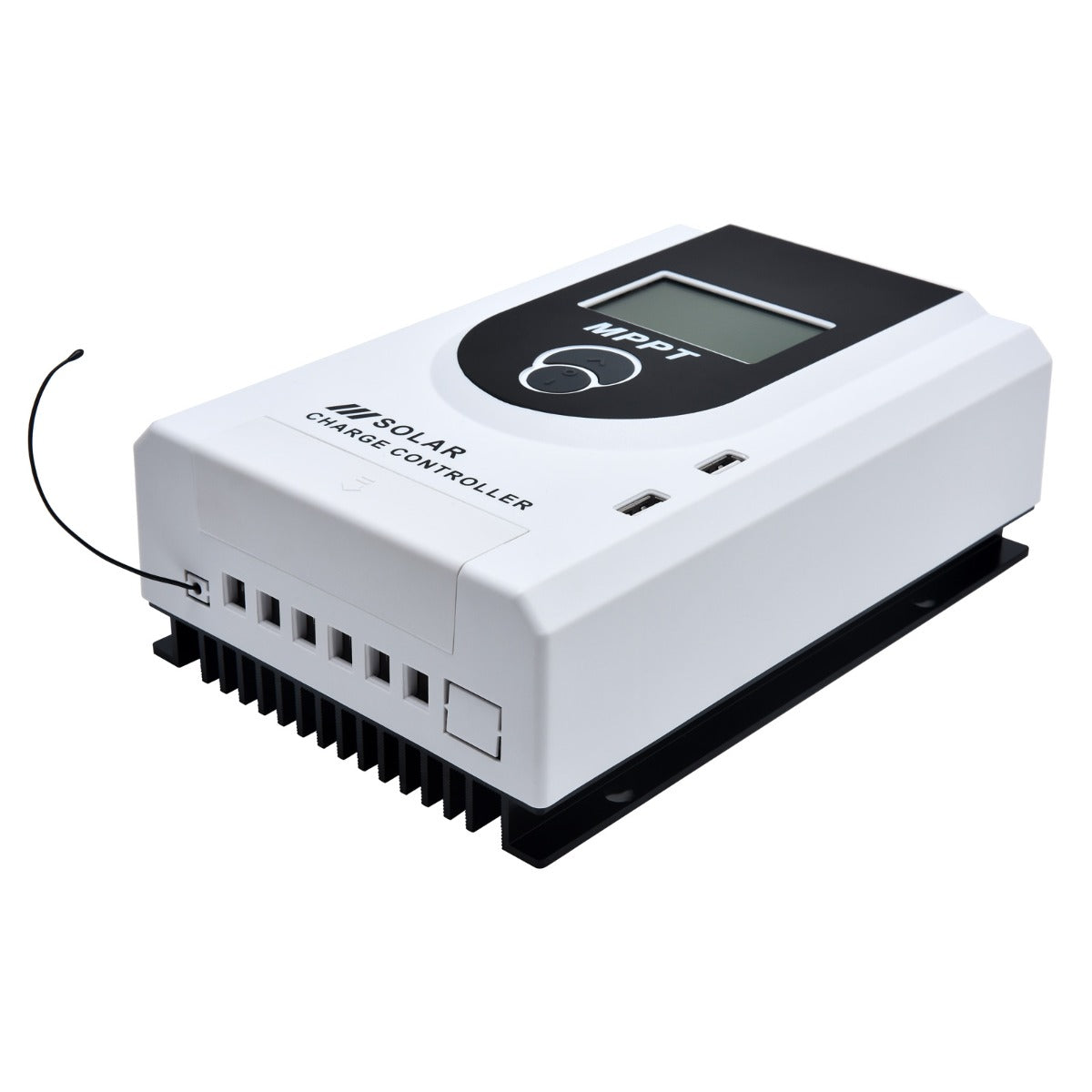

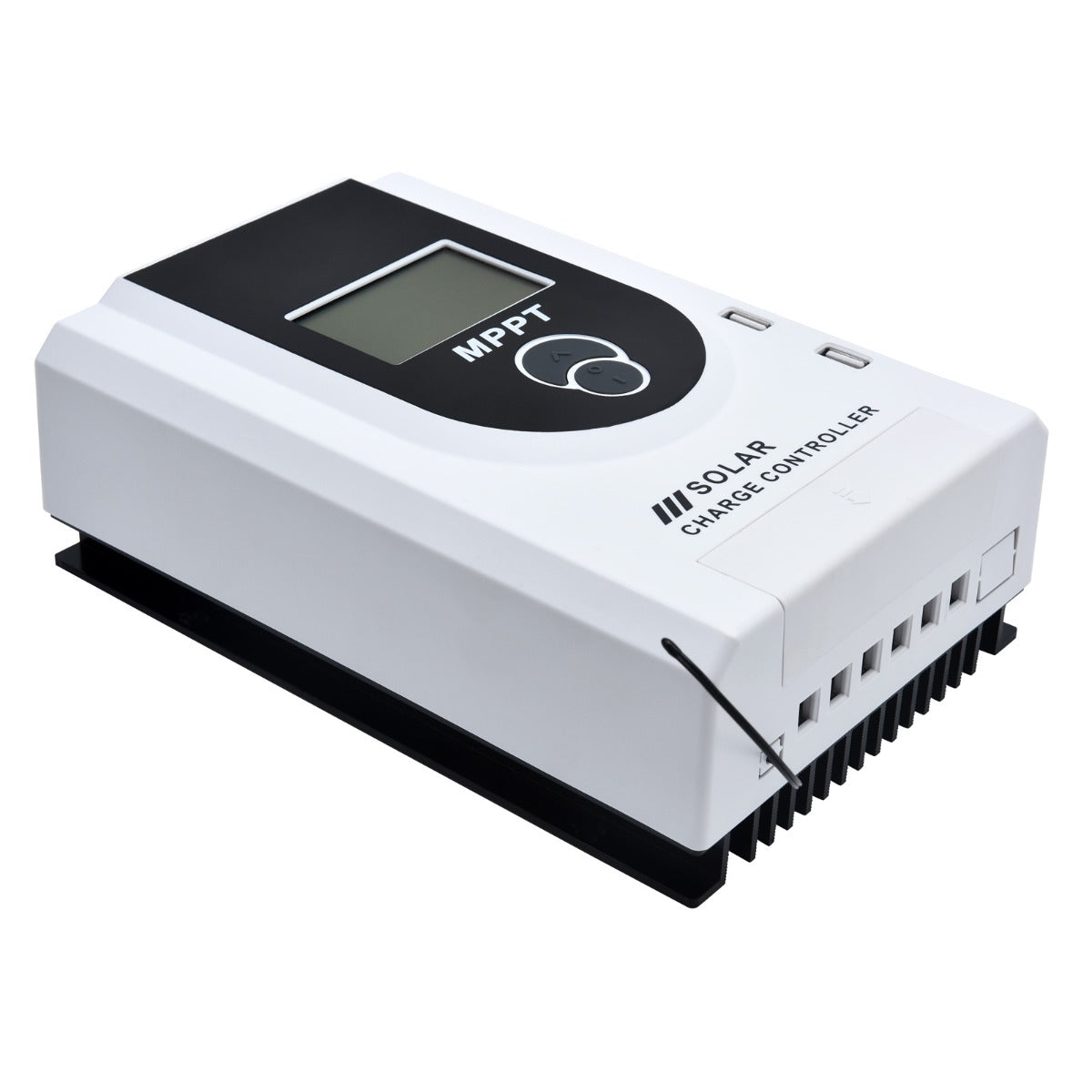

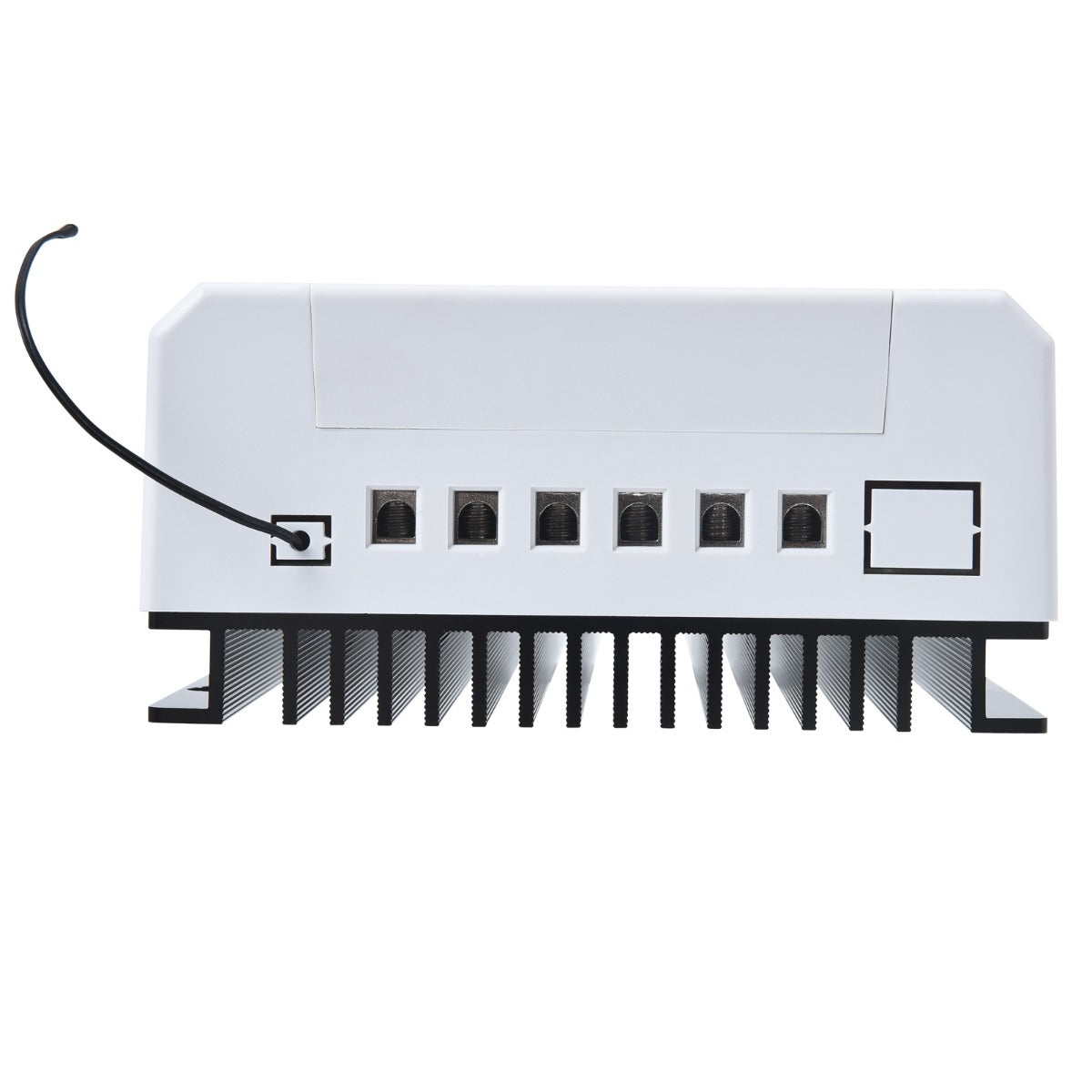

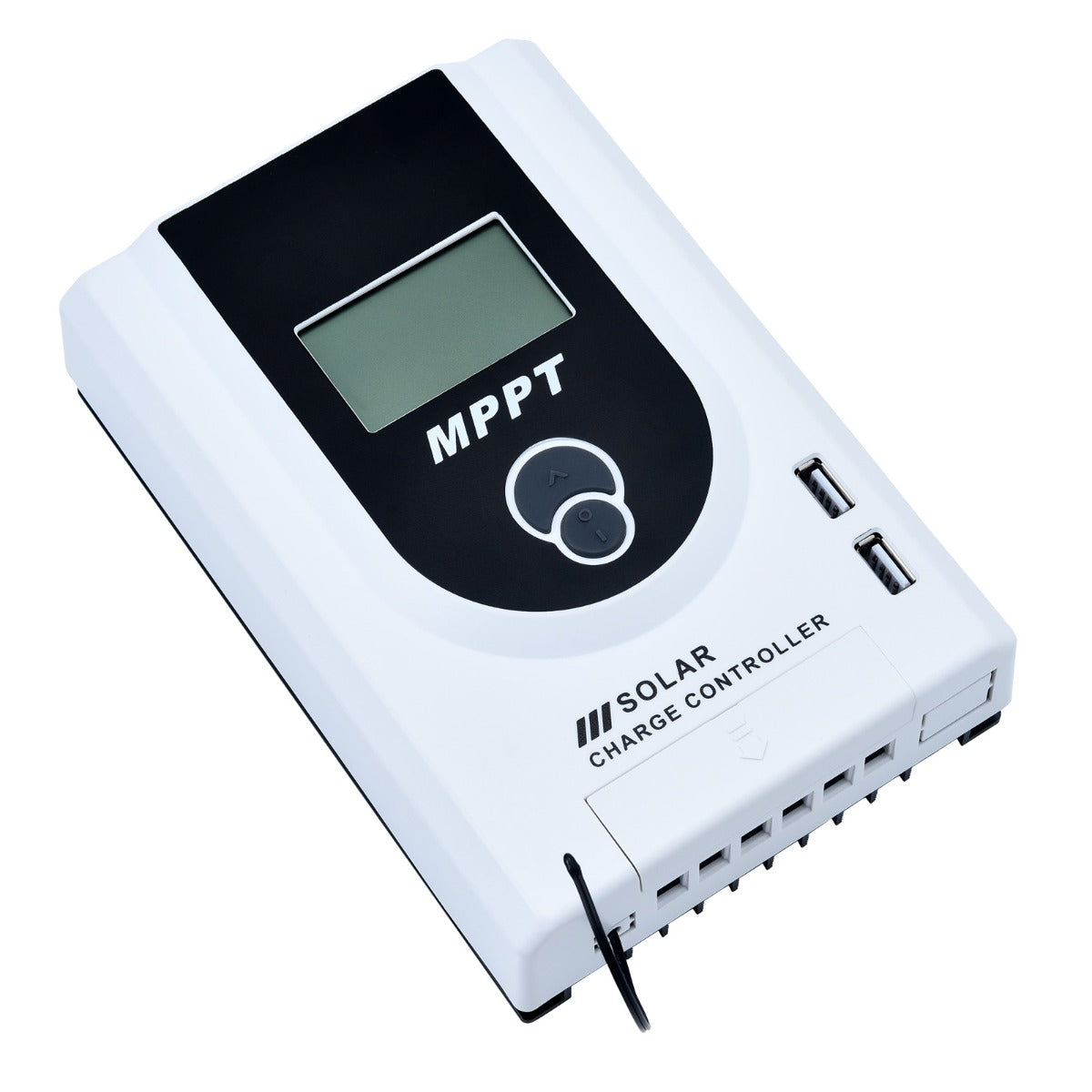

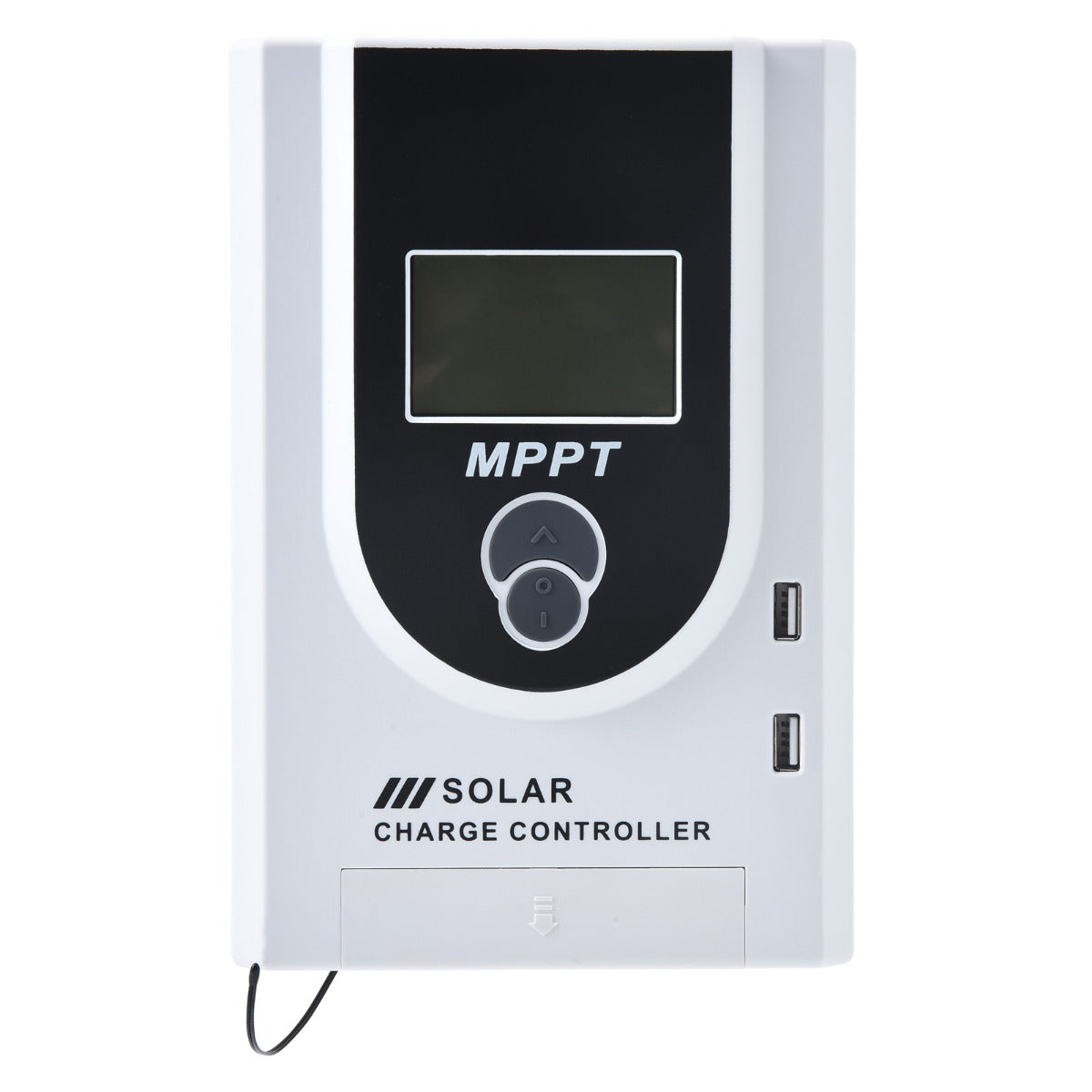

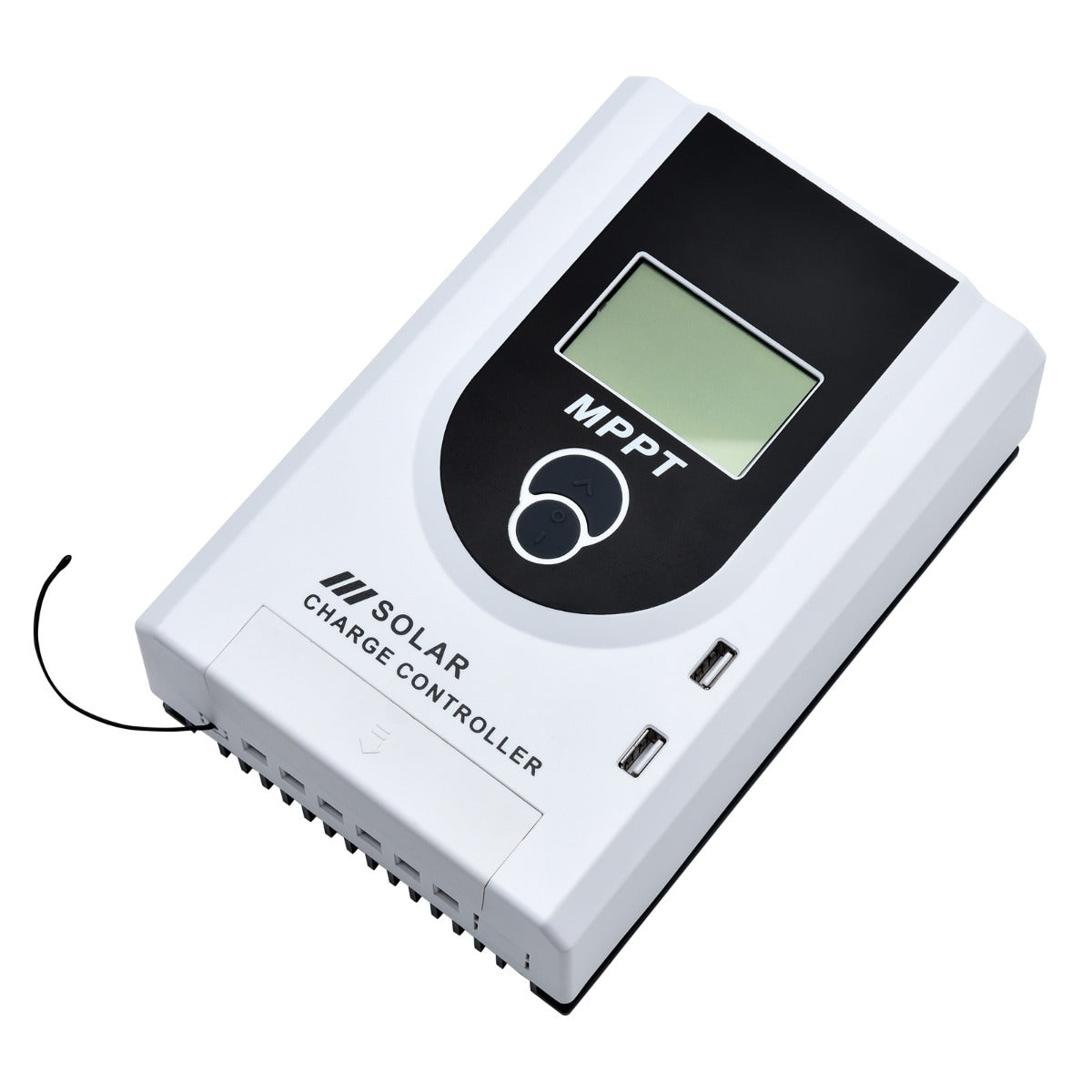

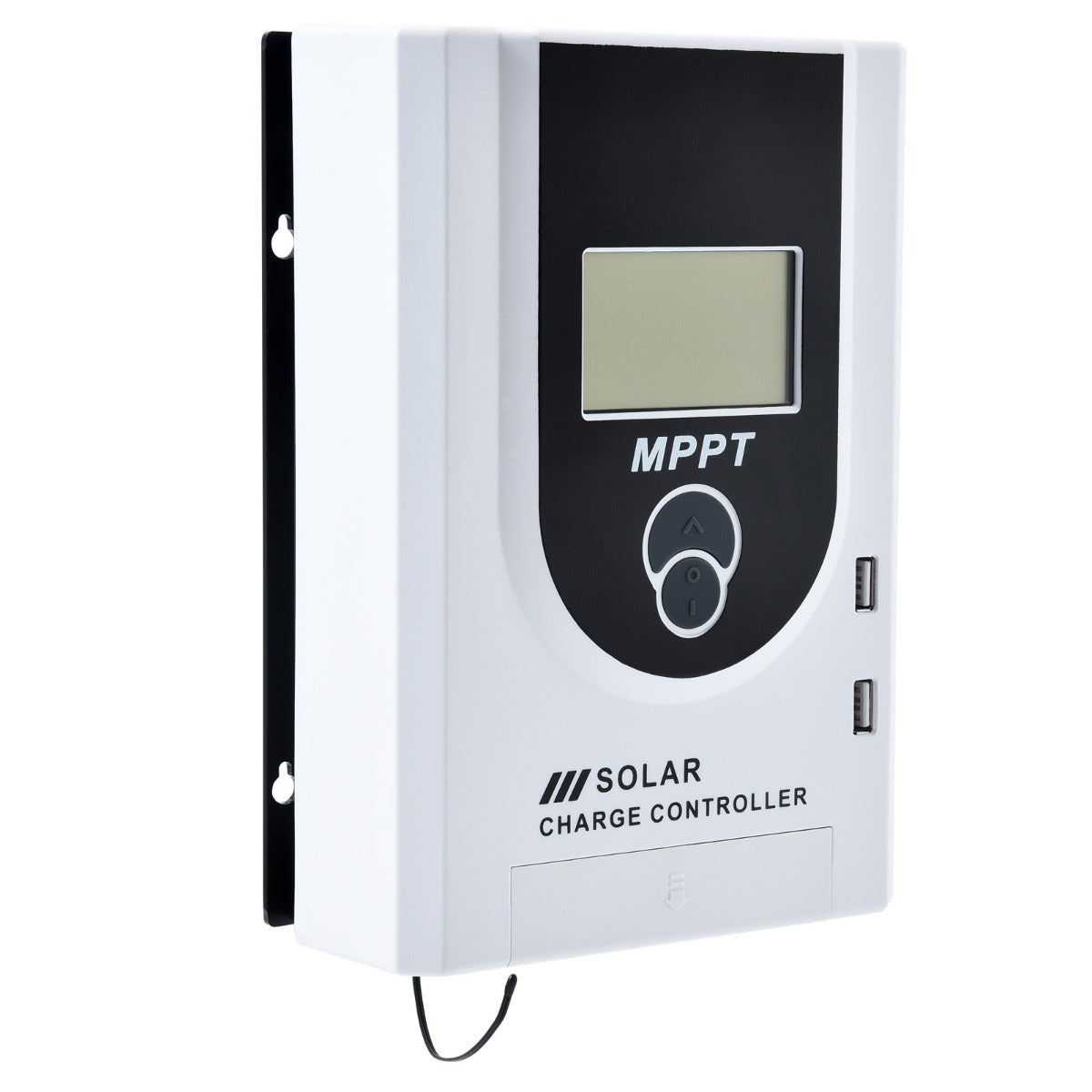

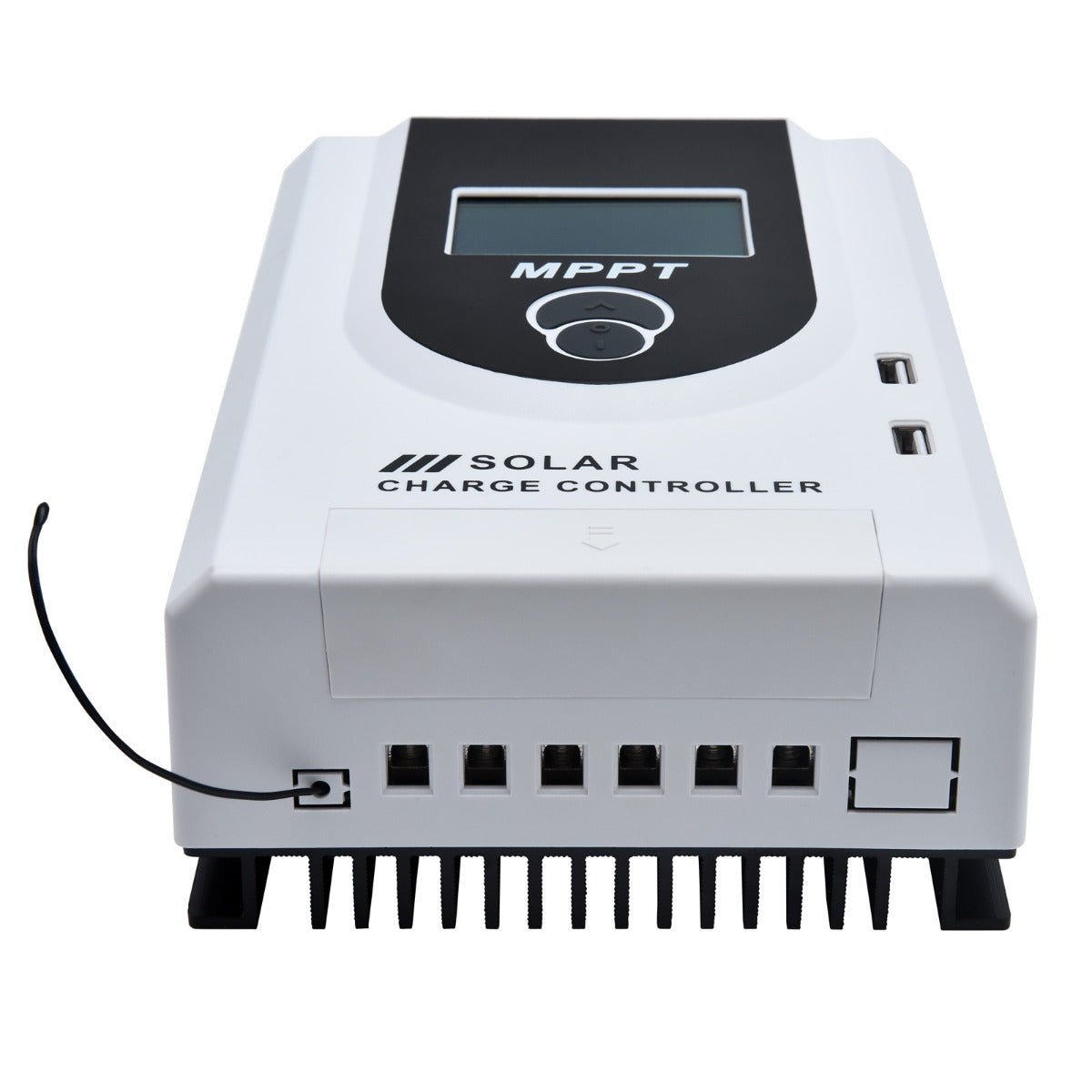

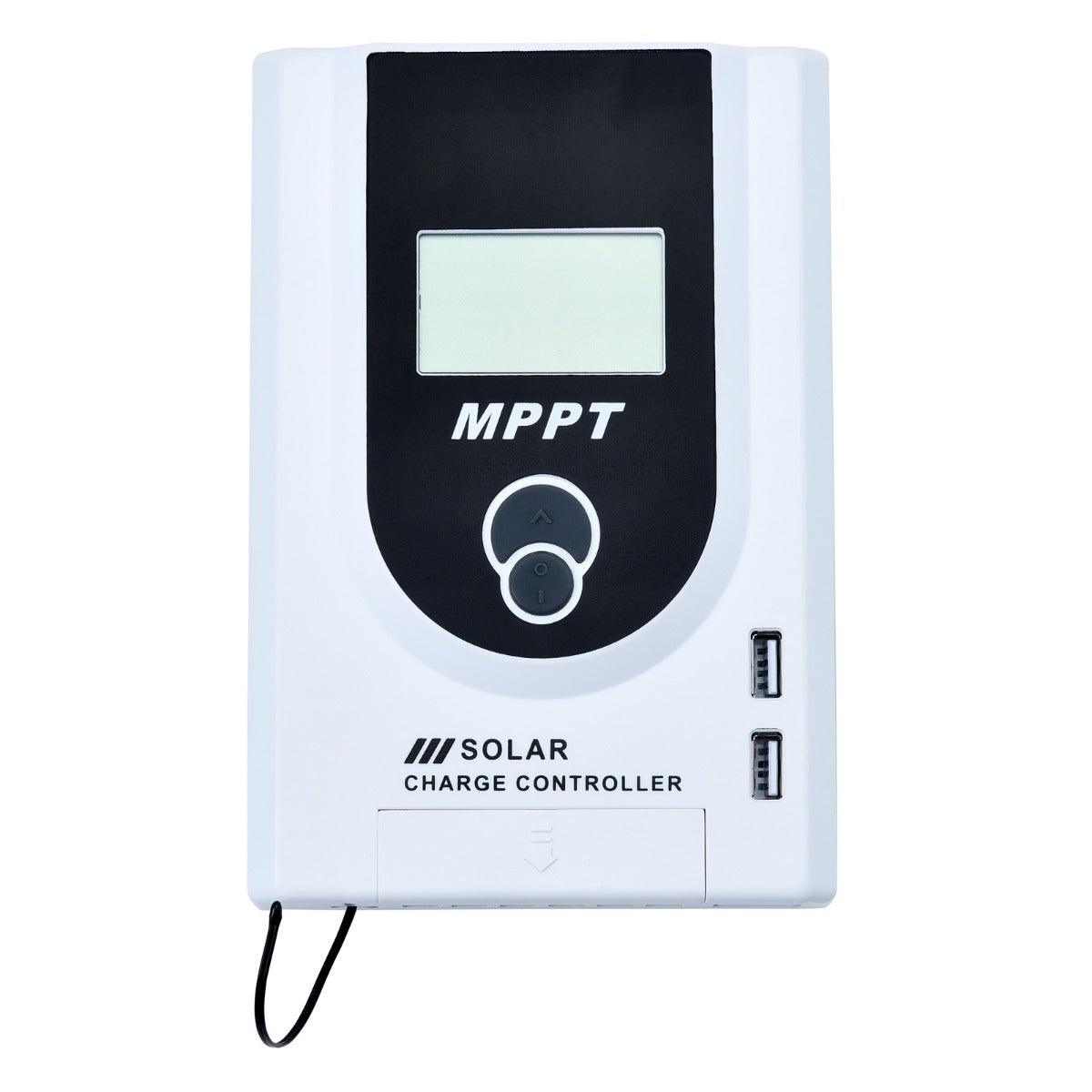

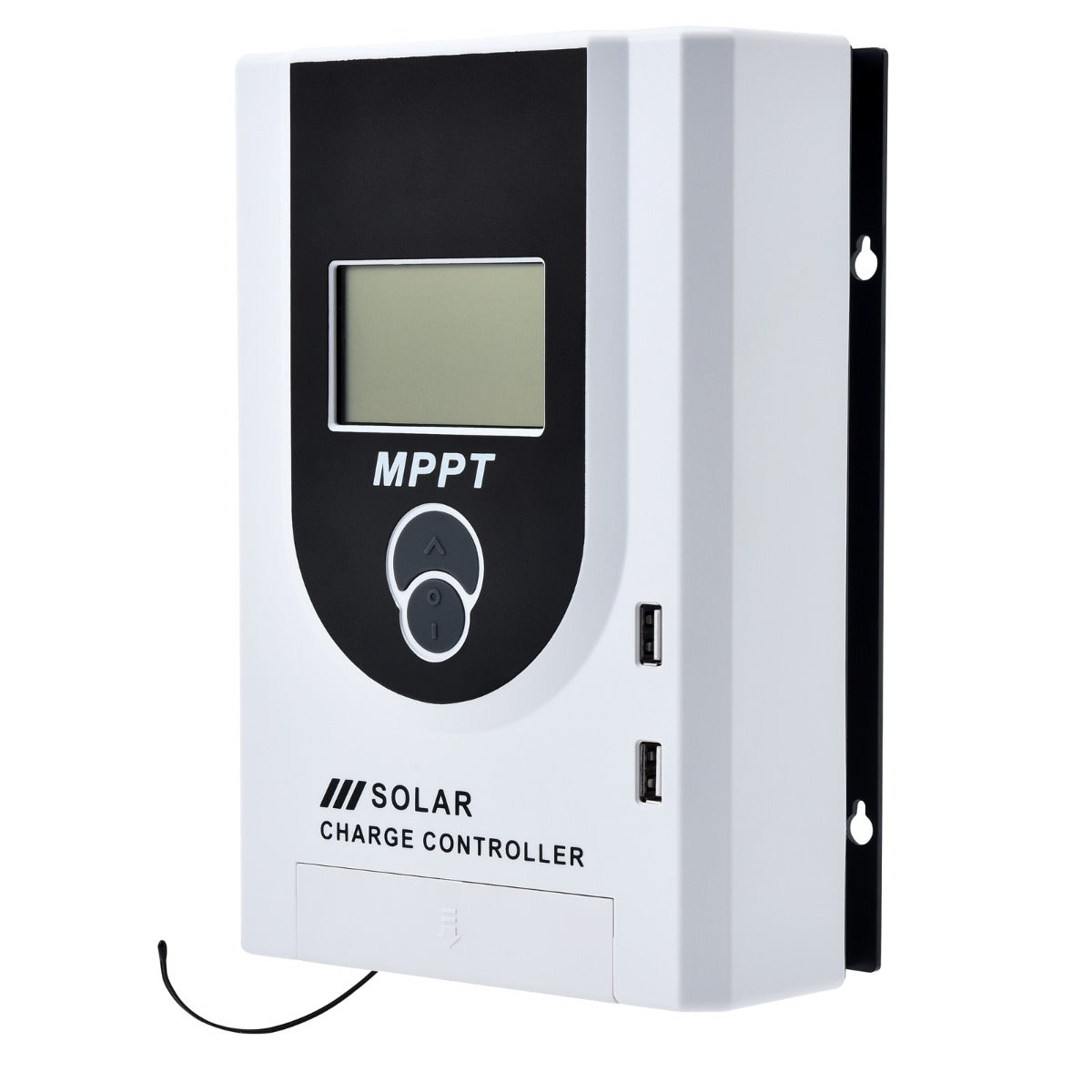

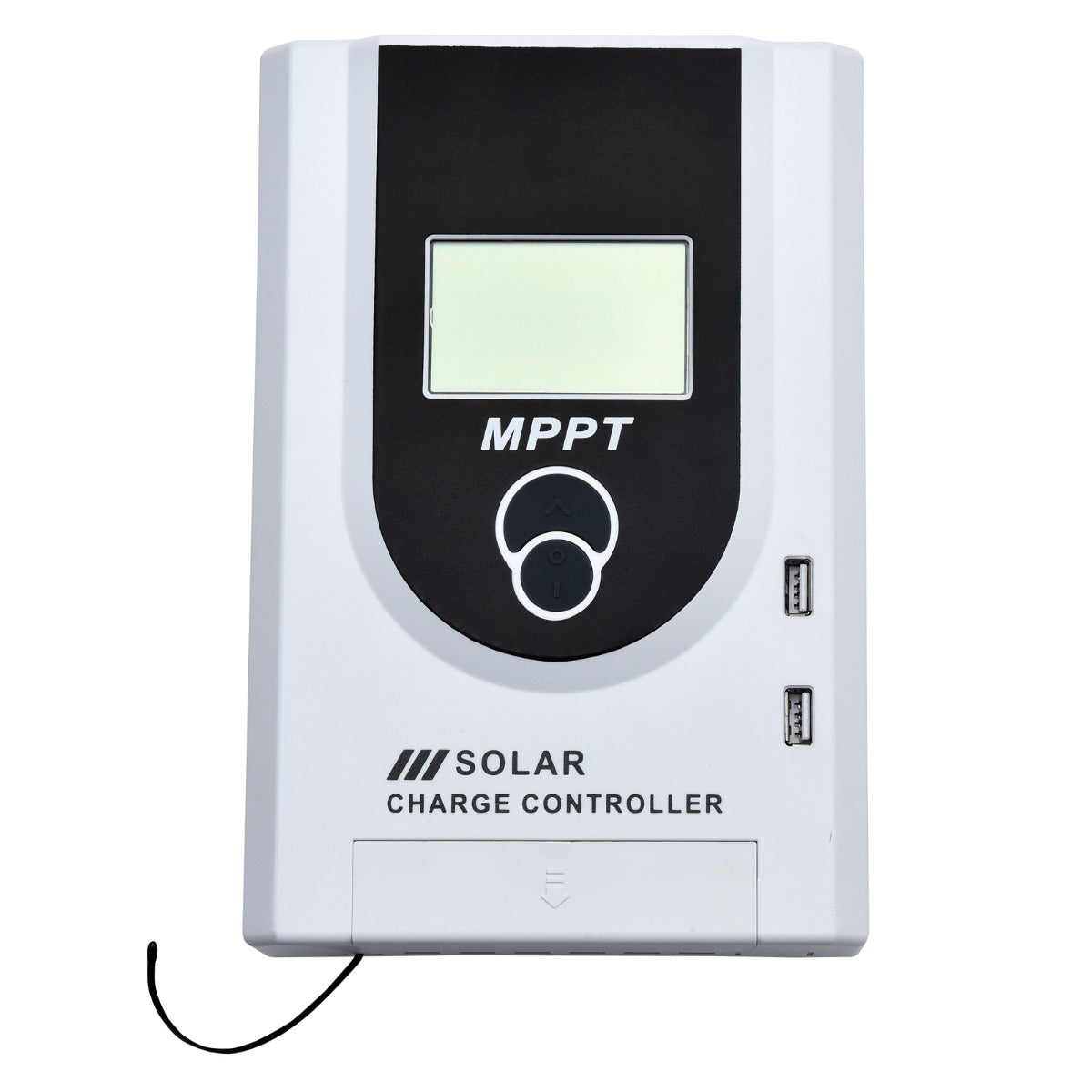

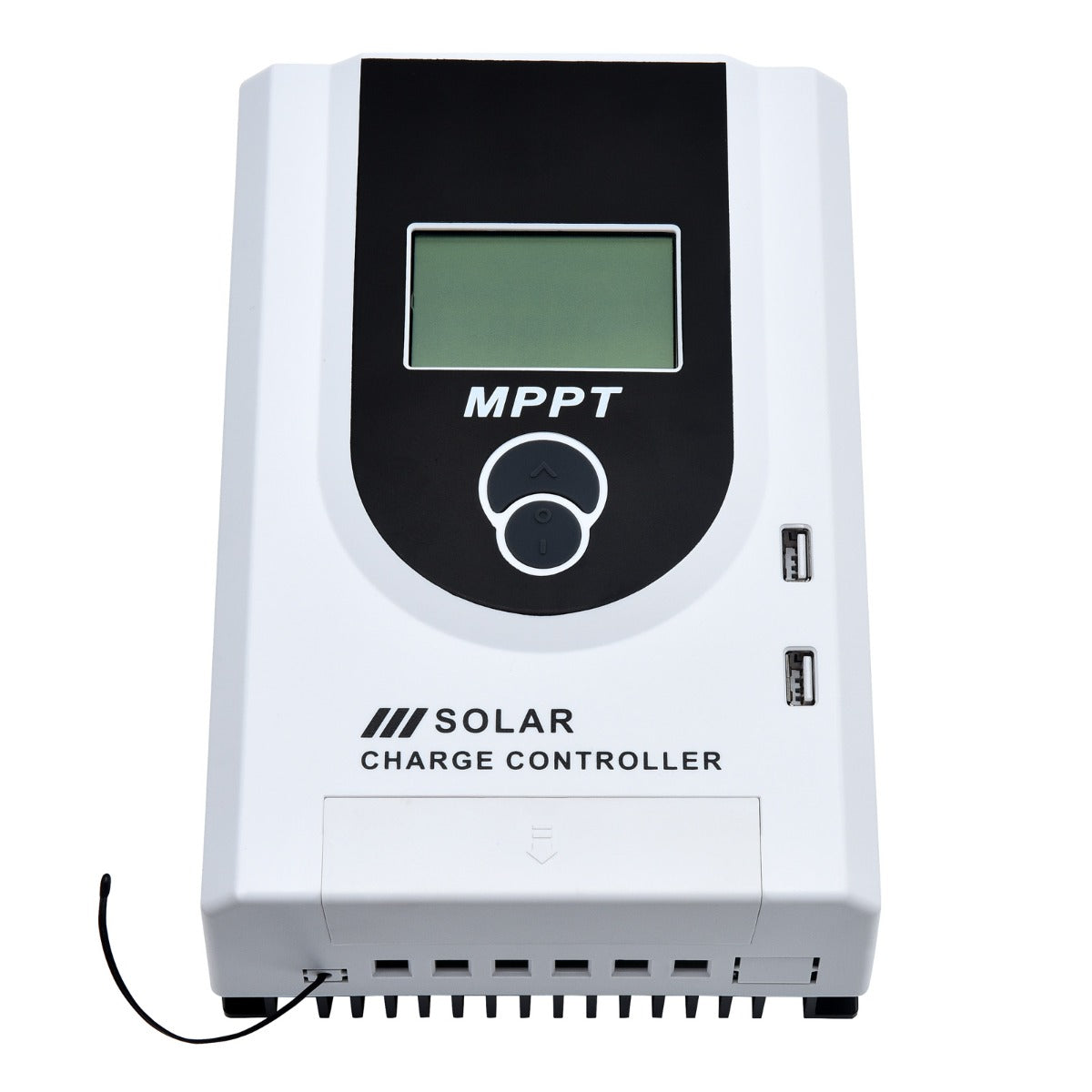

Solar Charge Controller 40A 12V/24V MPPT
Couldn't load pickup availability
60 Days
Return
12 Months
Warranty
100% Secured
Payment & Data
Selling fast. Hurry and order now to save 50%
PRODUCT HIGHLIGHTS
- 40A MPPT Regulator
- Lithium battery activation function
- 12V/24V Automatic System Recognition
- Supports Gel, Flooded, Sealed and Lithium batteries
- RJ45 PORT/RS485 communicate
Our 40A MPPT Charge Controller is the most efficient type of charge controller. With up to 99% tracking efficiency, it ensures maximum power point solar charging that gets more energy to your battery bank. Capable of automatically detecting 12V/24V lead acid battery systems, this crucial component is preset to also work With Gel, Flooded (wet cell), Sealed, and even Lithium batteries.
Features:
12V /24V Automatic System Recognition.
Embedding Imported Advanced Microchips - Higher Monitoring Accuracy & Better Battery Protection.
Advanced MPPT Technology With up to 99% high tracking efficiency, and Lithium-reawakening feature.
4 Deep Cycle Battery Compatible: Gel, Flooded, Lithium-Iron Phosphate and Sealed/AGM.
Multiple Electronic Protection Features, including over-charging, over-discharging, reverse polarity, over-load, and over-temperature.
RJ45 PORT/RS485 communicatee
To properly wire your solar charge controller, click here.
SPECIFICATIONS
| Rated Charge Current: | 40A |
| System Rated Voltage: | 12V/24V Auto Recognized |
| Maximum Battery Voltage: | 8V-32V |
| Static Loss: | 50mA |
| HVD: | Lead acid battery 16V |
| Light Control Voltage: | 5V/10V/15V/20V |
| LCD Temperature: | -20℃~+70℃ |
| Operating Temperature: | -20℃~+55℃ |
| Storage Temperature: | -30℃~+80℃ |
| Protection Class: | IP30 |
| Grounded Type: | Positive grounded |
DIMENSIONS & WEIGHT
| Dimensions: | 215mm x 145mm x 75mm |
| Weight: | - |
WHAT'S IN THE BOX
| 1 x | MPPT Controller |
SKU:
| scm-mpj40-40a |
