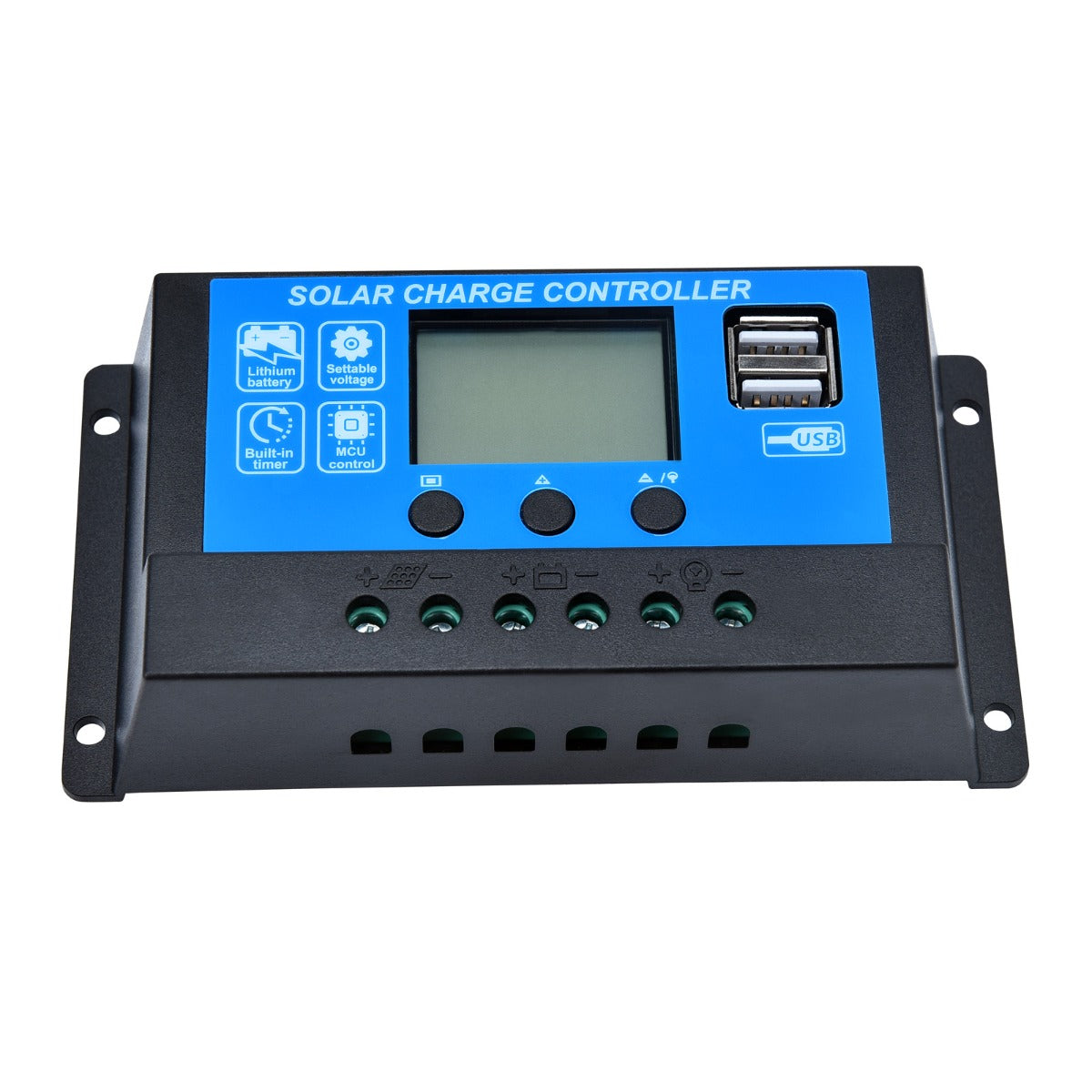

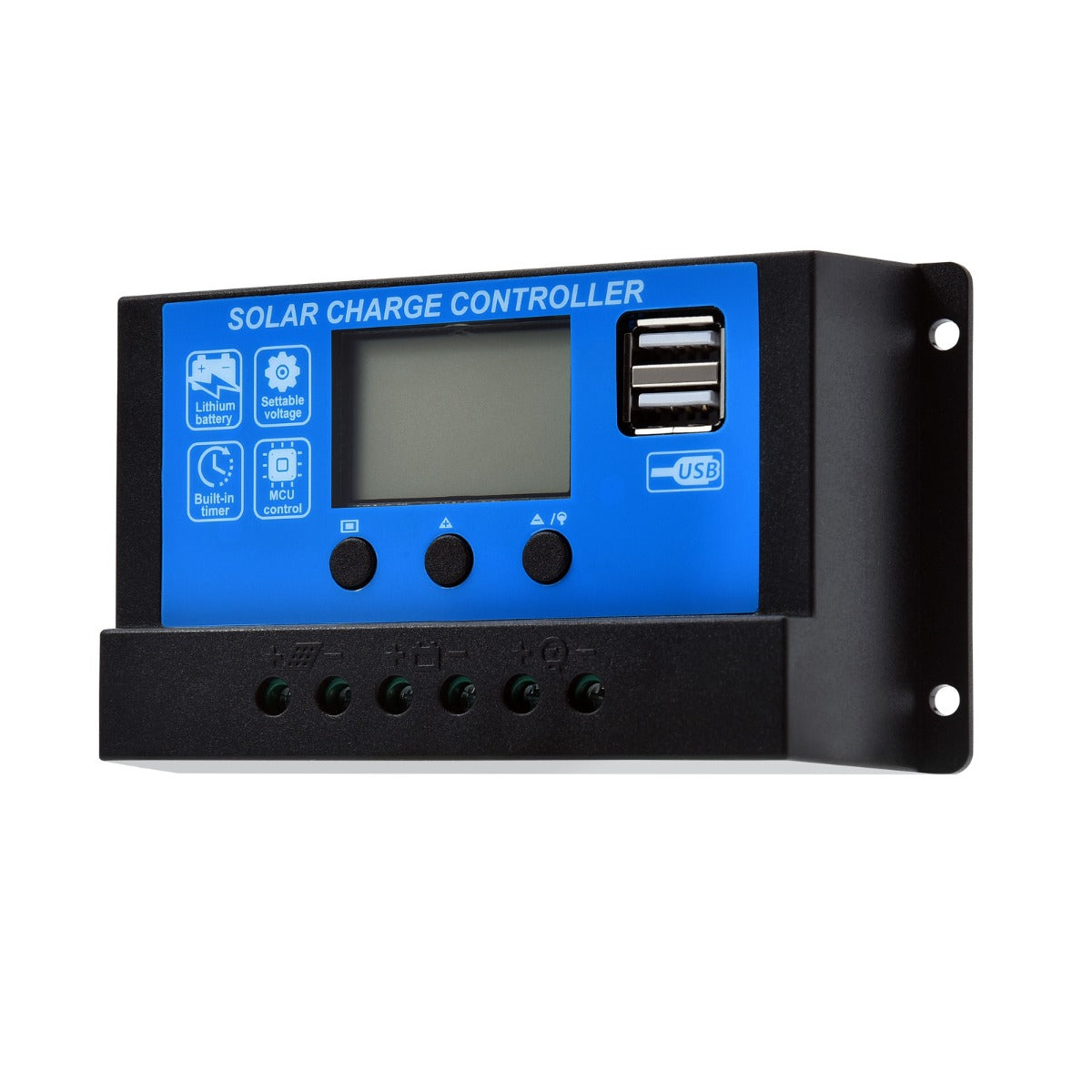

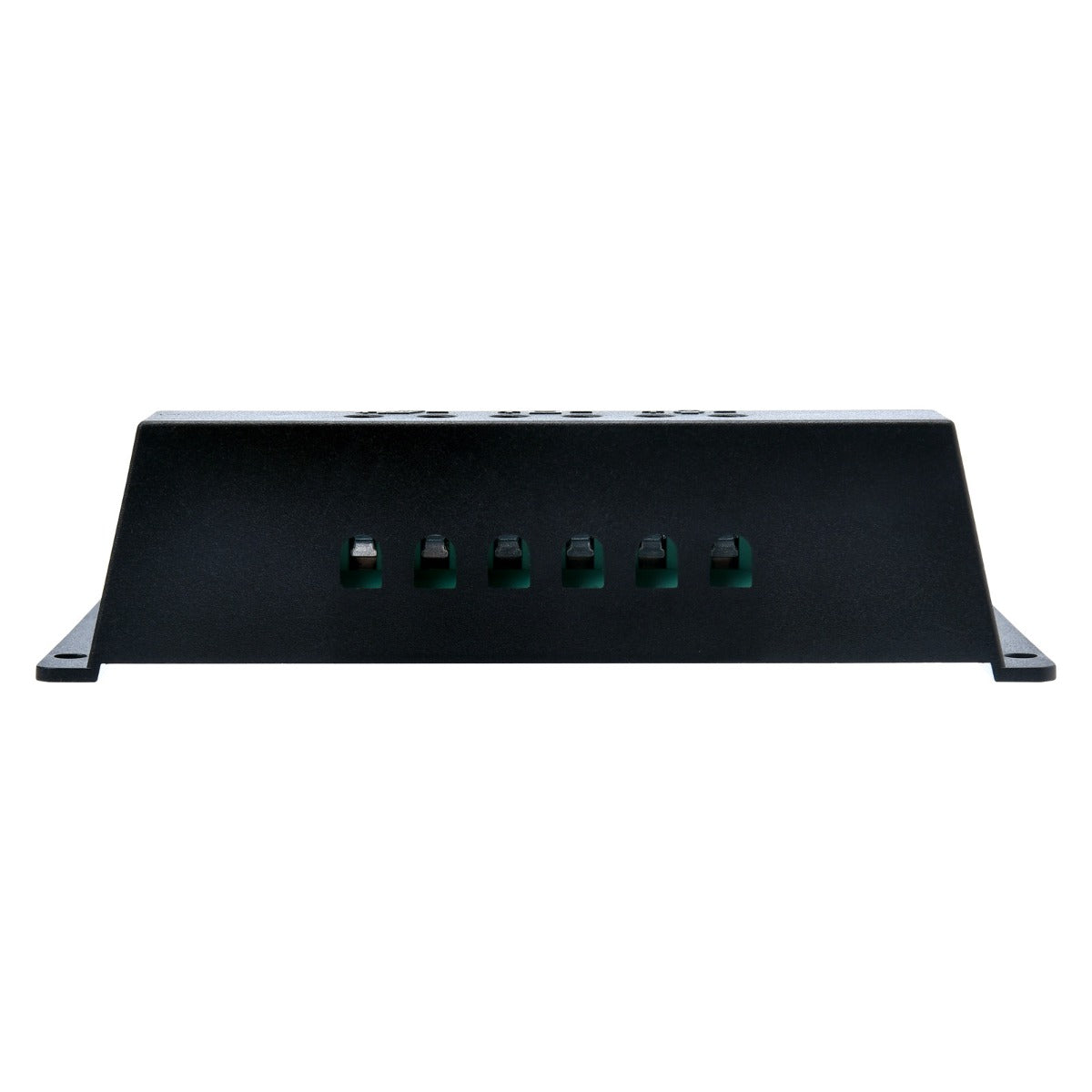

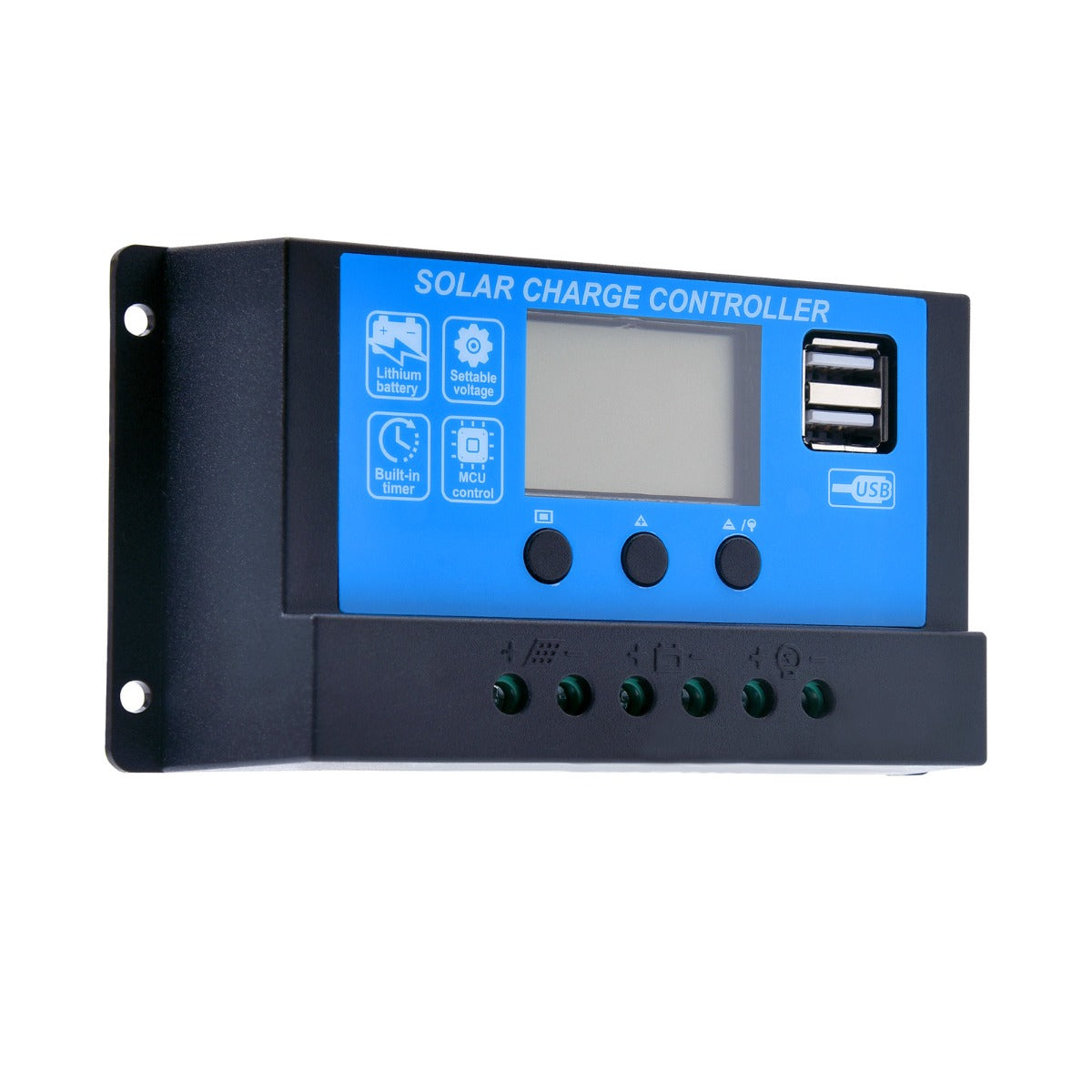

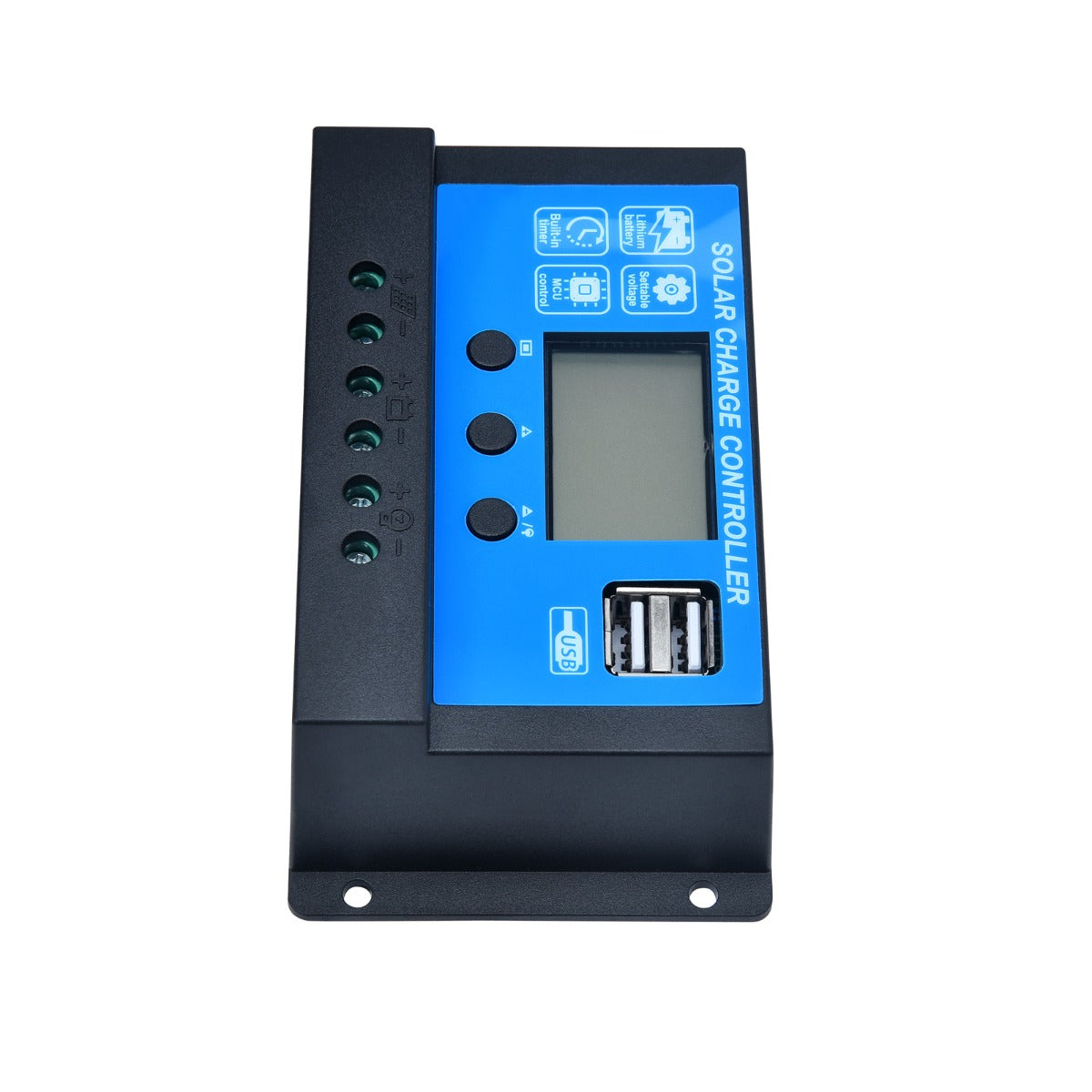

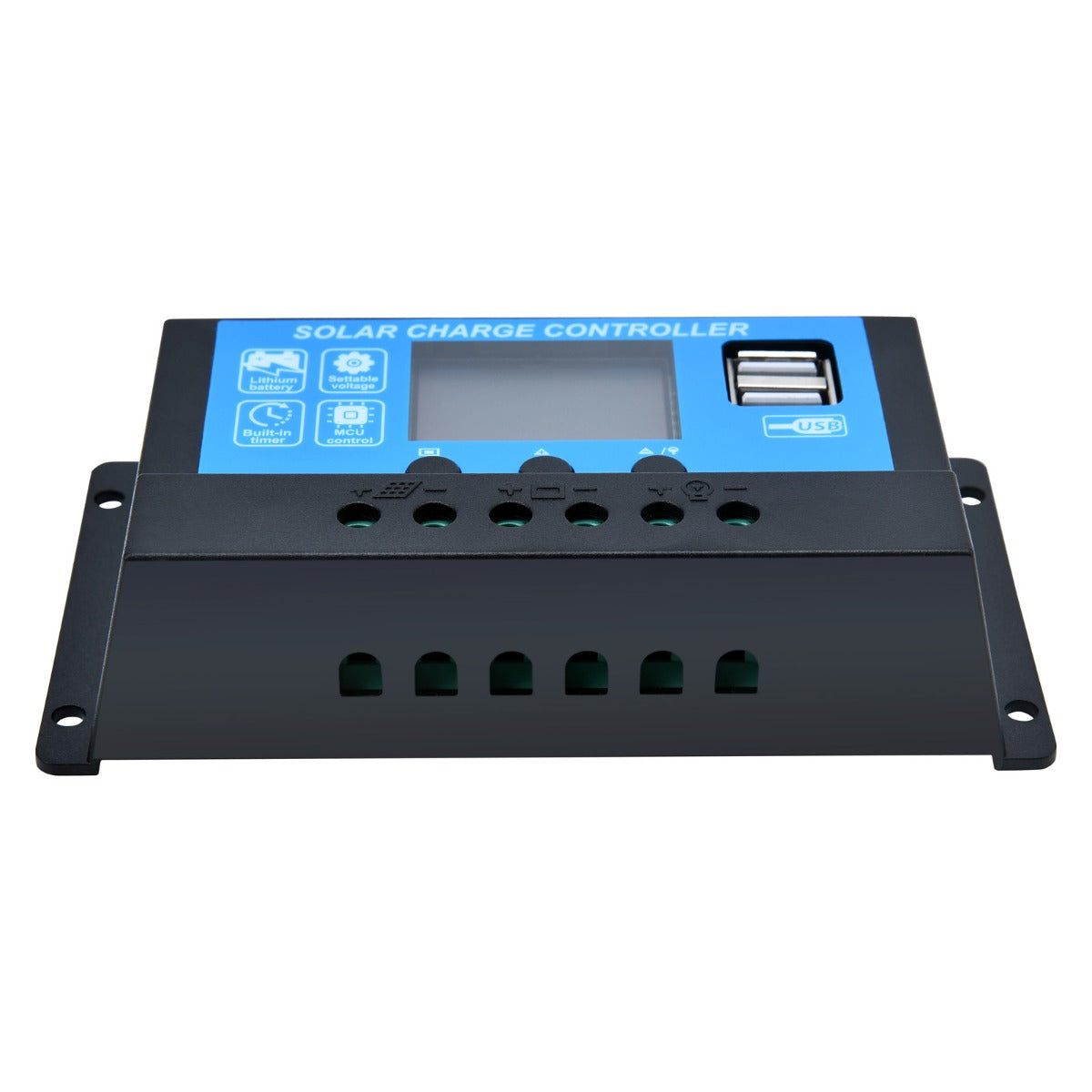

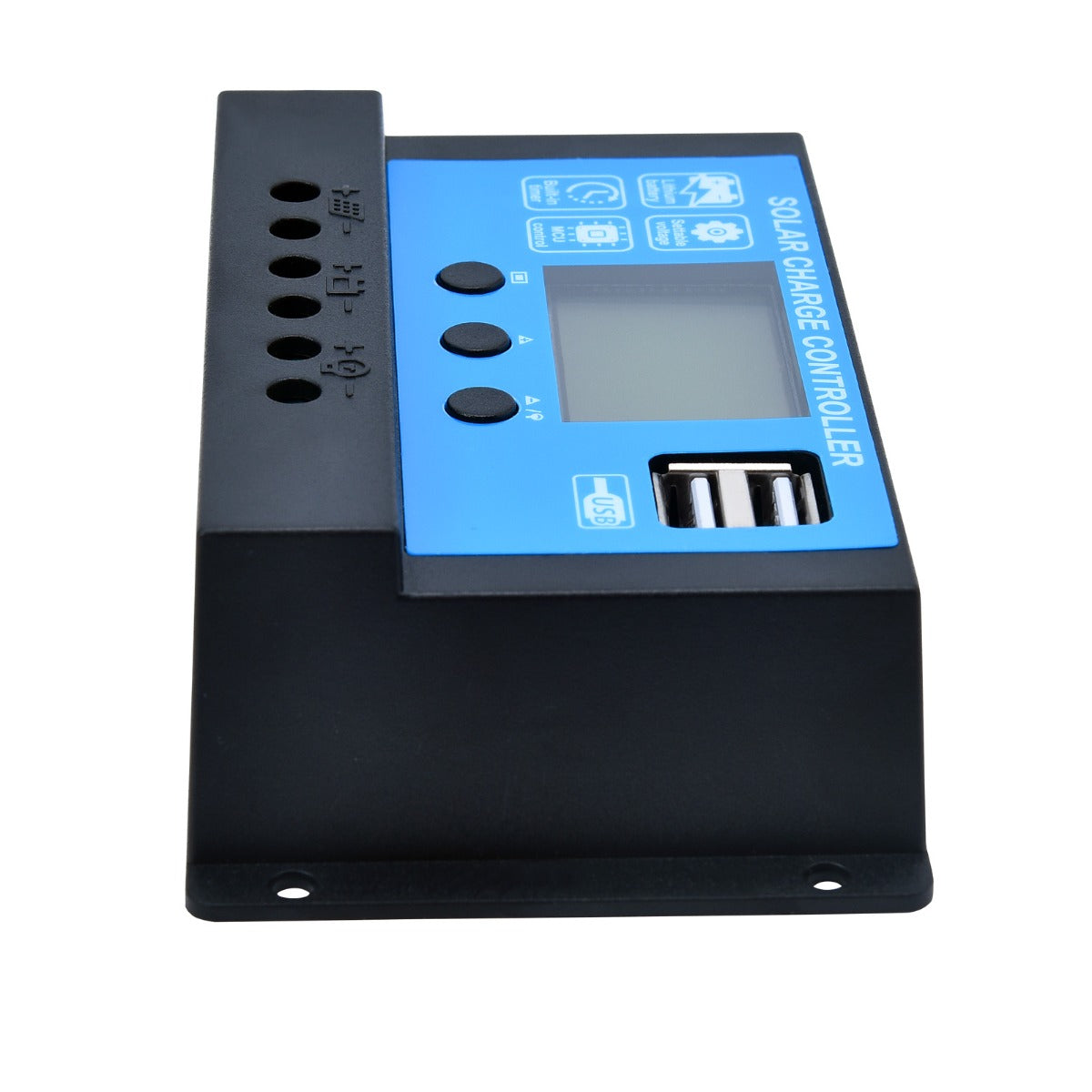

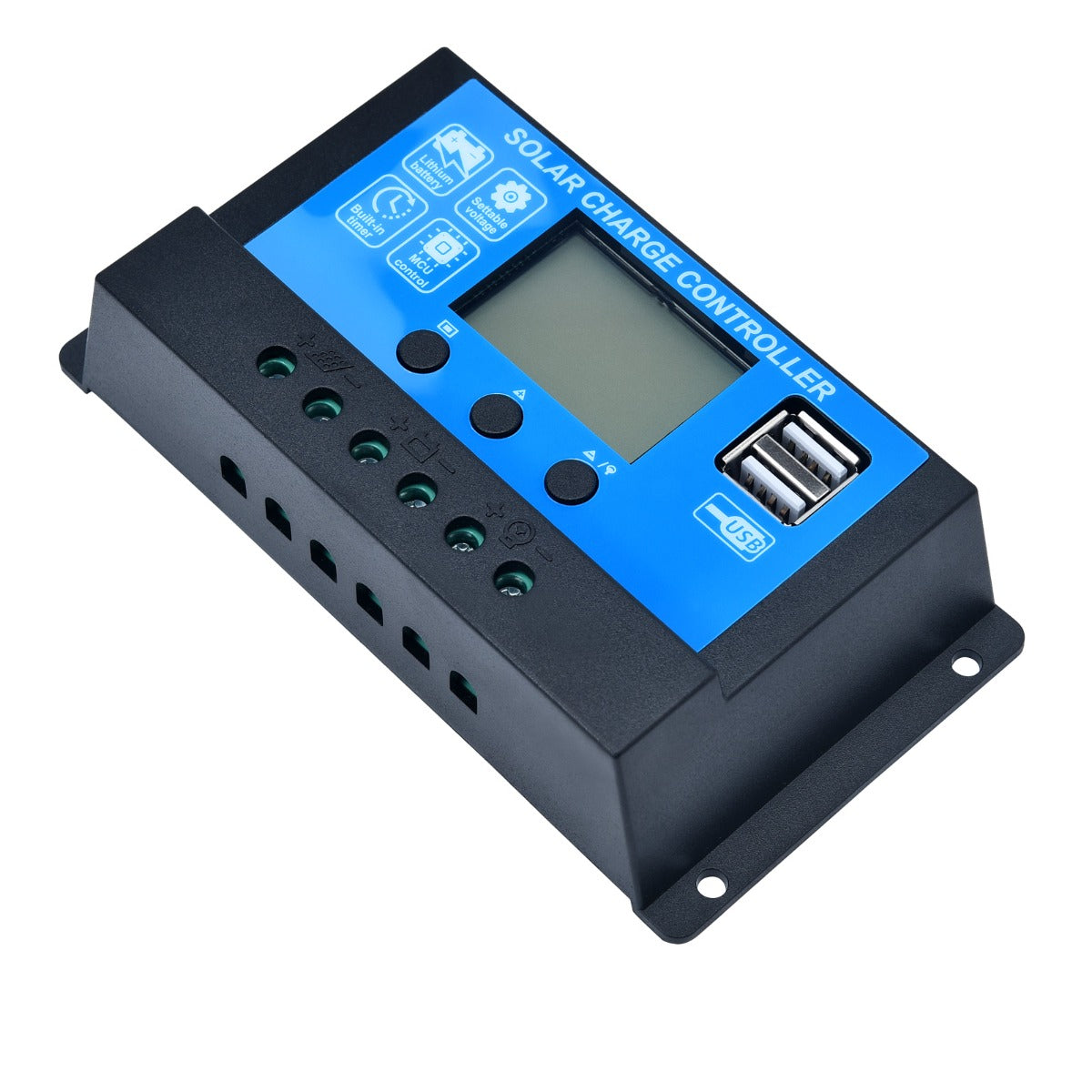

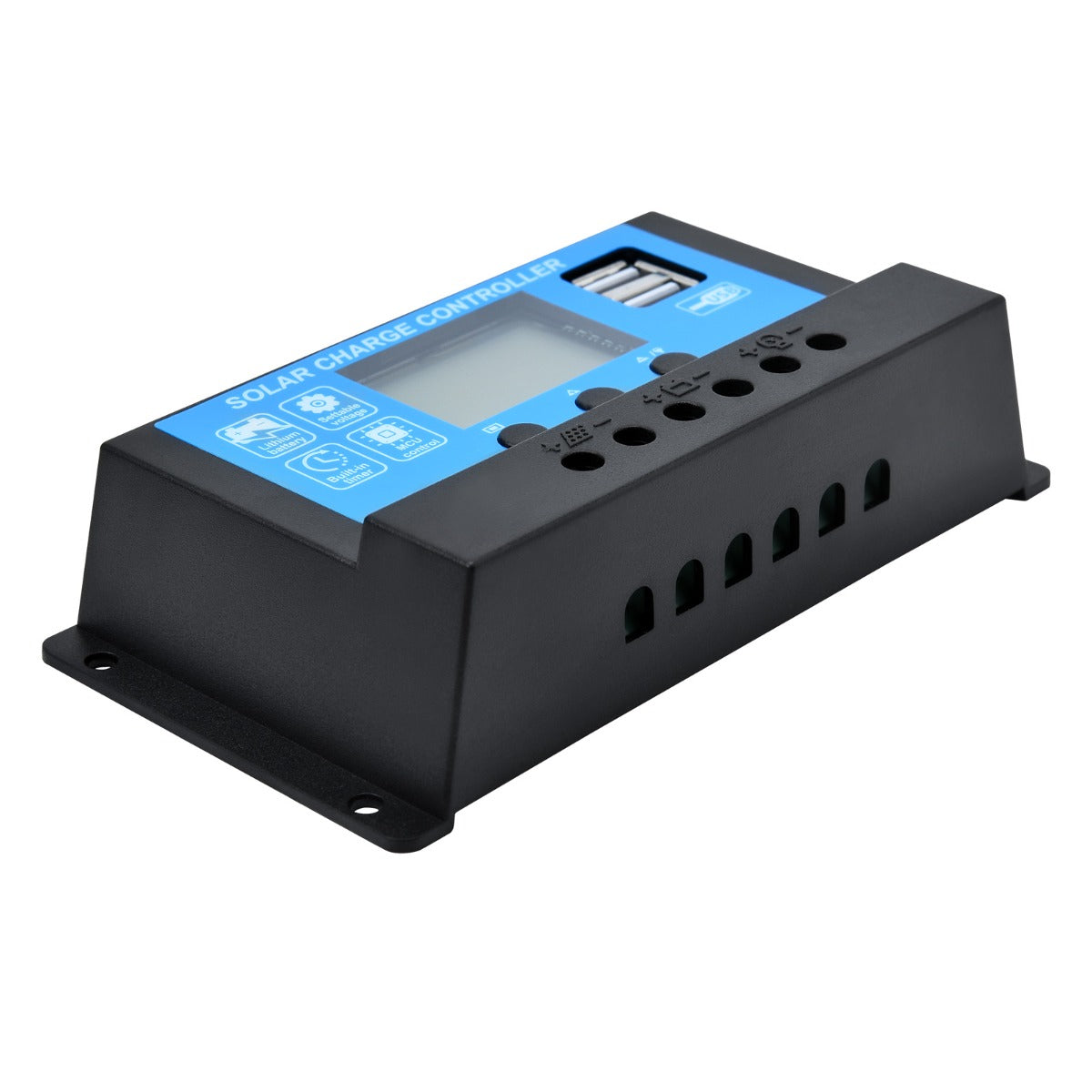

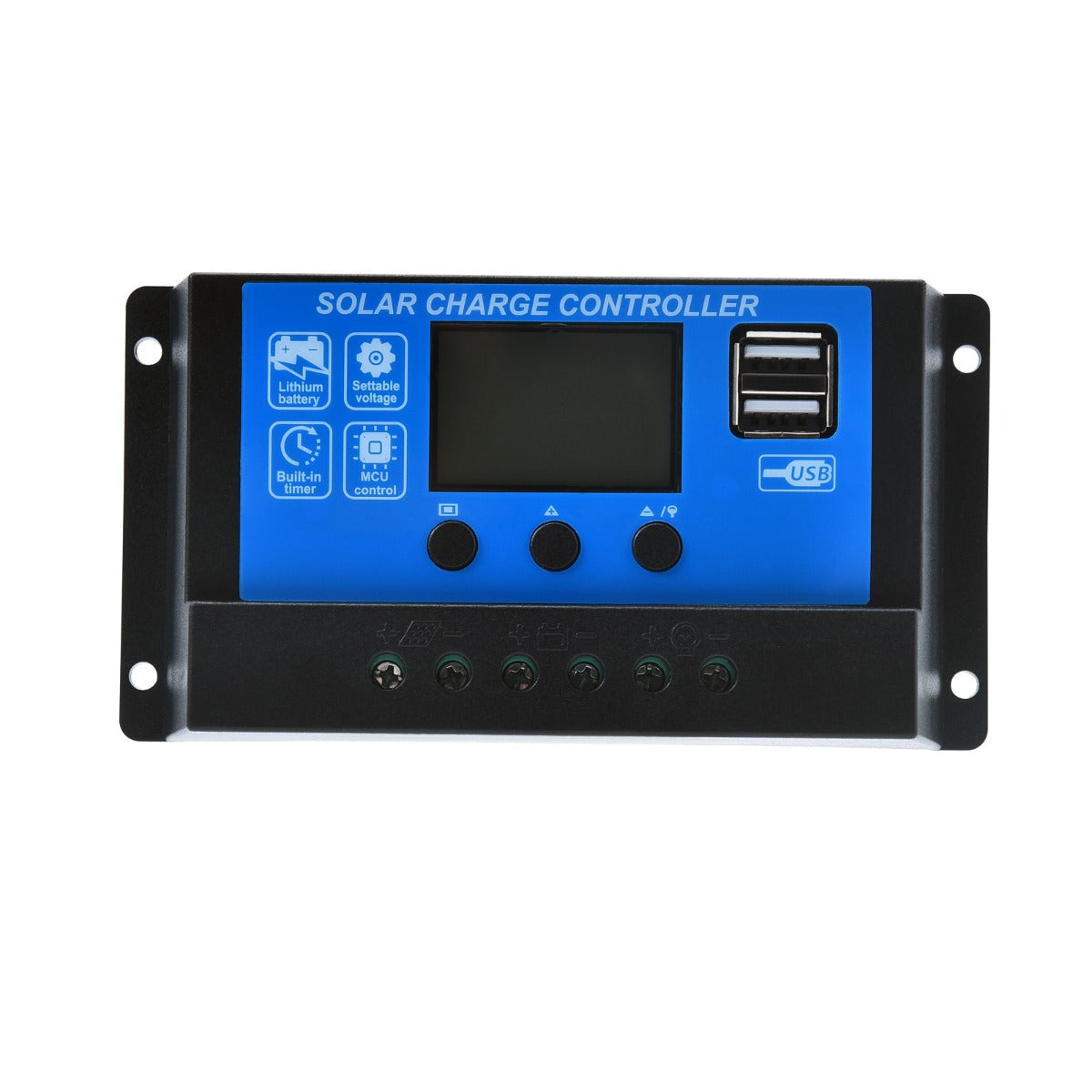

12V/24V 20A PWM Solar Panel Battery Regulator Charge Controller - LCD USB
Couldn't load pickup availability
60 Days
Return
12 Months
Warranty
100% Secured
Payment & Data
Selling fast. Hurry and order now to save 56%
PRODUCT HIGHLIGHTS
- 20A PWM Regulator
- Lithium battery activation function
- Fully 3-stage PWM charge management
- Dual USB ports
- Suitable for Flooded, AGM, GEL and Lithium batteries
Our solar charge controller is definitely born to guarantee full control of electrical flows and protection. It features PWM 3-stage charging process--bulk, absorption and float stage-- for a rapid, intelligent and safe charging to batteries including Lead acid, AGM And Gel. Over temperature protection, over current, over power, low voltage, over voltage are integrated to safeguard your solar panel. And overcharging, over-discharging . dual USB ports are designed to offer more convenience in charging electronic devices. Last but not the least, it features a large screen LCD display which is controlled by intelligent chip With low power consumption and long life. Providing you a real-time view of the input, output and battery conditions.
To properly wire your solar charge controller, click here.
SPECIFICATIONS
| Material: | ABS |
| System voltage: | 12V / 24V Auto |
| Rated charge current: | 20A |
| Max Solar Input: | <50V |
| Float charge voltage: | 13.7V (adjustable) |
| Discharge stop: | 10.7V (adjustable) |
| Discharge reconnect: | 12.6V (adjustable) |
| Suitable battery: | Flooded, AGM, GEL, & Lithium batteries |
| USB output: | 5V/2A |
| Operating temperature: | -35°-60° |
| Self-consume: | <10mA |
| Colour: | Blue and black |
DIMENSIONS & WEIGHT
| Dimensions: | 133 x 70 x 34mm |
| Weight: | 154g |
WHAT'S IN THE BOX
| 1 x | PWM Controller |
SKU:
| scp-at10-20a |
