PRODUCT HIGHLIGHTS
- 20A MPPT Regulator
- Lithium battery activation function
- 12V/24V Automatic System Recognition
- Multiple Electronic Protection
- Supports Gel, Flooded, Sealed and Lithium batteries
Calculate shipping COST

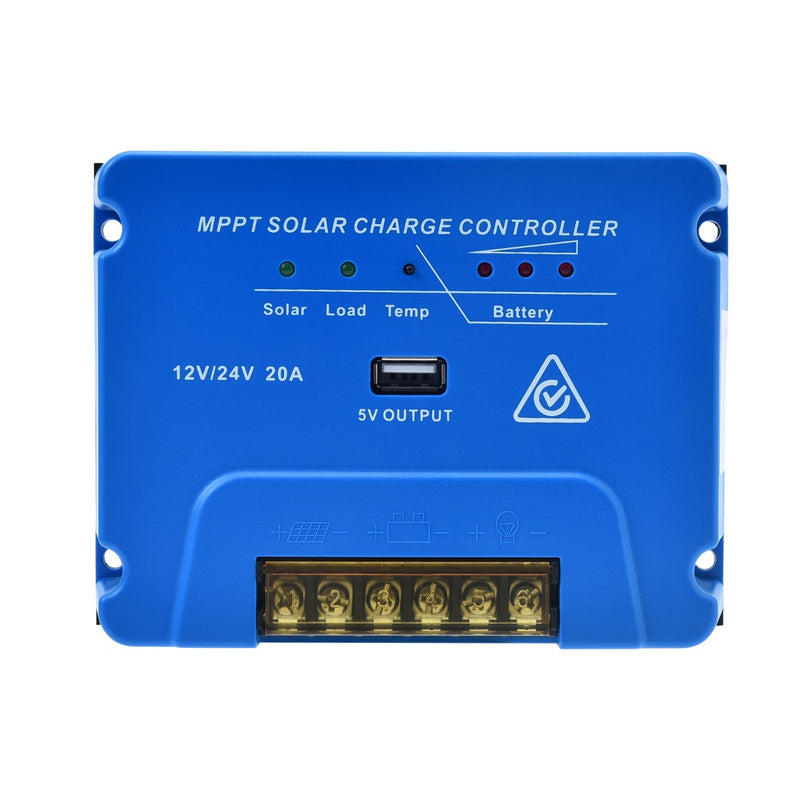

Designed to deliver optimal performance, our 20A MPPT solar controller boasts up to 99% tracking efficiency. It ensures that more energy gets into your battery bank, allowing you to make the most out of the solar energy available to you.
This is not just a solar charge controller for lithium batteries. It’s also compatible with 12V/24V lead acid battery systems, gel, and flooded (wet cell) power packs. Equipped with higher monitoring accuracy and better battery protection, it shields from common electronic problems including overcharging, over-discharging, reverse polarity, overload, and over-temperature.
Our lithium MPPT solar charge controller also has a lithium-reawakening feature which helps keep your battery pack in good condition.
Ready to buy and currently researching on Kings MPPT solar controller wiring diagram/Kings solar controller wiring diagram to prep your upcoming solar setup? Click here for a quicker guide on how to wire your regulator properly.
Get this 20A MPPT solar controller today and ensure you make the most out of your solar power system.
SPECIFICATIONS
| Rated charge current: | 20A |
| MPPT efficiency: | Max. 99% |
| Over load, short circuit protection: | ≥1.5 rated current |
| No load current: | <10mA |
| Over voltage protection: | 16V, ×2/24V |
| Voltage of stop charging: | 14.7V; ×2/24V |
| Discharge recovery voltage: | 12.0V; ×2/24V |
| Over discharge voltage: | 10.8V; ×2/24V |
| USB output: | 5V 1A |
| Working temperature | -35℃~+55℃ |
DIMENSIONS & WEIGHT
| Dimensions: | - |
| Weight: | 300g |
WHAT'S IN THE BOX
| 1 x | MPPT Controller |
SKU:
| scm-mpl1520-20a |
