Switching your caravan to a 100Ah lithium battery is one of the smartest upgrades you can make before hitting the road. But getting the installation right matters just as much as choosing the right VoltX lithium battery. A poorly wired system can damage equipment, void warranties, or leave you without power hundreds of kilometres from help.
This guide covers every step of a caravan lithium battery installation — from choosing the right unit to wiring, charging, and expanding your system. Outbax has put together the practical knowledge you need to get it done properly.
Buy products from: Best Lithium Battery For Caravan
Why Upgrade Your Caravan to a 100Ah LiFePO4 Battery?
Weight and Space Savings Compared to Lead-Acid
A standard 100Ah lead-acid battery weighs around 30 kg. A lithium equivalent comes in at roughly 12-14 kg. For caravan owners watching tow weight, that difference is significant. Slimline LiFePO4 models fit tighter compartments, freeing storage for gear instead of battery banks.
Gentrax 12V 100Ah Lithium LiFePO4 Battery
Read more: Why Is My Lithium Battery Draining So Fast
Cycle Life and Long-Term Value
Lead-acid batteries typically deliver 300-500 charge cycles before performance drops. A quality LiFePO4 battery offers 2000 cycles or more. The upfront cost is higher, but the per-cycle cost is substantially lower over the battery's lifetime.
Usable Capacity: Getting More From Every Amp-Hour
Here's a detail many caravan owners overlook. A 100Ah lead-acid battery should only be discharged to 50% to preserve its lifespan — roughly 50Ah of usable power. A 100Ah LiFePO4 battery, like the VoltX 12V 100Ah Lithium Battery, can safely discharge to 80–90%, delivering close to the full amp hour rating. You effectively double your usable capacity without adding weight.
Here’s what one of our customers said about this battery:
“Quick delivery. Very happy with the battery so far. Much better than the lead acid it replaced. Heaps of power available in comparison. Very impressed.”
What Equipment Do You Need for a Caravan Lithium Battery Installation?
Choosing the Right 100Ah Battery for Your Setup
Not all 100Ah lithium batteries are built the same. Look for a unit with a built-in battery management system (BMS), like the VoltX 12V 100Ah Blade LiFePO4 Battery — this protects against overcharging, over-discharging, short circuits, and temperature extremes. The Outbax VoltX range, for example, includes integrated BMS protection across its 12V 100Ah models, with options including standard, slimline, and Bluetooth-enabled variants for real-time monitoring via your phone.
VoltX 12V 100Ah Lithium LiFePO4 Battery
Here’s what one of our customers said:
“Like all bargain priced items, there is always a sense of hesitation. However for the price I was willing to take the plunge. I have been using this battery for over 6 months now. It sits in a battery box in my canopy. Has bounced around a bit. Gets charged predominately via solar only (160W panel), with some top ups by 240v charger. Has run 2 fridges (40L & 60L) without issue for days on end. Delivery was fast. The product has been so great that my brother purchased one too with a similar setup as me and his has run faultlessly as well.
Edit Update (long term usage): I have been using it for over 2 years now, and both batteries have been running faultlessly. I run 1 fridge almost every day and it has not impacted the capacity of the battery. It lives in my canopy and over the North Qld summer periods can get beyond recommended operating temperatures and it hasn't missed a beat. My brothers is still perfectly fine, gets placed in a battery box on the back of his tray when needed, in the elements, and again runs flawlessly. Both batteries have been used to very low capacity on rare occassions, without any adverse effects.”
Chargers, DC-DC Chargers, and MPPT Controllers
Your existing lead-acid charger almost certainly won't work. LiFePO4 cells require specific charge profiles with precise voltage cutoffs. You'll need three components for a complete caravan power system: a lithium-compatible mains charger for powered sites, a DC-DC charger like the VoltX SRNE 12V 30A DC-DC MPPT LiFePO4 Battery Charger with Bluetooth for safe alternator charging while driving, and an MPPT charge controller if running solar panels. Each must be rated for lithium chemistry.
Wiring, Fuses, and Safety Components
Use appropriately rated cable (typically 6 B&S or thicker for main runs) and install an inline fuse within 300 mm of the positive terminal. Anderson plug connections are standard for caravan solar inputs and external charging. Check all terminals are tight and corrosion-free before powering up.
Step-by-Step: Installing a 100Ah Lithium Battery in a Caravan
Disconnecting and Removing the Old Battery
Start by switching off all loads and disconnecting the negative terminal first, followed by the positive. This sequence reduces the risk of accidental short circuits. Remove any hold-down brackets, lift the old battery out, and take note of the existing wiring configuration — a quick photo on your phone saves time later.
VoltX 12V 100Ah Bluetooth Daly Lithium LiFePO4 Battery

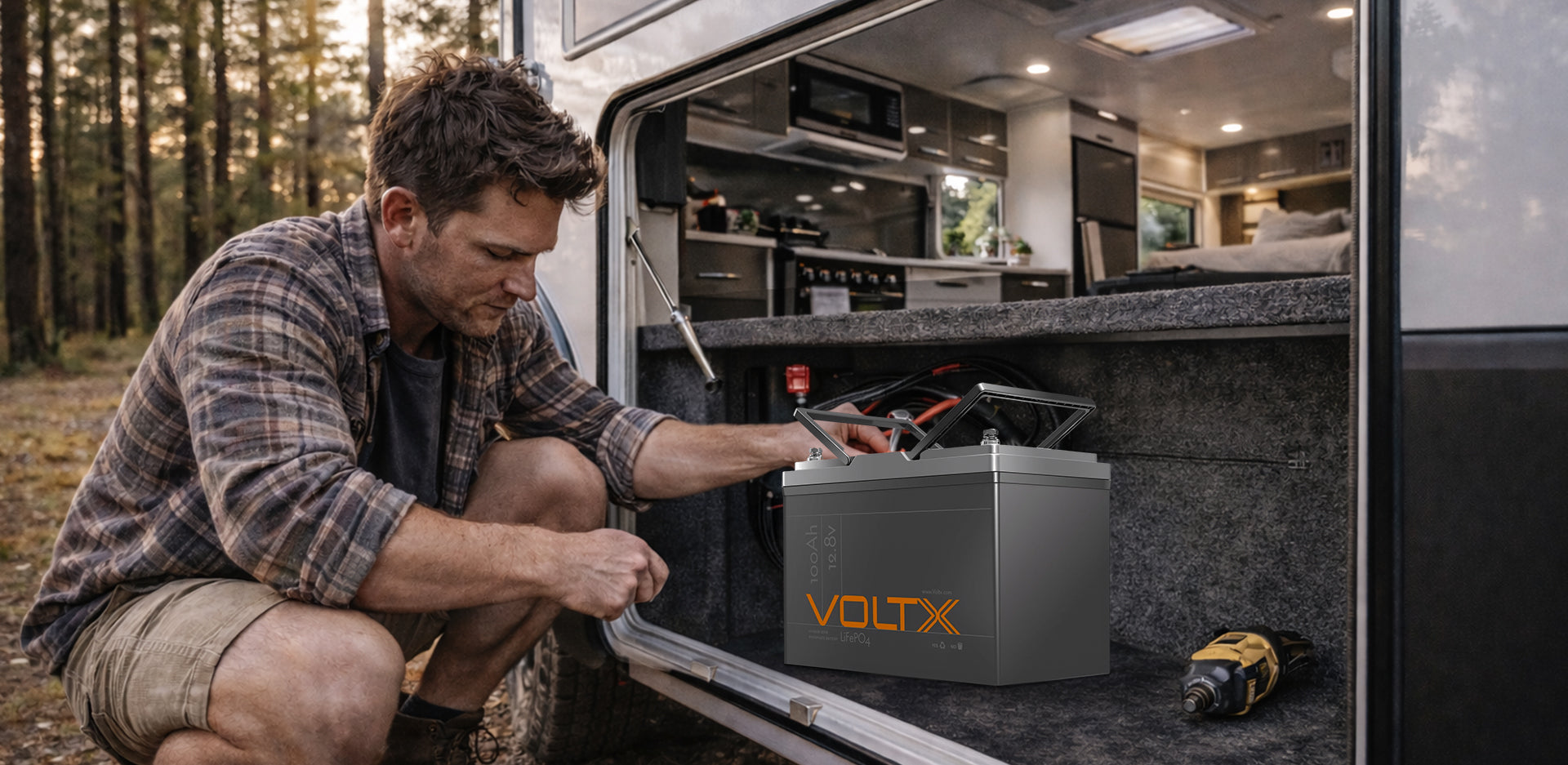

Mounting and Wiring Your New Lithium Battery
Position the new battery securely in the compartment. LiFePO4 batteries like the VoltX 24V 100Ah Pro LiFePO4 Battery don't produce hydrogen gas like flooded lead-acid units, but adequate battery compartment ventilation is still recommended for heat dissipation — particularly in Australian summer conditions. Connect the positive terminal first, then the negative. Route cables away from sharp edges and heat sources.
If your caravan has an existing inverter, confirm inverter compatibility with lithium batteries before reconnecting. Most modern inverter-chargers work with LiFePO4, but older units may need charge settings adjusted.
Testing the System Before Your First Trip
Before heading to the bush, run a complete system check. Verify the battery accepts charge from all three sources: mains, solar, and the vehicle alternator via DC-DC charger. Check that the BMS indicator (or Bluetooth battery monitor, if fitted) shows normal operation. Run a moderate load — lights, a 12V fridge, USB chargers — and confirm stable voltage. This is the time to catch wiring issues, not 200 km from the nearest town.
How to Set Up Charging for Lithium Batteries in a Caravan
Mains Charging With a Lithium-Compatible Charger
At a powered campsite, a lithium-specific charger delivers the correct profile: constant current followed by constant voltage, cutting off around 14.2-14.6V for a 12V LiFePO4 system. A lead-acid charger risks overcharging, triggering the BMS into protection mode. Repeatedly tripping this protection shortens the system's lifespan.
Solar Charging: Panels, Controllers, and Wiring
Solar panel charging paired with an MPPT charge controller is the backbone of off-grid battery storage for touring caravans. MPPT controllers outperform PWM types by converting excess panel voltage into additional charging current. Ensure your controller has a lithium battery profile selected — not AGM, gel, or flooded. Even a modest 200W solar setup keeps a 100Ah battery topped up in average Australian conditions.
Gentrax 51V 100Ah Lithium LiFePO4 Battery
Alternator Charging With a DC-DC Charger
Modern vehicles with smart alternators require a DC-DC charger to safely charge lithium batteries while driving. These units regulate voltage and current to match the LiFePO4 charge profile, regardless of alternator output. A quality 20-40A unit adds meaningful charge during a day's driving. Wire it directly to the vehicle's starter battery with appropriately fused cabling.
Can You Connect Two 100Ah Lithium Batteries in Parallel?
When a Parallel Battery Bank Makes Sense
If your caravan runs heavy loads — a large fridge, lighting, water pumps, and charging multiple devices — a single 100Ah battery may fall short during extended free camping. Wiring two 100Ah batteries in a parallel battery bank doubles your capacity to 200Ah, equal to a VoltX 12V 200Ah Pro Lithium battery while maintaining the same 12V system voltage.
How to Wire Batteries in Parallel Safely
Use identical batteries from the same manufacturer — ideally, the same production batch. Connect positive to positive and negative to negative with equal-length cables to ensure balanced current flow. Outbax stocks the full VoltX 100Ah range in 12V 24V and 48V configurations, so you can match batteries precisely for your caravan power system. Mismatched batteries or uneven cables cause one unit to work harder, reducing overall lifespan.
Powering Your Caravan With Confidence
A well-installed 100Ah LiFePO4 battery delivers reliable, lightweight power suited to Australian caravan travel. Choose a quality battery with integrated BMS, ensure all charging sources are lithium-compatible, follow safe wiring practices, and test thoroughly before your first trip.
Outbax carries the full VoltX lithium battery range — including standard, slimline, and Bluetooth-enabled 100Ah models — built for Australian conditions with local support. Browse the caravan battery collection to find the right fit, or reach out to the team for tailored installation advice.
