There's something deeply satisfying about generating your own power. Whether you're running a fridge at a remote campsite, keeping devices charged during a caravan trip, or maintaining backup power for home essentials, understanding how to connect a solar panel to a battery opens the door to genuine energy independence.
With over a million Australian households now harnessing solar energy, portable off-grid systems have moved from niche hobby to mainstream practicality. The good news is that the fundamentals aren't complicated—you need four core components working together: a solar panel, a charge controller, a deep cycle battery, and appropriate cables.
This guide walks through each connection step while explaining why proper setup matters for both safety and system longevity.
Essential Components for Your Solar Setup
Before connecting anything, gather your hardware and understand what each piece does.
Solar Panels for Portable Applications
The panel converts sunlight into DC electricity. For portable use, you'll typically choose between folding solar panels (compact and easy to position), flexible panels (lightweight and comfortable to curved surfaces), or solar blankets (highly portable for hiking and remote travel).

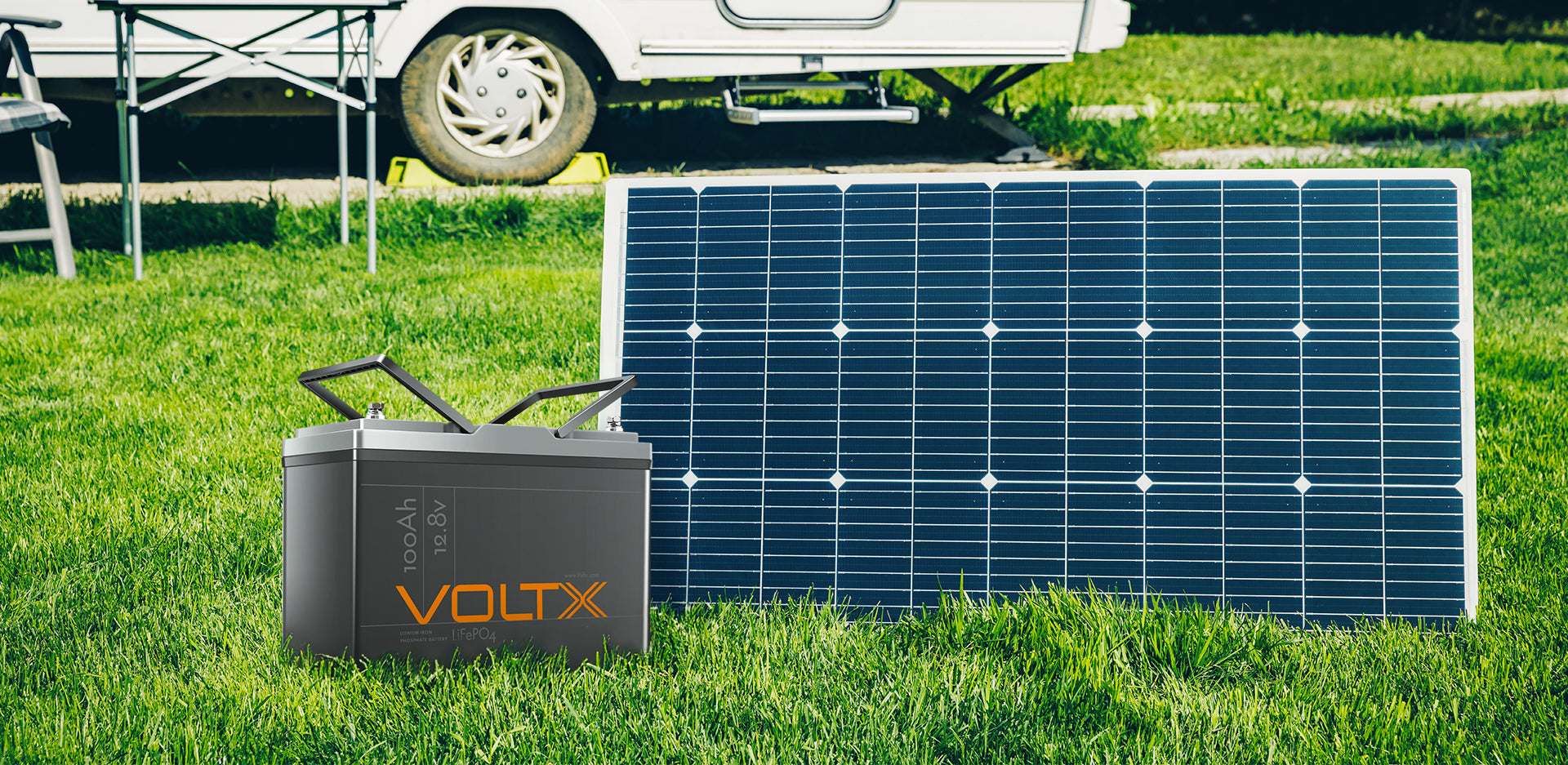

Look for panels with monocrystalline cells like the VoltX 12V 100W Flexible Solar Panel. They deliver higher efficiency per square metre than polycrystalline alternatives, which matters when space and weight are considerations. Quality panels from suppliers like Outbax use monocrystalline technology as standard.
Here’s what one of our customers said:
“Fast delivery on a super special foldable solar panel. Took it to the Tara Festival and it worked better than expected keeping my 2 batteries topped up for the 5 days. Recommended."
Deep Cycle Batteries and Storage Options
Your battery stores the energy your panel generates, releasing it when you need power. Unlike car batteries (designed for short bursts), deep cycle batteries like the VoltX 12V 300Ah Pro Lithium LiFePO4 Battery handle repeated charge and discharge cycles.
LiFePO4 batteries have become the preferred choice for portable solar. Compared to traditional AGM batteries, they offer approximately 4-5 times the cycle life, 50% weight reduction, and the ability to discharge to 80-90% capacity without damage. The higher upfront cost pays off through longevity and performance.
Cables, Connectors, and Accessories
Correctly gauged solar panel wire minimises power loss between components. MC4 connectors—the industry standard—provide secure, weather-resistant connections that won't accidentally disconnect during transport.
Understanding the Solar Charge Controller
The charge controller sits between your panel and battery, acting as the system's brain. It regulates voltage and current, ensuring your battery receives power at safe levels.
How a Charge Controller Protects Your System
Without a controller, a solar panel would continue pushing current into a full battery, causing overcharging that damages cells, shortens lifespan, and creates potential safety hazards. The controller prevents this by:
- Stopping overcharging when the battery reaches full capacity
- Preventing reverse current flow at night (stopping the battery from discharging back through the panel)
- Managing charge stages (bulk, absorption, float) for optimal battery health
MPPT vs PWM Controllers
When it comes to solar charge controllers, the choice usually boils down between a PWM (Pulse Width Modulation) or an MPPT (Maximum Power Point Tracking).
PWM controllers work adequately for small, simple systems, but waste potential power when the panel voltage exceeds battery voltage. MPPT controllers actively track the panel's optimal power point and convert excess voltage into additional charging current, harvesting up to 30% more energy in real-world conditions.
For Australian conditions with variable cloud cover and temperature fluctuations, MPPT represents the smarter investment. Outbax stocks MPPT controllers specifically designed for portable and off-grid applications.
Step-By-Step Guide to Connecting Your System
With components assembled, follow this sequence for a safe, successful connection.
Safety Precautions Before You Begin
- Work in a dry, well-ventilated area away from flammable materials.
- Wear protective eyewear when handling batteries.
- Cover the solar panel face with a towel or blanket to de-energise it during setup.
- Connect components in the correct order.
Step 1: Connect the Charge Controller to the Battery
This comes first for good reason. When the controller powers up connected to the battery, it automatically detects battery voltage (12V, 24V, or 48V) and configures charging parameters accordingly.
Connect the positive (+) wire from your battery to the positive battery terminal on the controller. Then connect the negative (-) wire to the corresponding negative terminal. Most controllers will display indicator lights confirming successful connection.
Step 2: Connect the Solar Panel to the Charge Controller
With the panel still covered, connect its output cables to the PV input terminals on your controller—positive to positive, negative to negative. MC4 connectors make this straightforward. Once connections are secure, uncover the panel. Your controller's display or indicator lights should confirm that charging has begun.
Step 3: Connect an Inverter (Optional)
If you need to power standard 240V AC appliances (laptops, phone chargers, small appliances), you'll need an inverter to convert DC battery power to AC.
Connect the inverter directly to the battery terminals and not to the load terminals on your charge controller, which are designed for smaller DC loads only. Size your inverter appropriately for intended use: a 300W inverter suits charging devices, while larger appliances may require 1000W or more.
Wiring Solar Panels: Series vs Parallel Explained
When running multiple panels, how you wire them affects system performance.
Series Wiring Configuration
Connect the positive terminal of one panel to the negative terminal of the next. This adds voltage while keeping amperage constant. Two 12V/10A panels wired in series produce 24V at 10A.
Series wiring suits systems with longer cable runs (higher voltage means less transmission loss) or where your charge controller requires higher input voltage.
Parallel Wiring Configuration
Connect positive to positive and negative to negative using branch connectors. This adds amperage while keeping voltage constant. Two 12V/10A panels wired in parallel produce 12V at 20A.
Parallel offers better shade tolerance—if one panel is partially shaded, only that panel's output drops rather than affecting the entire array.
Before deciding, verify your charge controller's maximum input voltage and amperage ratings.
Choosing the Right Solar Panel Cables and Wires
Using an appropriate solar panel cable isn't just about efficiency—it's a safety consideration.
Understanding Wire Gauge and Voltage Drop
Thicker wire (lower AWG number) reduces voltage drop over distance. For systems up to 20A with cable runs under 5 metres, 4mm² cable typically suffices. Longer distances or higher currents require thicker a gauge.
Here’s a rough guide:
| System Amps | Distance: Up to 5m | Distance: 5-10m |
|---|---|---|
| 10A | 2.5mm² | 4mm² |
| 20A | 4mm² | 6mm² |
| 30A | 6mm² | 10mm² |
Selecting Quality Solar Panel Cables
Choose UV-resistant cables rated for outdoor exposure—standard electrical wire degrades quickly in sunlight. Pre-terminated cables with MC4 solar connectors simplify installation and ensure reliable, weather-resistant connections. Outbax offers pre-made solar cables in various lengths matched to common system requirements.
Final Thoughts On Your Solar Setup
The core sequence bears repeating: battery to controller first, then panel to controller. This simple order protects your equipment and ensures proper system configuration.
Quality components matter. Efficient monocrystalline panels, robust MPPT controllers, and premium LiFePO4 batteries each contribute to a system that performs reliably for years. When sourced from trusted Australian suppliers, these elements work together as a cohesive, properly matched system.
Whether you're preparing for your next camping adventure or building resilience against grid outages, you now have the knowledge to connect your solar setup safely and confidently. Ready to shop for your setup? Get your gear at Outbax for trusted quality and performance.
