Did you know improper charging can significantly reduce your battery investment's life? For anyone running multiple lithium batteries in their caravan, boat, or off-grid setup, understanding how to balance charge a multi-pack lithium battery bank is crucial for maximising both lifespan and performance. Balance charging ensures that all batteries in your bank maintain equal voltage levels, preventing the premature failure that occurs when individual cells become overcharged or undercharged. This comprehensive guide will walk you through the fundamentals of lithium battery charging, explain why balancing matters, detail the equipment you'll need, and provide practical tips to keep your LiFePO4 battery bank performing at its peak for years to come.
Decoding Lithium Battery Setups and Charging Fundamentals
Lithium batteries, particularly LiFePO4 (Lithium Iron Phosphate) chemistry, have revolutionised energy storage with their superior cycle life, lighter weight, and deeper discharge capabilities compared to traditional lead-acid alternatives. When configuring a multi-pack bank, you'll typically connect batteries either in series (to increase voltage) or parallel (to increase capacity), with series configurations requiring more careful attention to balancing since voltage differences between batteries can lead to significant imbalances over time.
The charging principles for lithium batteries differ markedly from other chemistries—they require specific voltage parameters, don't need equalisation charges like lead-acid batteries, and benefit from chargers with dedicated lithium profiles that respect their unique charging curve. Whether you're running a deep cycle lithium battery setup for your caravan or building an off-grid power system, understanding these fundamentals ensures safe, efficient charging that protects your investment.
Why Balancing Your Battery Bank Matters
An imbalanced battery bank is like a chain with weak links—the entire system's performance suffers when individual batteries operate at different charge levels. Cell imbalance leads to reduced overall capacity as the bank can only discharge to the level of its weakest battery, while stronger batteries may become overcharged during charging cycles, accelerating battery degradation and capacity loss. Regular balancing maximises your usable capacity by ensuring all batteries contribute equally to the load.
It extends the overall battery bank life by preventing individual cells from being stressed beyond their limits, and significantly improves safety and reliability by reducing the risk of thermal events or unexpected shutdowns. When batteries maintain optimal performance through proper balancing, you'll enjoy consistent power delivery, longer runtime between charges, and ultimately better value from your lithium battery investment—critical factors whether you're powering essential equipment off-grid or ensuring reliable energy for your weekend adventures.
The Process of Balancing a Multi-Pack Lithium Battery Bank
Understanding how to balance charge a multi-pack lithium battery bank involves recognising the different methods available for achieving voltage equalisation across all batteries. Active balancing uses electronic circuits to transfer energy from higher-charged cells to lower ones, while passive balancing dissipates excess energy as heat from cells that reach full charge first. Both approaches work to ensure all batteries reach the same voltage level.
Many modern Battery Management Systems (BMS) incorporate balancing features that automatically manage cell matching during charging, though external battery balancers can provide additional balancing capability for larger banks or systems without integrated BMS balancing. Advanced chargers like the Victron 12V 30A SLA/LiFePO4 Charger often include sophisticated algorithms that support the balancing process by providing appropriate charging profiles and monitoring individual battery voltages, making the balancing process more automated and reliable for users who prioritise convenience alongside performance.
Tools and Equipment for Effective Balance Charging
Selecting the right tools transforms balance charging from a complex task into a manageable routine that protects your battery investment. Essential equipment includes a quality smart battery charger with multi-stage charging profiles specifically designed for lithium chemistry, voltage monitoring tools to track individual battery performance, and potentially a dedicated battery balancer for systems requiring more intensive balancing support.

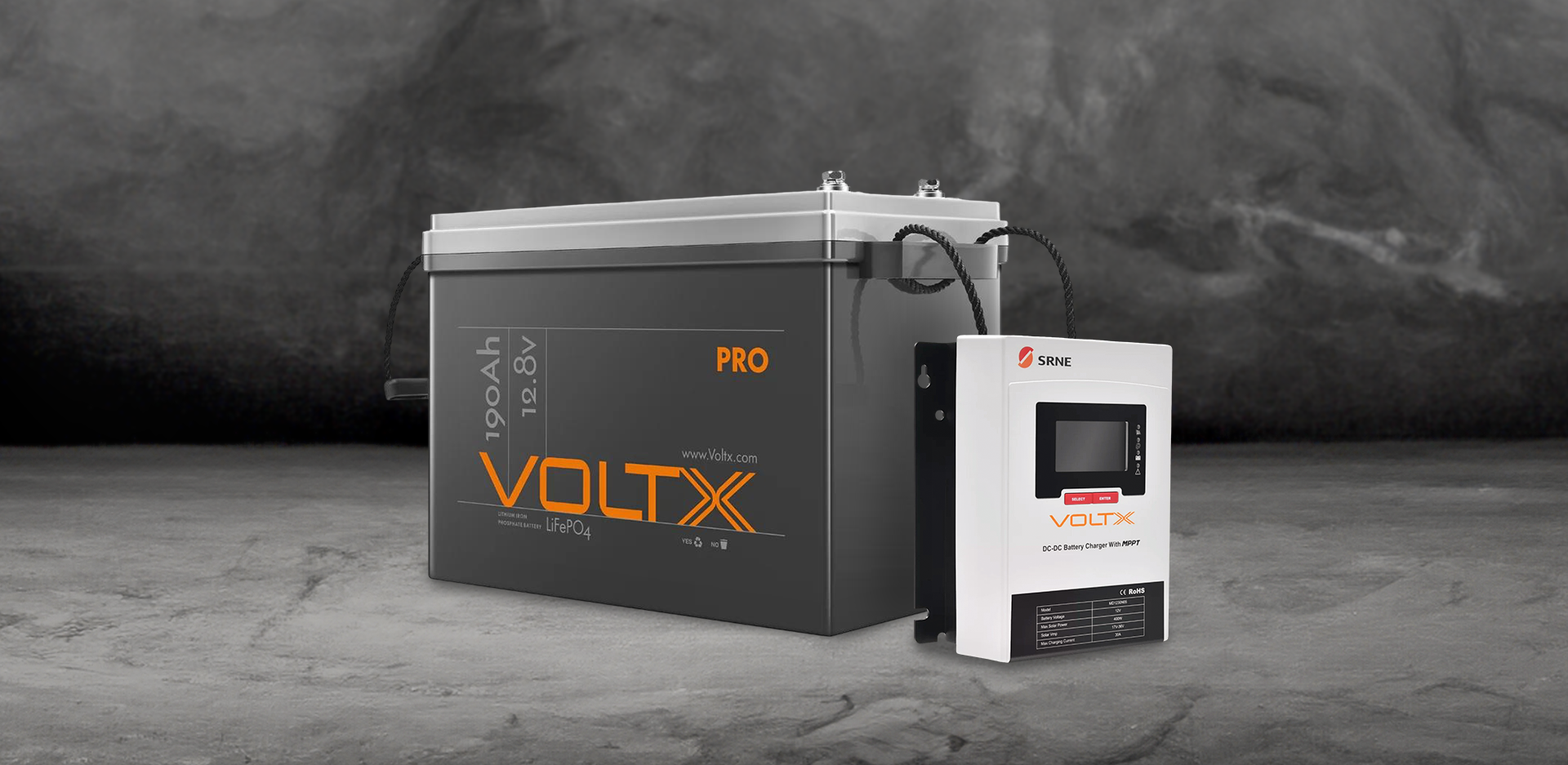

Modern solutions like the VoltX SRNE DC-DC MPPT LiFePO4 Battery Chargers with Bluetooth connectivity revolutionise monitoring by allowing real-time tracking of charging parameters through your smartphone, making it easy to spot developing imbalances before they become problematic. Additional tools such as digital voltmeters, BMS interfaces with cell-level monitoring, and temperature sensors help create a comprehensive monitoring system that ensures your multi-pack bank remains healthy throughout its service life, whilst features like programmable charging profiles allow fine-tuning of the charging process to match your specific battery configuration and usage patterns.
Selecting the Right Charger for Your Lithium Setup
Choosing the appropriate lithium battery charger requires matching your charging solution to both your battery bank's specifications and your intended application.
For workshop or home-based charging where mains power is available, AC chargers like the VoltX SRNE 25A AC LiFePO4 Battery Charger provide reliable, efficient charging with dedicated lithium profiles that ensure proper voltage regulation and charging termination. Mobile applications benefit from DC to DC battery chargers such as the VoltX SRNE DC-DC MPPT LiFePO4 Battery Chargers.
These enable charging from your vehicle's alternator whilst driving and often incorporate solar inputs for additional charging flexibility—essential for caravans, boats, and 4WD setups where shore power isn't always available. Solar-focused systems require MPPT solar charge controllers that maximise energy harvest from your panels whilst providing appropriate charging algorithms for lithium batteries, with many modern units offering programmable settings to fine-tune charging parameters for optimal battery health and longevity.
Key Charger Features for Multi-Battery Systems
When managing multiple batteries, certain charger features become particularly valuable for maintaining balance and extending battery life. Programmable charging profiles or dedicated LiFePO4 algorithms ensure your batteries receive the precise voltage and current curves they need, while temperature compensation adjusts charging parameters based on ambient conditions to prevent overcharging in hot weather or undercharging in cold conditions.
Advanced safety features, including protection against reverse polarity, overcharge, and short circuit events, provide peace of mind when working with high-capacity battery banks, while some chargers offer multi-bank outputs that can independently manage different battery strings, though this feature is less common in the portable battery charger market. Quality chargers extend battery life by preventing overcharging and maximising efficiency through optimal charge algorithms. They often include monitoring capabilities that help identify potential issues before they impact system performance, making them invaluable tools for anyone serious about maintaining their lithium battery investment.
Comparing Charger Amperage: What You Need to Know
Selecting the correct charger amperage involves balancing charging speed with battery health, as lithium batteries are typically suited for charging rates between 10-20% of their total Ah capacity. For instance, the VoltX SRNE 25A AC LiFePO4 Battery Charger suits smaller banks or maintenance charging applications where time isn't critical, providing gentle charging that maximises battery life. Medium-sized installations benefit from 30A chargers like the VoltX SRNE 30A DC-DC MPPT LiFePO4 Battery Charger, offering versatile performance for typical caravan house battery banks whilst maintaining reasonable charging times.
Larger off-grid systems or applications, on the other hand, will benefit from something like the VoltX SRNE 50A DC-DC MPPT LiFePO4 Battery Charger for faster charging. It provides robust charging capacity for substantial battery banks without overwhelming individual batteries when properly sized. Remember that while charging is convenient, consistently charging at maximum rates can reduce overall battery lifespan, making it important to match charger capacity to your actual needs rather than simply choosing the highest amperage available.
Practical Steps and Best Practices for Balance Charging
Implementing an effective balance charging routine starts with establishing a regular charging cycle that brings all batteries to full charge, allowing the BMS or balancing system to equalise voltages across the bank. Begin by ensuring all connections are clean and tight, monitor individual battery voltages before charging to identify any significant imbalances, then initiate a complete charge cycle using appropriate lithium-specific settings on your charger whilst observing safety protocols including proper ventilation and protective equipment.
Throughout the charging process, monitor temperatures and voltages if possible, looking for any batteries that charge significantly faster or slower than others, which could indicate developing issues. Best practices include performing periodic maintenance charges even when batteries aren't deeply discharged, keeping batteries at similar temperatures during charging to ensure even performance, and documenting voltage readings over time to track battery health trends—these simple steps significantly extend battery life and help identify potential problems before they result in costly failures or safety concerns.
Setting Up for Success: Common Scenarios
Different applications present unique challenges for balancing charging multi-pack lithium battery banks, with each scenario benefiting from tailored equipment choices. Caravan and motorhome installations typically combine AC charging whilst on powered sites with DC-DC charging during travel, making versatile solutions like the VoltX SRNE DC-DC MPPT LiFePO4 Battery Chargers particularly valuable as they handle both alternator and solar inputs while maintaining proper lithium charging profiles. Off-grid solar systems rely heavily on MPPT controllers paired with adequate solar arrays.
This requires careful sizing to ensure batteries receive sufficient charging current even during cloudy periods, and also incorporates AC backup chargers in case of poor weather conditions. Marine applications face additional challenges from moisture and vibration, necessitating robust, sealed chargers with excellent temperature compensation and the ability to handle the constant motion of life on the water, regardless of application. Success comes from understanding your specific power needs, selecting appropriate charging equipment, and maintaining consistent monitoring and maintenance routines.
Final Thoughts on Keeping Your Lithium Bank Healthy
Mastering balance charging for your multi-pack lithium battery bank represents one of the most impactful steps you can take to protect your energy storage investment and ensure reliable power for years to come. By understanding your battery configuration, investing in quality charging equipment designed specifically for lithium chemistry, and following established best practices for monitoring and maintenance, you'll maximise both the performance and lifespan of your battery system. Whether you're powering a weekend camping setup or maintaining critical off-grid infrastructure, the principles remain the same: proper balance charging prevents premature battery failure, maintains full system capacity, and provides the consistent, reliable power modern lithium batteries are capable of delivering when properly maintained.
Outbax is your trusted partner in portable and sustainable power solutions. Specialising in durable LiFePO4 batteries, quiet inverter generators, and innovative solar technologies, we deliver reliable energy solutions tailored to your needs—whether you're on the road, off-grid, or ensuring peace of mind during emergencies at home. Our products are rigorously tested to excel in real-world Australian conditions, offering exceptional performance backed by robust warranties, dedicated customer support, and transparent pricing. Discover cutting-edge, clean energy systems designed for Australian lifestyles. Shop our solar and battery gear today and take charge of your power needs with confidence.
Frequently Asked Questions
What is battery bank balancing?
Battery bank balancing is the process of equalising the charge level across all batteries in your system, ensuring each battery maintains the same voltage to prevent overcharging or undercharging of individual units, which maximises capacity and extends the lifespan of your entire battery bank.
Why do my lithium batteries in a pack go out of balance?
Batteries naturally develop minor variations due to manufacturing tolerances, temperature differences across the bank, varying internal resistance as batteries age, and different discharge rates if loads aren't perfectly distributed—these small differences compound over time without proper balancing.
How often should I balance charge my lithium battery bank?
For systems with automatic balancing through a BMS or balancing charger, balance charging occurs with every full charge cycle; for manual balancing, perform a balance check monthly or whenever you notice capacity reduction or voltage differences exceeding 0.1V between batteries.
Can I use any charger for my multi-pack lithium bank?
No, you must use a lithium specific charger (particularly for LiFePO4 chemistry) with appropriate voltage and amperage ratings—generic chargers lack the precise voltage control and charging profiles necessary for lithium batteries and may cause damage or safety issues.
What's the difference between a series and parallel battery connection for charging?
Series connections add voltages whilst maintaining the same capacity (two 12V 100Ah batteries in series create a 24V 100Ah bank), requiring careful balance monitoring. Parallel connections add capacities at the same voltage (creating a 12V 200Ah bank), generally requiring less intensive balancing.
How do I know if my lithium battery bank is unbalanced?
Signs include reduced overall capacity, one battery consistently reaching full charge or discharge before others, BMS warnings or shutdowns, noticeable voltage differences between batteries when at rest, or decreased runtime despite batteries showing adequate charge levels.
What is a BMS and does it handle balancing?
A Battery Management System (BMS) protects lithium batteries by monitoring cell voltages, preventing overcharge/discharge, managing temperature limits, and many include active or passive balancing features that automatically equalise cell voltages during charging cycles.
How do I charge a 12V lithium battery correctly?
Use a dedicated lithium battery charger set to the appropriate profile (typically 14.4-14.6V for LiFePO4), ensure charging occurs within temperature limits (usually 0-45°C), and allow the charger to complete its full cycle including any balancing phase for optimal battery health.
How do I charge a lithium deep cycle battery?
Deep cycle lithium batteries require chargers with specific lithium profiles that provide constant current until reaching absorption voltage (around 14.4V for LiFePO4), then maintain that voltage whilst current tapers, finally dropping to a float voltage around 13.6V if supported.
What type of charger is best for LiFePO4 batteries?
The best LiFePO4 battery charger features programmable or preset LiFePO4 charging profiles, temperature compensation, multiple charging stages, and ideally smart features like Bluetooth monitoring or automatic voltage detection to ensure optimal charging without user intervention.
Is a DC to DC charger necessary for my setup?
A DC to DC lithium battery charger becomes essential when charging from your vehicle's alternator, as it provides proper voltage regulation and charging profiles that simple isolators cannot achieve, whilst protecting both your starting battery and lithium house bank.
What does an MPPT solar charge controller do?
An MPPT (Maximum Power Point Tracking) solar charge controller optimises the power harvest from your solar panels by continuously adjusting the electrical operating point, typically providing 20-30% more charging current than PWM controllers, while delivering appropriate charging voltages for your lithium battery bank.
