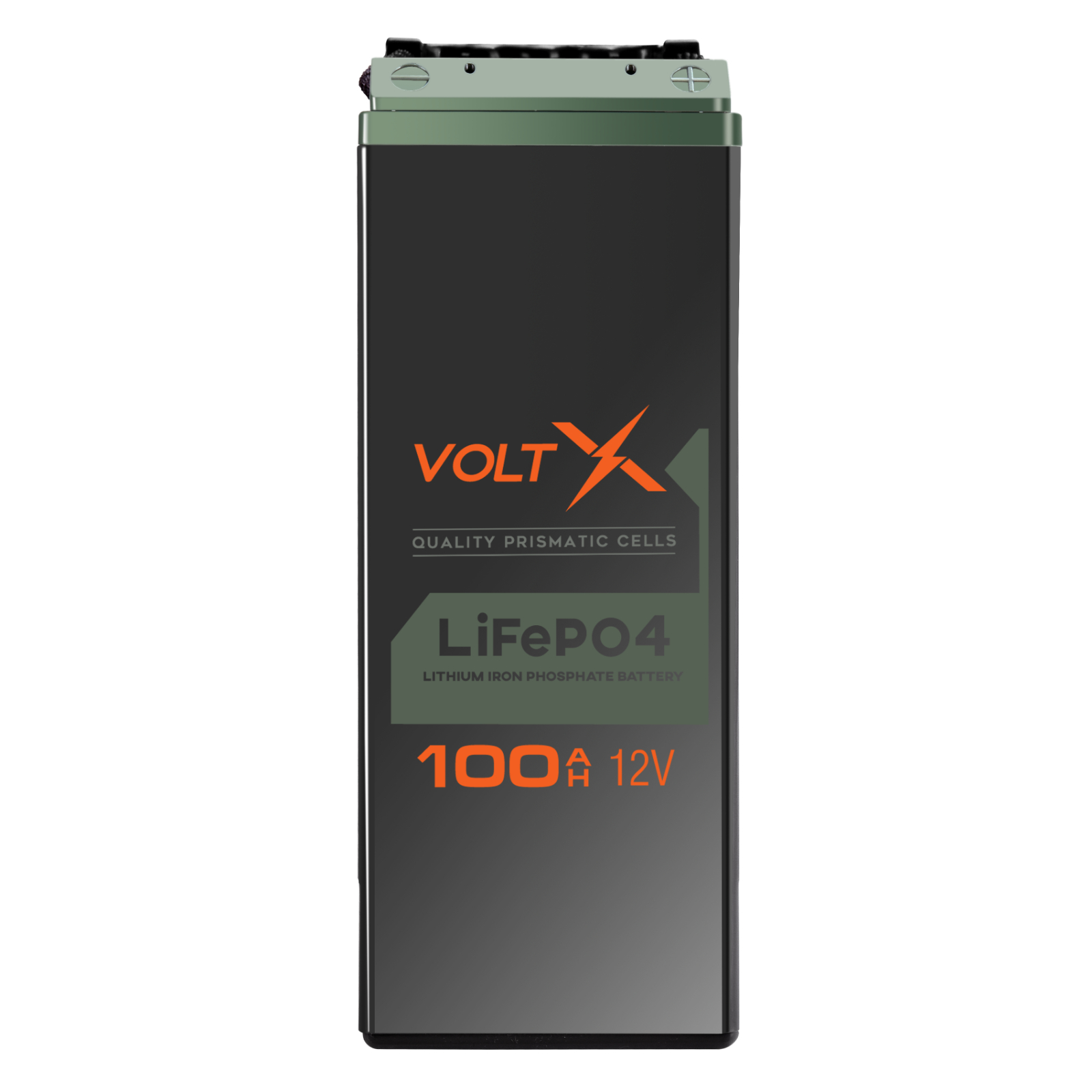

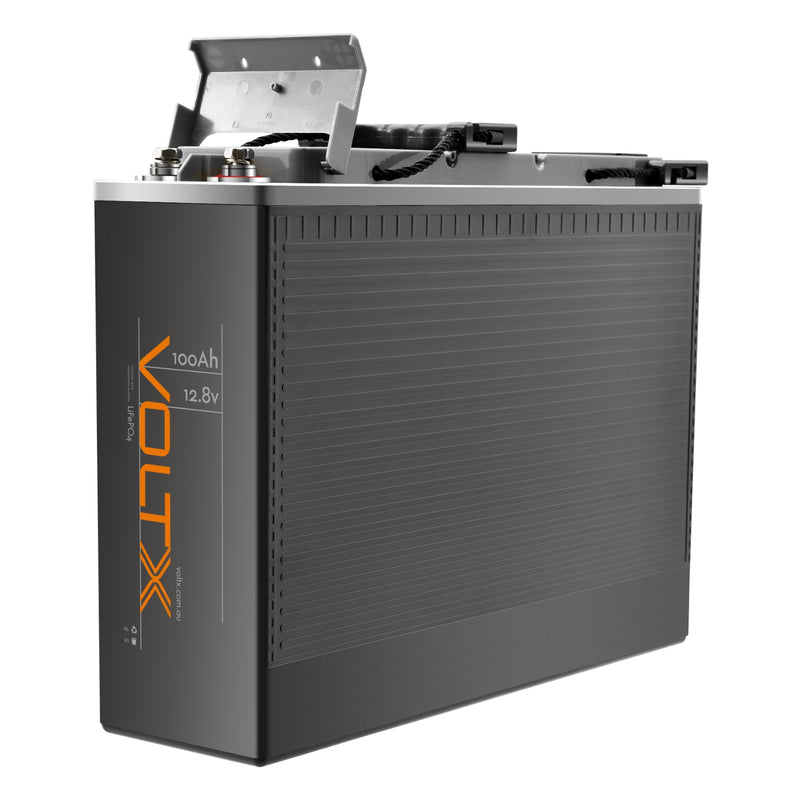

Voltx 12V 100Ah Slim LiFePO4 Battery

Name: Voltx 12V 100Ah Slim LiFePO4 Battery
Brand: OutbaX
SKU: bat-li-12-100a-slim-plus
Price: 699.0 AUD
Availability: InStock

$699.00 ~~$1,279.00~~

Tax included

60 Days
Return

36 Months
Warranty

100% Secured
Payment & Data

EOFY SALE

PLUS a further 15% off

Pay only $594.15

Hurry! Promo ends 30/06/24 11:59 PM AEST.

Use Code:

EOFY15

Selling fast. Hurry and order now to save 45%

PRODUCT HIGHLIGHTS

GRAND BATTERY SALE
PLUS a further 15% off using code BATTERY15
Pay only $594.15 Hurry! Promo ends 03/06/24 11:59 PM AEST.

3 Years Australian Warranty
Rated Capacity 100Ah
12.8 Volts
395 x 110 x 293mm
11kg
Approved in accordance with IEC 62619

Need big capacity but have limited space?

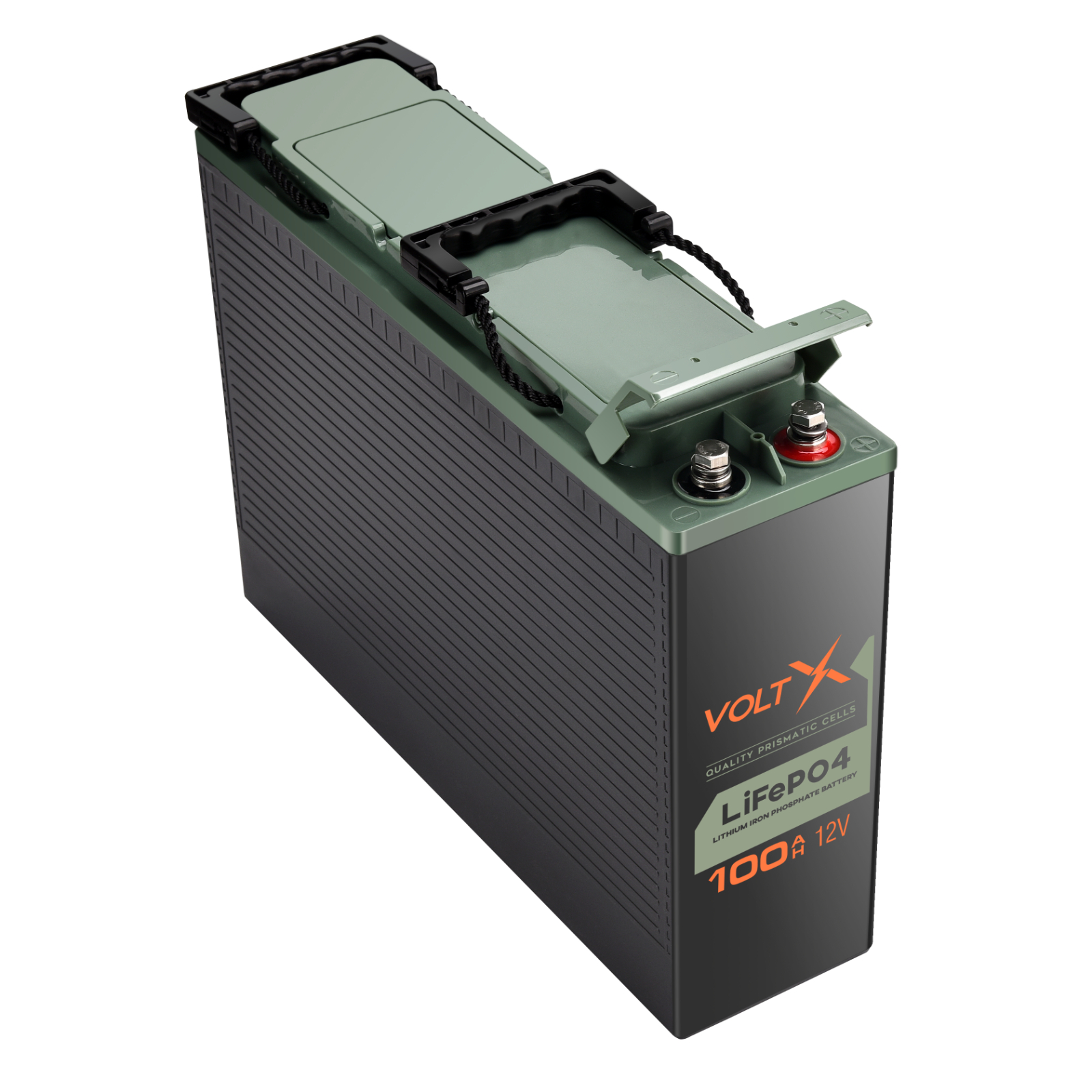

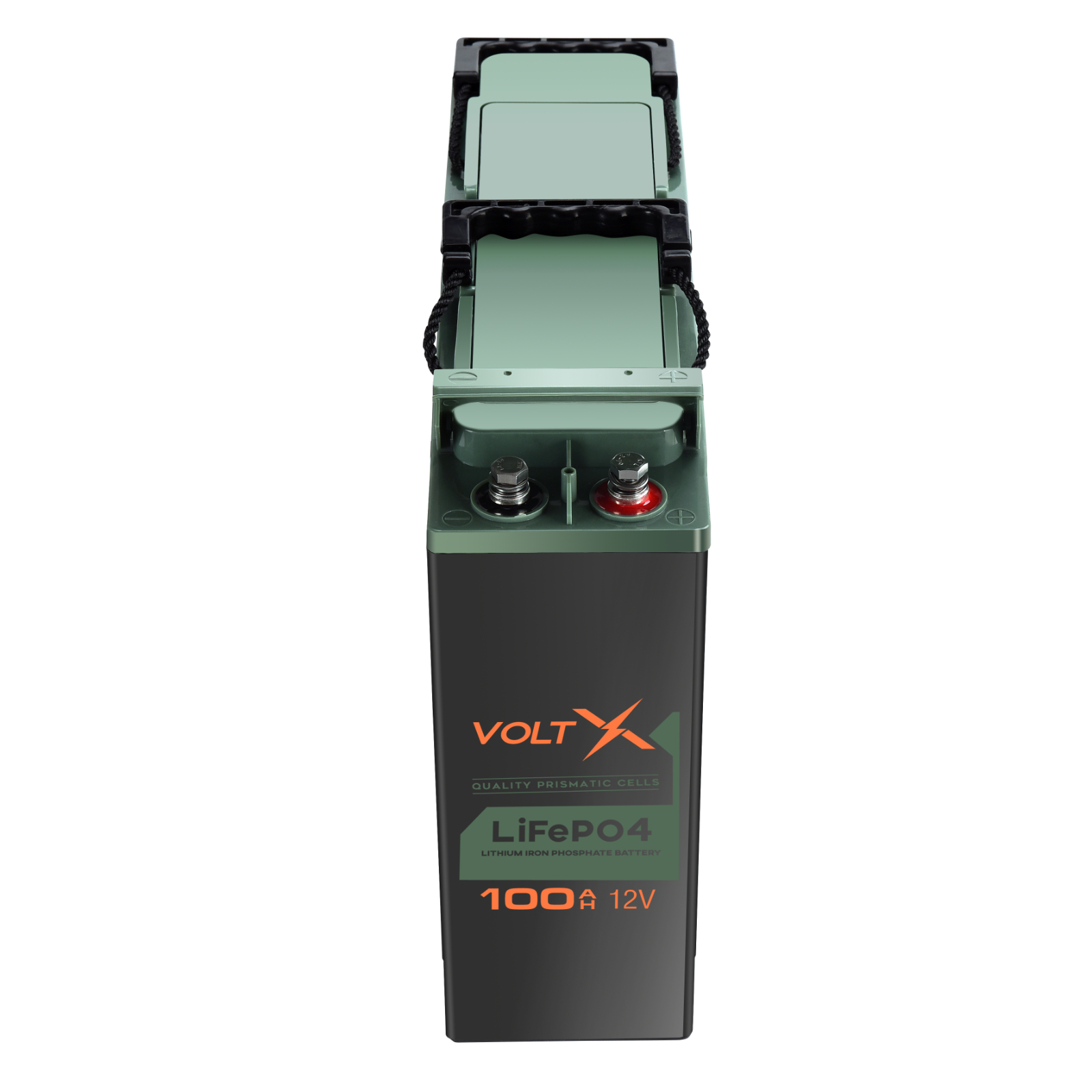

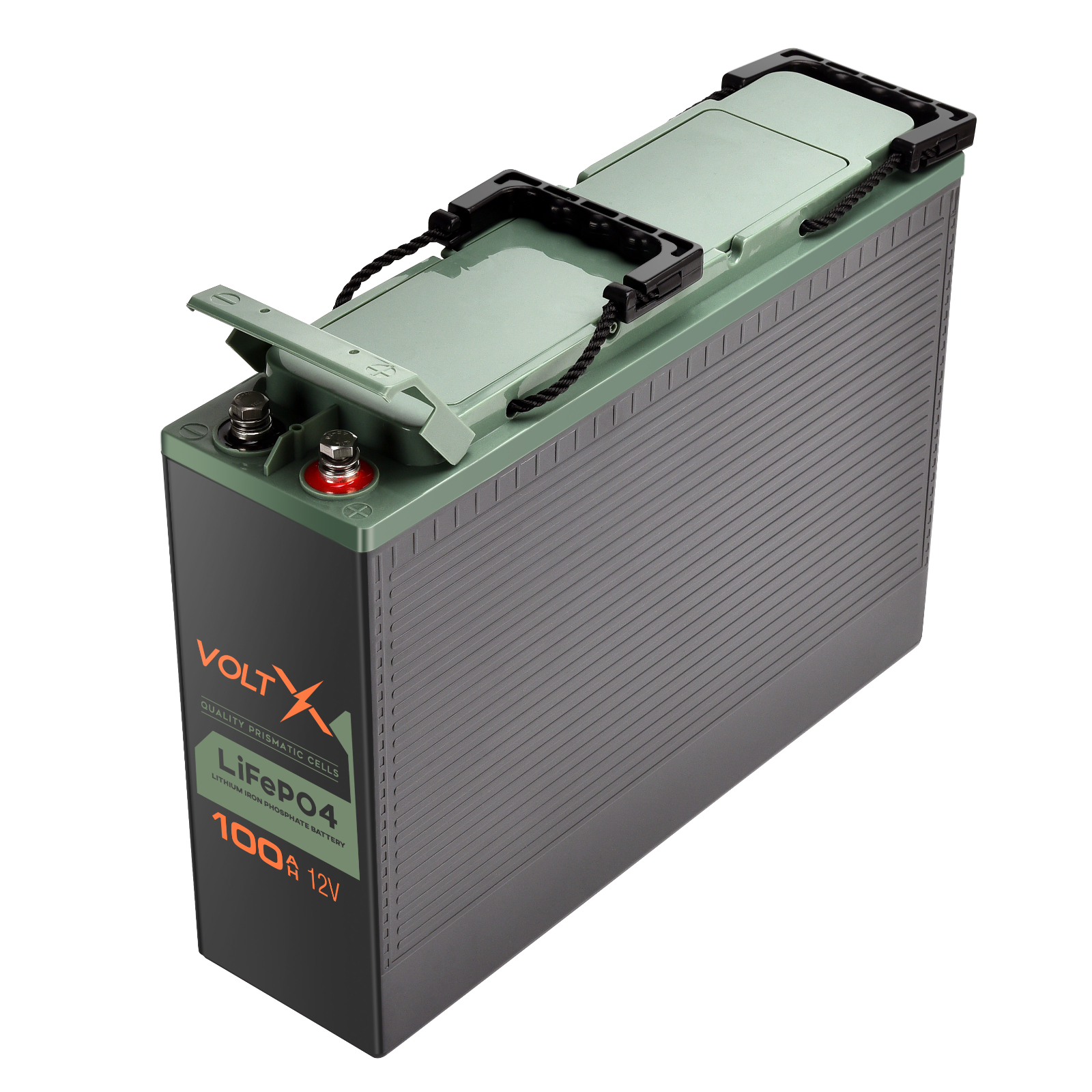

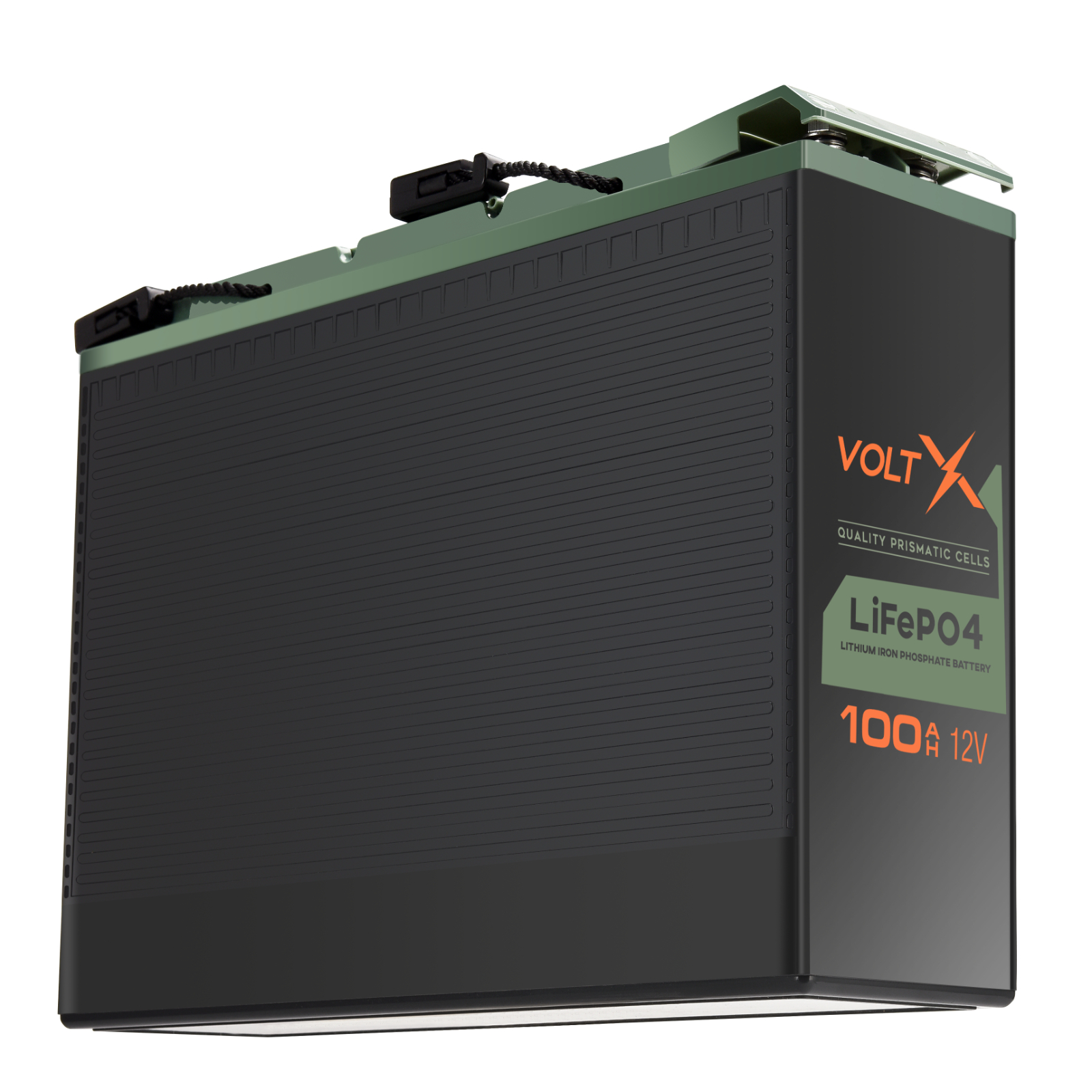

Introducing our 12V 100Ah VoltX Slim Lithium Battery. Our LiFePO4 Battery is supplied fully protected by a sophisticated specially designed lithium battery management system that constantly monitors every cell to ensure the battery is always optimized for best performance and life.

Unlike gel or lead-acid batteries, Lithuim battery is safer, lighter, and more powerful with a long service and shelf life comparing to all traditional lead acid batteries. No changing of systems, equipment or extensive re-wiring is required. You simply pull your old heavy batteries out (if your back allows it) and put the new lightweight LiFePO4 battery in. It's as easy as that.

This 12V 100Ah VoltX Slim Lithium Battery is the perfect drop-in upgrade for your existing old and heavy batteries, Invest in this sealed, maintenance-free battery for your off-grid system today!

FEATURES:

Safest lithium battery technology
Lithium iron Phosphate Battery(LiFePO4)

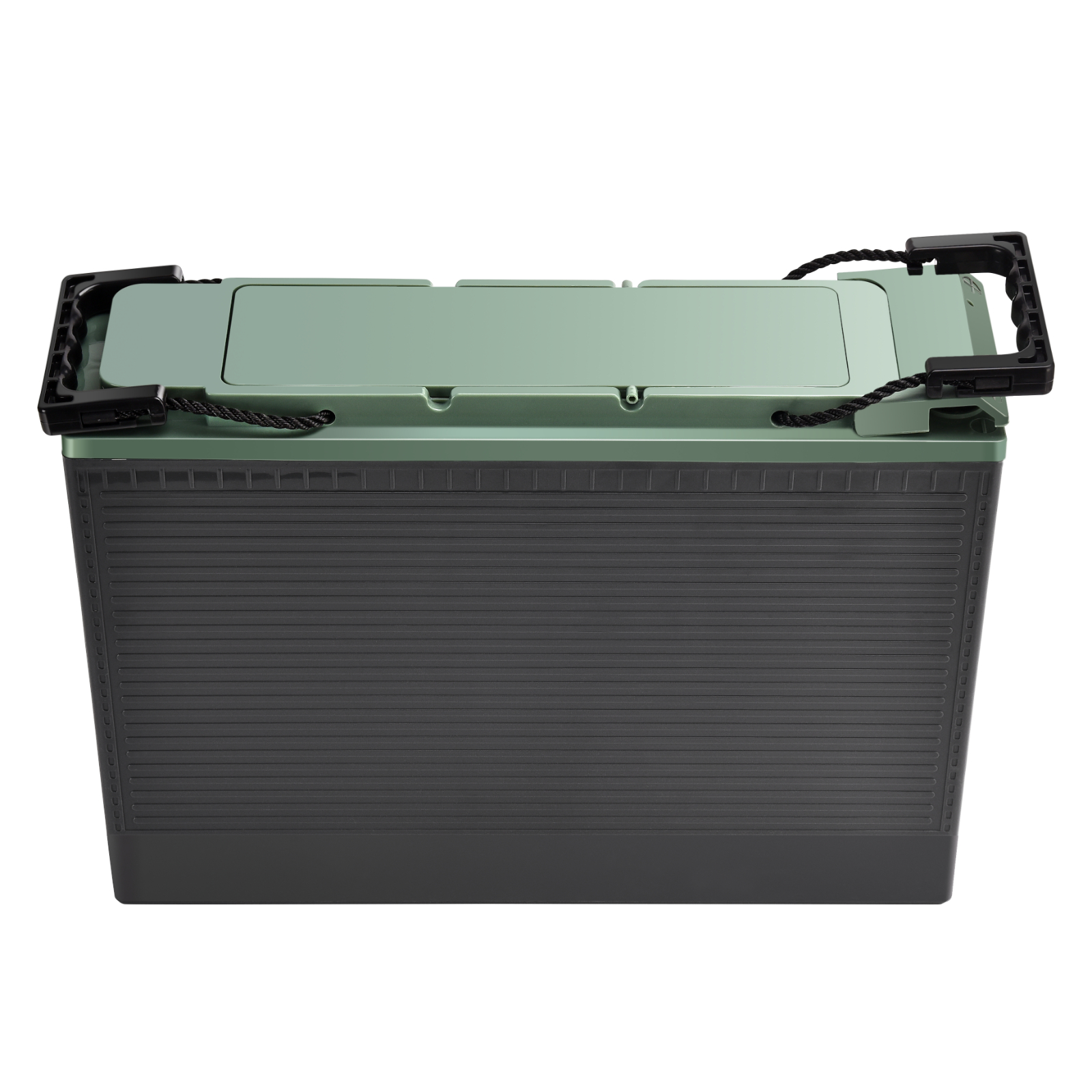

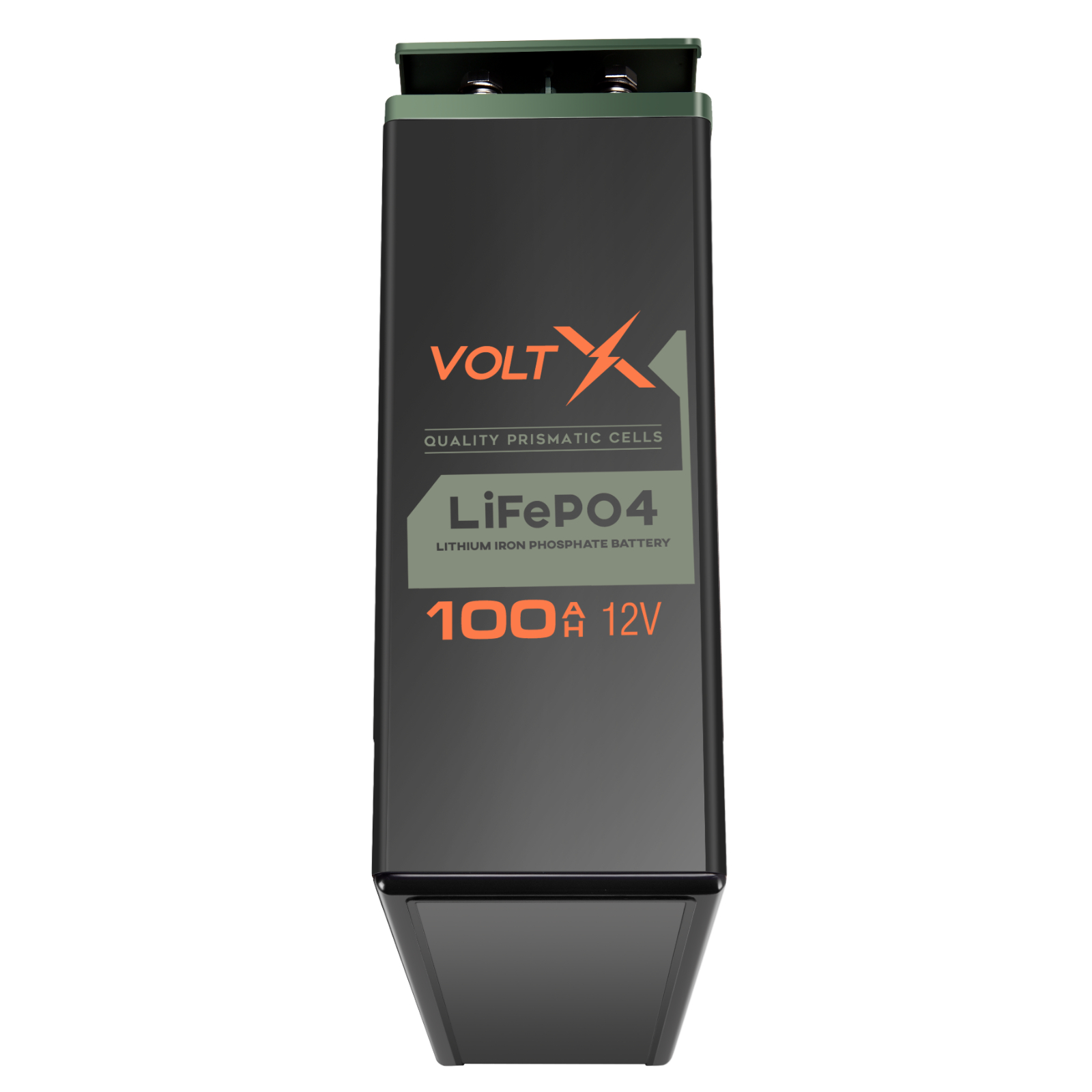

Slimline designed to fit where other batteries cant
Eco-friendly
Multiple safety protection
Intelligent balancing function
20 Years Designed service life
Best used for: Camping 4x4 and caravanning, emergency lighting equipment, fire alarm and security systems and portable power tools

IMPORTANT: While our LiFePO4 batteries are top-notch & can be wired with other batteries of its kind, it is not advisable to connect any LiFePO4 batteries in parallel or series. This poses several risks and should only be done in emergency situations. If you must wire batteries together, make sure you are familiar with the correct procedure or seek help from a professional if needed.

Suggestions From the Outbax Team

Batteries connected in series should have the same amp-hour rating while batteries in parallel bank should have the same voltage rating.
As much as possible, only connect batteries in series or parallel during emergency situations.
It's better to go for batteries with higher voltage when running high-power electrical appliances instead of wiring two battery packs together.
We have available batteries with larger discharge parameters for fast charge/discharge requirements.
Our batteries are also available in 200Ah and 300Ah for larger capacity demands.

SPECIFICATIONS

Brand	VoltX
Nominal Voltage:	12.8V
Nominal Capacity:	100Ah
Charging Voltage:	14.2-14.6v
Rated Energy:	1280Wh
Rated Discharge Current:	100A
Max. Discharge Current:	100A
Max. Discharge Current 5 sec:	200A
Approx Life Cycles:	4000
Absorption Voltage:	13.8V
Float Voltage:	13.5V
Overcharge Protection:	14.6V
Overcharge Recovery:	14.2V
Overdischarge Protection:	11.2V
Overdischarge Recovery:	11.6V
Cell Grouping:	4S1P
Working Temperature Range:	Charge: 0°C to 45°C \| Discharge: -25°C to 65°C
Storage Temperature:	-10℃ to 50℃
Battery Cells:	Prismatic
Case Material:	ABS Plastic
Parallel Connection:	Yes, max 6 batteries
Series Connection:	Yes, max 6 batteries
Warranty in Years:	3

DIMENSIONS & WEIGHT

Dimensions:	395(L) x 110(W) x 297(H)mm
Weight:	12kgs

WHAT'S IN THE BOX

1 x	Lithium Battery

SKU:

bat-li-12-100a-slim-plus

Best battery

Purchased as s second battery for my car, compact enough to fit in rear compartment, perfect. Couldn't be happier with service and quality

Thank you for trusting us with your second battery requirement, Rank 1. Cheers!

Batterys

This is my 4th battery from outbax and like the other 3, which have worked floorless for 3 years, and are still going strong in our set up.

Thank you for continuously trusting us with your LIFEPO4 battery purchases, bj4explore. We hope to see you again. Cheers!

Suits behind back seat in Ranger perfectly

Only had it a short time and all seems good so far Replaced a 200ah agm slim line battery weighing 60kg with 10kg for almost the same usage capacity

Thank you for trusting us with your battery purchase, Ian. Cheers!

100 amp hr Lithium Slim Battery $749

Ordered online and battery arrived 3 days later well protected in its packaging. Well done.

The BMS panel is a welcome and very useful addition.

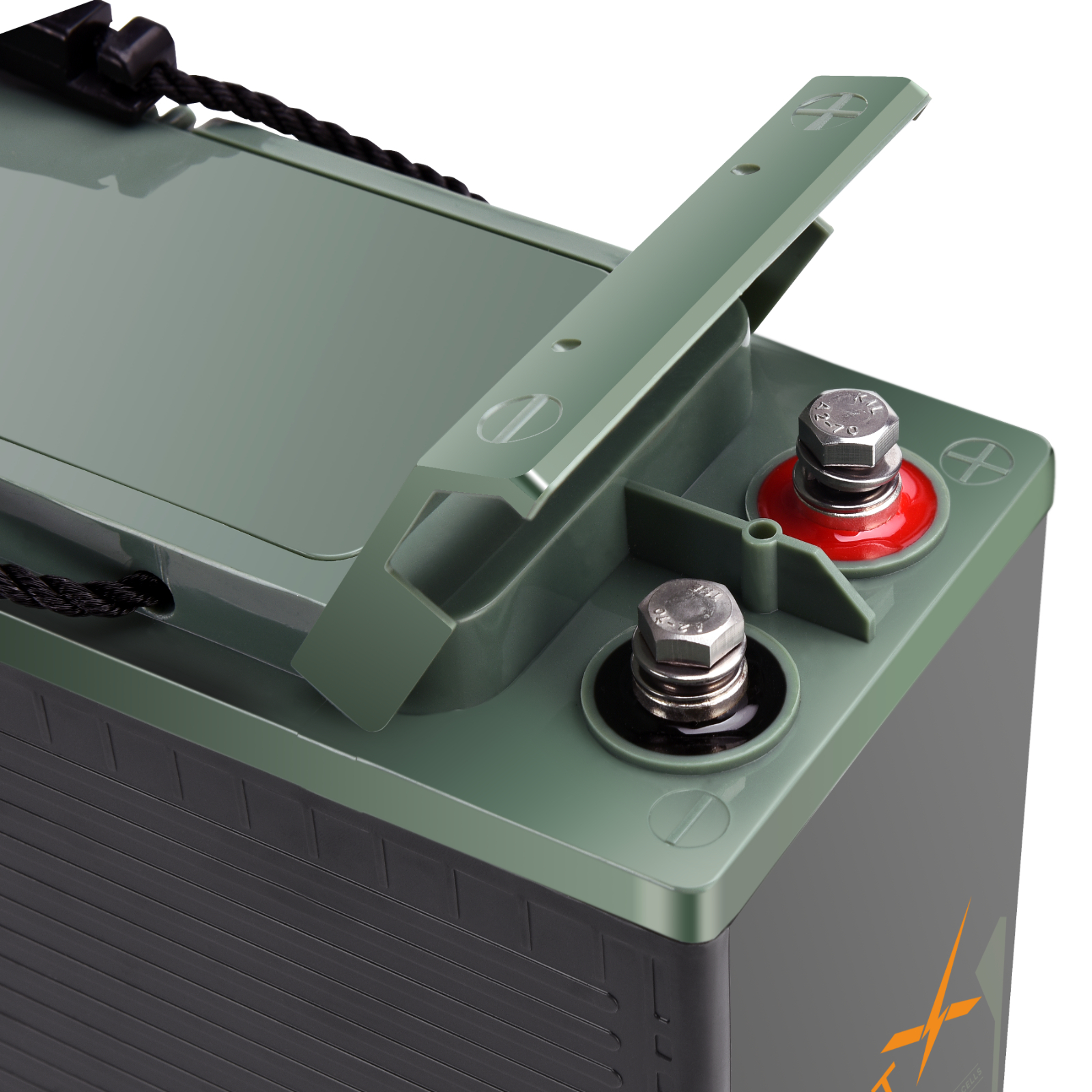

My only issue is the terminals. With the supplied bolts you can only attach 2 wires to each terminal until you run out of bolt length. Fitting longer bolts is not an option as the terminal cover (another useful addition) will no longer engage with the locking pin.

I have managed a work around but would have preferred not to.

Overall a good product with one oversight in its design.

Thank you for evaluating the product, Outback Nomad. We hear you and will share your input with the Team for battery design improvements. Stay Safe.

What cables should I use to connect the batteries in series or parallel?

The specifications of the selected cables are determined according to the actual charging and discharging current. The overcurrent value varies from different cables. For example, the cross-sectional area of the conductor is 10mm2, and the cable can pass 50A current. The cross-sectional area of the conductor is 25mm2, and the cable can pass 100A current, etc.

How do I maintain the life cycle of battery?

1. Lithium batteries that have not been used for a long time should be stored in a cool and dry place. It's best to store them in a semi-electric state. Storage without any power will also damage the battery. Check the battery every 3 months to see if it needs to be recharged. 2. Lithium batteries should be charged while they are in use, but it should be noted that lithium batteries cannot be over-discharged, which will cause irreversible capacity loss. Don't wait to charge the battery until there is no power at all. The best time to charge is when the power state of the battery is less than 10%. 3. Do not mix the lithium battery with metal objects to avoid metal objects touching the positive and negative poles of the battery. This could result in short circuiting, damage to the battery and even cause danger. 4. Use a regular compatible lithium battery charger to charge the battery. Do not use a charger with inferior quality or other types of lead-acid battery chargers to charge the lithium battery.

Do I need a battery balancer when running in series to 48V?

A battery balancer can better protect the battery and maintain voltage balance, so it's a good choice.

Can you please confirm if this is a deep cycle battery?

Yes, this is a deep cycle battery.
