VoltX 24V 100Ah Pro LiFePO4 Battery

$1,349.00 $1,799.00
Tax included

60 Days
Return

60 Months
Warranty

100% Secured
Payment & Data


Selling fast Selling fast. Hurry and order now to save 25%

PRODUCT HIGHLIGHTS

GRAND BATTERY SALE
PLUS a further 15% off using code BATTERY15
Pay only $1,146.65  Hurry! Promo ends 03/06/24 11:59 PM AEST.

  • 5 Years Australian Warranty
  • Rated Capacity 100Ah
  • 24V Volts
  • 522 x 238 x 223mm
  • 19.5kg
  • Approved in accordance with IEC 62619
Shipping Calculator

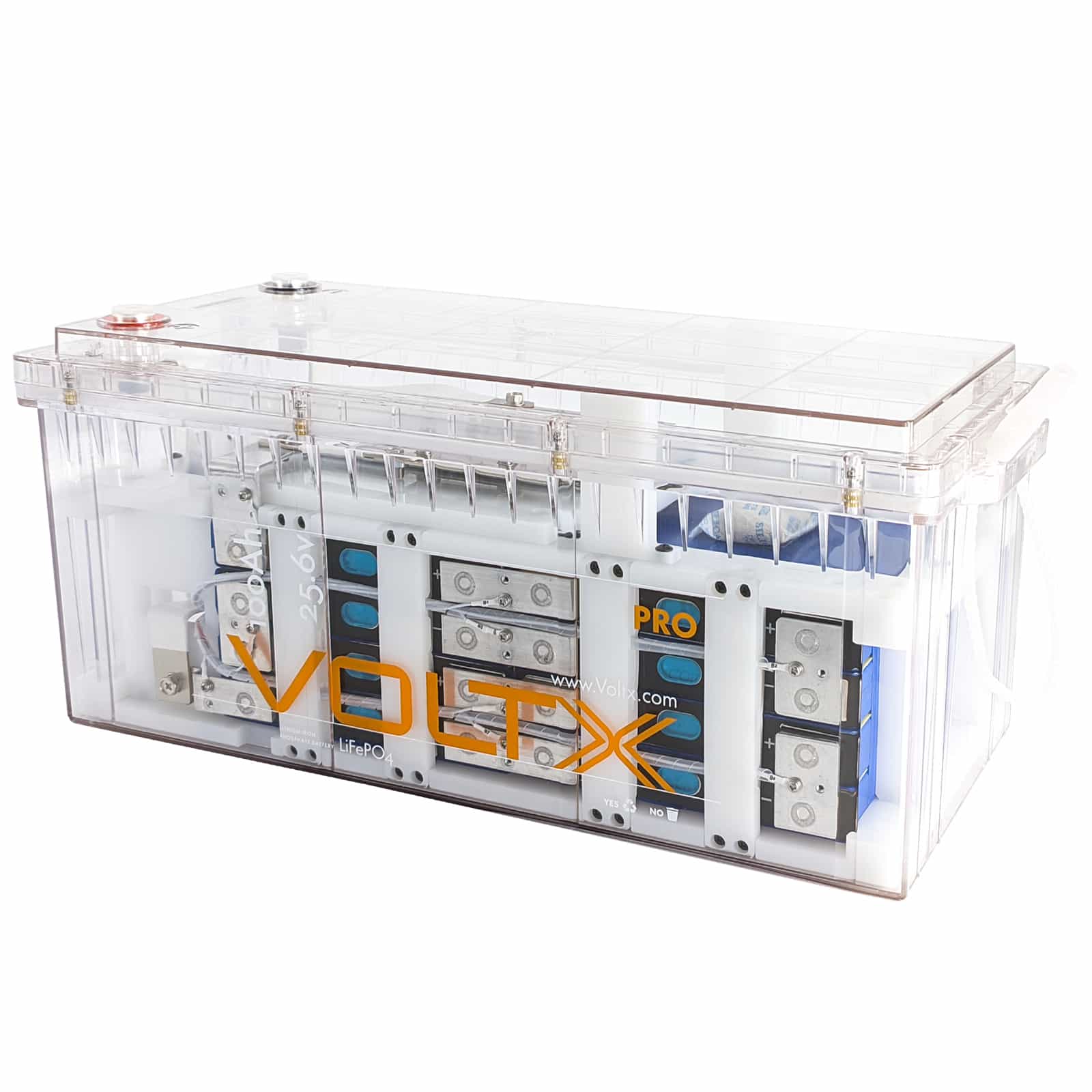

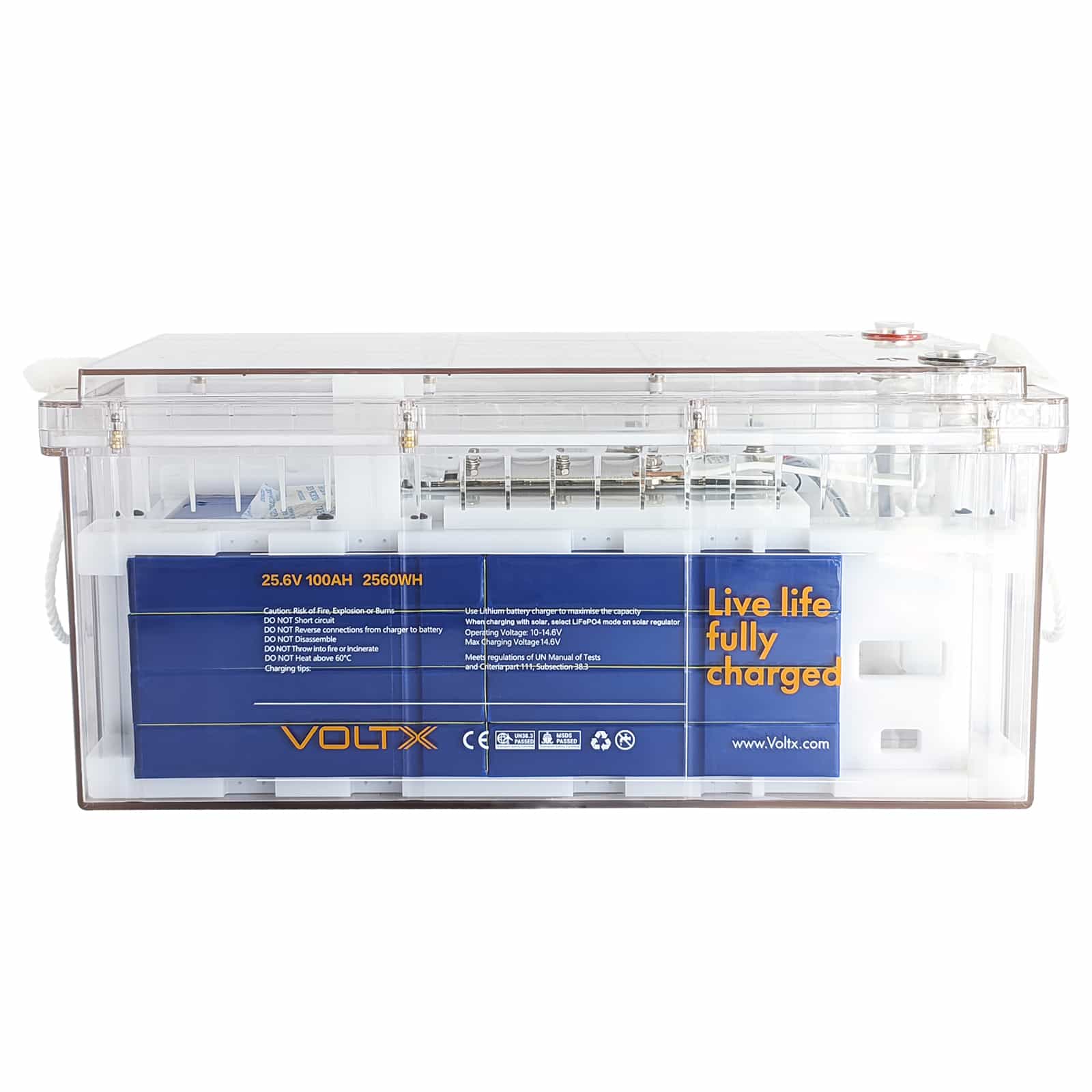

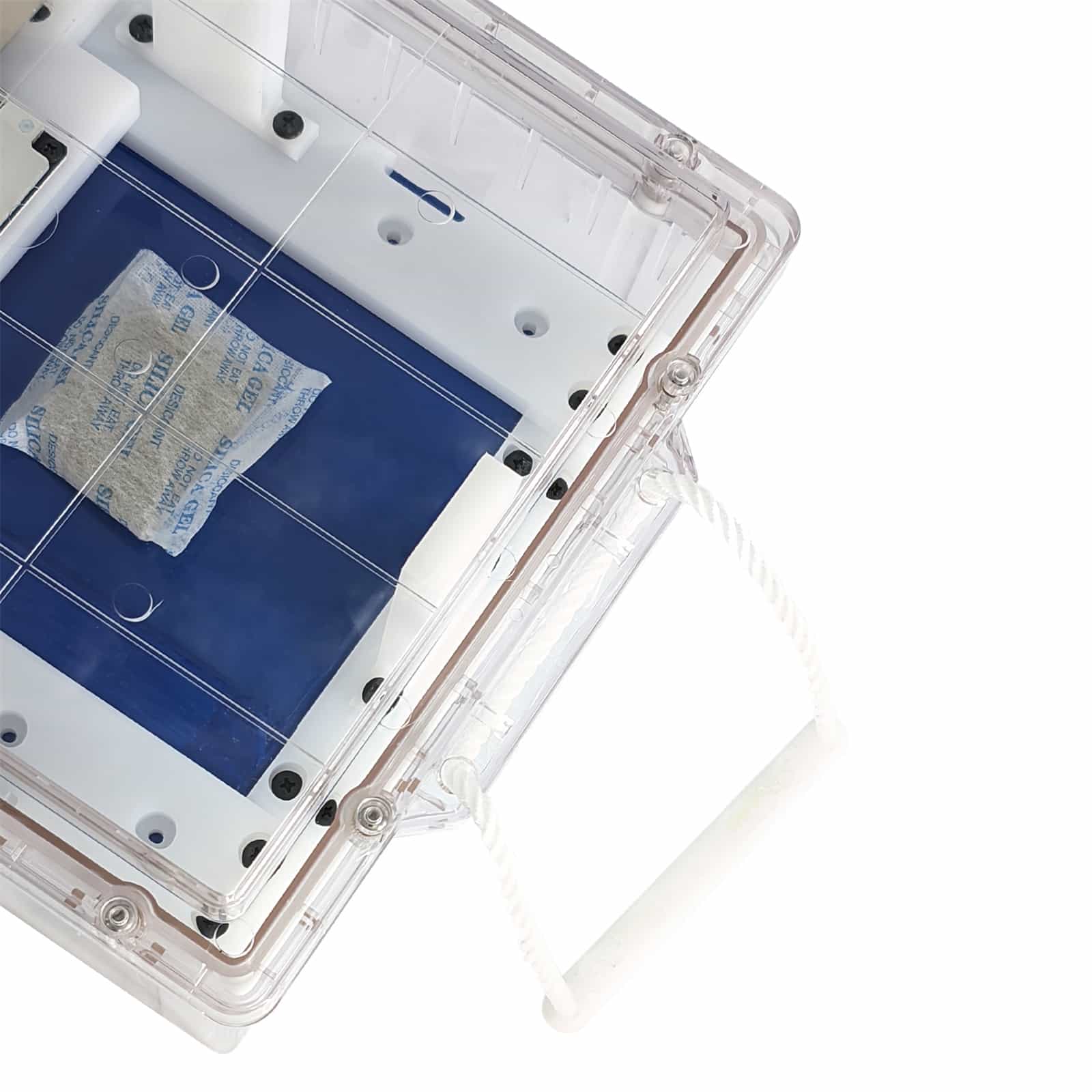

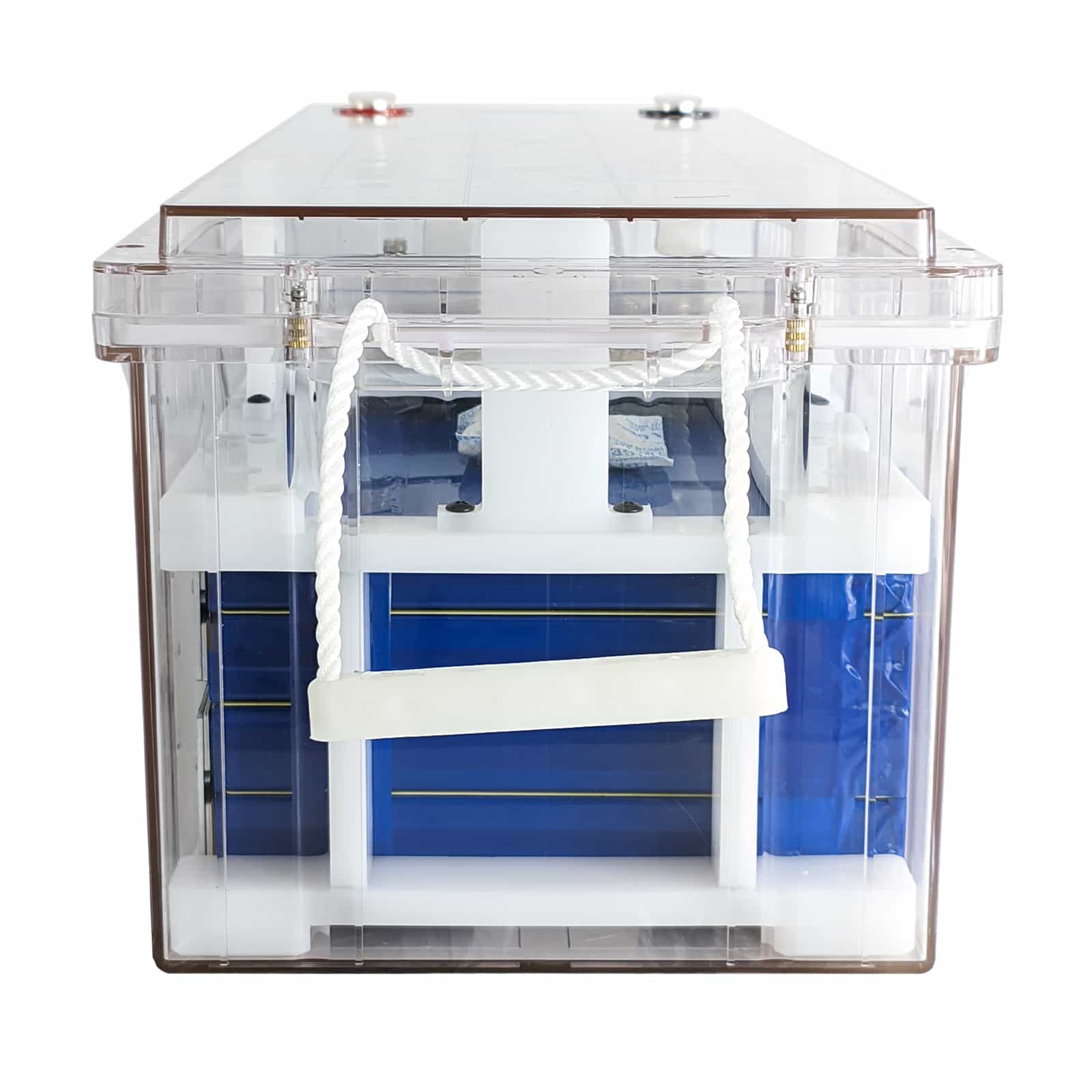

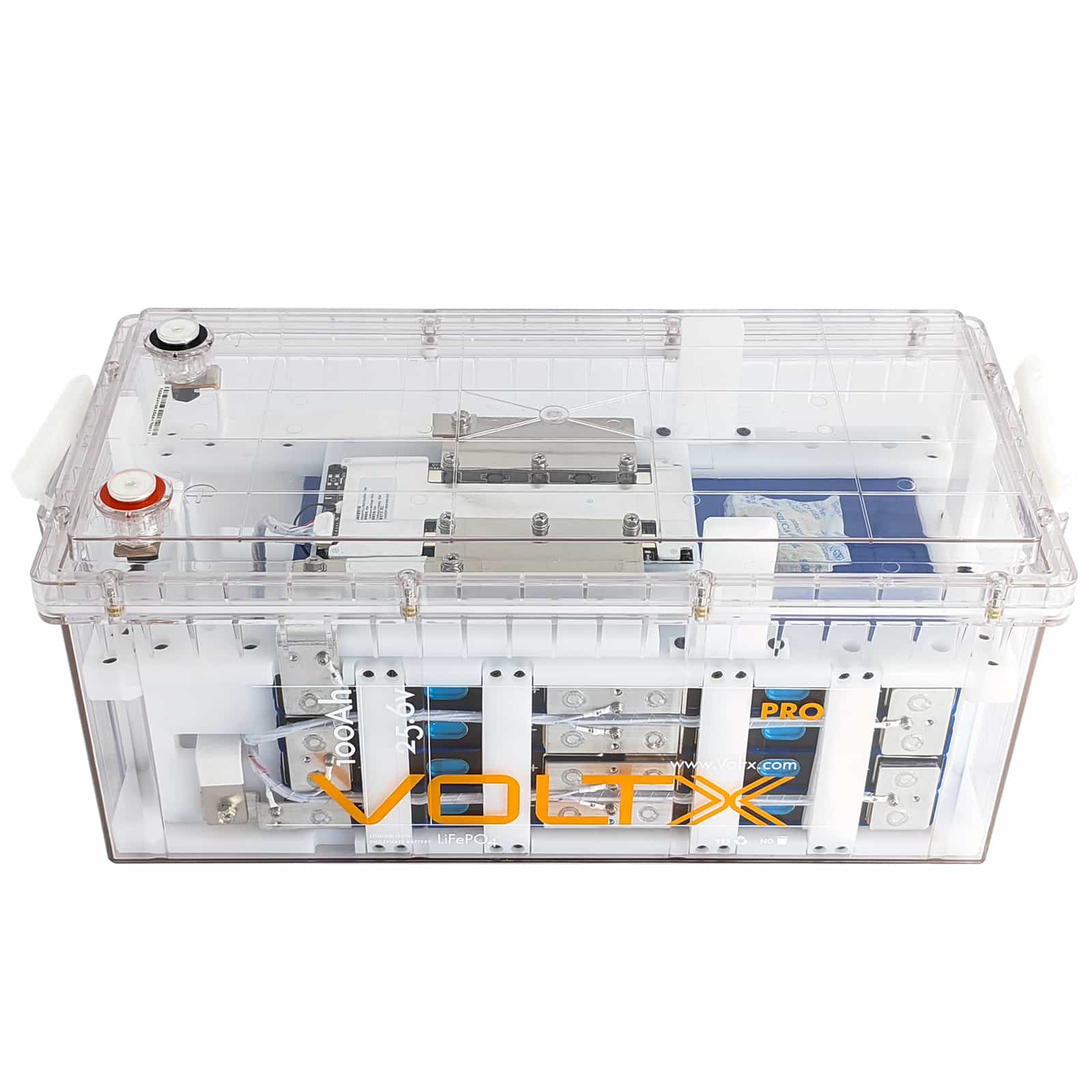

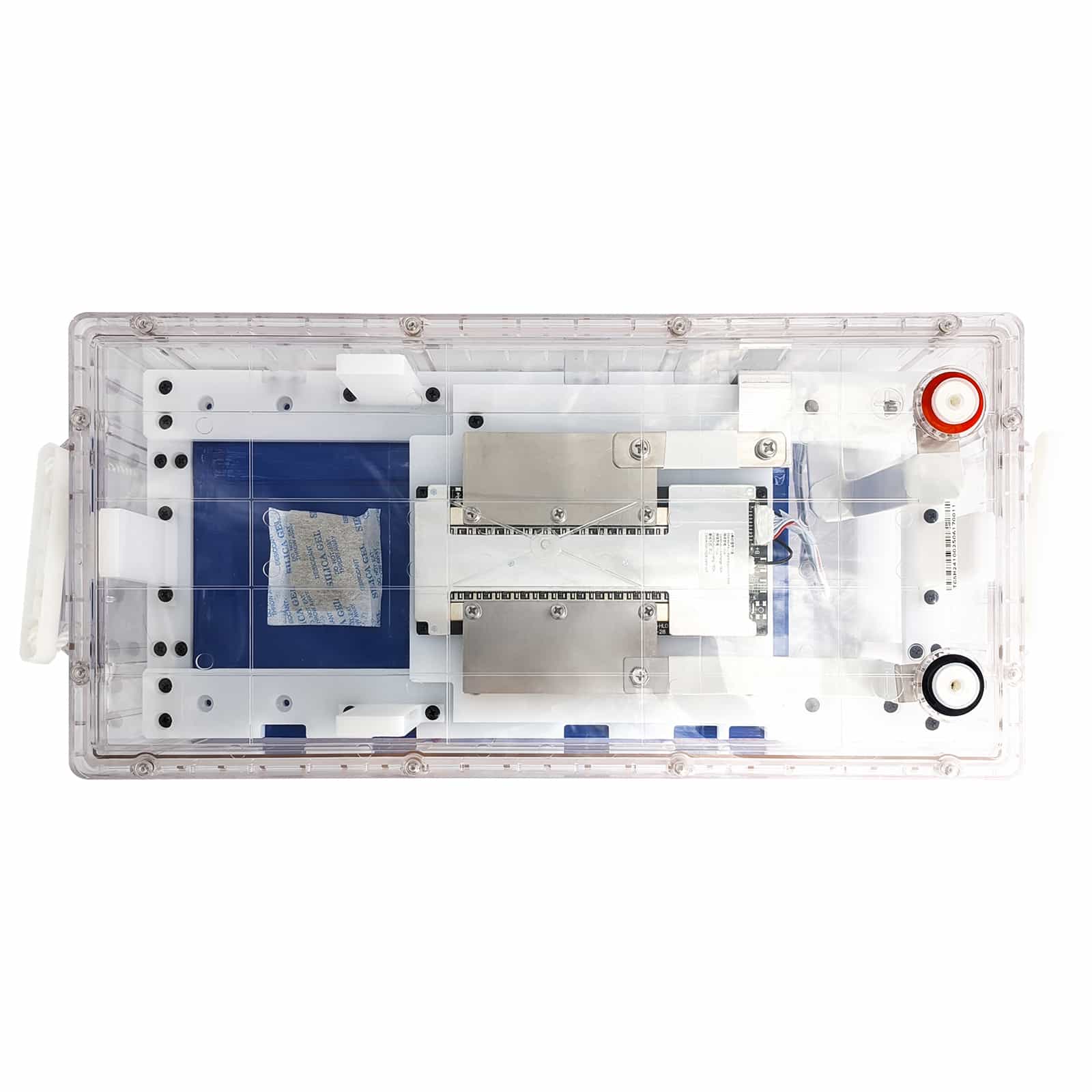

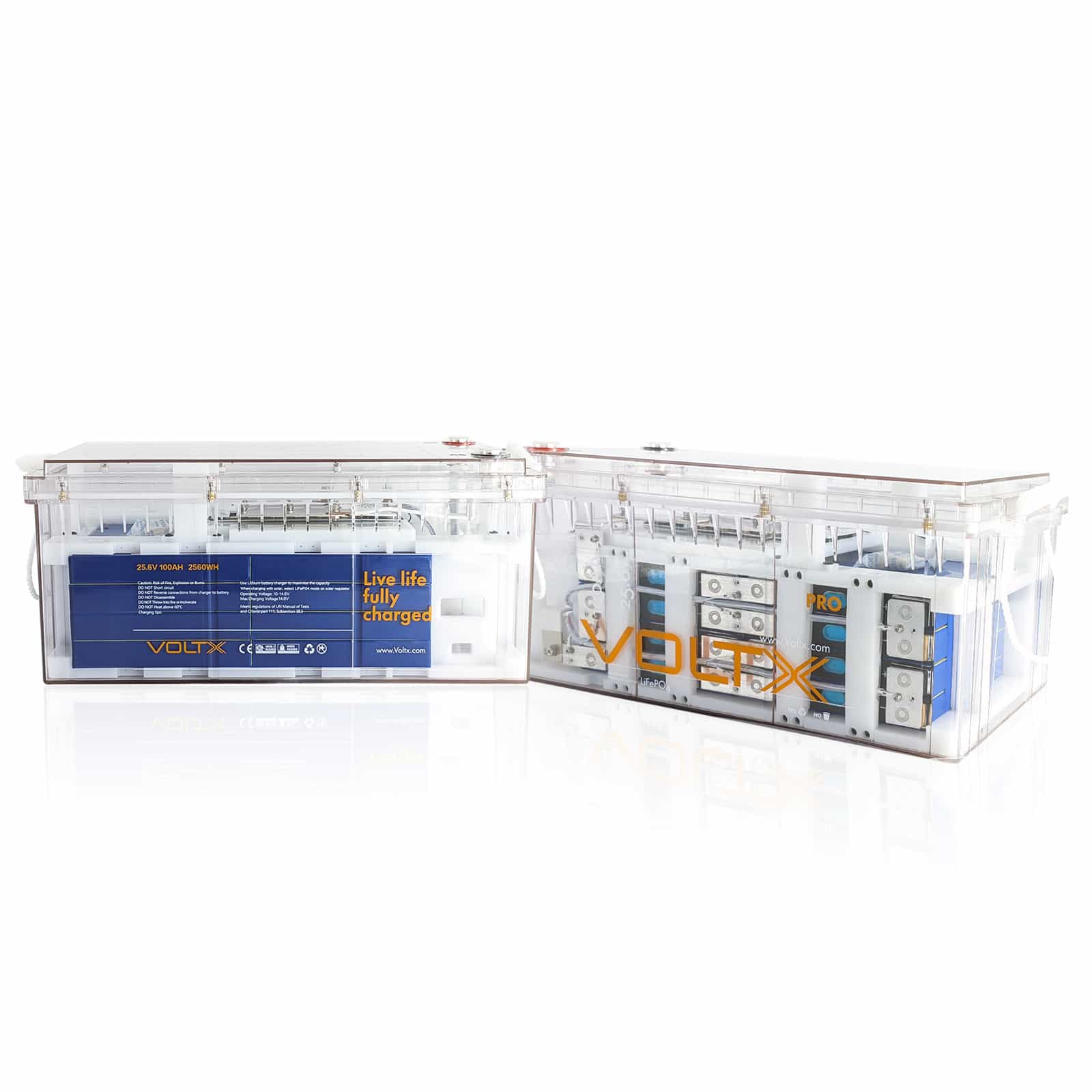

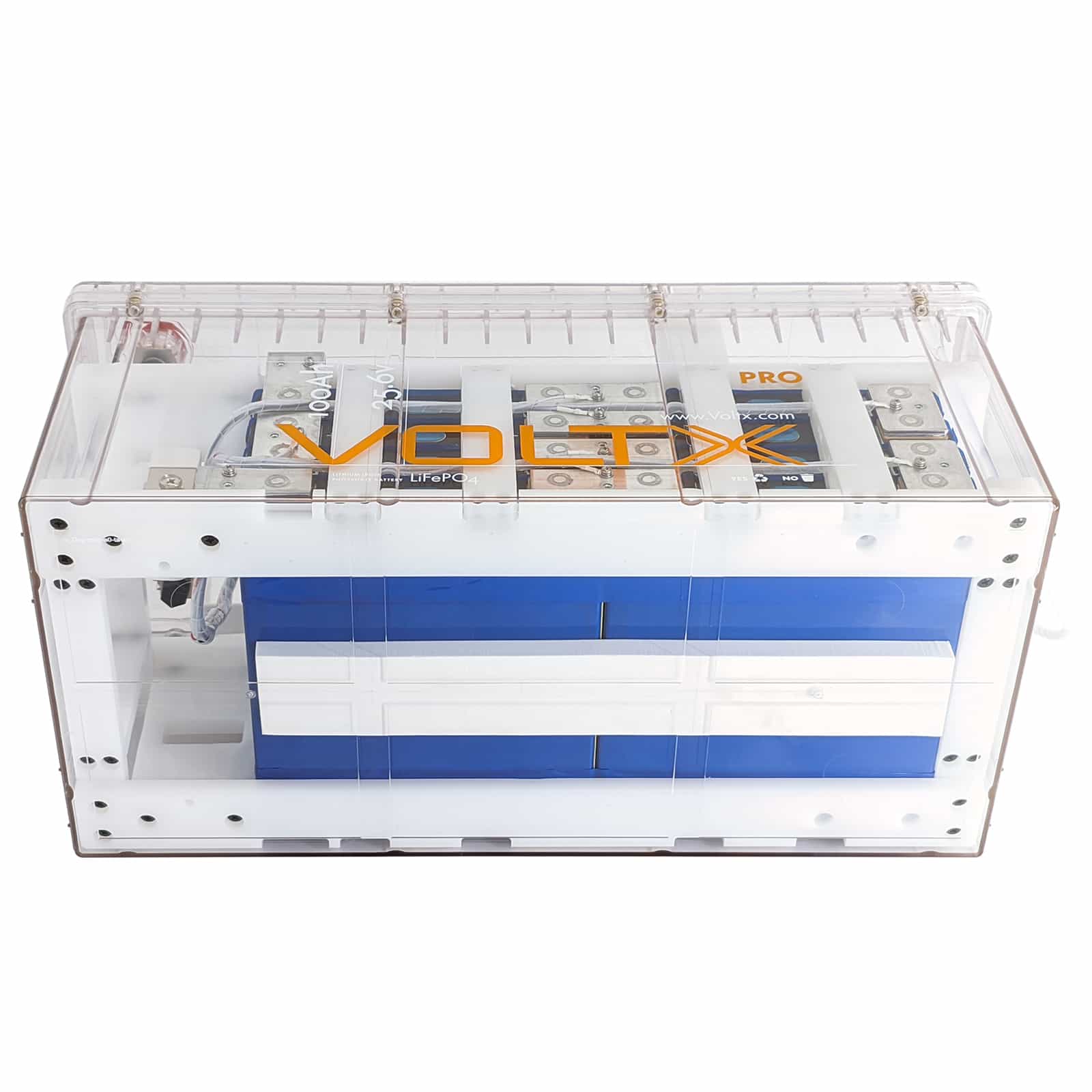

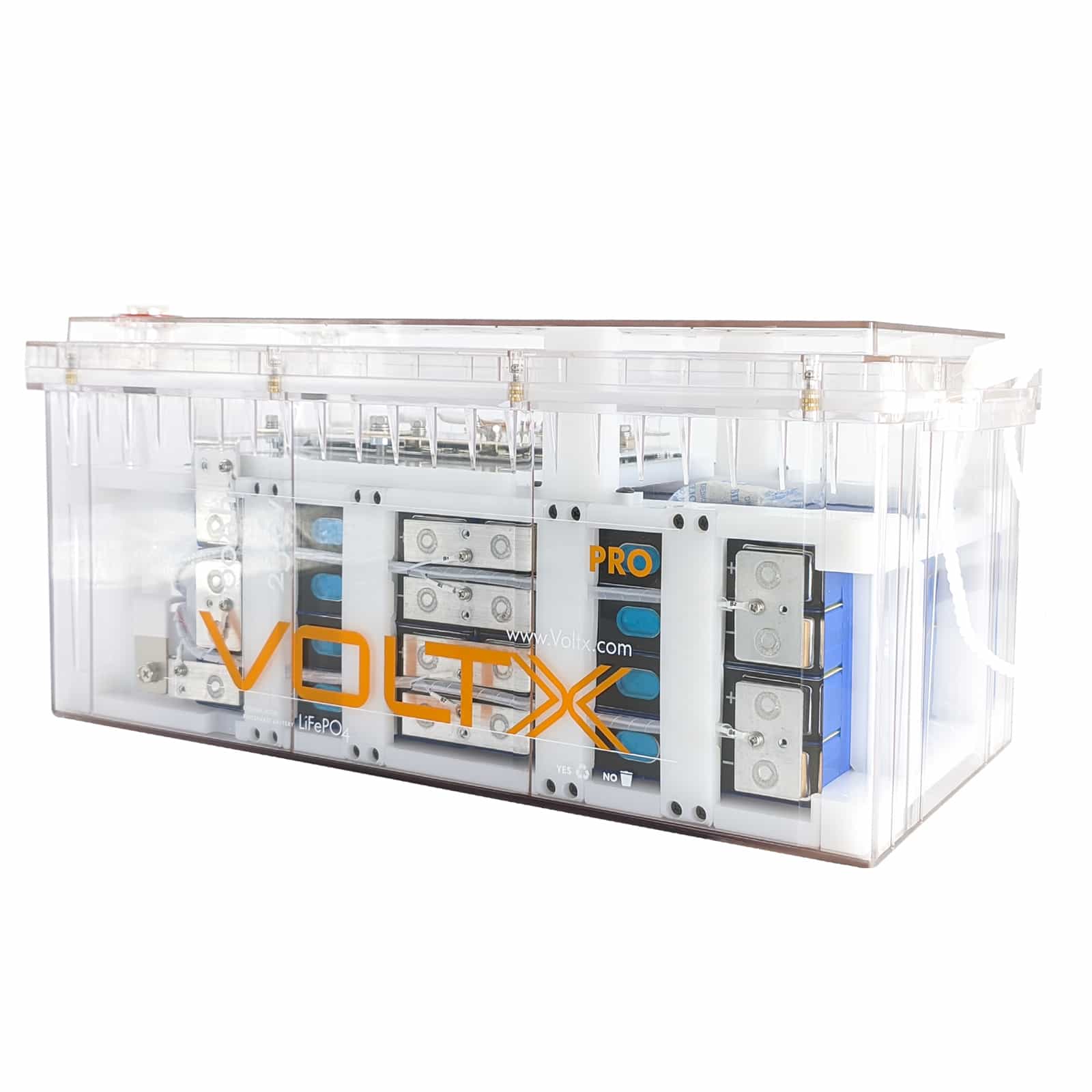

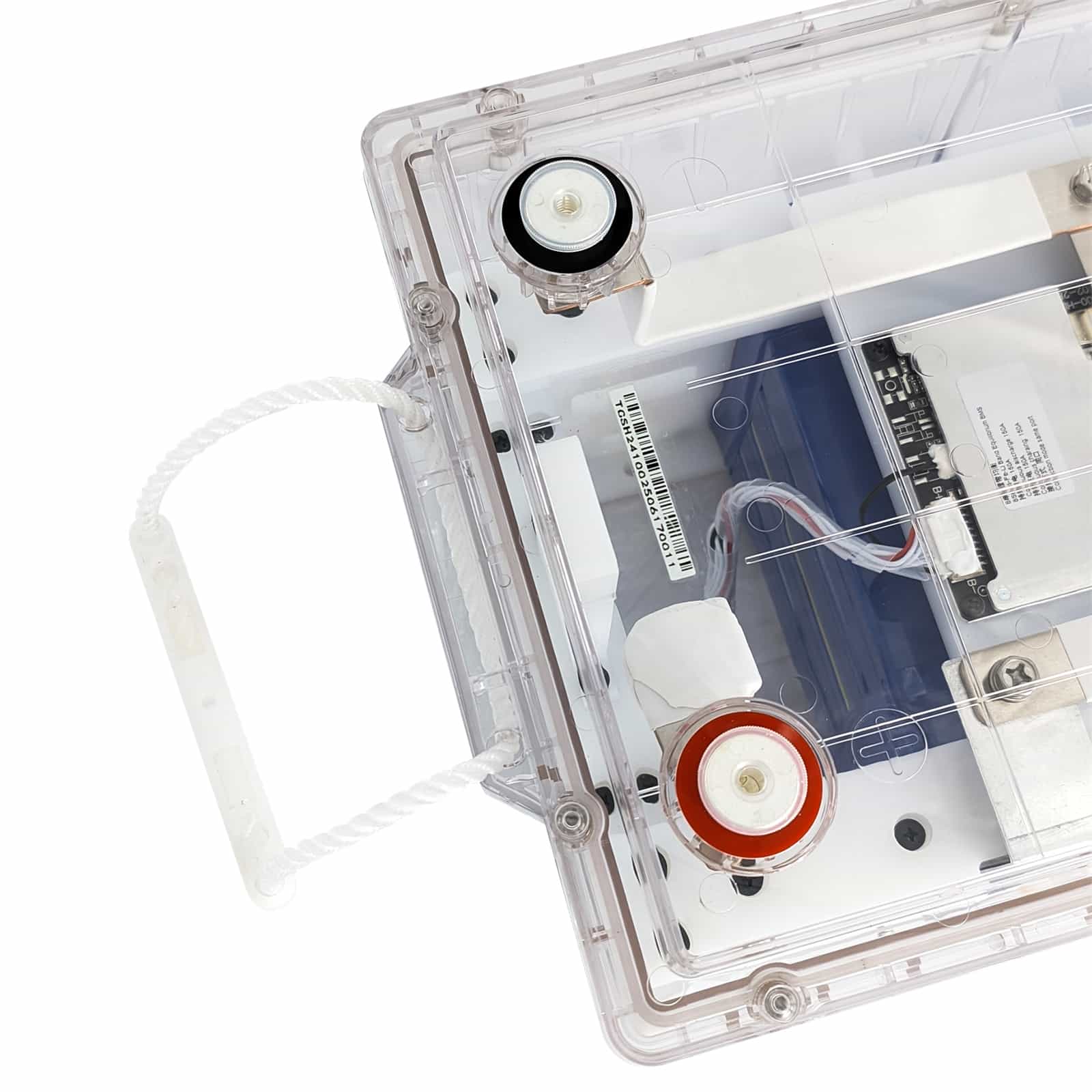

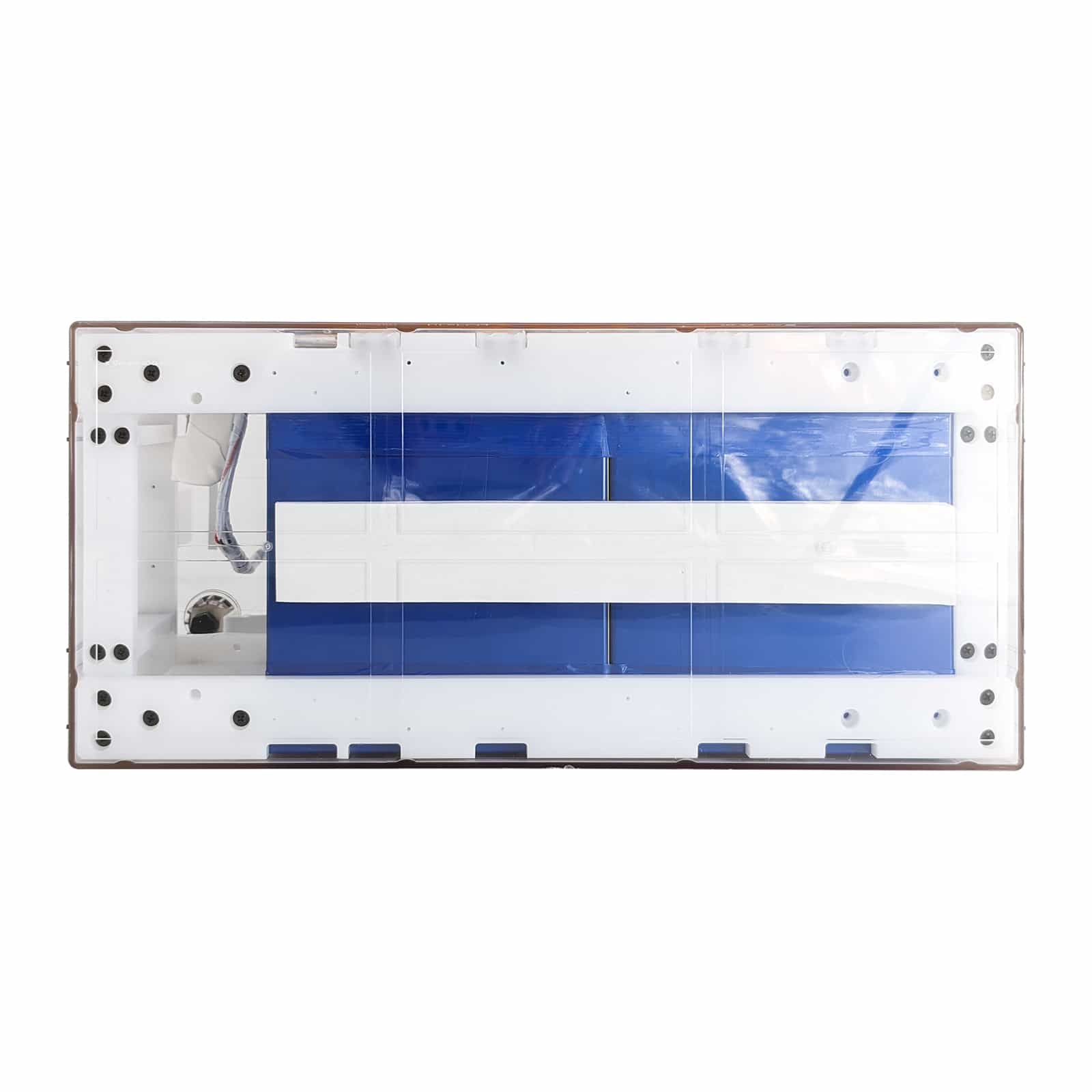

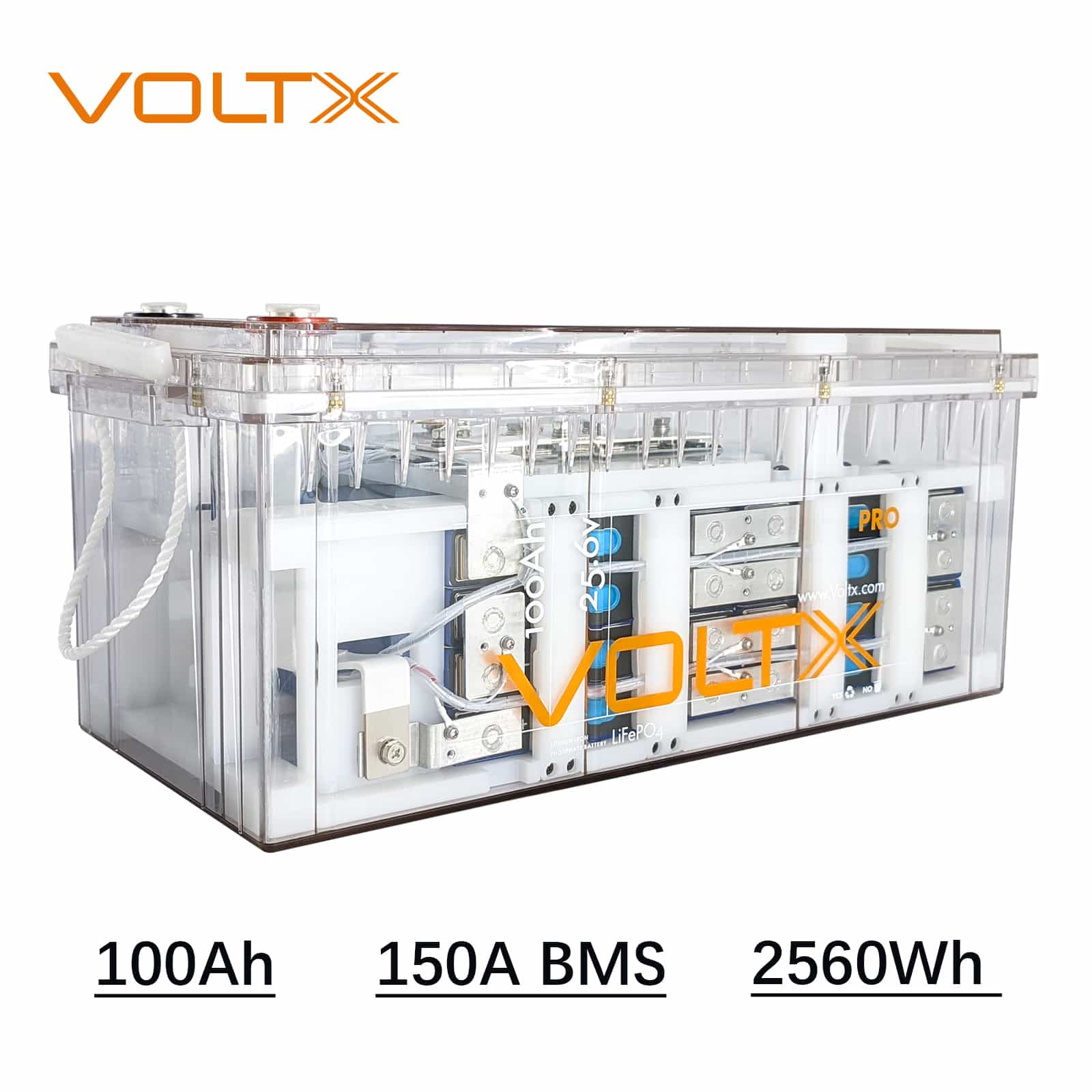

Make way for our clear-case battery! This VoltX 24V 100Ah Lithium Battery LiFePO4 allows you to easily see its premium built from the BMS down to the wirings. Built for the Aussie outdoors, it can withstand harsh elements such as rough terrains and extreme weather conditions all while running your essential appliances smoothly.

All our battery packs are comprised of prismatic cells & are backed with LiFePO4's signature built-in BMS. They are also tested to deliver 100% real capacity and are suitable for 6 parallel and 3 series.

IMPORTANT: While some of our LiFePO4 batteries are top-notch & can be wired with other batteries of its kind, it is not advisable to connect any LiFePO4 batteries in parallel or series. This poses several risks and should only be done in emergency situations. If you must wire batteries together, make sure you are familiar with the correct procedure or seek help from a professional if needed.

Suggestions From the Outbax Team:

  • Batteries connected in series should have the same amp-hour rating while batteries in parallel bank should have the same voltage rating.
  • As much as possible, only connect batteries in series or parallel during emergency situations.
  • It's better to go for batteries with higher voltage when running high-power electrical appliances instead of wiring two battery packs together.
  • We have available batteries with larger discharge parameters for fast charge/discharge requirements.
  • Our batteries are also available in 200Ah and 300Ah for larger capacity demands.

VoltX 24V 100Ah Lithium LiFePO4 Battery VoltX 24V 100Ah Lithium LiFePO4 Battery VoltX 24V 100Ah Lithium LiFePO4 Battery VoltX 24V 100Ah Lithium LiFePO4 Battery VoltX 24V 100Ah Lithium LiFePO4 Battery VoltX 24V 100Ah Lithium LiFePO4 Battery VoltX 24V 100Ah Lithium LiFePO4 Battery VoltX 24V 100Ah Lithium LiFePO4 Battery VoltX 24V 100Ah Lithium LiFePO4 Battery VoltX 24V 100Ah Lithium LiFePO4 Battery

Safe & Secure

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

VoltX 24V 100Ah Pro LiFePO4 Battery

$1,349.00 $1,799.00

SPECIFICATIONS

Brand VoltX
Nominal Voltage: 25.6V
Nominal Capacity: 100Ah
Charging Voltage: 28.4-29.2V
Rated Energy: 2560Wh
Rated Discharge Current: 150A
Max. Discharge Current: 200A
Max. Discharge Current 5 sec: 450A
Approx Life Cycles: 4000
Absorption Voltage: 28.8V
Float Voltage: 27.2V
Overcharge Protection: 29.2V
Overcharge Recovery: 28.4V
Overdischarge Protection: 20.0V
Overdischarge Recovery: 21.2V
Cell Grouping: 8S1P
Working Temperature Range: Charge: 0°C to 45°C | Discharge: -25°C to 65°C
Storage Temperature: -10℃ to 50℃
Battery Cells: Prismatic
Case Material: ABS Plastic
Parallel Connection: Yes, max 6 batteries
Series Connection: Yes, max 3 batteries
Warranty in Years: 5

DIMENSIONS & WEIGHT

Dimensions: 522(L) x 238(W) x 223(H)mm
Weight: 19.5kgs

WHAT'S IN THE BOX

1 x Lithium Battery
