Product highlights

LOWEST PRICE!
WAS $499 NOW $349
Plus FREE SHIPPING to most areas!

  • Super light – only 7.8kgs
  • Revolutionary shingled solar cell technology
  • Advanced management system equals more power output
  • Equipped with Type-C interface
  • Multiple USB ports
  • Monocystalline Grade A solar cells

POSTAGE CALCULATOR

Have a question? Ask our experts!

Product Details

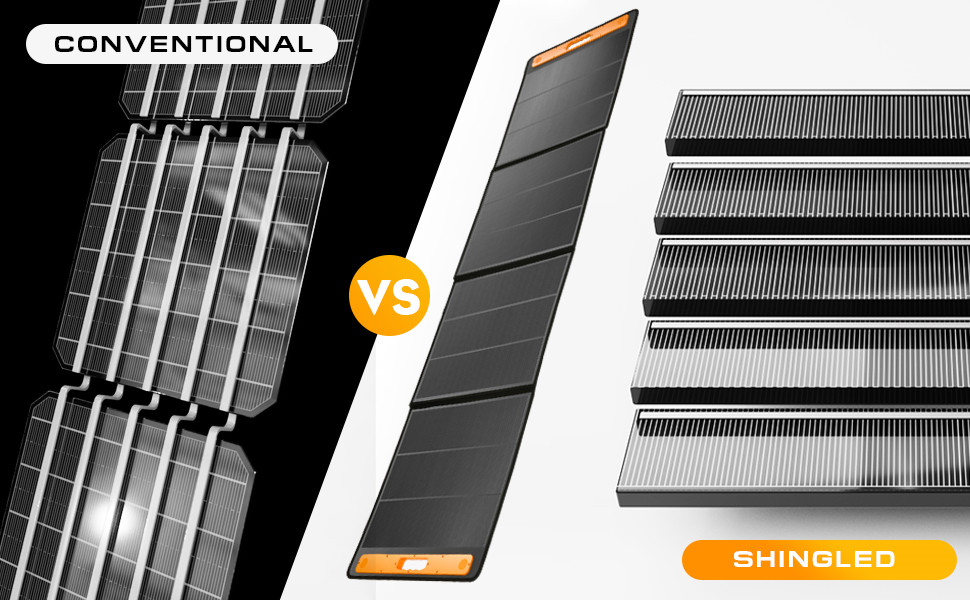

The NEW shingled solar module is a significant breakthrough in module innovation. A high efficiency configuration for a solar cell module comprises solar cells arranged in a shingled manner to form super cells, which may be arranged to efficiently use the area of the solar module, reduce series resistance, and increase module efficiency. Shingled solar module boost efficiency and reliability-but reduce BOS cost at the same time, providing an elegant solution that improves both efficiency and aesthetics.

MAX100 MAX100 MAX100 MAX100
Maximum Power 160W 240W 200W 300W
Max Power Voltage 20.00V 20.00V 18.70V 19.80V
Max Power Current 8.00A 12.00A 10.70A 15.15A
Maximum System Voltage 1000V 100V 100V 100V
Solar Cell Mono
crystalline
Grade A
Mono
crystalline
Grade A
Mono
crystalline
Grade A
Mono
crystalline
Grade A

Technical specs

SPECIFICATIONS

Maximum Power: 200W
Maximum Power Voltage: 18.70V
Maximum Power Current: 10.70A
Maximum System Voltage: 100V
Power Tolerance: ﹢3%
Solar Cell: Monocrystalline Grade A
Temperature Range: -20°C to 65°C
IP Rating: ≥IP65
Material: PET + EVA + EVA + Shingled module cell + EVA + PCB Backboard + EVA + Cloth
Tie Down Points: No
Cable details: 2.5 square copper core wire 2 meters long, + XT60 interface
20A controller black without USB
Warranty: 5 Years

DIMENSIONS & WEIGHT

Dimensions (Open): 2260*565*25mm
Dimensions (Folded): 595*565*50mm
Weight: 7.8 kgs

WHAT'S IN THE BOX

1 x 200W Premium Folding Solar Panel
1 x Regulator

SKU

spw-ssm-mat-200
